Home » Ball Valves » Apollo Valves » 77CLF20901A - 2-1/2" 2 Piece Full Port Bronze Ball Valve, Lead-Free, Sweat x Sweat
Apollo Valves

77CLF20901A - 2-1/2" 2 Piece Full Port Bronze Ball Valve, Lead-Free, Sweat x Sweat

In stock
SKU: 77CLF20901A
$119.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

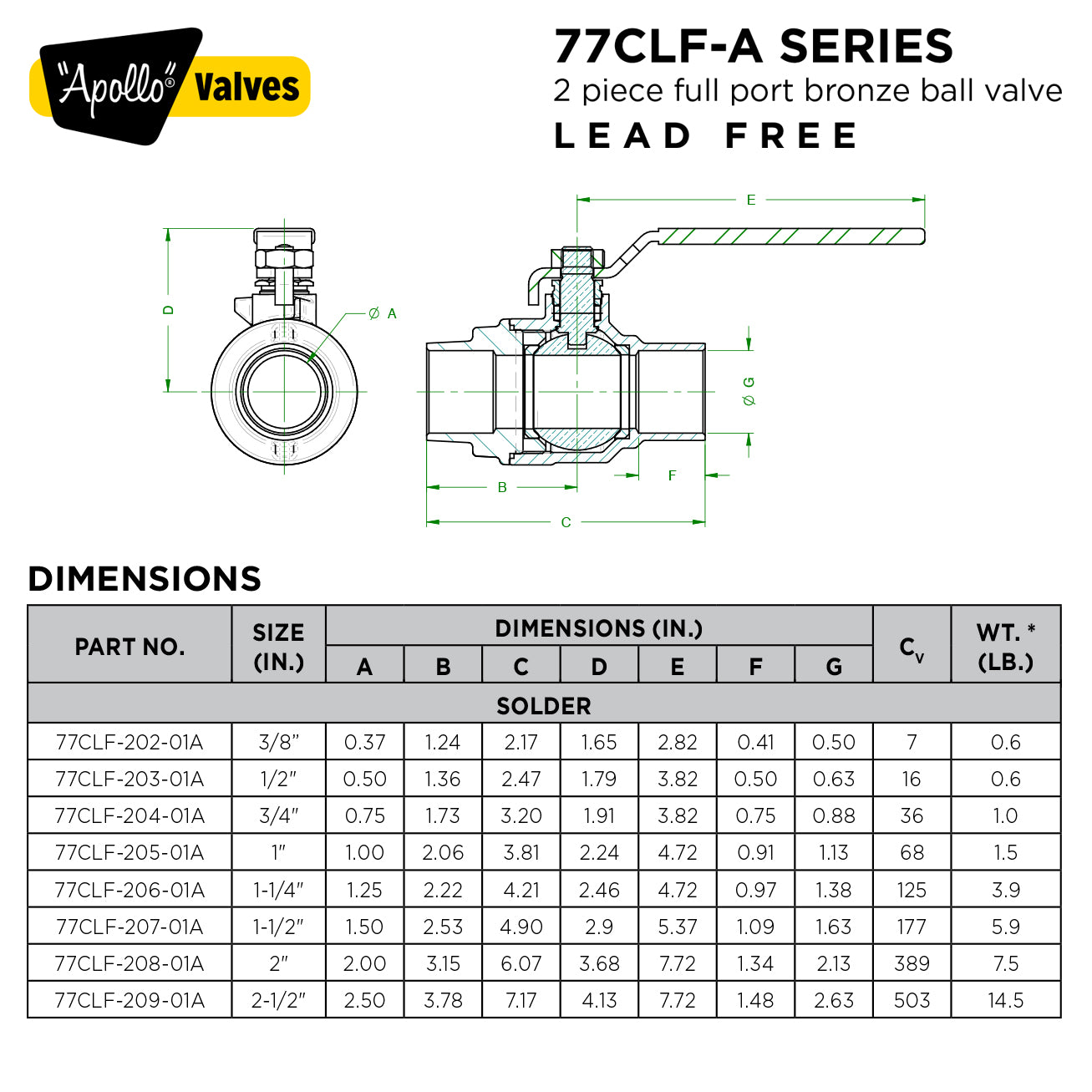

77CLF-A Submittal Sheet

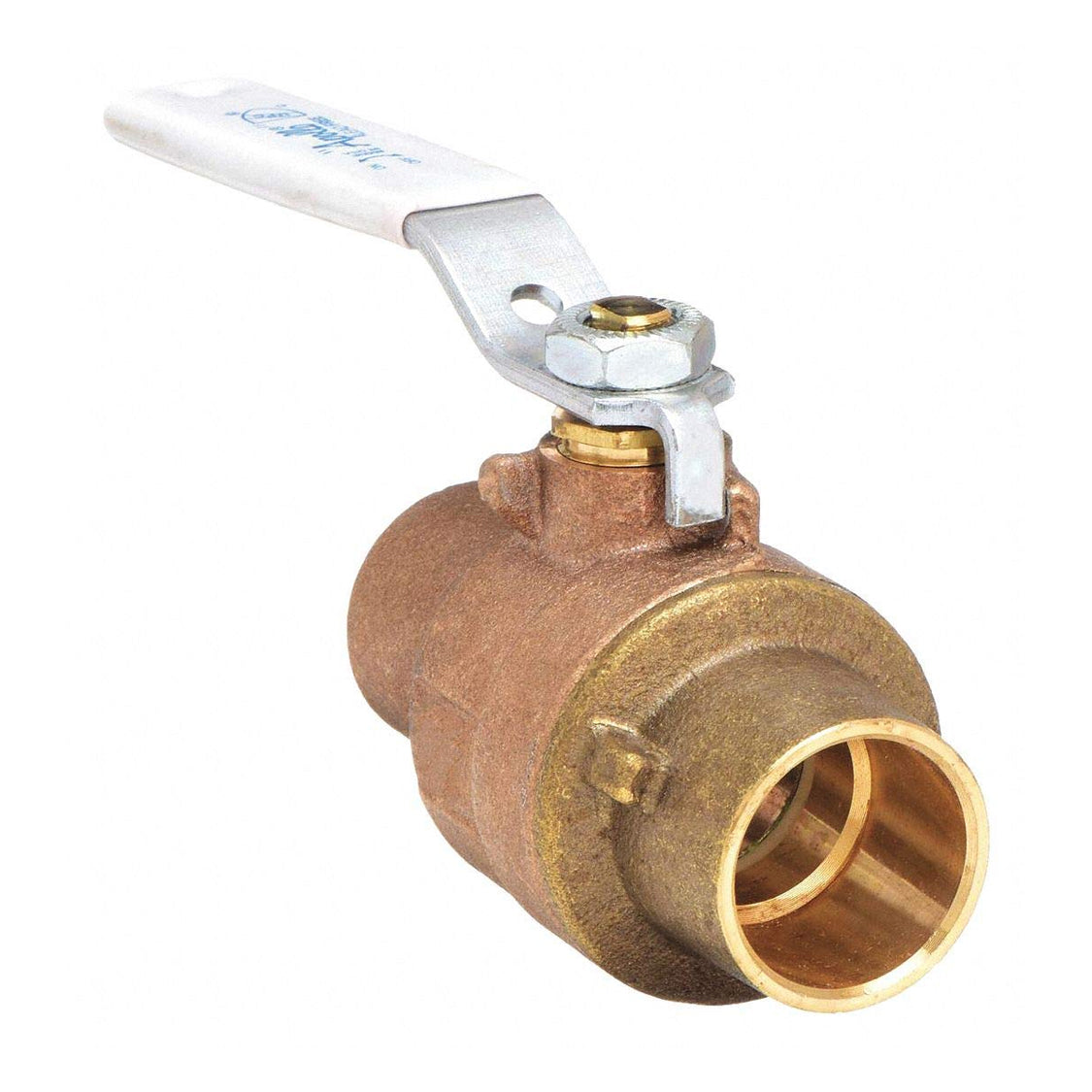

Apollo Valves 77CLF20901A - 2-1/2" 2 Piece Full Port Bronze Ball Valve, Lead-Free, Sweat x Sweat

The Apollo 77CLF-A “Contractor Series” Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a “Solid Ball” design that delivers true full-port flow performance. Cast and machined in Apollo’s South Carolina manufacturing plants using proven EZ-Solder lead free materials.

Features

  • (-01) Standard Lever and Trim
  • Easily Identifiable White Handle and Blue “Lead Free” Hang Tag
  • EZ-Solder Lead Free Bronze
  • Lead Free Brass & Bronze Materials
  • Blowout-Proof Stem Design
  • RPTFE Seats & Seals
  • Manufactured and 100% Factory Tested in USA

Approvals

  • MSS SP-110 Ball Valves
  • IAPMO/ANSI Z1157 Ball Valves
  • NSF/ANSI/CAN 61 Water Quality
  • NSF/ANSI/CAN 372 Lead Free
  • City of Los Angeles DBS
  • CRN: 0C10908.5C
  • EU Directive 2015/863 (RoHS 3) Compliant
  • EU Regulation (EC) 1907/2006 (REACH) Compliant

Performance Rating

  • Maximum Pressure: 600 psi CWP | 150 psi SWP
  • Maximum Temperature: 450 Degress F
  • Vacuum Service to 29 in. Hg

Models

  • 77CLF-203-01A: 1/2"
  • 77CLF-204-01A: 3/4"
  • 77CLF-205-01A: 1"
  • 77CLF-206-01A: 1-1/4"
  • 77CLF-207-01A: 1-1/2"
  • 77CLF-208-01A: 2"
  • 77CLF-209-01A: 2-1/2"



APOLL14357
