77V-LF Submittal Sheet

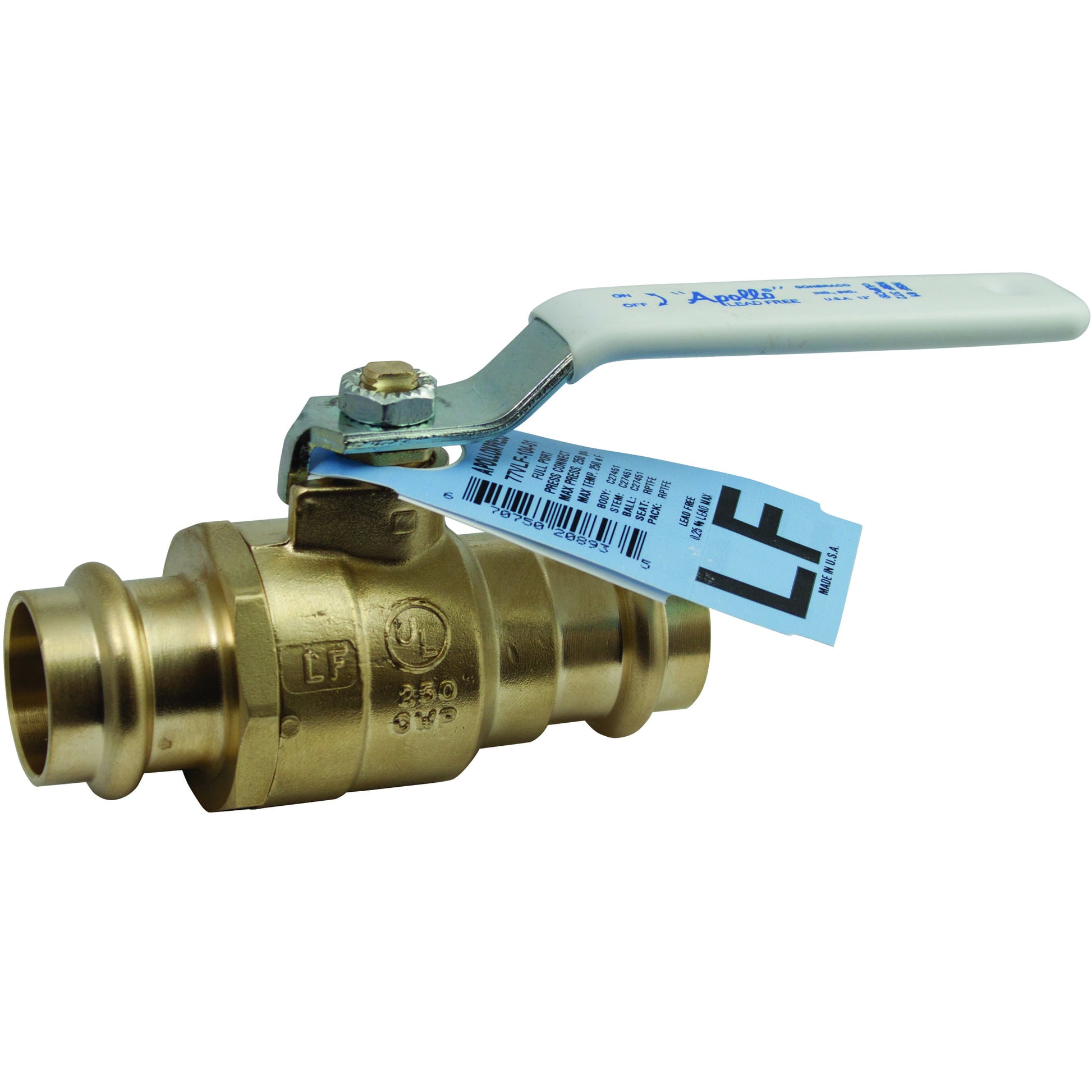

Apollo Valves 77VLF-149-01 - 2-1/2" Lead Free Press End Forged Ball Valve

The ApolloPress 77VLF series lead free* ball valve is ideal for installation in most plumbing and heating systems including potable
water. features leak before press® technology and 300 psig maximum working pressure. proudly made in the USA.

Features

• Lead free, ANSI 3rd party certified and listed
• 2 piece, heavy pattern forged design
• Full-port flow
• Adjustable stem packing
• Fast, reliable, economical press installation
• Leak before press® technology
• Blowout-proof stem
• Now features 316SS vented ball and stem (standard)
• Dezincification resistant materials
• Silicone free assembly
• 100% factory tested
• Made in USA, ARRA compliant

Performance Rating

• Maximum operating pressure: 300 psi
• Temperature range: 0 - 250 Degrees F

Approvals

• MSS SP-110 ball valves
• IAPMO/ANSI Z1157 ball valves
• IAPMO PS-117 press connections
• NSF/ANSI/CAN 61 water quality
• NSF/ANSI/CAN 372 lead free
• EU directive 2015/863 (RoHS 3) compliant
• EU regulation (EC) 1907/2006 (REACH) compliant

Approved Applications

• Water - chilled, hot and potable: 33 - 250 Degrees F
• Hydronic heating (90% glycol max)
• Low pressure steam, 15 psi max
• Not suitable for flammable gas service
• Not compatible with soft annealed copper tubing

APOLL14370
