77WLF - Lead Free Press End Bronze Ball Valve

In stock
SKU: 77WLF10501
Regular price $74.30
Size

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

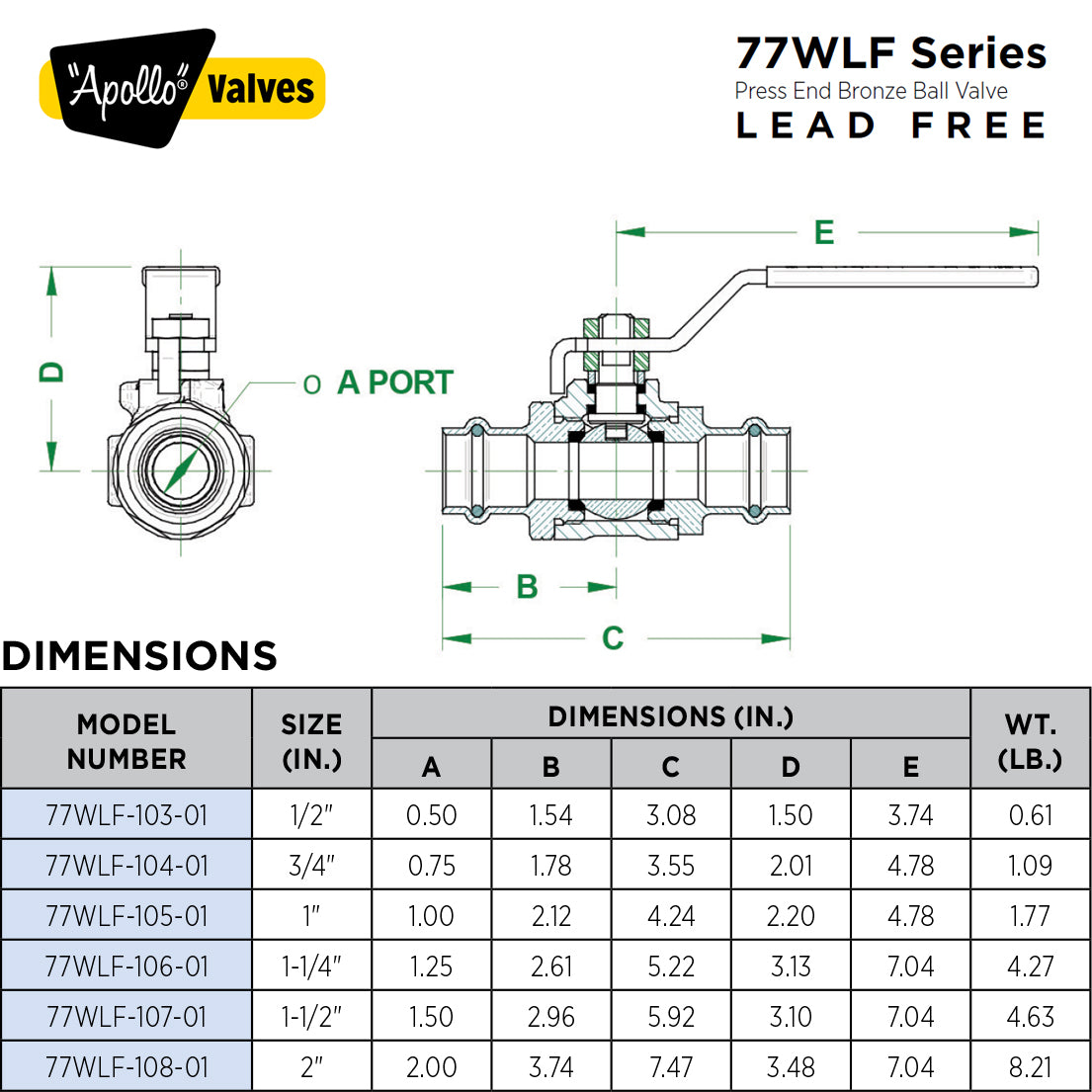

77WLF Submittal Sheet

Apollo 77WLF-103-01 - 1/2" Lead Free Press End Bronze Ball Valve

The lead free APOLLOPRESS 77WLF Ball Valve is ideal for installation in potable water systems requiring NSF 61 or lead free approval. Now with Leak Before Press feature and 300 psig maximum working pressure.

Features

  • Lead Free* Brass & Bronze Materials
  • Easily Identifiable Blue Lead Free Hang Tag
  • Full-Port Flow
  • Adjustable Stem Packing
  • Fast, Reliable, Economical Press Installation
  • Leak Before Press® Technology
  • Corrosion Resistant Materials
  • 100% Factory Tested
  • Ridgid XL Press Tool Compatible
  • Made in USA, ARRA Compliant

Performance Rating†

  • Maximum Operating Pressure: 300 psi
  • Temperature Range: 0 - 250 Degrees F

†APOLLOPRESS connectors are designed for direct mechanical connection to ASTM B88-Type K, L, and M copper tubing in the hard drawn condition. Press connectors are not suitable for steam or flammable gas service.

Approvals

  • MSS SP-110 Ball Valves
  • NSF/ANSI 61 Water Quality
  • NSF/ANSI 372 Lead Free*
  • ANSI 3rd Party Approval to AB 1953 0.25% Lead Max.
  • IAPMO/ANSI Z1157

Models

  • 77WLF-103-01: 1/2"
  • 77WLF-104-01: 3/4"
  • 77WLF-105-01: 1"
  • 77WLF-106-01: 1-1/4"
  • 77WLF-107-01: 1-1/2"
  • 77WLF-108-01: 2"






APOLL14358 APOLL14360 APOLL14362 APOLL14364 APOLL14366 APOLL14368
