Zoeller 807-0002 - 807 Shark Series Non-Automatic Residential Grinder Pump, 115V, 1 HP

These fractional-horsepower grinder pumps can handle an entire household of flushable materials. This Shark product line consists of three high-performing grinder pumps for sewer use. Plumbing contractors can utilize this cast iron grinder series for demanding residential applications.

Features

  • Handles entire household of “flushable” materials.
  • Includes 15 ft cord and plug.
  • Cast iron grinder series for difficult residential applications where ejectors struggle.
  • Performance up to 55' (16.8 m): This strong grinder pump delivers reliable results over substantial distances, providing maximum user flexibility.
  • 115/230 V grinders for residential use without commercial grinder costs: The low price point of this fractional horsepower grinder series ensures affordability and an excellent return on investment.
  • Oil filled for optimal heat dissipation: This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications.

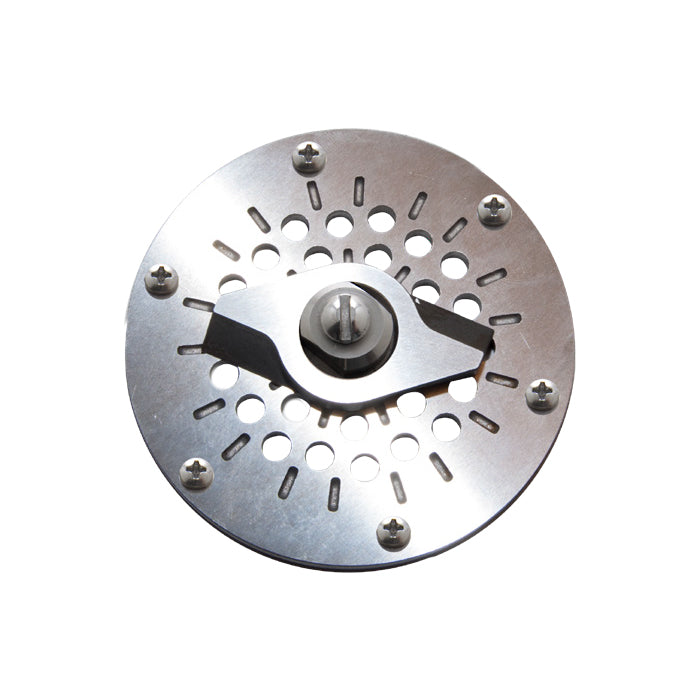

  • Proven Tri-Slice cutter technology: Three independent cutting channels provide over 250,000 cuts per minute.
  • Stainless steel cutter and plate: This feature enables the pump to cut through challenging materials while also providing excellent corrosion protection.
  • 100% factory tested: Our factory-tested grinder pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures.
  • Patent 8,562,287: The Shark grinder pump series features patented technology that is unavailable from competing products and delivers one-of-a-kind performance.
  • 3-year limited warranty: This single-direction grinder pump series comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind.

Specifications

  • Motor: 1 HP
  • Voltage: 115 V
  • Phase: 1 Ph
  • Hertz: 60 Hz
  • RPM: 3400 RPM
  • Type: Capacitor start/capacitor run
  • Insulation: Class B
  • Amps: 7.0 – 11.0 Amps
  • Operation: Non-automatic
  • Auto On / Off Points: 13" (33 cm) / 5-3/4" (14.6 cm)
  • Discharge Size: 1-1/4" NPT
  • Cord Length: 15' (4.6 m)
  • Cord Type: UL-listed, 3-wire plug
  • Max Head: 55' (16.8 m)
  • Cooling: Oil filled
  • Motor Protection: Automatic thermal overload (1Ph)
  • Cap: Cast iron
  • Motor Housing: Cast iron
  • Pump Housing: Cast iron
  • Base: Cast iron
  • Upper Bearing: Ball bearing
  • Lower Bearing: Ball bearing
  • Mechanical Seals: Carbon and ceramic
  • Impeller Type: Non-clogging vortex
  • Impeller: Engineered plastic/440C stainless steel cutter & plate
  • Hardware: Stainless steel
  • Motor Shaft: 1215 cold rolled steel
  • Gasket: Neoprene
