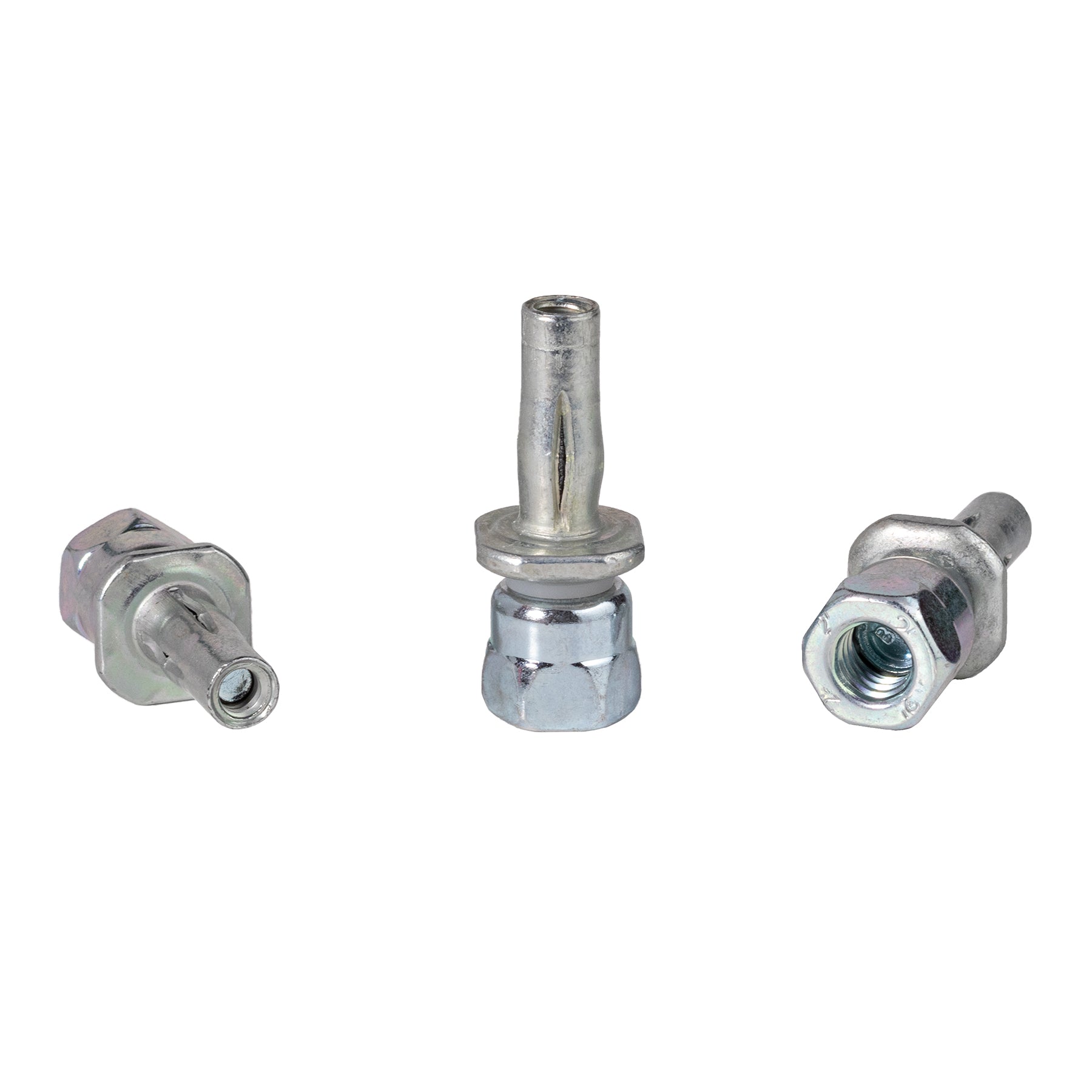

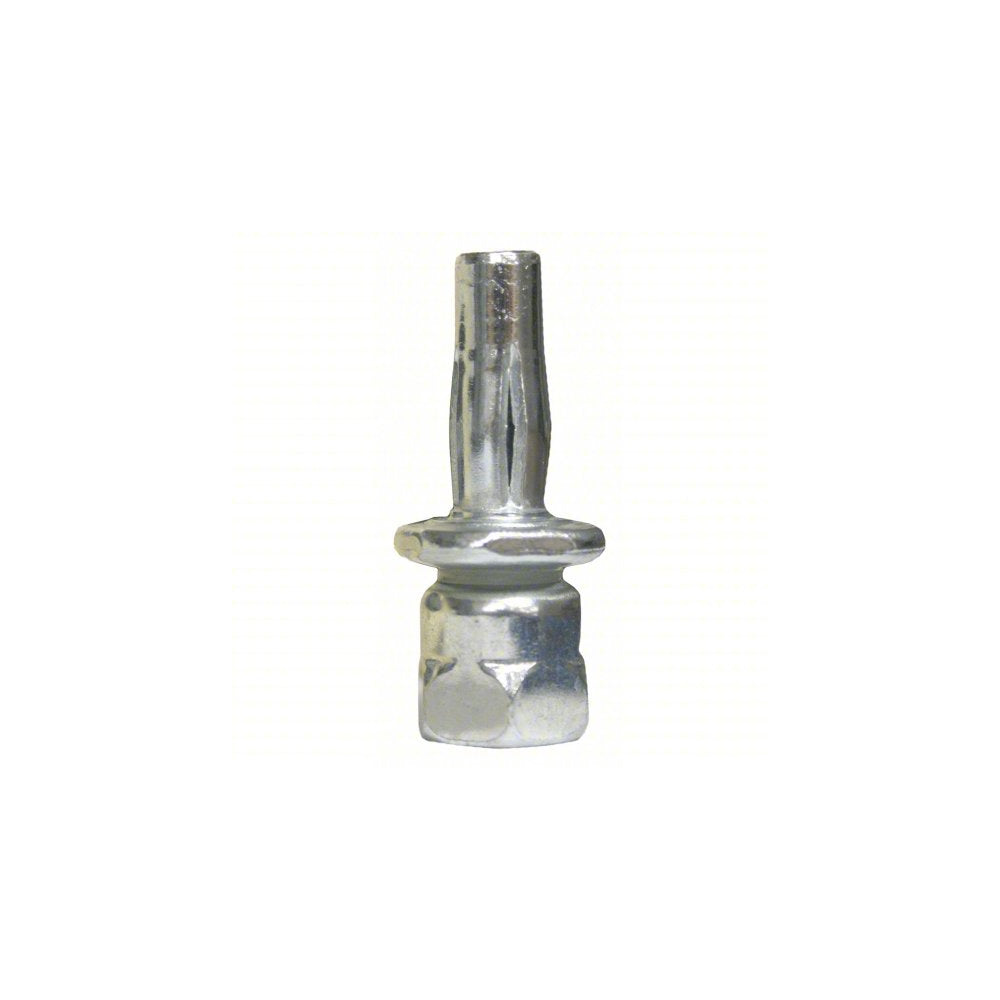

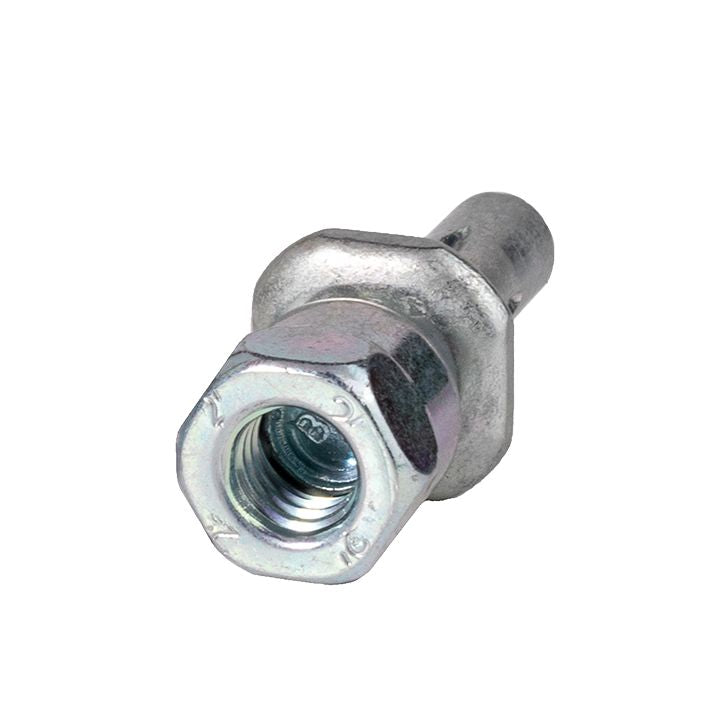

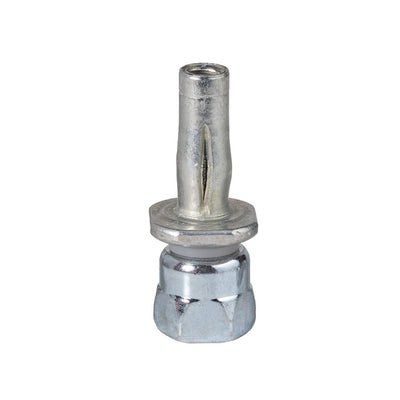

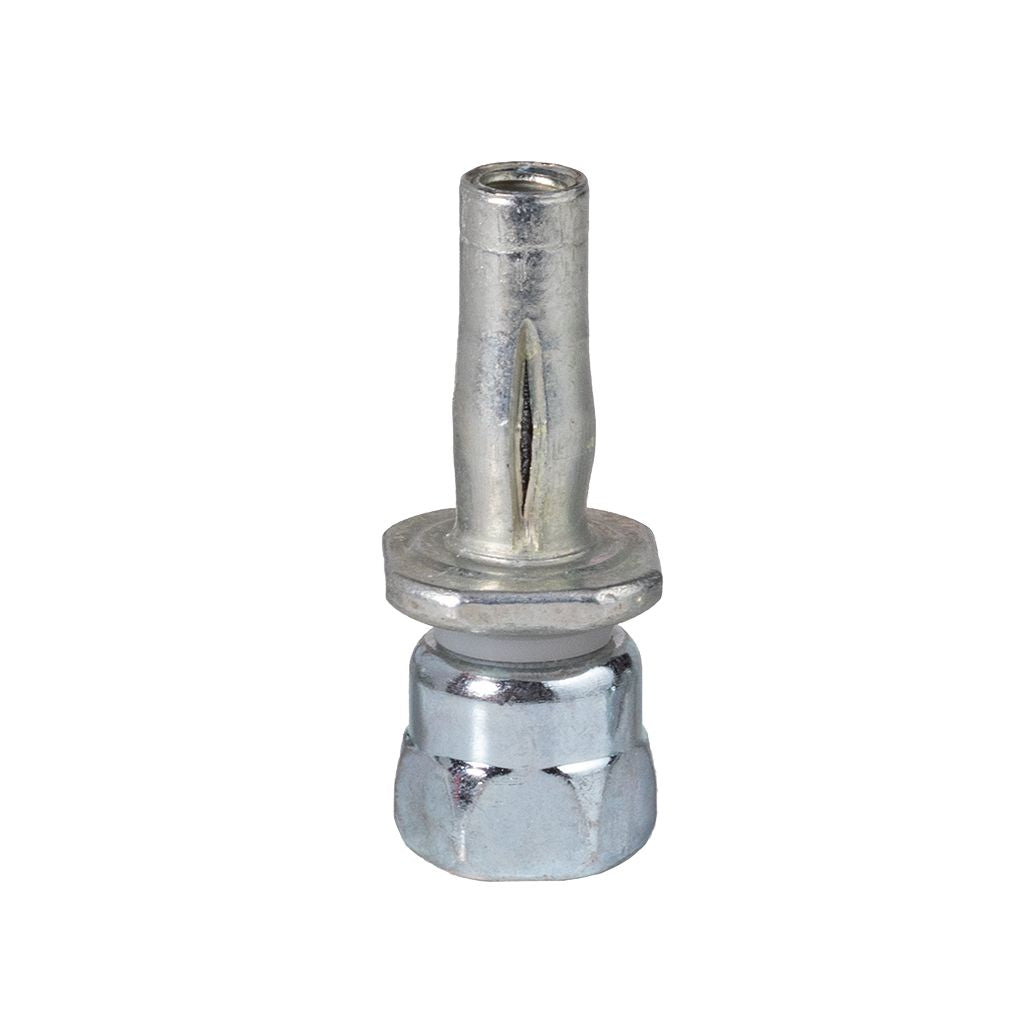

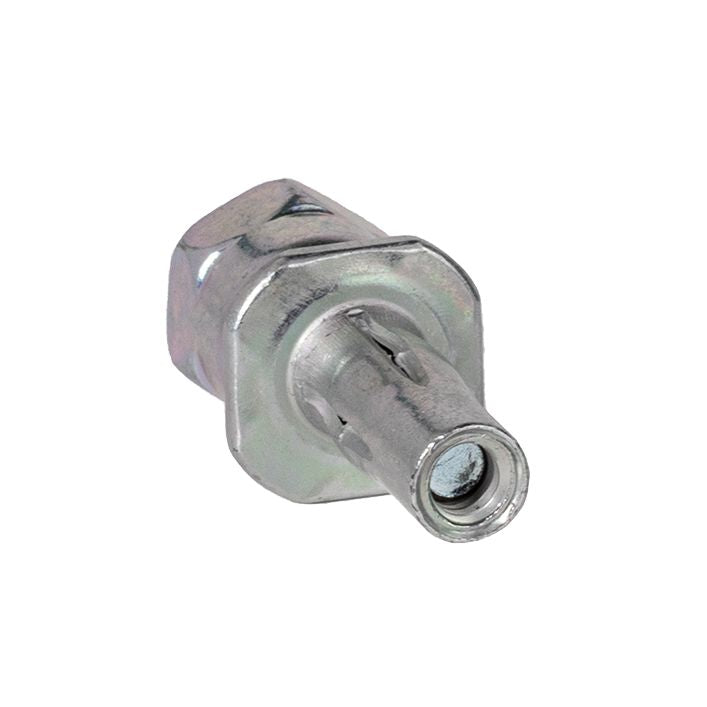

Sammys 8150922 - 3/8" Vertical Threaded Rod Anchor - XP 20

Sammy X-Press Drill/Drive threaded rod anchor is uniquely designed for applications where access to the back of the installed fastener is prohibited, such as metal roof decks, tubular steel, or vapor barrier fabric. With the Drill/Drive design the drill bit is built directly into the anchor design for an even faster installation over our traditional X-Press anchor. With the use of the specially designed installation tool, installation takes seconds! No retaining nut needed either.

Features

• Sold individually
• Part Number:8150922
• Model: XP 20
• Installs in seconds with Sammy X-Press It Tool, saving time & installation costs
• Use in applications where access to the back of the installed fastener is prohibited, ie. Metal roof deck, tubular steel, or vapor barrier fabric
• No retaining nut required
• Provides design flexibility
• Assembled in the U.S.A.

Specifications

• Material: Steel
• Finish: Electro-Zinc
• Material Grade: C1022 screw / C1010 cap
• FM Approved: Yes (Metal Deck)
• UL Approved: Yes
• Installation Tool: UXPIT 2.0 Univerisal X-Press IT Tool - 8196910
• Mount Orientation: Vertical
• Substrate: Steel
• Rod Size: 3/8"
• Minimum Thickness: 22 ga
• Maximum Thickness: .125"
• UL Max Pipe Size: 2-1/2"
• FM Test Load (lbs): 940 (2" Pipe) 1475 (4" Pipe)
• FM Min Thickness: .029" .104"
• UL Test Load (lbs): 185 (Luminaire) | 850 (2-1/2" Pipe) | 250 (Luminaire) | 283 (Conduit & Cable)
• Ultimate Pullout (lbs): 1146 (22 ga)

Applications

• Hanging pipe and fire sprinkler systems from metal deck (pre or post-pour of lightweight concrete)
• Hanging eletrical fixtures, conduit, lighting systems, and cable trays from metal deck (pre or post-pour of lightweight concrete)
• Hanging HVAC Ductwork from metal deck (pre or post-pour of lightweight concrete)
• The Sammy X-Press expands to provide direct vertical attachment for hanging threaded rod in: light gauge steel deck, purlin, or tubular steel (22 ga - 1/8")
