82LF-100 Submittal Sheet

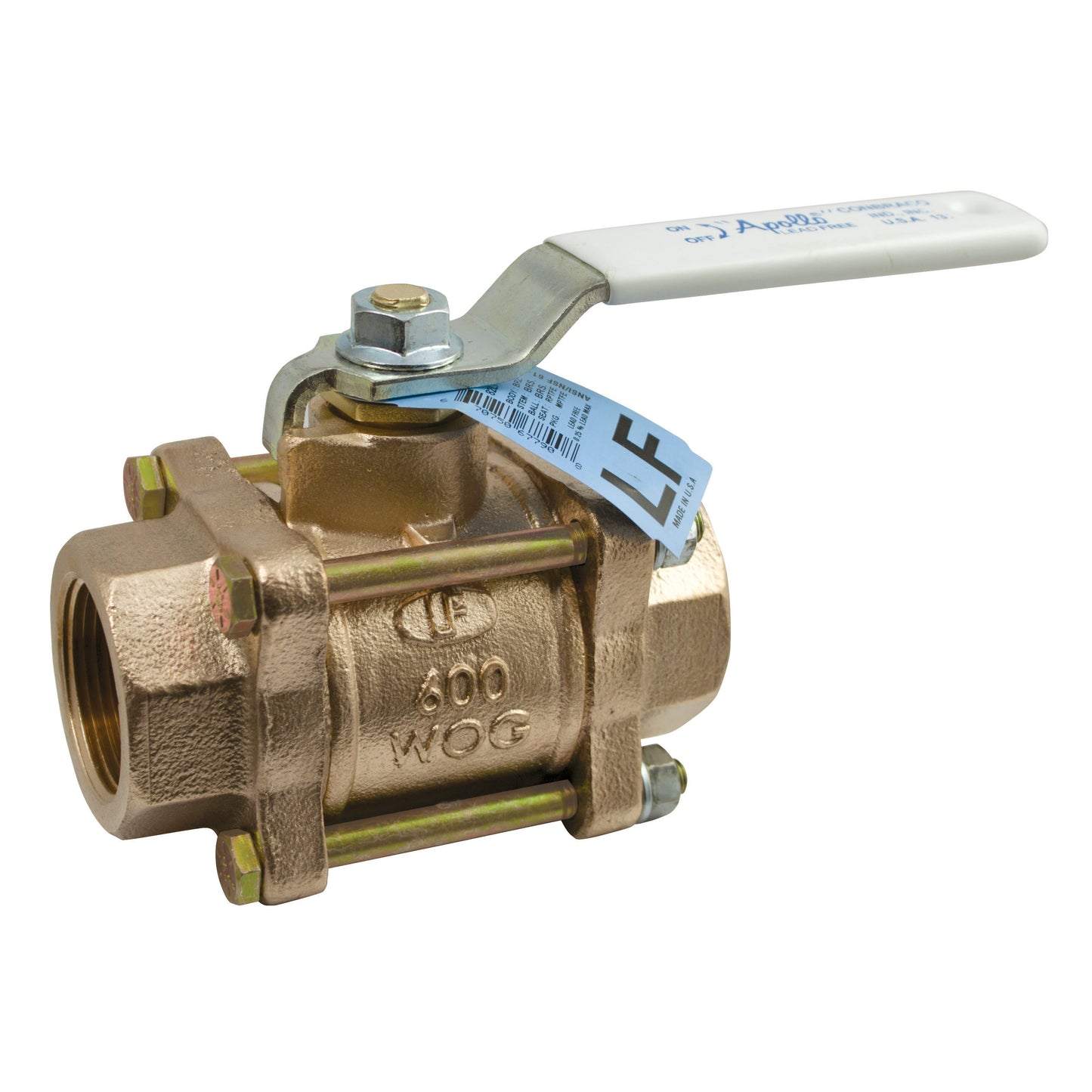

Apollo Valves 82LF-104-01 - 3/4" Lead Free 3-Piece Full Port, Threaded End Bronze Ball Valve

The Apollo 82LF Series offers the same rugged features as the standard 82 Series with the added advantage of Lead Free* materials. Designed to provide
long service life and ease of in-line maintenance. SAE grade body bolts are standard. These valves are cast and machined in Apollo’s South Carolina
manufacturing plants.

Features

• ASTM B584 Bronze Body and Ends
• SAE Grade 8 Body Bolts
• Adjustable Packing Nut
• Full Port Flow
• 600 CWP, 150 SWP
• Numerous Options Available
• 82-14X with SS Ball and Stem Option
• Easily Identifiable White Handle Grip and Blue “Lead Free” Hang Tag
• 100% Factory Tested
• Made in USA – ARRA Compliant

Performance Rating

• Maximum Pressure: 600 psi CWP | 150 psi SWP (Recommend SS ball & stem in 150 SWP applications)
• Maximum Temperature: 400°F
• Vacuum Service to 29 in. Hg

Approvals

• MSS SP-110; Ball Valves, Threaded,
• Socket-Welding, Solder Joint
• CSA B51 CRN: 0C10908.5C
• NSF/ANSI 61 Water Quality
• NSF/ANSI 372 Lead Free

PVZ1460072
