Home » PV190MONO - 190 Watt Solar Panel Monocrystalline
AIMS Power

PV190MONO - 190 Watt Solar Panel Monocrystalline

Out of stock
SKU: PV190MONO
$549.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Treyl C. (Pocatello, US)
Add-on panel

Added a 2nd panel to my camper that came with an aims solar kit installed. It was an easy “plug and play” install. Highly recommend.

R
Rudi N.
Aims Power PV190Mono - 190 watt solar panel

I was amazed at how well the panels were packaged. Nothing could have damaged them and delivery was excellent. Both panels have been mounted on my Airstream Trailer and work great. I was surprised that all specs on internet said they were 18.7 volts panels and when they arrived they show 19.5 volts. Shall continue to watch their performance and then decide what solar panels to add to these.
Great product.

AIMS Power PV190MONO Specification Sheet

AIMS Power Solar Brochure

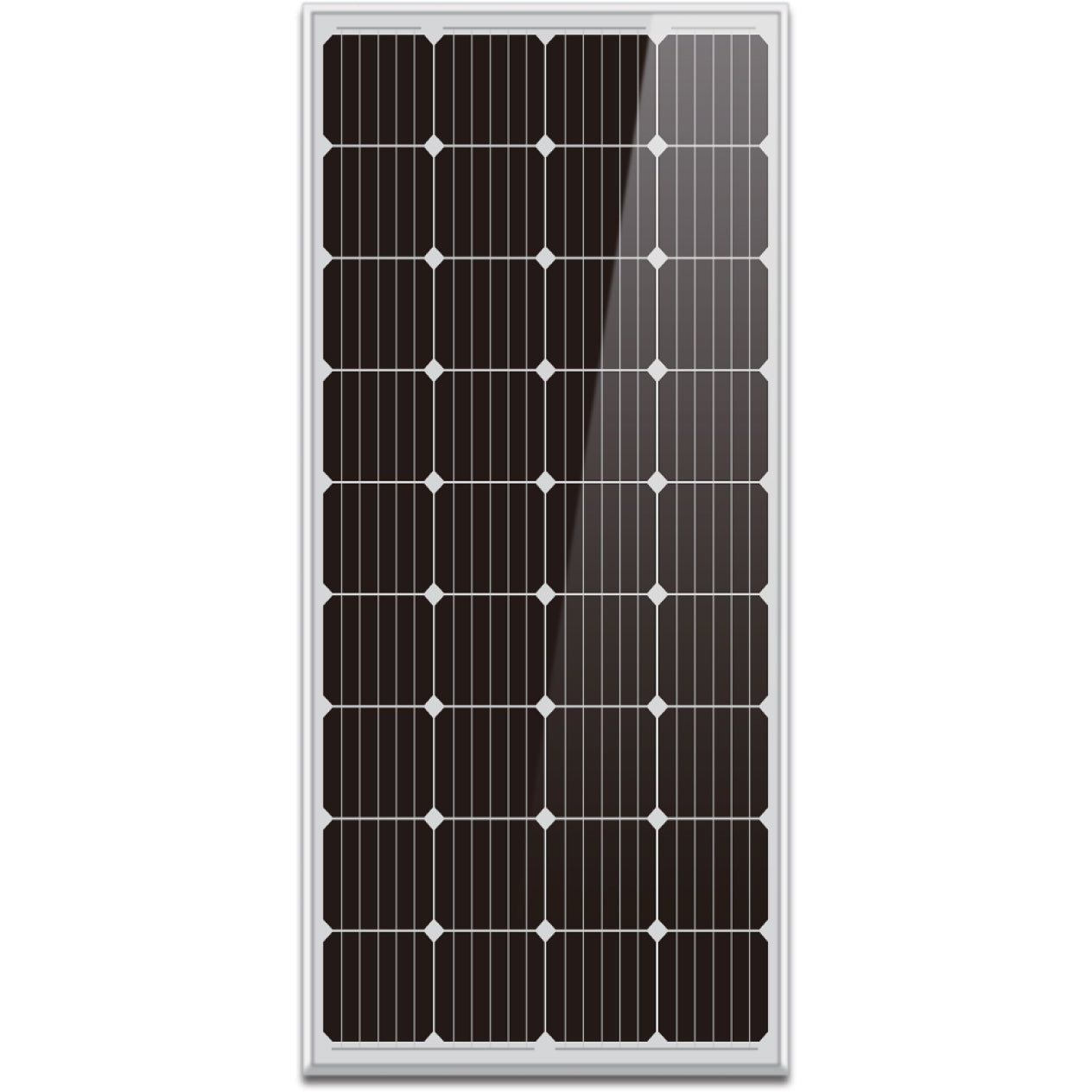

190 Watt Solar Panel Monocrystalline

The 190 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in this panel provide high light transmission and the textured glass allows for a more efficient panel. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home, vehicle and RV installations and industrial applications.

Features:

  •     Monocrystalline efficient solar harvesting
  •     Strong surface for harsh environment
  •     Panels capable of 0 to +3 Watts over rated capacity
  •     Pre-drilled aluminum frame
  •     Temperated glass
  •     25 Year limited warranty

Specifications:

  • Maximum Power (Watts): 190 watts
  • (Vmp): 18.7 volts  operating voltage
  • (Imp): 10.16 amps operating current
  • (Voc): 22.44 volts open circuit voltage
  • (Isc): 10.92 amps
  • Solar Cell: 156mm x 52mm
  • Number of Cells (pcs): 12*3 = 36
  • Front Glass Thickness (mm): 3.2 mm
  • Temperature Coefficients of Isc (%) °C: -0.048
  • Temperature Coefficients of Voc (%) °C: -0.29
  • Temperature Coefficients of Pm (%) °C: -0.37
  • Temperature Range: -40°C to +80°C
  • Tolerance Wattage: 0-3 watts
  • Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind
  • Allowable Hail Load: 45mm at 30.7m/s
  • Bypass Diode Rating (A): 10
  • Cell Efficiency (%): 21.69%
  • Module Efficiency (%): 19.16%
  • Warranty: 91.2% of 12 years, 80.6% of 25 years
  • Weight Per Panel (lbs): 26.5 lbs
  • Dimensions (inches): 58.25 x 26.5 x 1.37
