Required Valve:
Moen 2510

åÊ

åÊ

åÊ

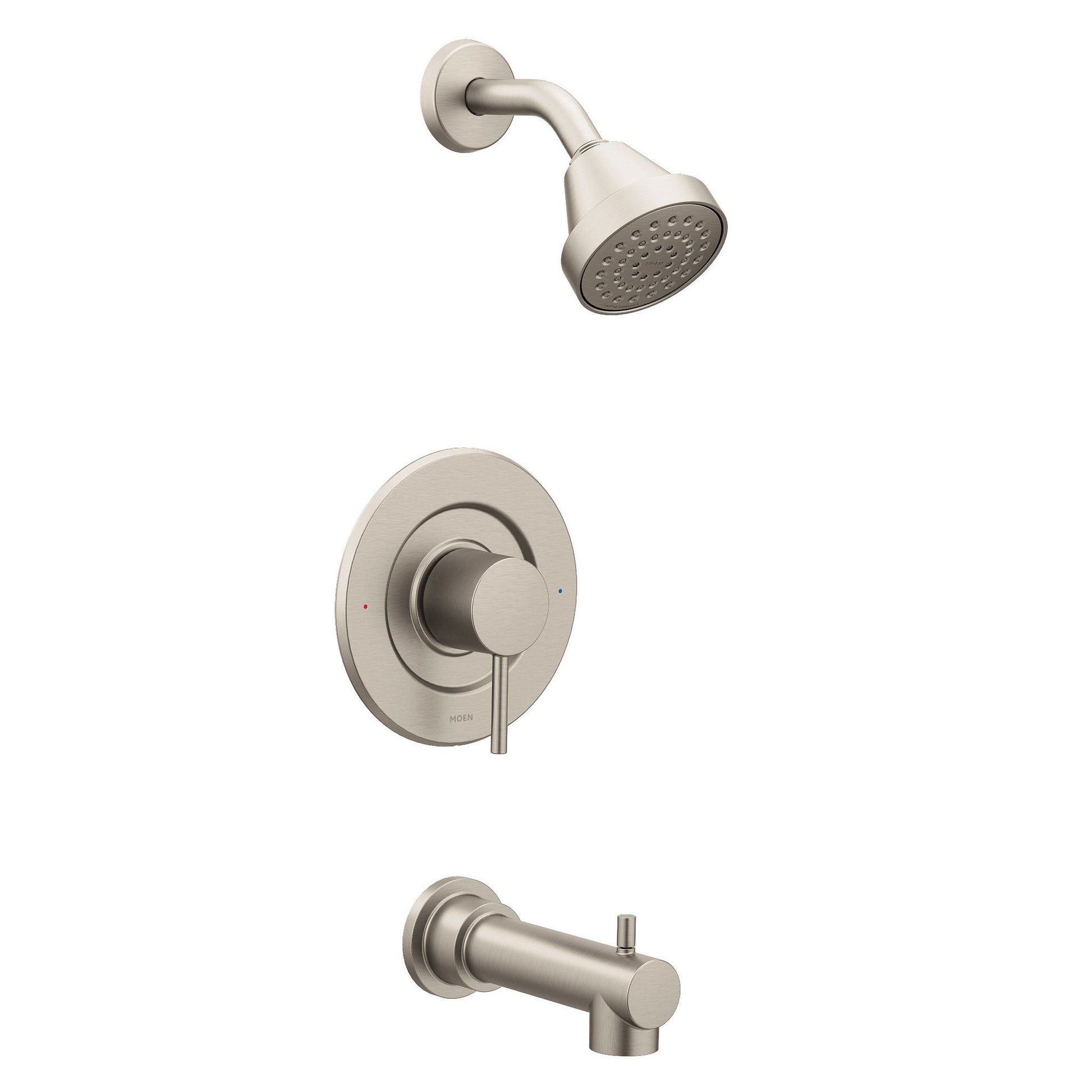

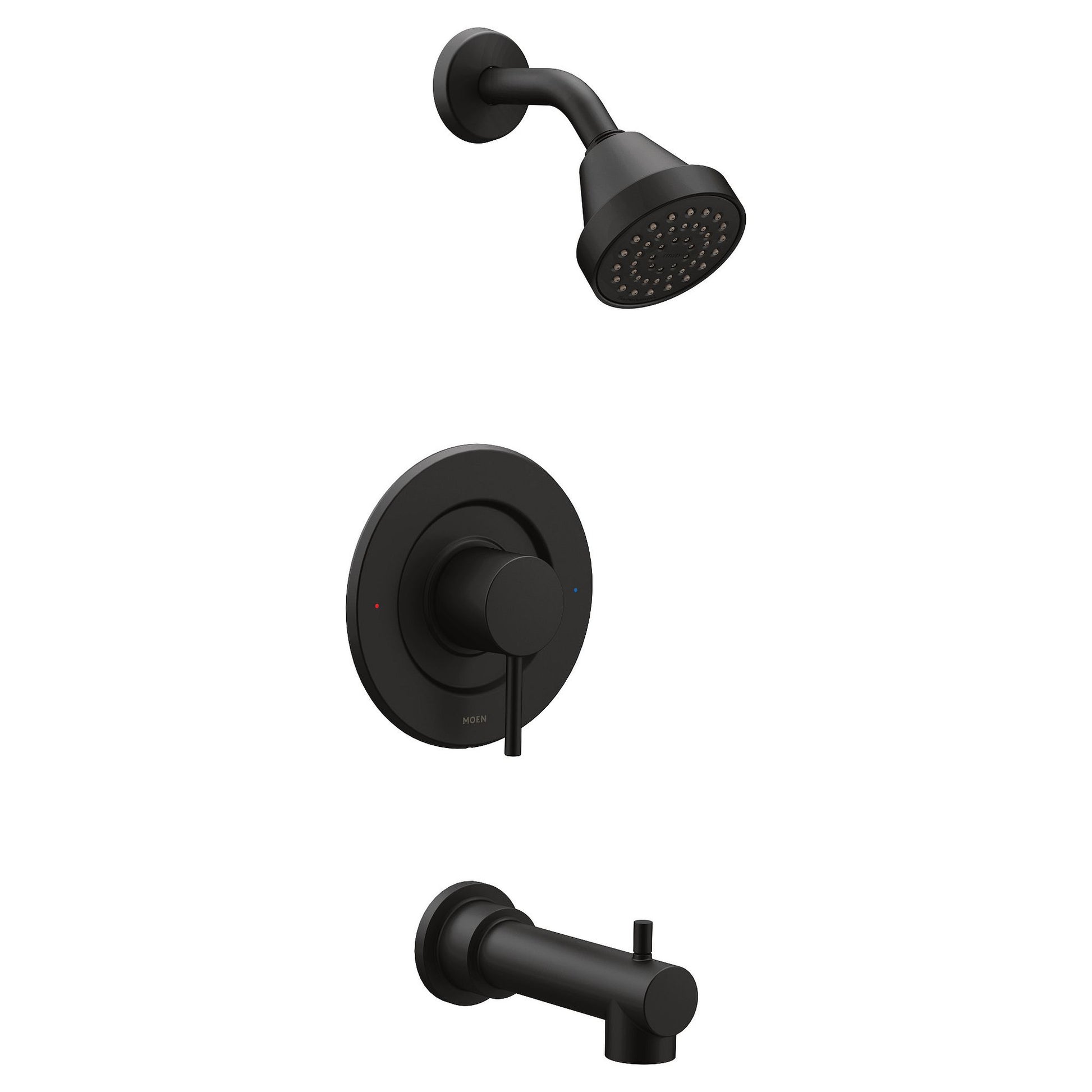

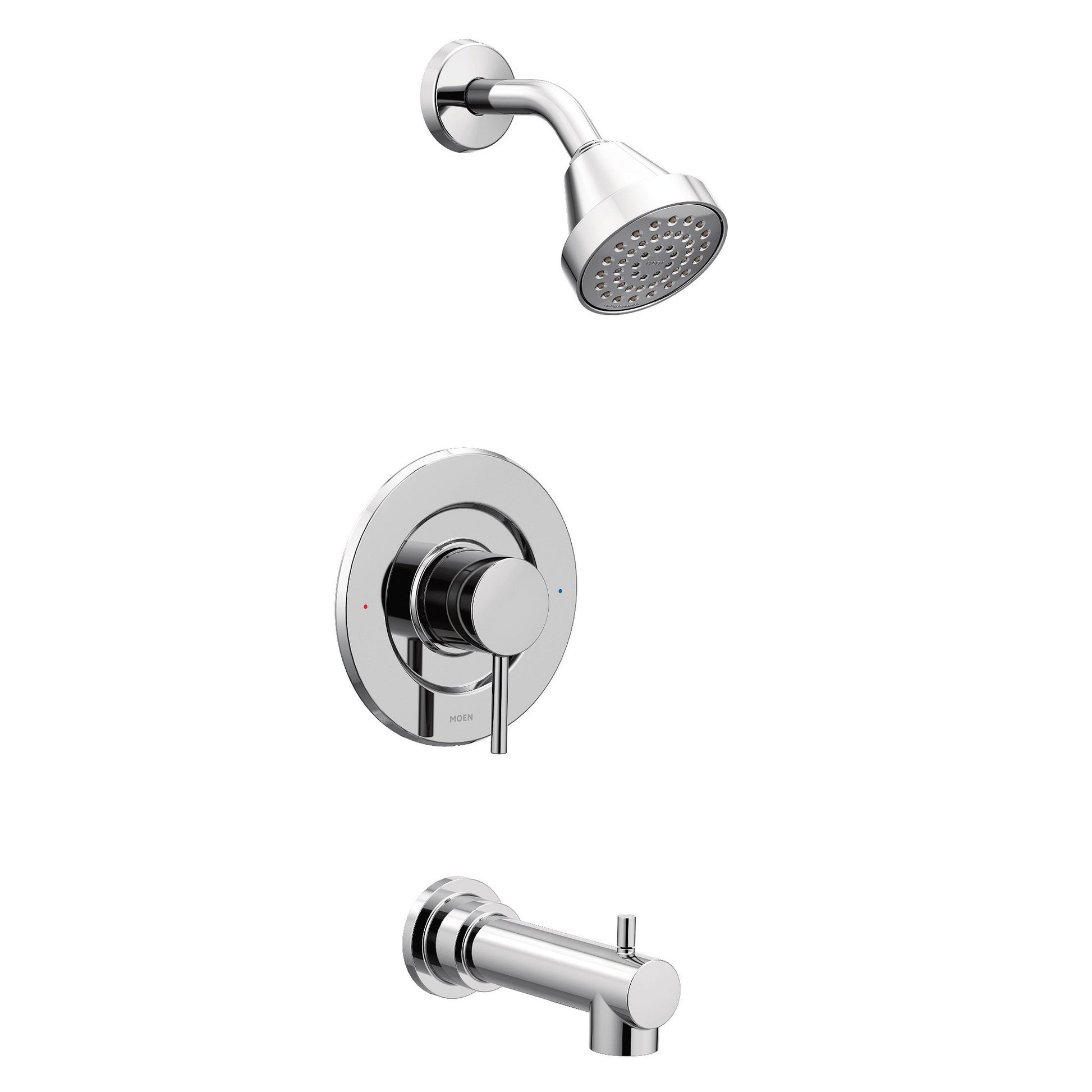

Moen T2193EP - Align Posi-Temp Eco-Performance Tub and Shower Trim

Align faucets and accessories bring a refreshed Modern look to your home. Use them in large master baths or small powder rooms. The simple lines and contemporary style are beautiful. A full line of coordinating products is available to complete the look of your bath. The clear laminar stream produces a beautiful water presentation.

Features

• Lever handle makes it easy to adjust the water
• Install with Posi-Tempå¨ pressure balancing control valve to maintain water temperature control in the shower
• 3-5/8" Diameter spray head this eco performance showerhead conserves water without sacrificing performance
• Full spray
• 7 3/8" Tub spout length
• Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
• Complies with Americans with Disabilities Act (ADA) specifications
• Meets EPA WaterSenseå¨ criteria to conserve water without sacrificing performance
• Limited lifetime warranty
• Includes red and blue markings

Specifications

• Red/Blue Markings: Included
• Showerhead Flow Rate: 1.75 Gpm (6.65 L/Min) Max.
• Showerhead Functions: One-Function
• Showerhead Size: 3-5/8" Diameter Spray Head
• Showerhead Type: Eco-Performance Showerhead
• Spout Connection Type: Slip Fit
• Spout Length: 7 3/8"
• Tub Spout Type: Diverter
