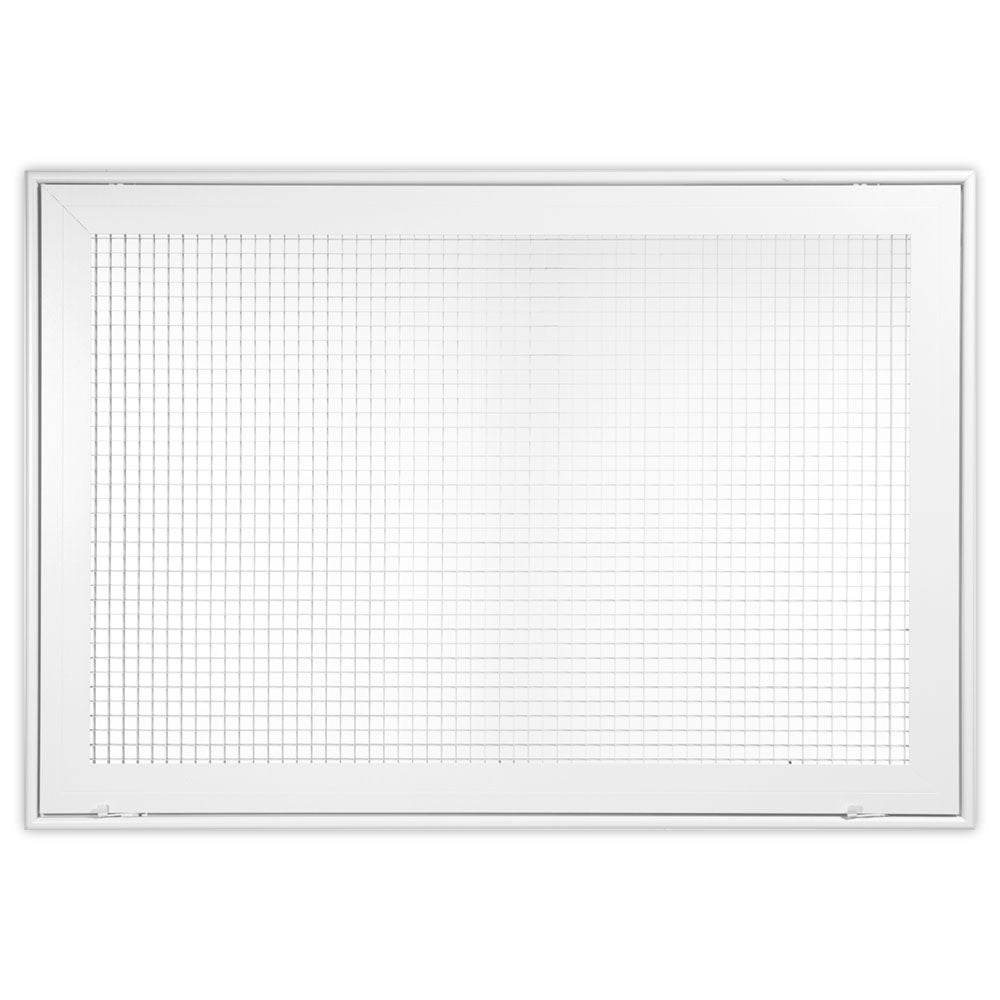

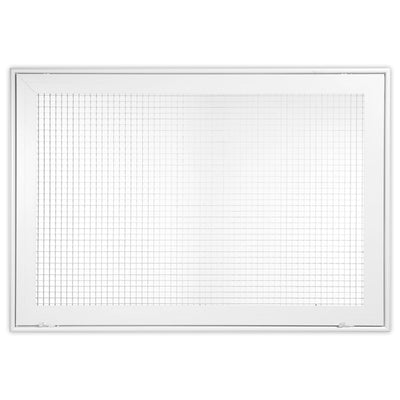

Shoemaker 600FG1 - 24" x 14" Aluminum Lattice 1" Filter Grille

Shoemaker manufactures the highest quality grilles, registers, and diffusers, and has done so in the shadow of the Stuart Range in Cle Elum, Washington, since 1947. Filter grilles are manufactured 3/16" undersized nominal duct (outside dimension) for ease of installation. Air filter should be 1/4" to 1/2" undersized. Verify with air filter manufacturer for air specification to ensure a proper fit.

Features

• 1/2" x 1/2" x 1/2" aluminum lattice
• Hinged removable extruded aluminum face frame with signature line marks
• Hinges parallel to longest side
• Face set in an outer aluminum filter grille frame
• Hand operated lever for easy filter access
• 4-way reversible door on square sizes
• 2-way reversible door on rectangular sizes
• Concealed mounting holes with mounting screws
• Holds up to a 1" filter (not included) with filter retention tabs (600FG1)
• Rust resistant pre-coat with durable powder finish
• Soft White

Specifications

• Duct Dimensions: 24" x 14"
• Overall Dimensions: 26-3/4" x 16-3/4"
