ARD16TZ - 16" Round Automatic TrueZONE Damper TEST

In stock
SKU: ARD16TZ
Regular price $228.01

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

TrueZONE Damper Brochure

Honeywell Zoning Products Catalog

TrueZONE Installation Instructions

Overview

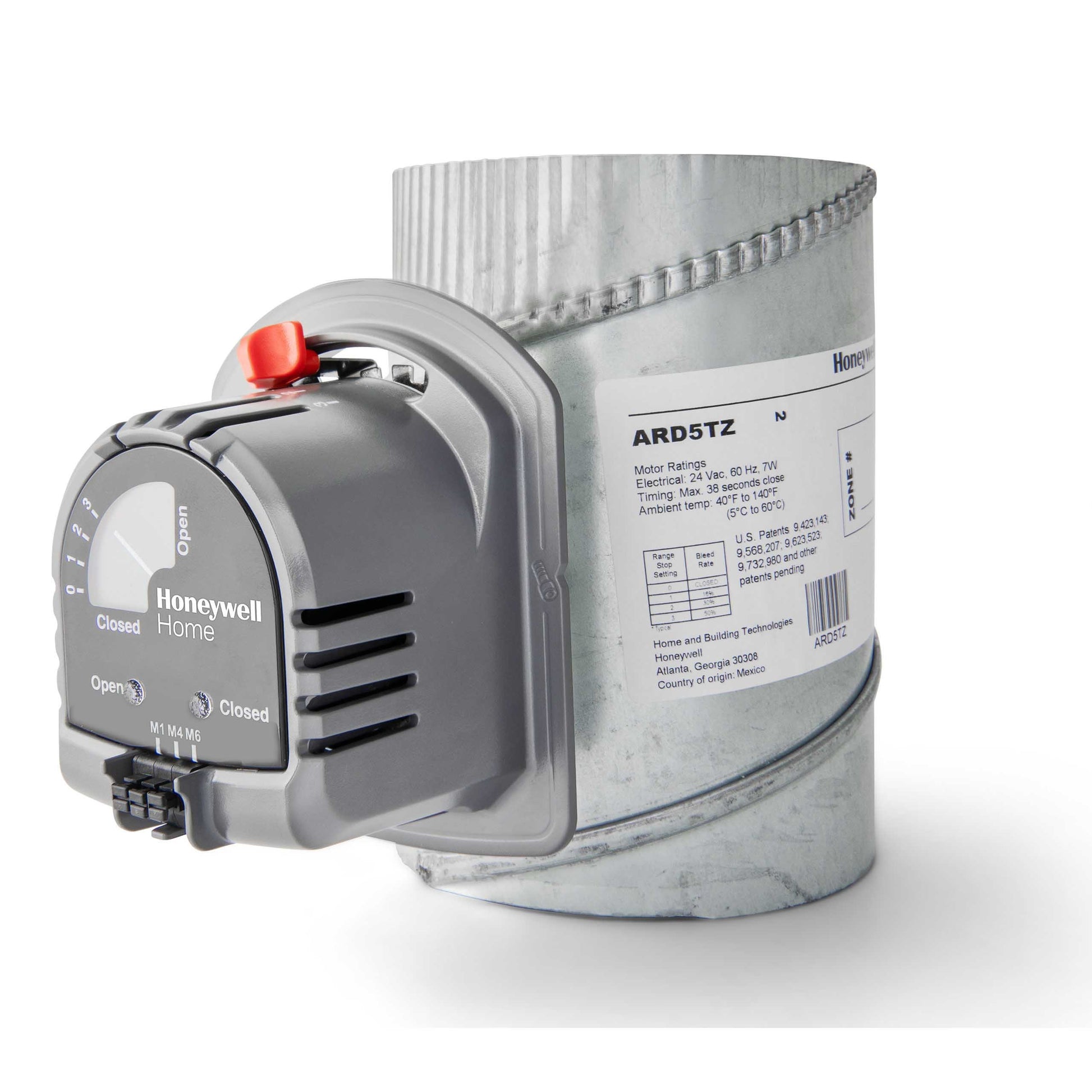

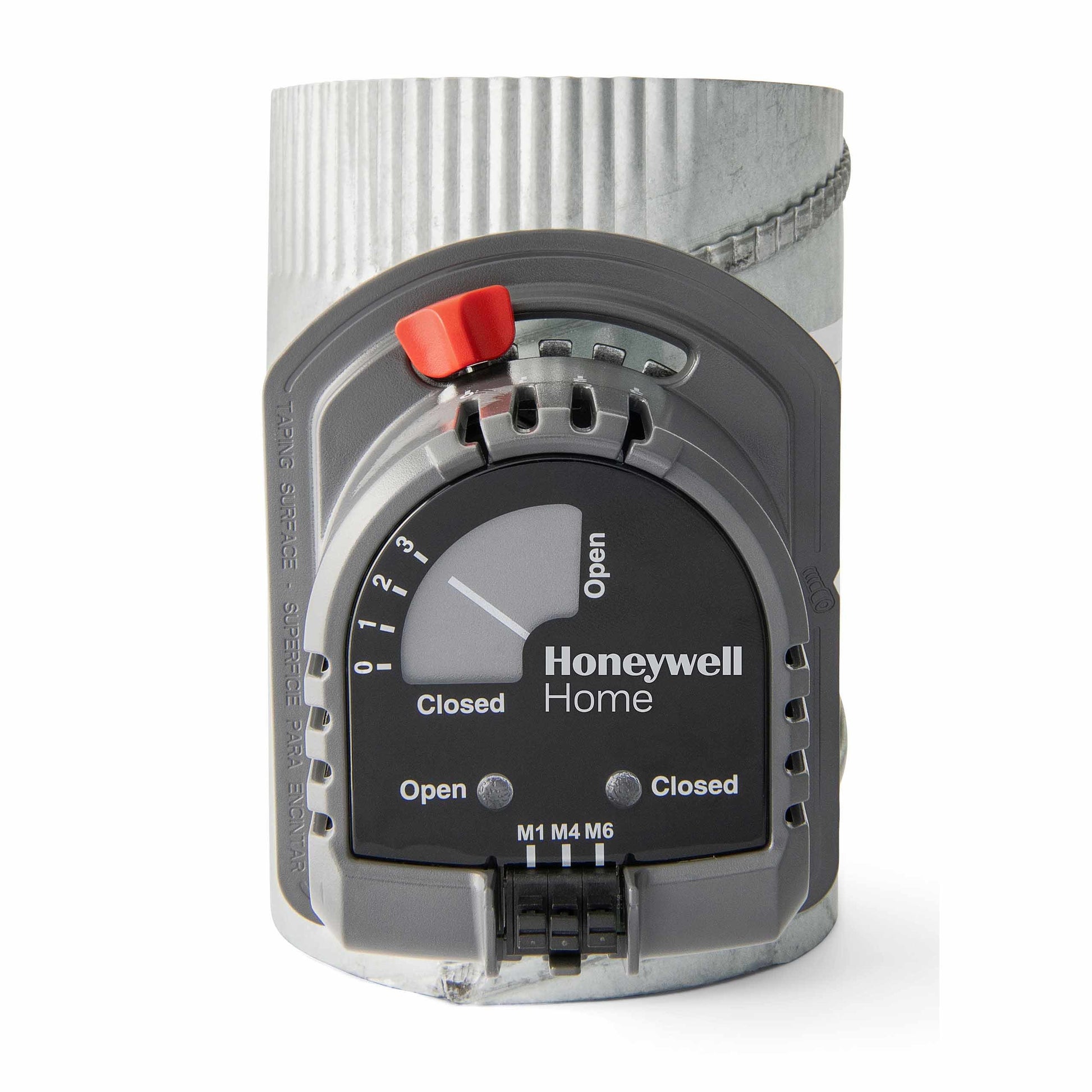

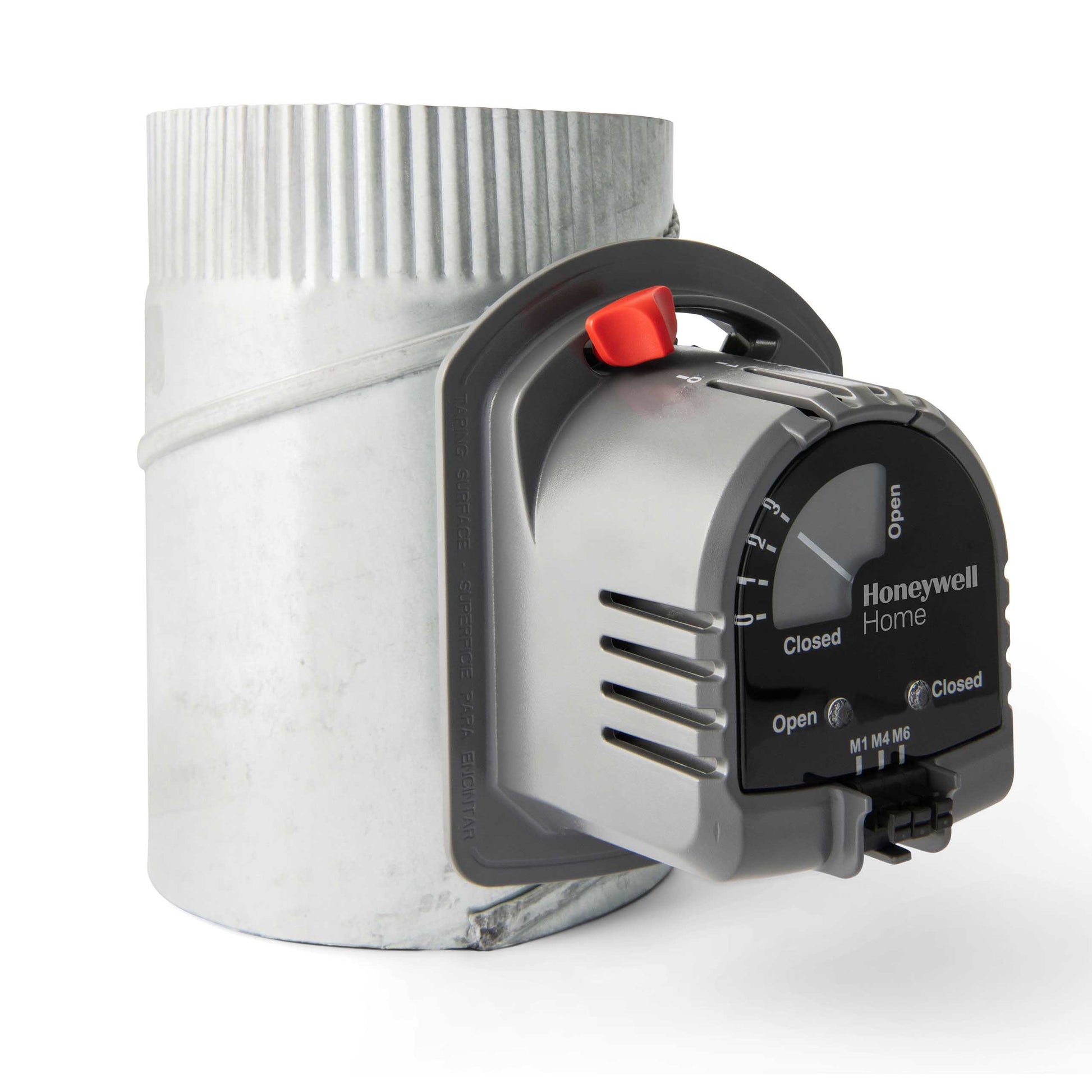

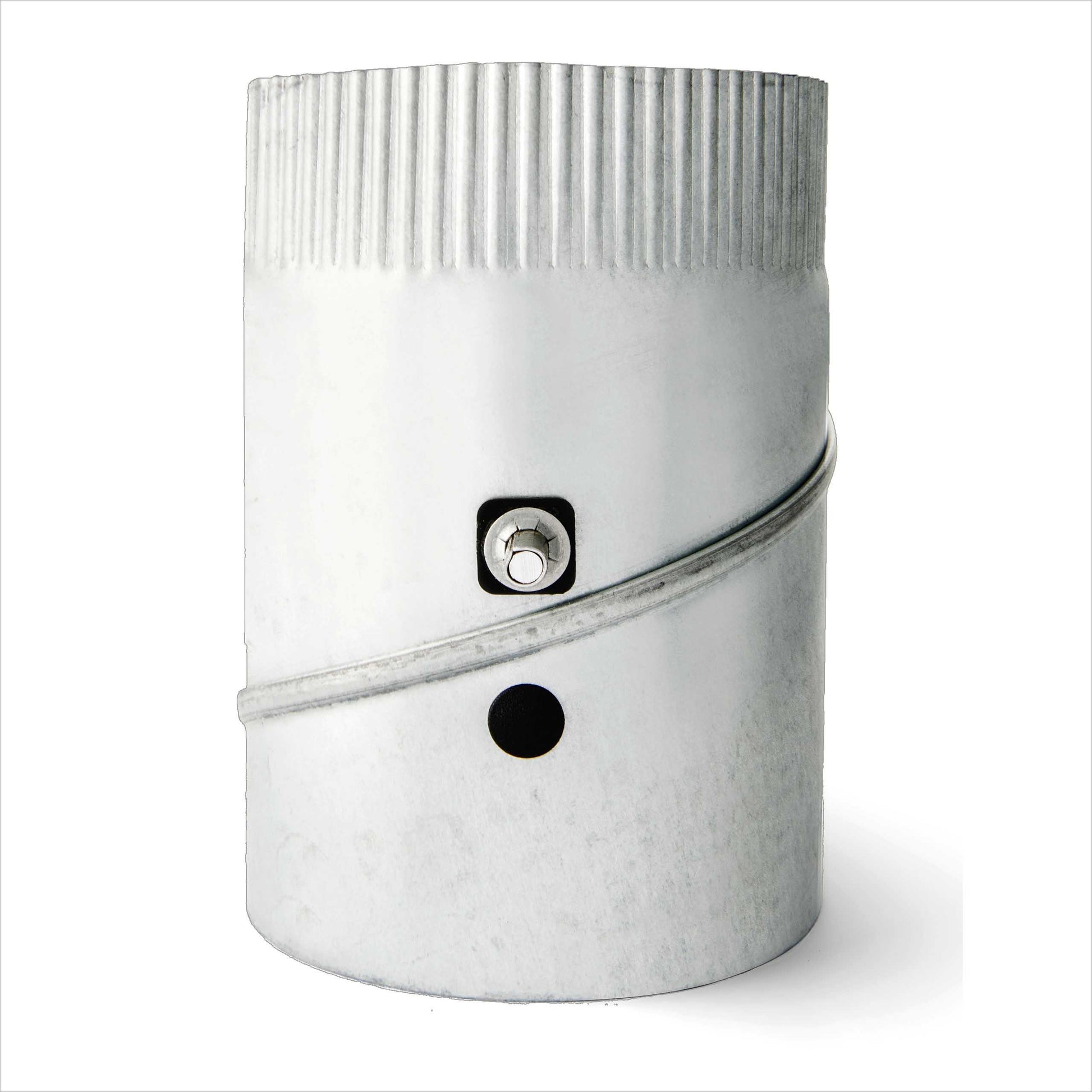

Honeywell Automatic Round Damper power-close, spring-open models ensure low leakage while controlling circulating air in heating, cooling and ventilation systems.

Features

  • Features galvanized steel with single-blade damper, which closes off tightly against gasket for minimal leakage
  • Designated as power closed/spring return open damper for use with Honeywell Zoning Systems
  • Can be field-converted when used as an independent zone or for fresh air intake
  • Adjustable close position range stops
  • Shipped as power closed/spring return open damper.
  • Available in 5 to 10” inch, 12, 14, 16, 18, and 20 inch diameter sizes.
  • Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct.
  • Rated to operate up to 1 in. wc
  • Blade closes off tightly against gasket for minimal leakage.
  • Fail-safe, normally open operation
  • Simple, easy-to-wire, two-wire installation with a third wire option M4 for LED open only light






HKZ1300140
