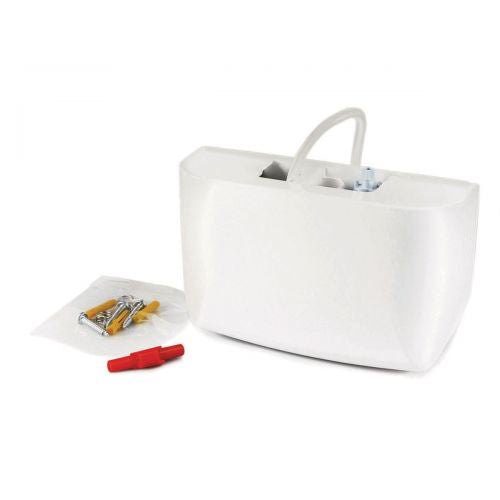

Aspen Mini 100-250V Condensate Pump, White

Designed to be fitted below the indoor unit, the Mini White offers an extremely easy to install mini pump for all wall and ceiling suspended indoor units. Snap-on snap-off cover allows for easy filter maintenance

Pump assembly mounts on wall surface below the evaporator (easy filter access). Surface mounts below evaporator, at either end, and No need to disturb evaporator to clean filter, reservoir clips out from front for easy removal & replacement

Features

• Resilient mounting minimizes vibration & noise
• Accepts standard 5/8" drain hose from any mini-split and Extra large reservoir capacity minimizes pump operation

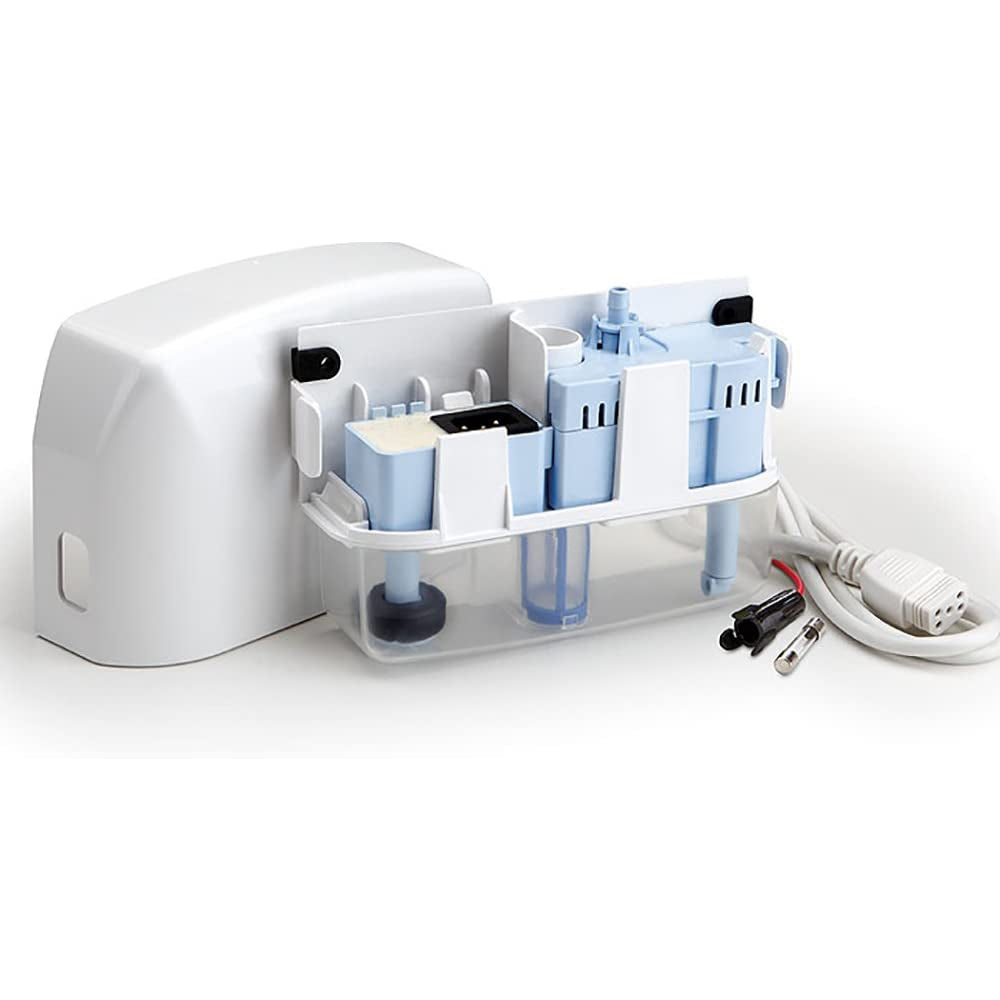

• Cleanable replaceable plastic filter accepts water treatment tablet, No need to disturb evaporator to clean filter, reservoir clips out from front for easy removal & replacement and All components clip apart for easy disassembly without tools
• Quiet and Fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent #6,817,194)
• 3A N/C dry contacts rated @ 5A inductive @ 230V AC

Designed for use with ductless mini-split A/C systems to remove condensed water from evaporative coil condensate tray through drain line provided with equipment.

HCZ1111065
