Installation Instructions

Specification Sheet

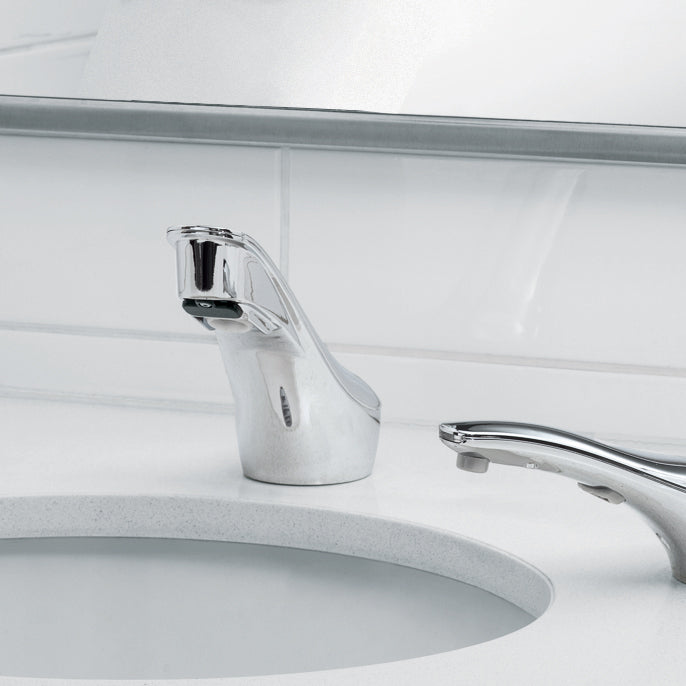

Automatic Series touch free Faucet- Polished Chrome

Features:

• Automatic, “touch-free” Designer Series Faucet with die-cast zinc body construction.
• Hidden sensor lens delivers reliable and hygienic hands-free operation.
• Available in four different finishes (polished chrome, polished nickel, brushed nickel, and polished brass) that exactly match Bobrick Designer Series Soap Dispensers.
• ADA compliant unit uses 4 “AA” batteries and includes in-line filter.
• Faucets have adjustable time-out durations, line purging, adaptable sensor ranges, and LEED flow-rate options.

Materials:

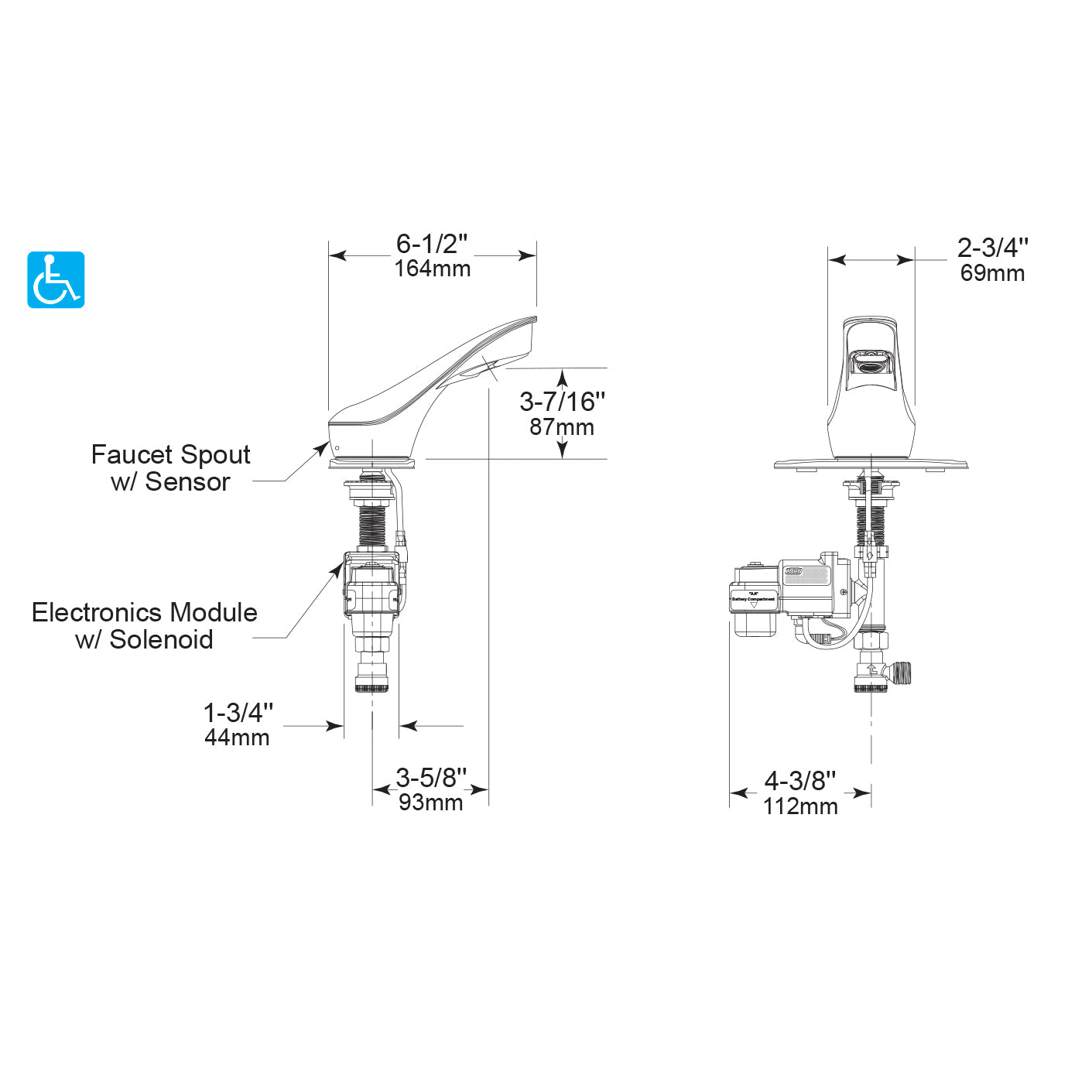

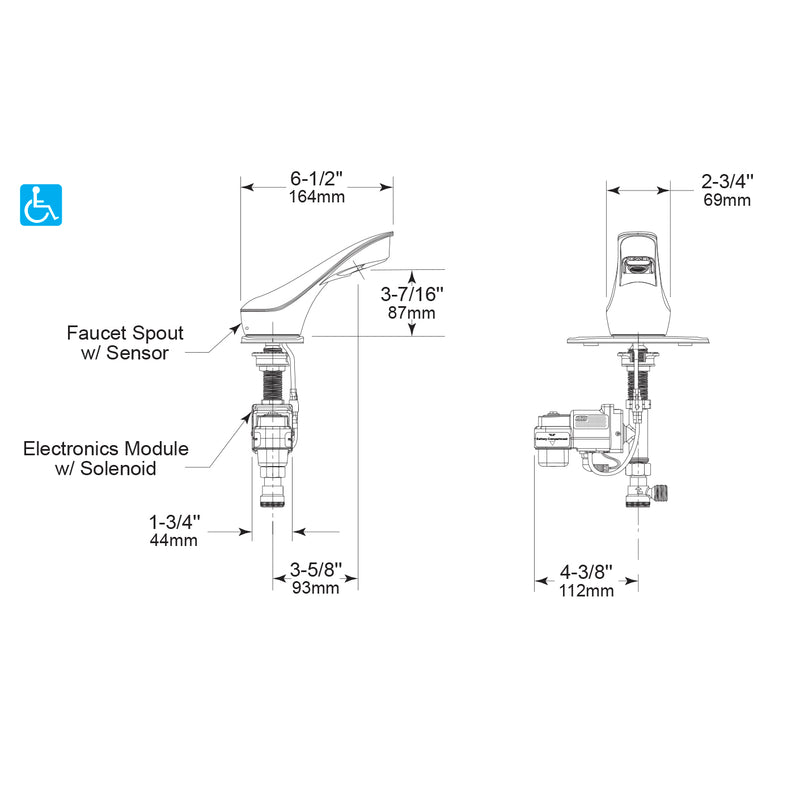

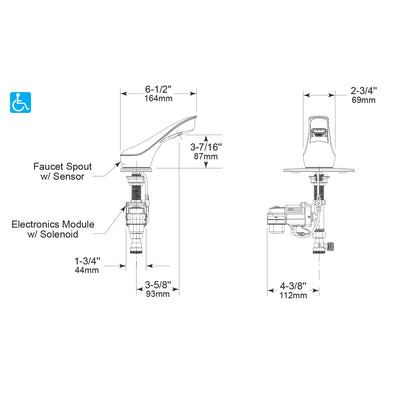

• Spout Assembly — Spout is made of one-piece heavy-duty cast brass available in five different finishes. Built in IR sensor with sophisticated automatic user detection and self-calibration ensures the user does not need to touch the faucet and helps deliver optimum water savings. See Finishes below.
• Aerator and Key — Use key to install aerator into spout.
• Shank Mounting Kit — Below the sink, plastic shank and gasket secures spout assembly to counter.
• Electronics Box with Solenoid — Controlled by IR sensor, opens and closes the flow of water to the unit. 4 “AA” Battery Pack comes standard with unit and is housed in the Electronics Box.
• Filter — Installed to bottom of electronics box and connects to water line to help prevent debris and other materials from clogging unit or causing a malfunction.
  Optional — 6V AC Adapter. For AC adapter option, must order both parts, part no. 8878-72 AC Power Converter and 8878-73 Inline Connector.

Operation:

• To activate faucet, place hand under spout near the sensor for approximately 1 second. Water will flow from spout at a rate of 0.5
  gallons per minute (GPM) for a specified length of time determined by the mode in which the device is set to. The default mode
  is Sensing Mode where water will flow from spout until hands are removed from sensor or after automatic shut off time of 30
  seconds.
