Automatic touch-free Top Fill Bulk Soap Dispenser, Liquid

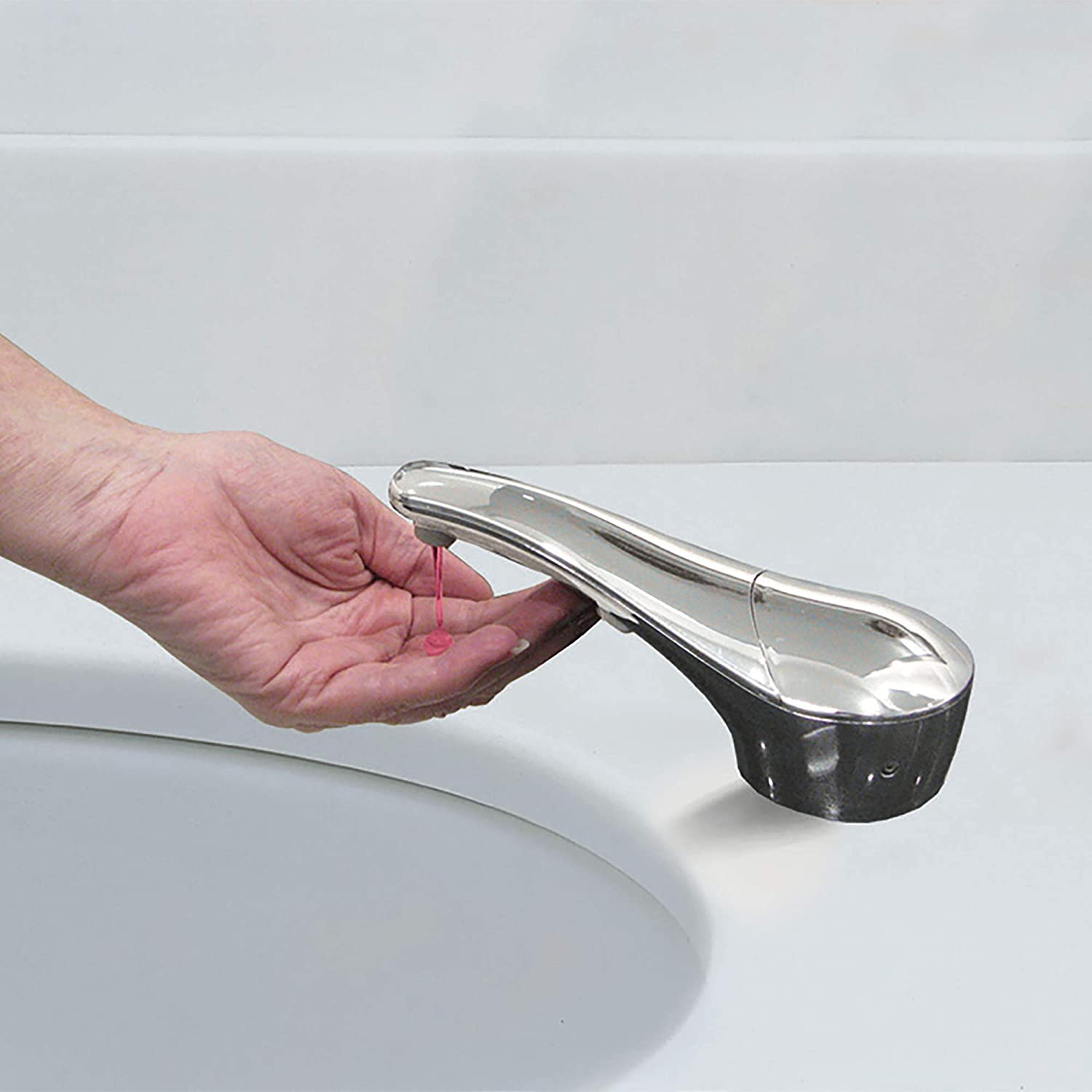

The Bobrick B824 is a SureFlo automatic, top fill bulk liquid soap dispenser. It is designed to minimize cross contamination. For significant costinuse savings, this model features a unique portion control. With this Bobrick soap dispenser, there is no need to worry about accidental activation during hand washing. That's because of this model's activation lens, which lets the unit define its activation range.When the battery life or the soap level is low, the LED light starts blinking to indicate that a battery change or refill is necessary. Also, there is no need to worry about the motor of this Bobrick soap dispenser because it is water resistant. For ease of installation, one fiber optic connector tip integrates all three plastic fiber optic cables.

• Dispenses adjustable amount (.4 to 3 ml) of commercially marketed all-purpose bulk liquid hand soaps of various viscosities Made of bright polished chrome plated ABS plastic with integral shank Accommodates up to 2" (50mm) thick counter tops Equipped with oversized funnel shape opening Covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling Features LED indicators to show when unit has been activated and low battery life Unit has IR Sensor located on PC boar

Materials:

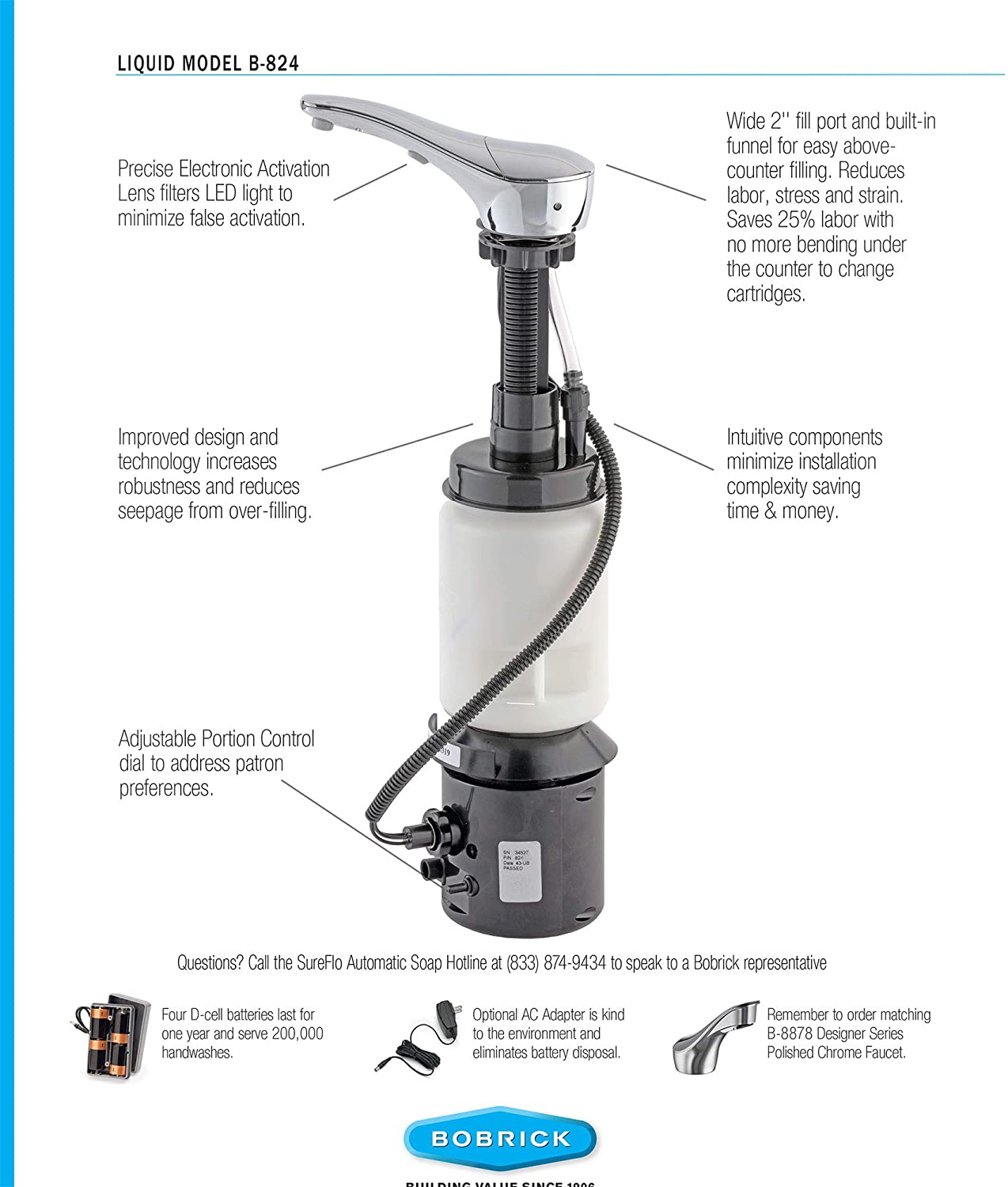

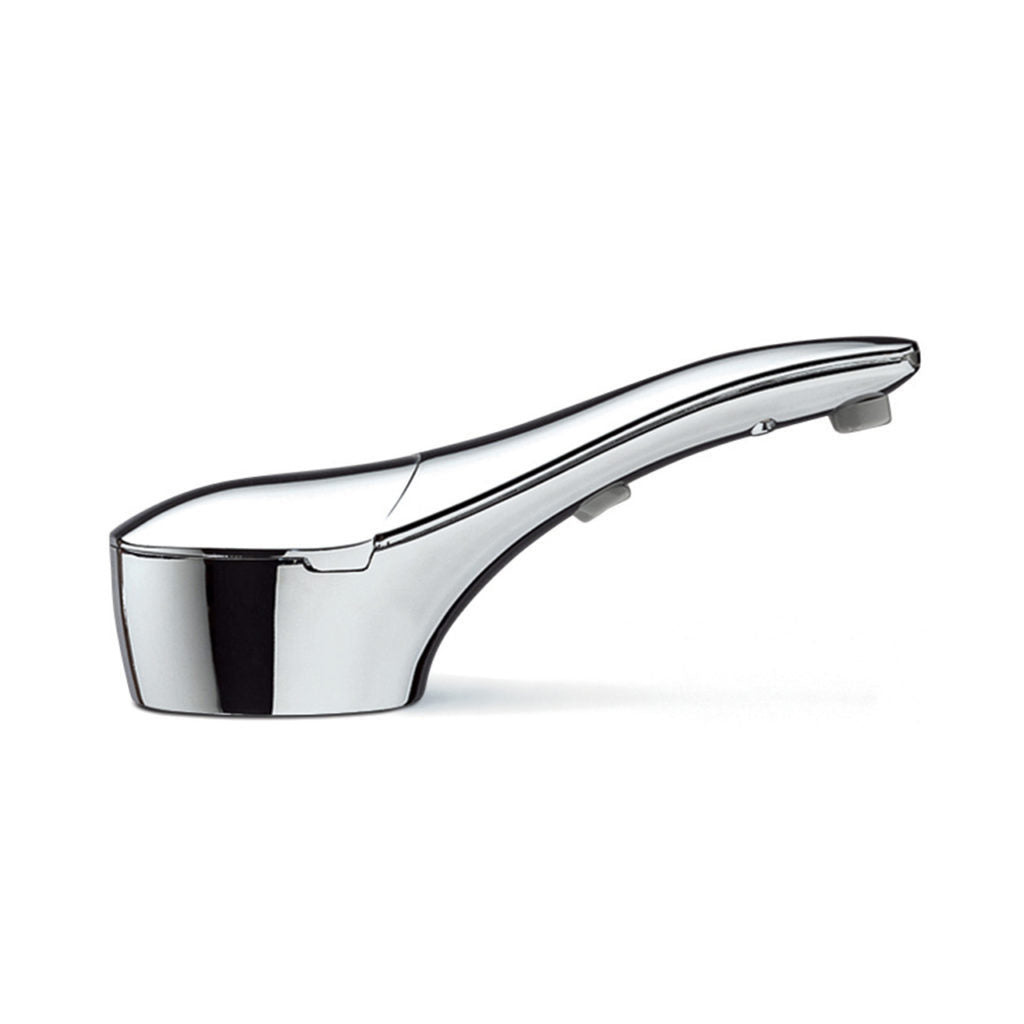

• Spout and Stem Assembly — Above the counter, chrome plated ABS plastic spout. Unit equipped with a spring loaded 180° rotatable lid with concealed locking mechanism for top filling.Rotatable lid mechanism consists of metal components. Integrated to Spout are a grey plastic Dispense Tip and Activation Lens Housing. Stem connects to Bottle.

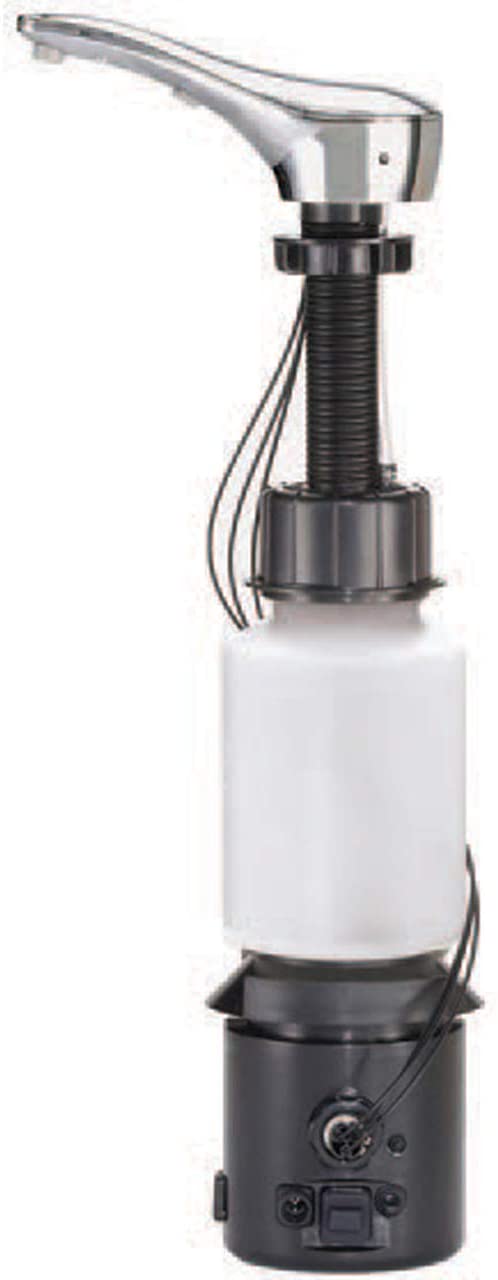

• Soap Bottle — Translucent, shatter-resistant polyethylene. Capacity: 34-fl oz (1.0-L). Pump and Soap Delivery System — A plastic Gear Pump submerged in the bottom of the Bottle, pumps the liquid soap through a vinyl tube to spout.
• Bottom Housing — Water resistant, ABS plastic housing attached to the bottom of the Bottle, houses the PC Board, motor that drives the Gear Pump, and the Gear Pump Housing. It includes a Portion Control Knob, Flush Button to allow for system cleaning and maintenance, a connector for the Fiber Optic cables, and Power Port.
• Electronic Activation/Indication System — Pair of plastic Fiber Optic cables connects the plastic Activation Lenses to an IR Sensor located on a PC Board in the Bottom Housing. A third plastic Fiber Optic cable connects an LED located on the PC Board to an acrylic Lens at the tip of the Spout; a solid green LED indicates dispense activity and a red blinking LED light indicates low battery life. All three cables are Integrated into one Fiber Optic Connector Tip for ease of installation.
• Battery Pack — Water-resistant, plastic material holds 4 Alkaline “D” Cell Batteries (not included). ANSI-134A, IEC-LR20 Designation, which includes most standard battery manufacturer’s D-Batteries. 70°C.
• Optional 6V AC Adapter with U.S. Plug available. Order Part No. 3974-57 (For non-U.S. compatible plugs, order Part No.
  3974-55).
