Home » Rheem » Blower Motors » 51-24070-02 - 1/2 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V
Rheem

51-24070-02 - 1/2 HP Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V

In stock
SKU: 51-24070-02
$246.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Brandon (Seattle, US)

Motor was as advertised and works well.

B
Bob M. (Ballston Spa, US)
Perfect replacement - easy install

Replaced a worn out motor with bad bearings that was 20yrs old… runs better than new now, the furnace is so quiet, we barely notice that it is running

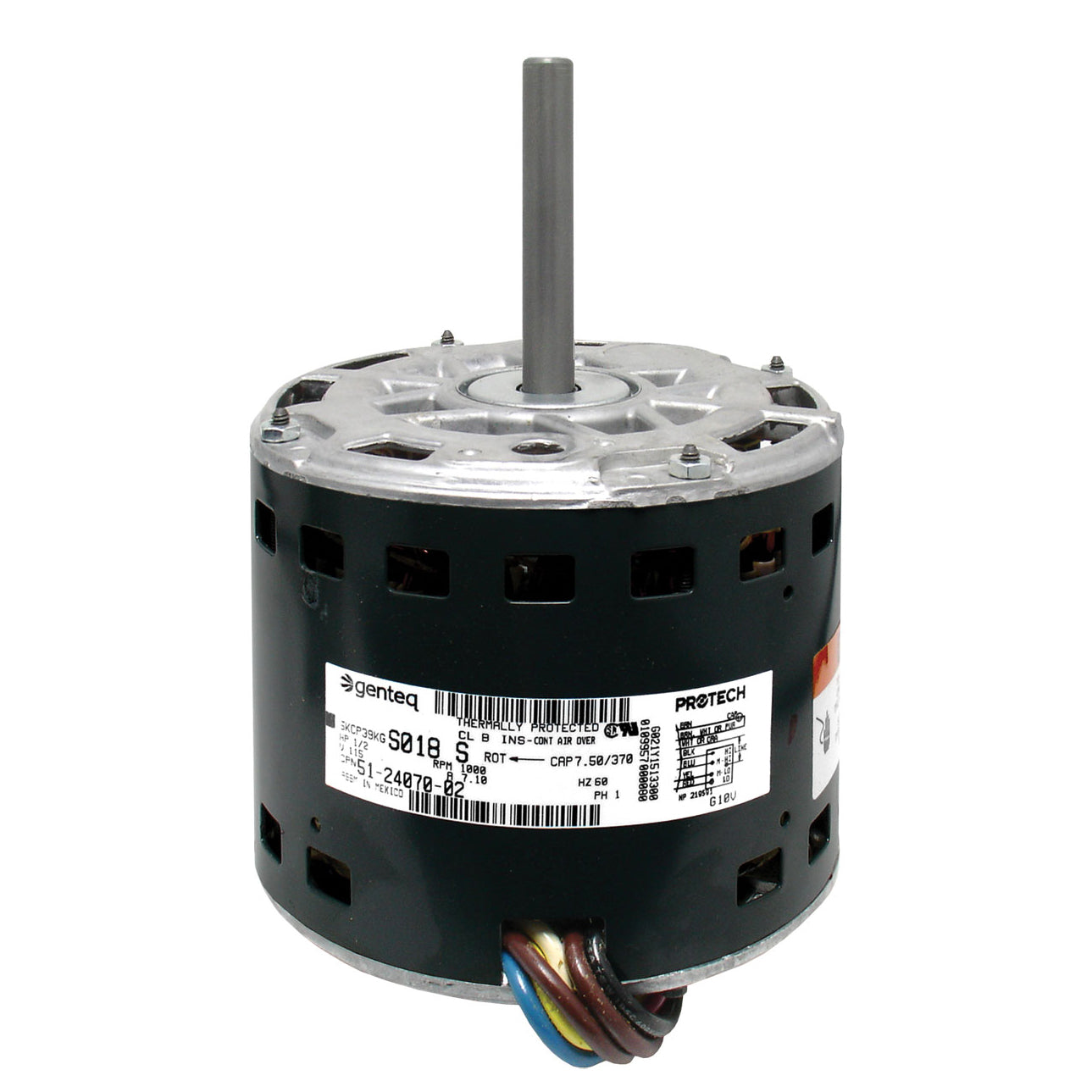

Rheem 51-24070-02 Blower Motor - 1/2 hp 120/1/60 (1075 rpm/4 speeds)

Specifications

  • HP: 1/2
  • No. of Speeds: 4
  • High Speed (RPM): 1075
  • Input Voltage (V): 120
  • No. of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): CCW
  • Run Capacitor (uF/V): 7.5/370
  • FLA at 120V (A): 7.10
  • LRA at 120V (A): 12.40
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 3
  • Overall Shaft Length (in.): 3-1/2
  • Motor Body Length (in.): 4-3/4
  • Overall Motor Length (in.): 8-5/16
  • Mounting: Shell-band
  • Mounting: Shell-screw
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Blower
  • Drive Type: Direct Drive
  • Shipping Weight: 13.04 lbs
  • Shipping Length: 21.45"
  • Shipping Width: 7"
  • Shipping Height: 7"

Where Used

  • RGDG
  • SGDG
  • RGLH
  • RGLK
  • RGLN
  • RGLQ
  • RGPH
  • RGPK
  • RGPN
  • RGPQ
  • RGVH



HUZ2010460
