Home » Blower Motors » 51-104939-01 - 1/3 HP Blower Motor - 1 Phase - 4 Speed - 825 RPM - 120V
Rheem

51-104939-01 - 1/3 HP Blower Motor - 1 Phase - 4 Speed - 825 RPM - 120V

Out of stock
SKU: 51-104939-01
$160.86

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

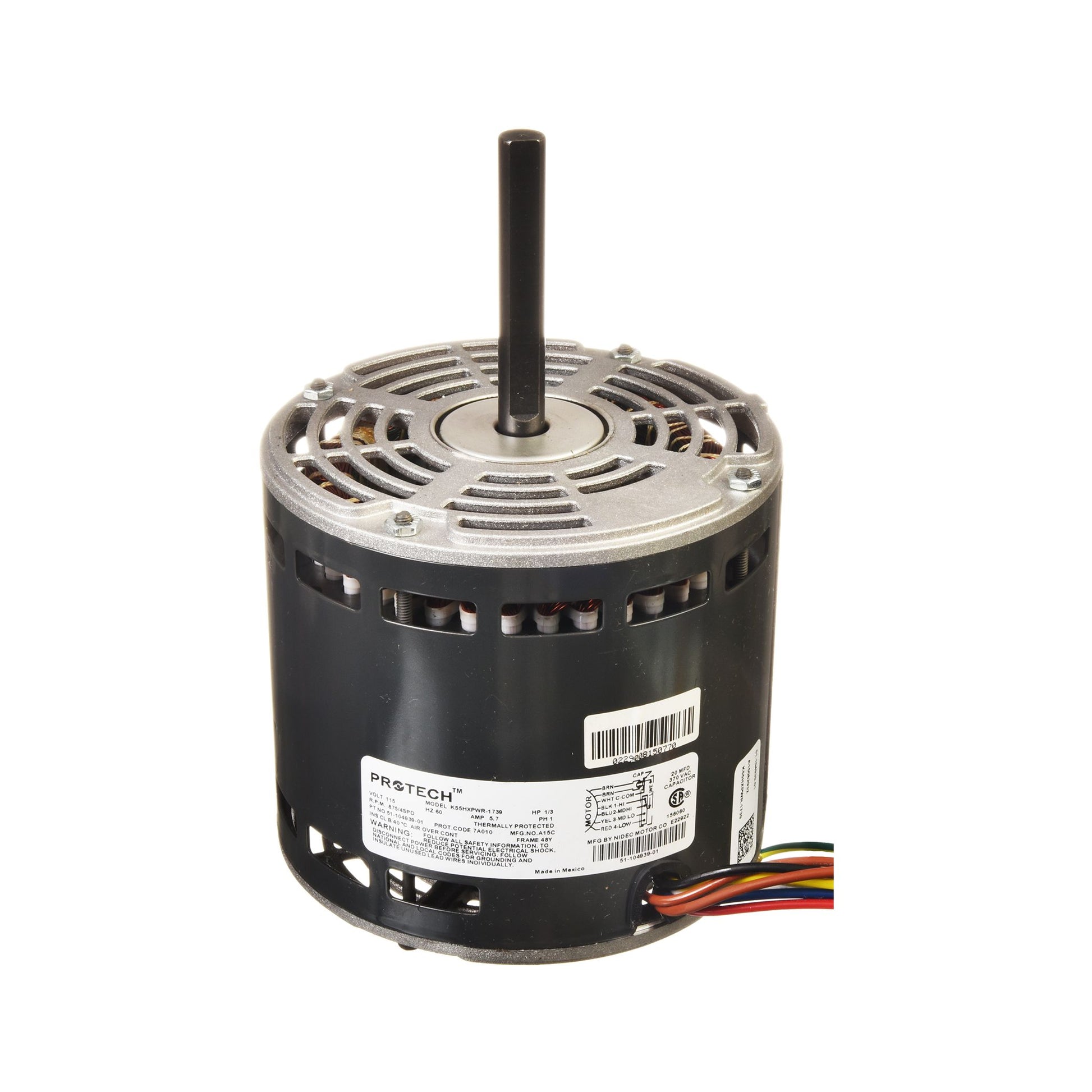

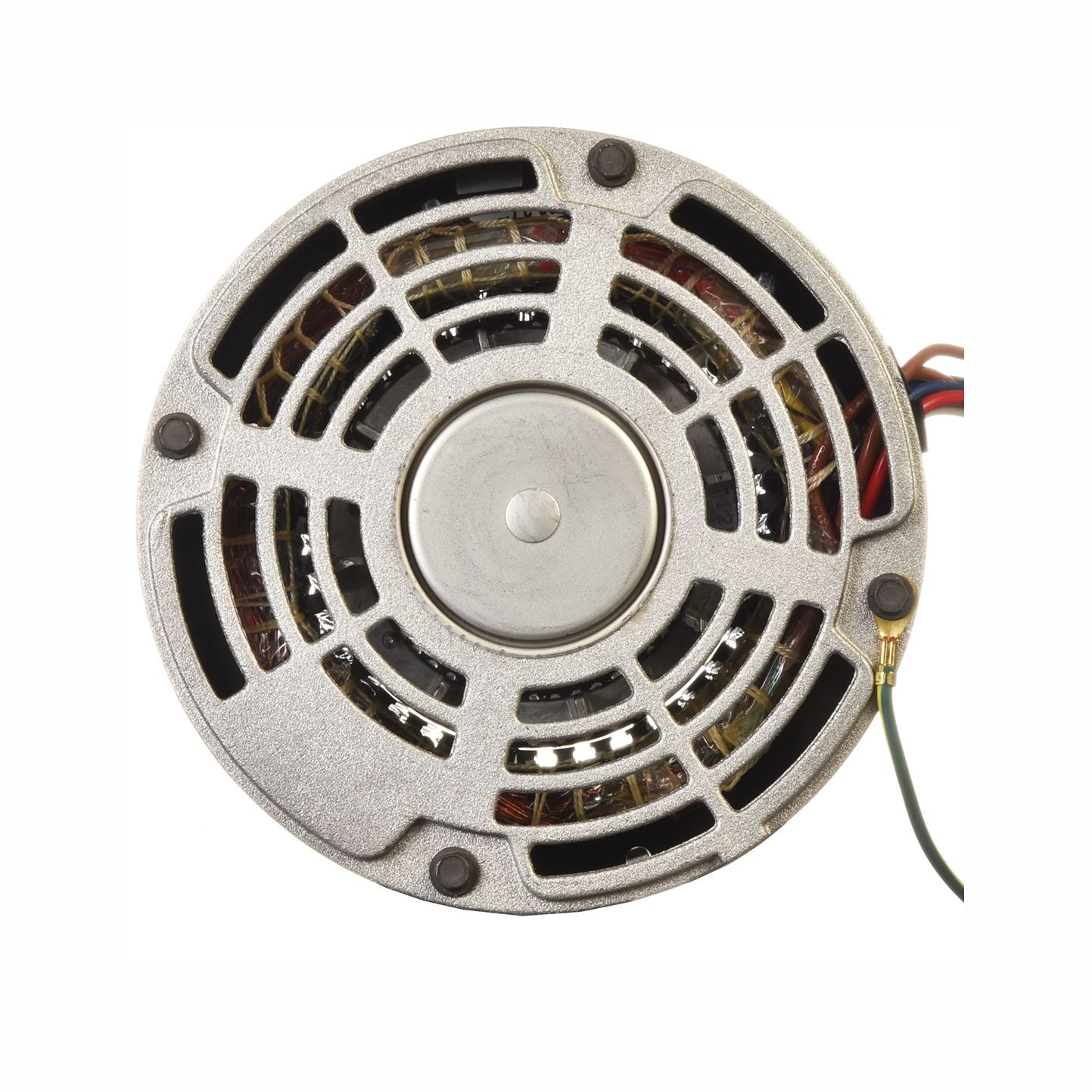

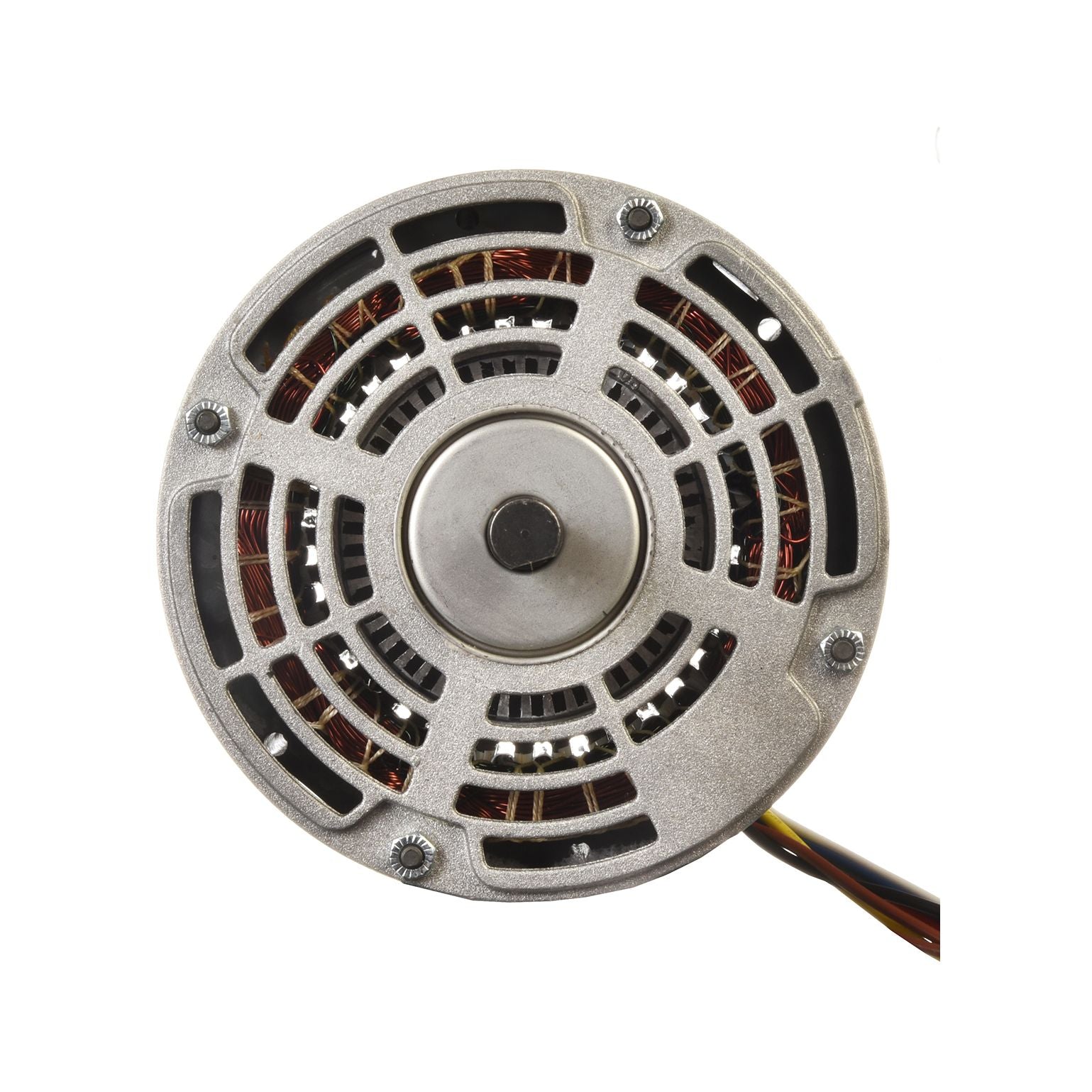

Rheem 51-104939-01 - 1/3 HP Blower Motor - 1 Phase - 4 Speed - 825 RPM -  120V

OEM replacements that may also be suitable for aftermarket retrofit in many other applications.

Features

  • HP: 1/3
  • Number of Speeds: 4
  • High Speed (RPM): 825
  • Input Voltage (V): 120
  • Number of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): CCW
  • Run Capacitor (uF/V): 20/370
  • FLA at 120V (A): 5.7
  • LRA at 120V (A): 8.4
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 2-3/4
  • Overall Shaft Length (in.): 3-1/4
  • Motor Body Length (in.): 5-1/16
  • Overall Motor Length (in.): 8-5/16
  • Mounting: Shell-band
  • Frame Size: 48
  • Bearing Type: Ball
  • Application: Blower
  • Drive Type: Direct Drive
  • Shipping Weight: 14.94 lbs

Where Used

  • R801P-MSA
  • R801P-MSA_MXA
  • R801S-MSA
  • R802P-MSA
