Home » Rheem » Blower Motors » 51-23555-02 - 3/4 HP Blower Motor - 1 Phase - 3 Speed - 1075 RPM - 230V
Rheem

51-23555-02 - 3/4 HP Blower Motor - 1 Phase - 3 Speed - 1075 RPM - 230V

In stock
SKU: 51-23555-02
$319.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

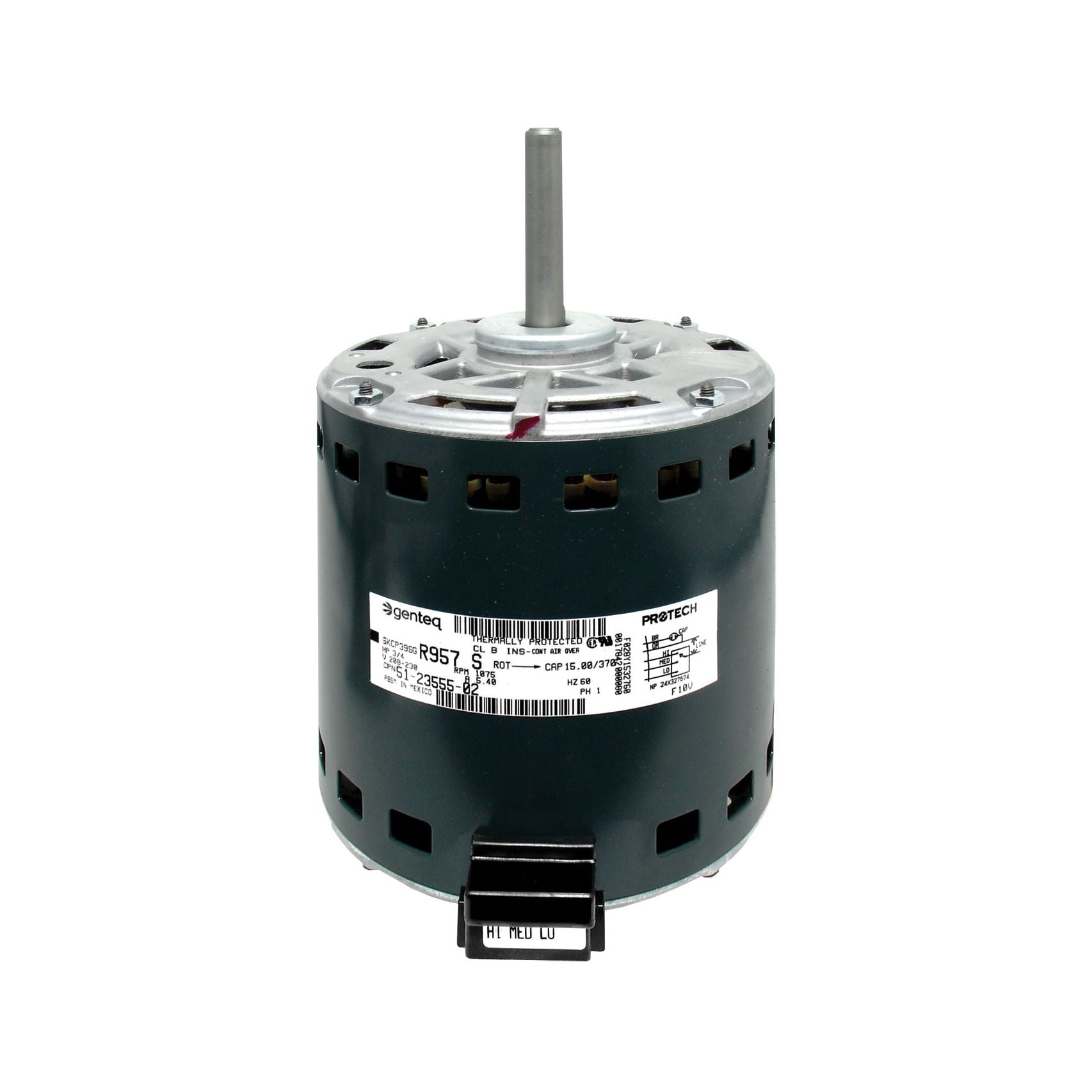

Rheem 51-23555-02 - 3/4 HP Blower Motor - 1 Phase - 3 Speed - 1075 RPM - 230V

The Blower Motor is the component that sends conditioned air from the furnace, heat pump, orair conditioner into the home. When the system cools or heats the air, the blower motor forces it through the duct system and out the vents in rooms throughout the home.

Features

  • Thermally protected
  • Sleeve bearing
  • OEM genuine factory authorized part

Technical Data

  • HP: 3/4
  • Number of Speeds: 3
  • High Speed (RPM): 1075
  • Input Voltage (V): 208
  • Input Voltage (V): 230
  • Number of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): CW
  • Run Capacitor (uF/V): 15/370
  • FLA at 230V (A): 5.40
  • LRA at 230V (A): 12.00
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 2-1/2
  • Overall Shaft Length (in.): 2-3/4
  • Motor Body Length (in.): 6-13/16
  • Overall Motor Length (in.): 9-5/8
  • Mounting: Shell-band
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Blower
  • Drive Type: Direct Drive
  • Shipping Weight: 19.71 lbs

Where Used

  • RKKA
  • SLKA
  • RJKA
  • RKMA
  • RLKA
  • RLMA

Replaces

  • 51-23555-01



HUZ2010458
