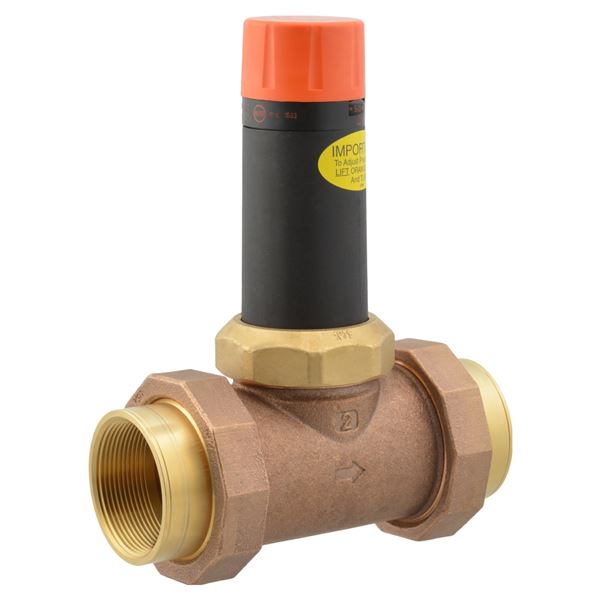

Cash Acme 23968-0045 - 2" EB45 Double Union Threaded Pressure Regulating Valve
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Specification SheetCash Acme 23968-0045 - 2" EB45 Double Union Threaded Pressure Regulating Valve
The EB-25 from Cash Acme brings state-of-the-art water control technology to pressure regulators. The EB-25 has a convenient orange pressure adjustment twist-cap, and numerical indicator which makes installation a quick, one-man job. The unique design also eliminates the water whistle or hum associated with most PRVs, due to innovative “micro-fingers” that dissipate noise as water flows across the seat. And thanks to a patented single-cartridge design, this valve has fewer parts for increased reliability, and it can be serviced without having to remove the valve body.
While pressure reduction is an everyday need necessary to protect appliances and plumbing fixtures, the advanced water control technology of the EB-25 provides unique new benefits to this common application. The biggest breakthrough is the simple numerical indicator that allows the exact desired pressure to be set even before the valve is installed. Once installed, patented design features mean the EB-25 offers improved reliability and easier access for maintenance.
The EB-25 is lead free1 and intended for use where supply line pressure does not exceed 300 psi. These valves are supplied by the factory with a standard delivery setting of 45 psi. The outlet pressure can be adjusted from 20-90 psi without changing the spring. The EB-25 is suited for either cold or hot (to 180°F) water service.
Specifications
- Type: Pressure Regulator
- Connection Type: Threaded (NPT)
- Size: 2"
- Operating Temperature [Min]: 0 Degrees F
- Operating Temperature [Max]: 180 Degrees F
- Operating Pressure [Min]: 20 psi
- Operating Pressure [Max]: 90 psi
- Body Material: Lead Free Bronze or Stainless Steel
- Spring Chamfer Material: Nylon
- Adjusting Spring Material: Steel (zinc plated)
- Pressure Plate Material: Steel (zinc plated)
- Diaphragm Material: EPDM
- Body Seat Material: Polysulphone
- Seat Disc Material: EPDM
- Piston Material: Stainless Steel
- Strainer Screen Material: Stainless steel
