Cast Iron Circulator Pump with Integral Flow Check

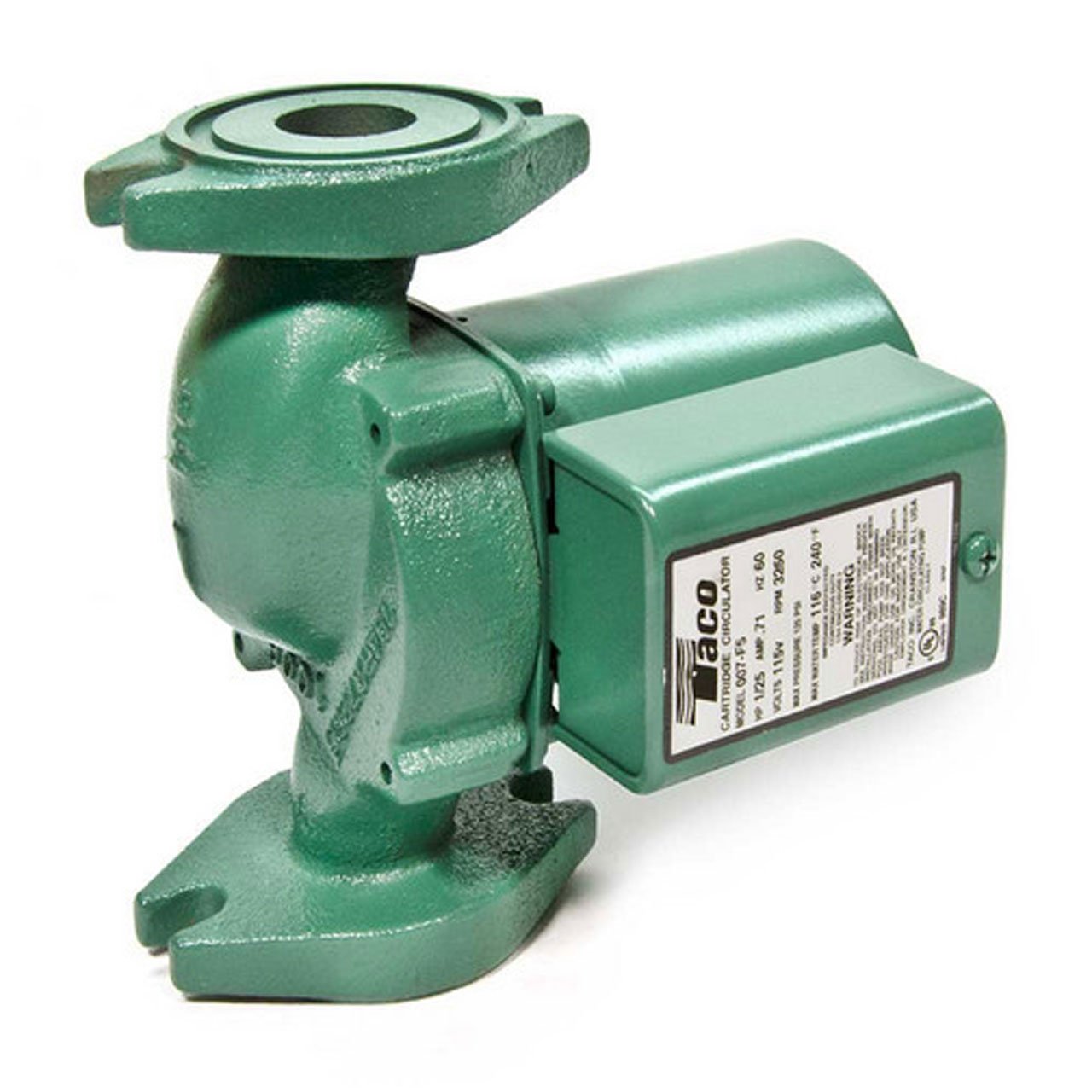

Taco 007-F5-7IFC - Cartridge Circulator - Cast Iron - Integral Flow Check - 1/25 HP - Flanged
The 007-IFC features a removable Integral Flow Check designed to improve pump performance, simplify piping and reduce installation costs. The spring-loaded IFC replaces a separate in-lineflow check to ensure protection against reverse flow and gravity flow.

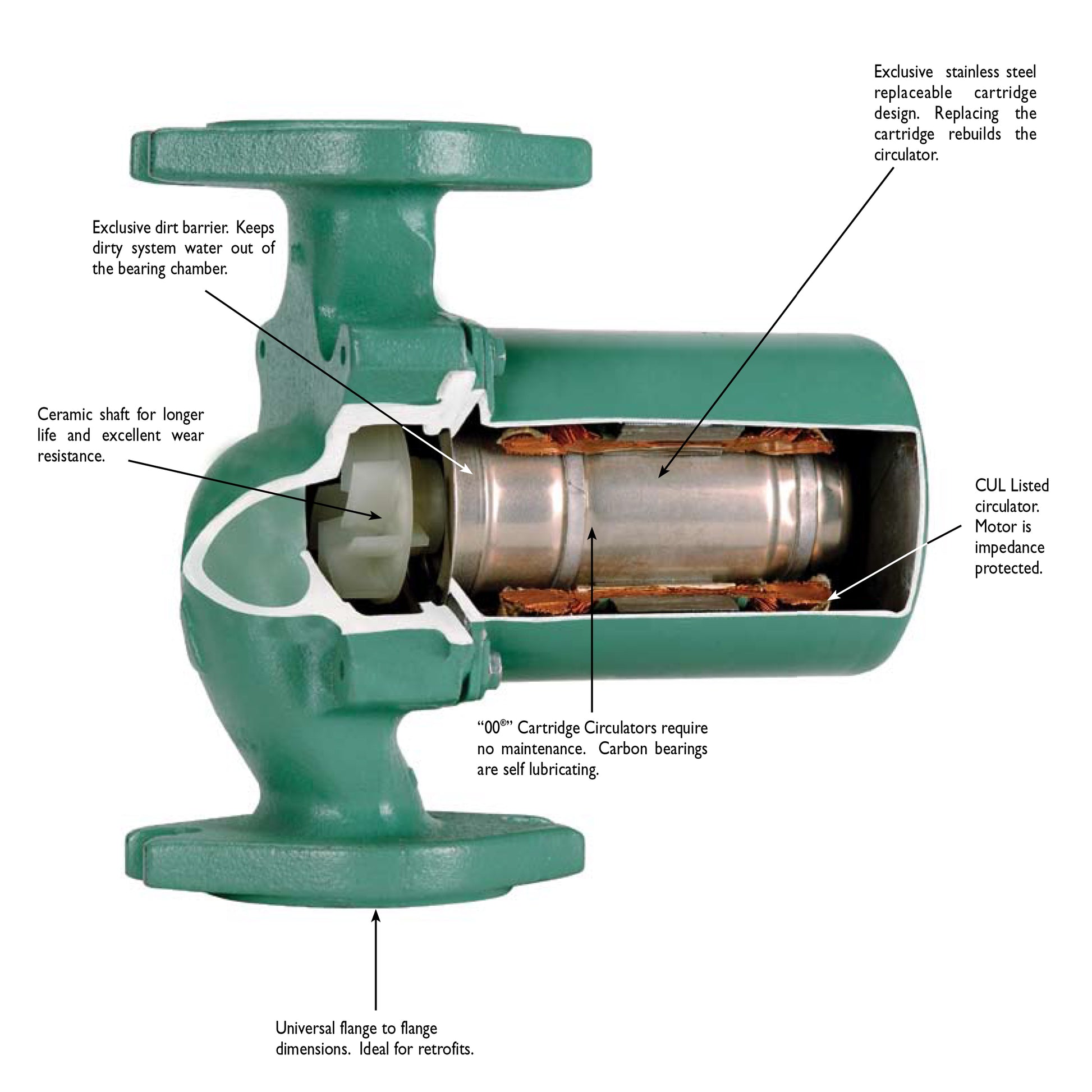

The 007-IFC is designed to simplify piping, reduce installation costs and improve system performance when zoning with 00 circulators. By locating the IFC inside the pump, a separate in-line flow check is eliminated. The low pressure drop of the IFC increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for rem
Features
- Integral Flow Check (IFC)
- Simplifies piping
- Prevents reverse flow and gravity flow
- Eliminates separate in-line flow check
- Reduces installed cost
- Improves system performance
- Easy to service

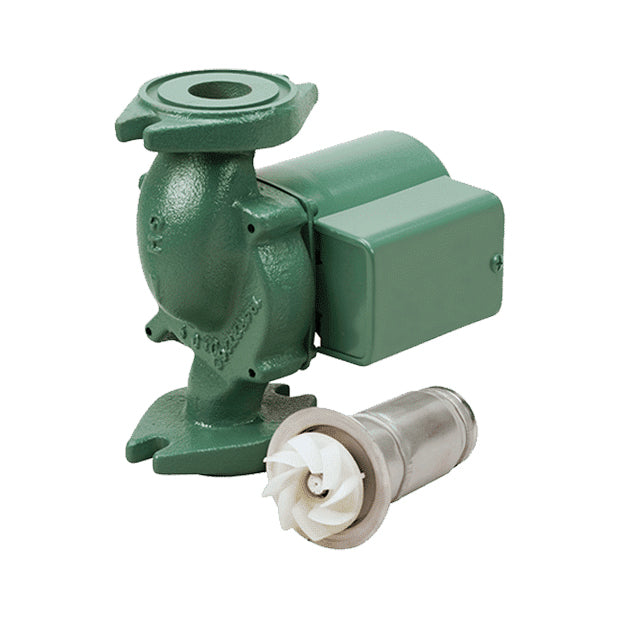

- Unique replaceable cartridge-field serviceable
- Unmatched reliability-maintenance free
- Quiet, efficient operation
- Self lubricating, No mechanical seal
- Wide range of applications
- Cast Iron or Stainless Ste

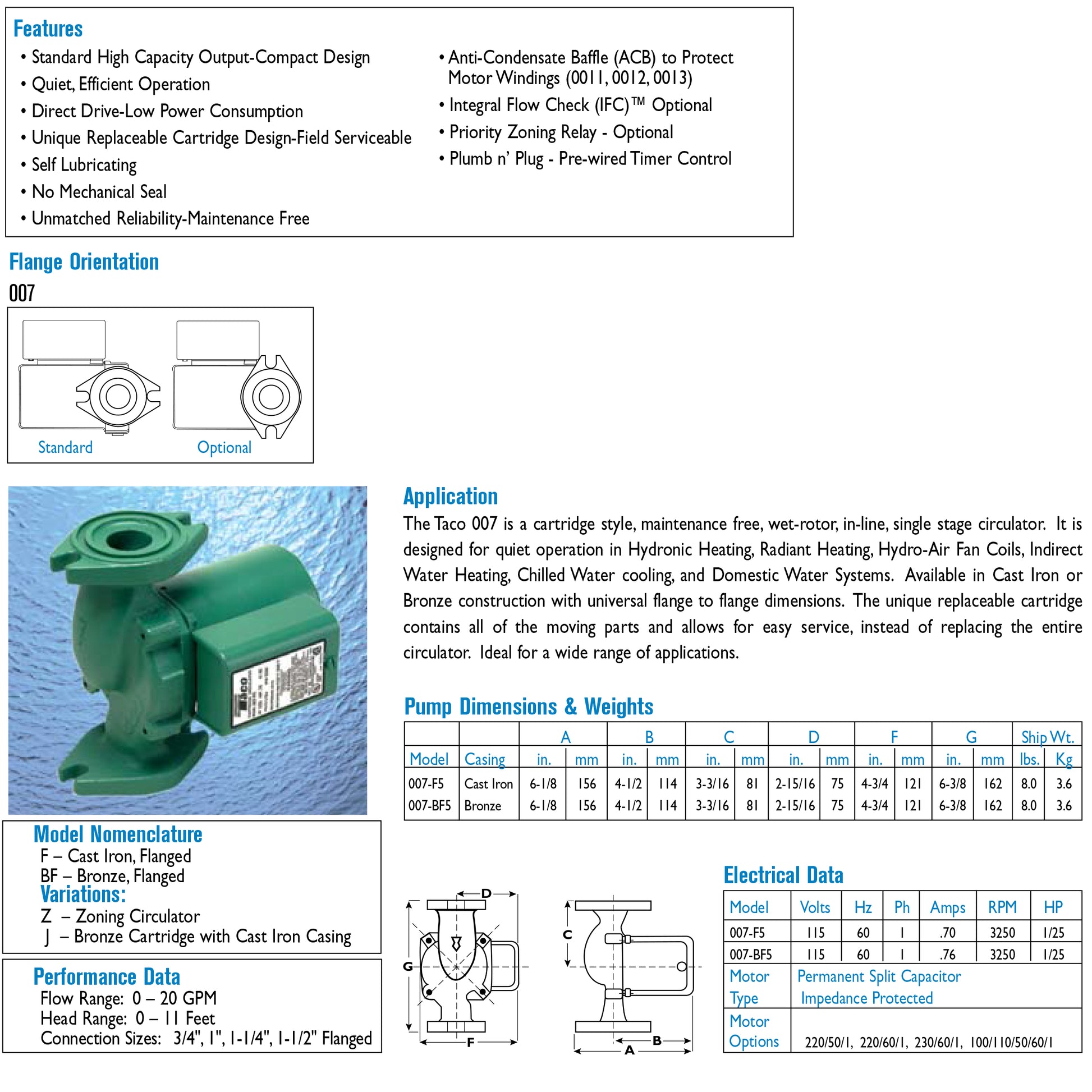

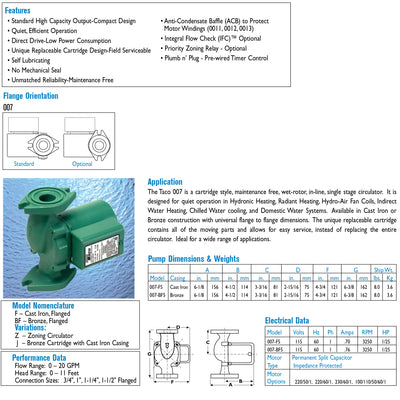

Specifications
- Connection: Standard Flange
- Volts: 115
- Hertz: 60
- Phases: 1
- Amps: 0.71
- RPM: 3,250
- HP: 1/25
- Casing (Volute): Cast Iron
- Stator Housing: Steel
- Cartridge: Stainless Steel
- Impeller: Non-metallic
- Shaft: Ceramic
- Bearing: Carbon
- O-Ring & Gaskets: EPDM
PKZ1900105
