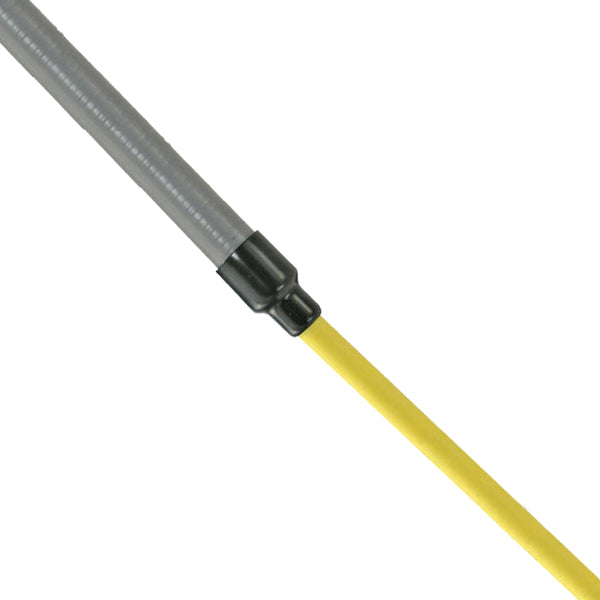

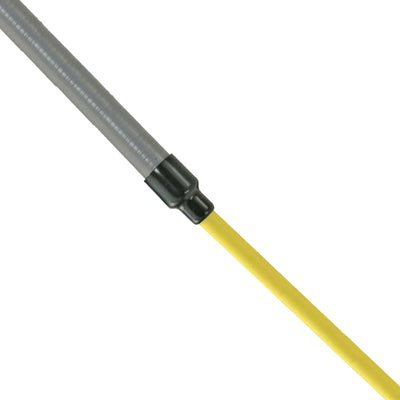

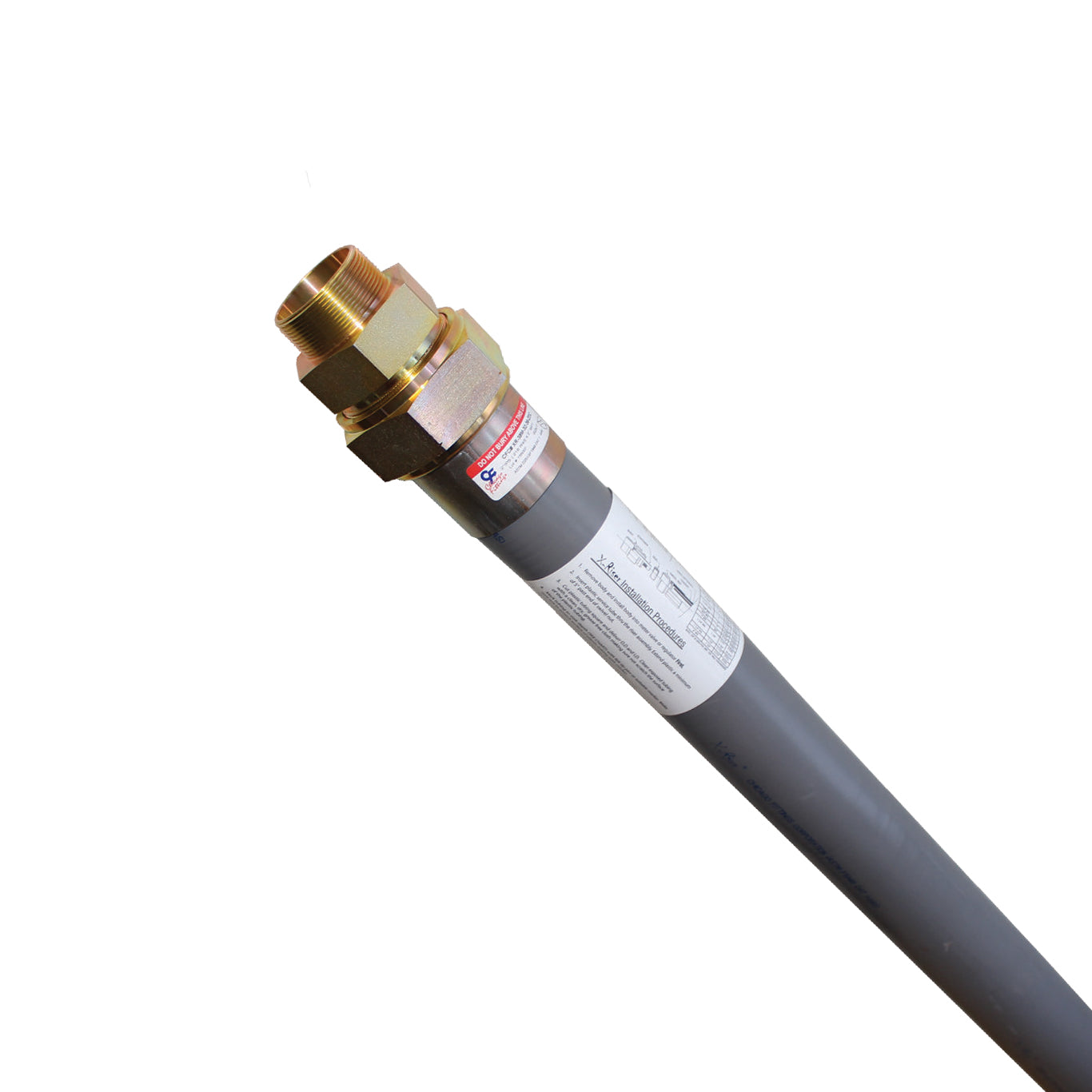

Chicago Fittings - XR-17C-12-36-ZDC - X-Riser Flexible Anodeless Riser for NG Applications - 3/4" MPT

Chicago Fittings provides a wide variety of transition fittings for the natural gas and propane markets.

Features

• X-Riser Series
• No Underground Joints - One solid service line from point-to-point with above ground terminations.
• No Chamfering – A simple clean cut is all that is required.
• Bi-Directional Seal assembly CAN'T be installed improperly where some competitors multiple internal components MUST have proper order and orientation to function properly.
• No Torque Requirements - All X-Risers incorporate the "bottoming" or "positive stop" design. Simply tighten the compression nut until it is metal-to-metal and you are done.
• Simple Design can be installed with one flat jaw wrench extending the life of protective coatings commonly flawed or removed by pipe wrenches.
• Integral Barbed Stiffener are permanent (not loose) for additional pull out resistance.
• Quality - Chicago Fittings products are CNC machined from solid bar stock (not castings) providing high quality product with the most precise threads and design flexibility.
• Outlet: 3/4" MPT
• Tube Size: 3/4" IPS
• Wall: 0.095"
• SDR: 11
• Conduit Length: 36"
