Specification Sheet

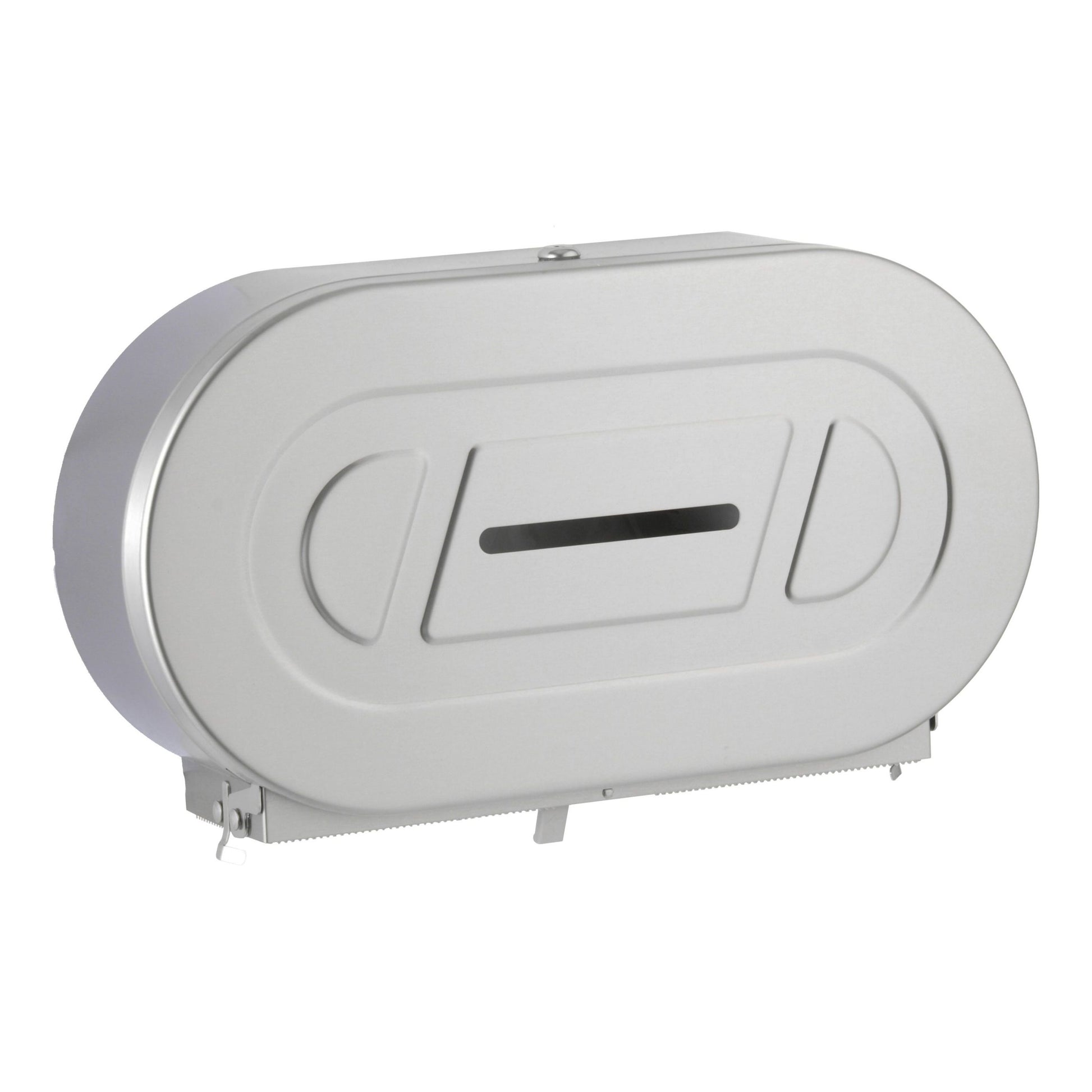

ClassicSeries 304 Stainless Steel Surface-Mounted Twin Jumbo-Roll Toilet Tissue Dispenser- Satin Finish

Features:

• Satin-finish stainless steel.
• Equipped with tumbler lock.
• Spindles hold two 10" (255mm) diameter rolls with 2 1/4" (55mm) diameter core rolls; convertible for 3" (75mm) diameter core rolls.
• Sliding access panel exposes one roll at a time, allows easy roll change-over.
• Wide viewing slot in door.
• Quick reloading.

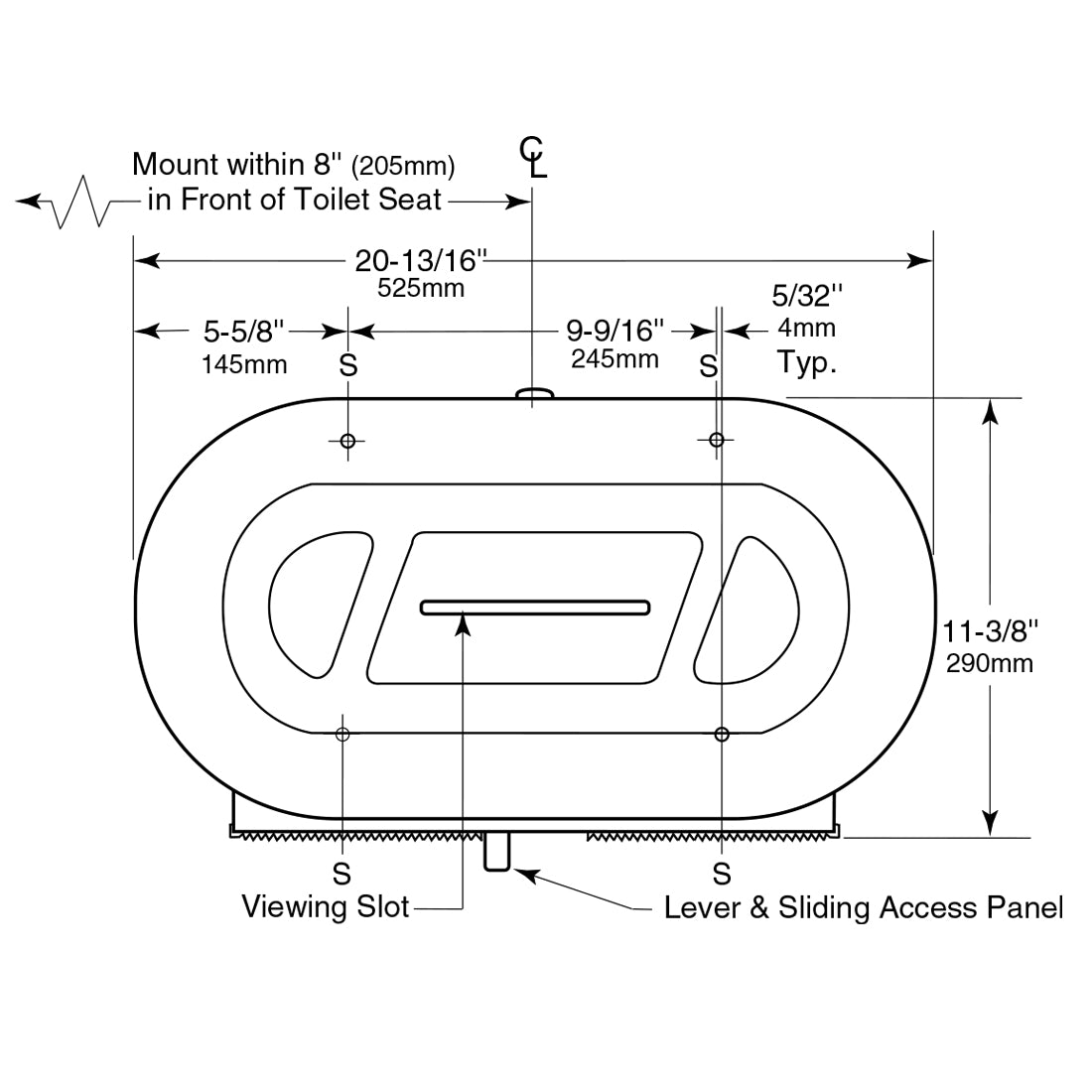

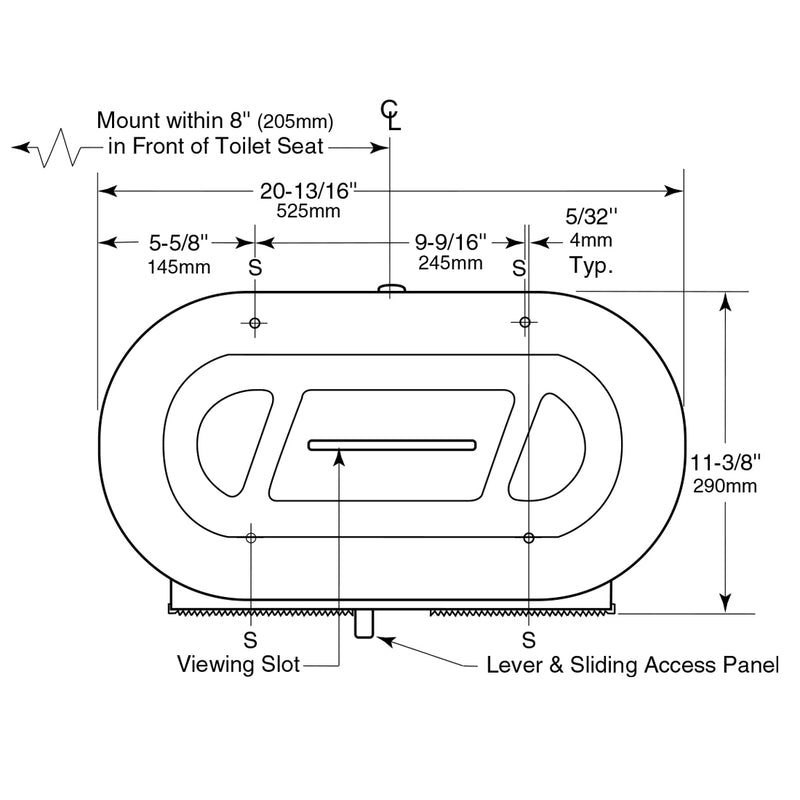

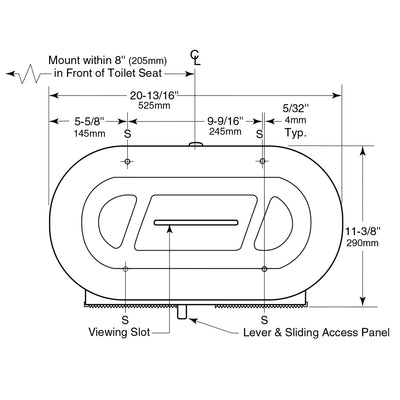

• Unit 20 13/16" W, 11 3/8" H, 5 5/16" D (530 x 290 x 135mm).

Materials:

• Cabinet — 18-8, Type-304, 20-gauge (1.0mm) stainless steel with satin-finish. Equipped with a tumbler lock keyed like other Bobrick washroom accessories.
• Door — 18-8, Type-304, 18-gauge (1.2mm) stainless steel with satin-finish. Drawn, one-piece, seamless construction.
• Wide viewing slot reveals toilet tissue supply inside cabinet.
• Dispensing Mechanism — High-impact ABS.

Operation:

• Door unlocks with key provided and swings down for loading dispenser.
• Spindles accommodate two toilet tissue rolls up to 10" (255mm) diameter with 3" (75mm) diameter core, or remove outer spindle (which is held in place with 3 snaps) from the inner spindles to accommodate 2-1/4" (55mm) diameter core rolls.
• Unique sliding access panel exposes one roll at a time for patron use, assuring uninterrupted, complete no-waste use of first roll before starting the reserve roll; allows easy roll change-over.
• When first roll is depleted, move the lever at the bottom of dispenser to the left until sliding access panel locks in position and exposes roll on right.
• When door is opened for reloading, the sliding access panel automatically releases and returns to the original position on the right.
• Move the remaining roll to the first position on left and install a new roll on the right spindle.
• Wide viewing slot in door reveals the amount of toilet tissue on both rolls. Unit is designed for quick reloading.

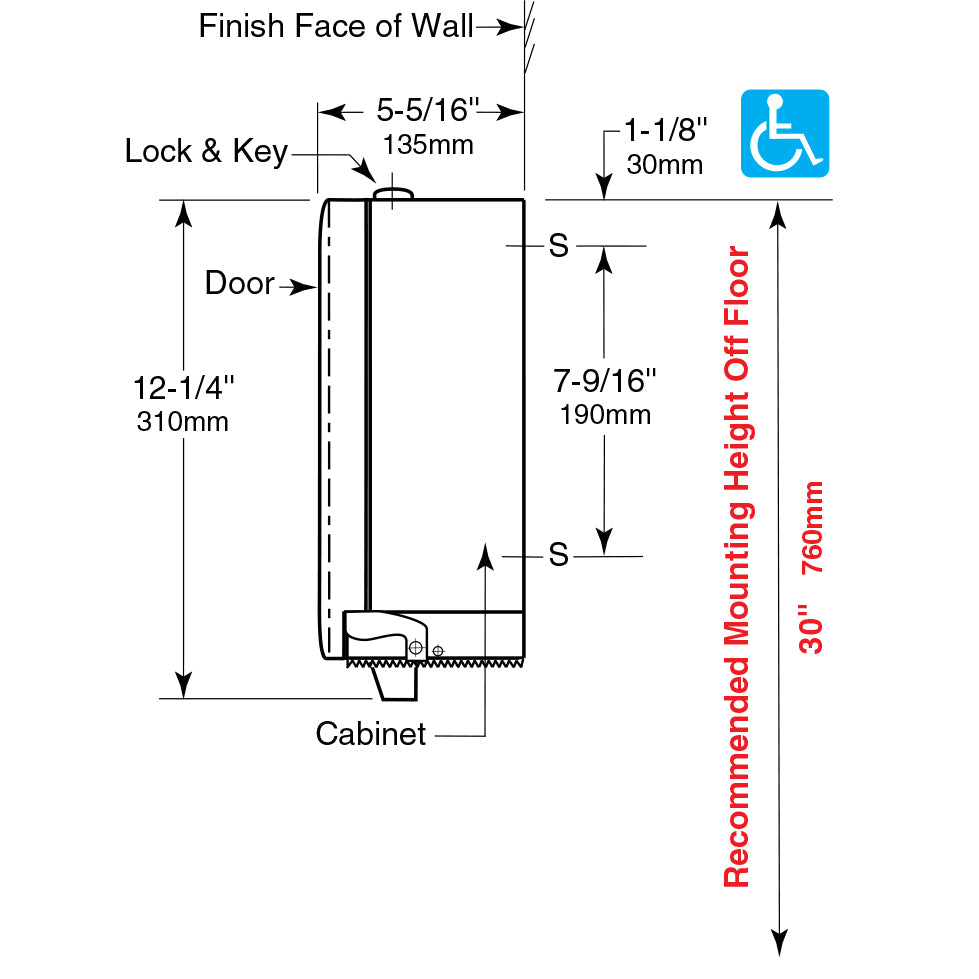

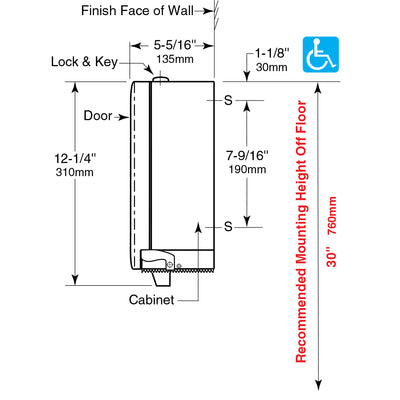

Note: Dispenser is ICC A117.1 - 2009 Standard for Accessibility compliant. Unit can be located below grab bar, in area 24" minimum to 42" maximum from rear wall, with outlet 18" minimum above floor.
