Specification Sheet

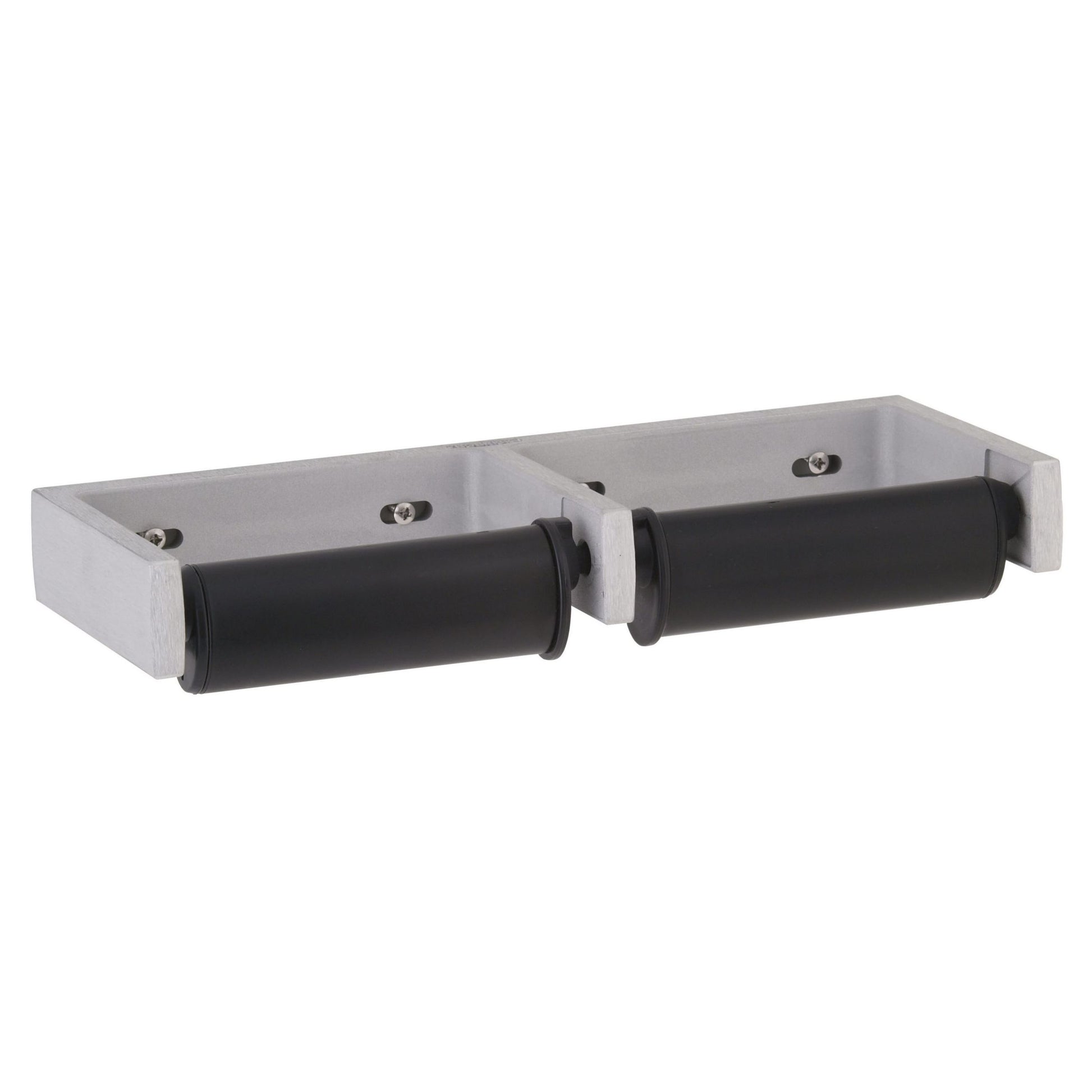

ClassicSeries Toilet Tissue Dispenser for Two Rolls

Features:

• Double roll toilet tissue dispenser
• Heavy duty cast aluminum with satin finish
• Plastic spindles, concealed locking device; theft-resistant
• Holds two rolls up to 6" (150mm) diameter (2000 sheets)

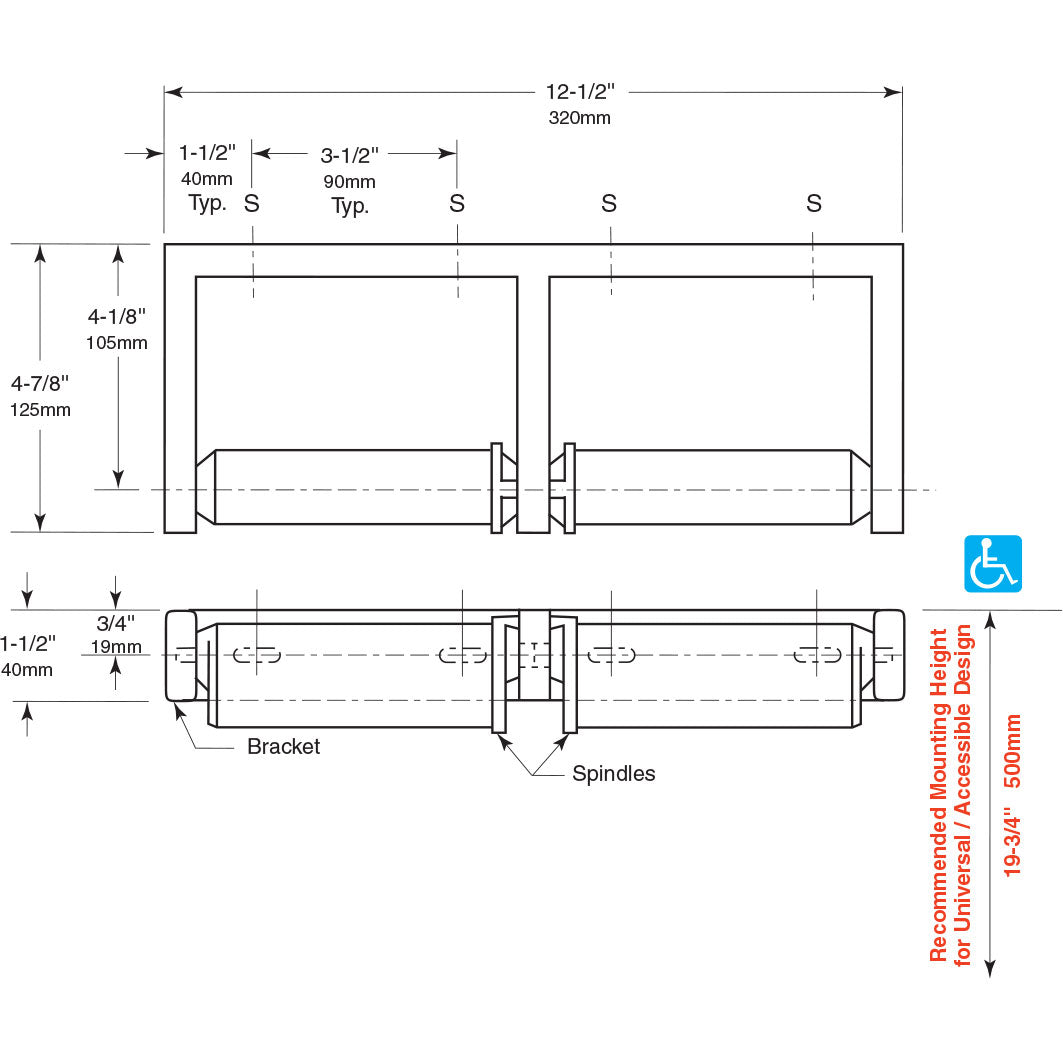

• Unit 12-1⁄2" (320mm) wide, projection 4-7⁄8" (125mm) from wall; no controlled delivery

Materials:

• Bracket — Heavy-duty cast aluminum with satin finish.
  Spindles (2) — Molded high-impact ABS. Equipped with retractable pin and concealed locking mechanism.

Operation:

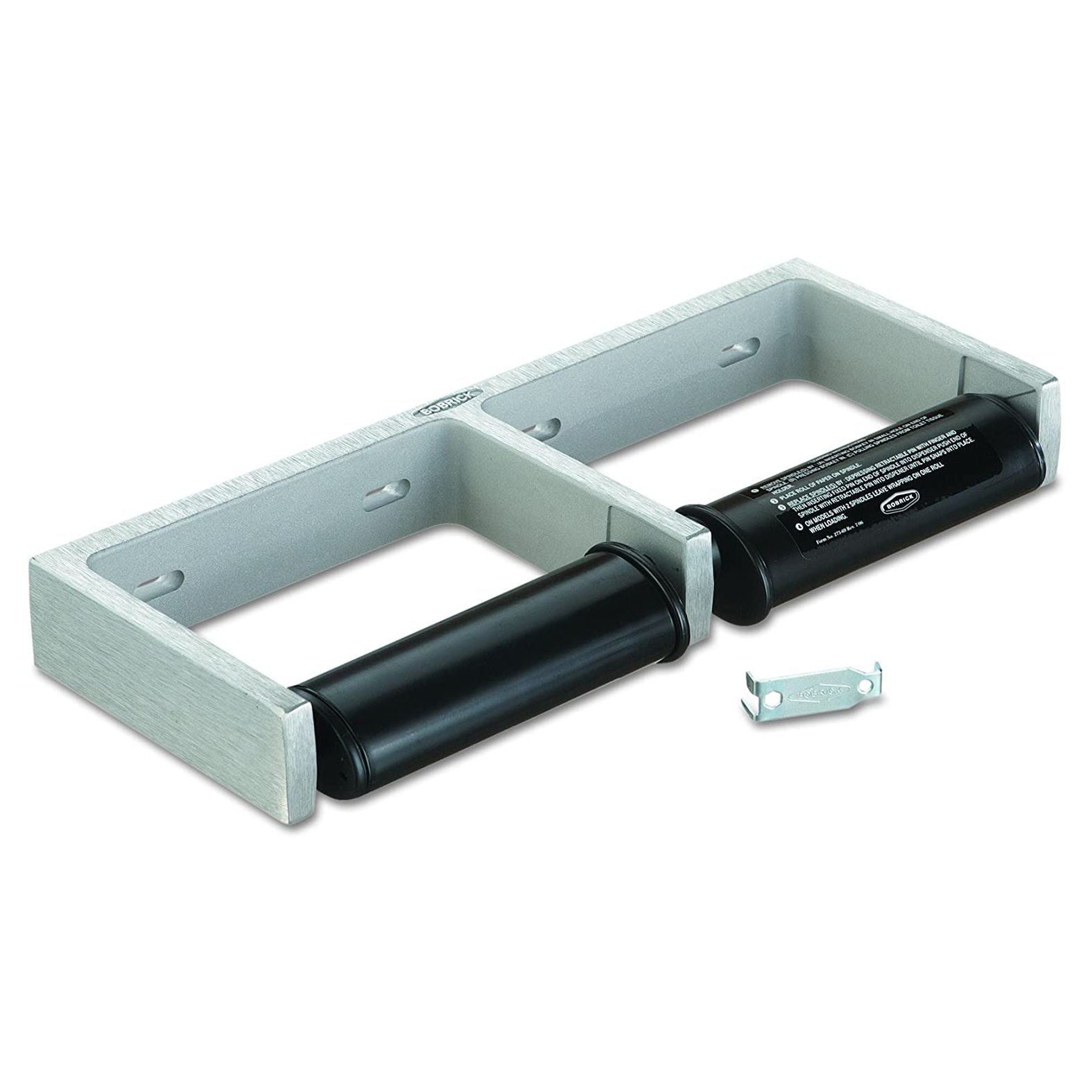

• Accommodates two standard-core toilet tissue rolls up to 6" (152mm) diameter (2000 sheets). Spindles can only be removed with special key furnished. Theft-resistant.

Installation:

• For partitions with particle-board or other solid core, provide sheet-metal screws or through-bolts, nuts, and washers.
• For hollow-core metal partitions, provide solid backing into which sheet-metal screws can be secured. If two units are installed back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition.
• For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws.
• For other wall surfaces, provide sheet-metal screws and fiber plugs or expansion shields, or provide 1/8" (3mm) toggle bolts or expansion bolts.
