Axiom NT1-P - Condensate Neutralization Tank With Pump - 1.9 GPH

The NT1-P NeutraPump is ideal for installation that require both condensate removal and neutralization. The condensate produced by gas appliances is acidic and has the potential to harm the environment and the sewer system.

Features

• Combination Neutralizer + Removal Pump
• 1.9 Gal/hr (7.2 l/hr) *
• Maximum delivery head 20ft (6m)
• Includes high level float for hook up to alarm system
• NeutraPump prevents acidic condensate from corroding drains and sewer systems
• Neutralized condensate is more environmentally friendly
• Low profile design for appliances with near floor condensate drain
• All materials made from corrosion resistant material

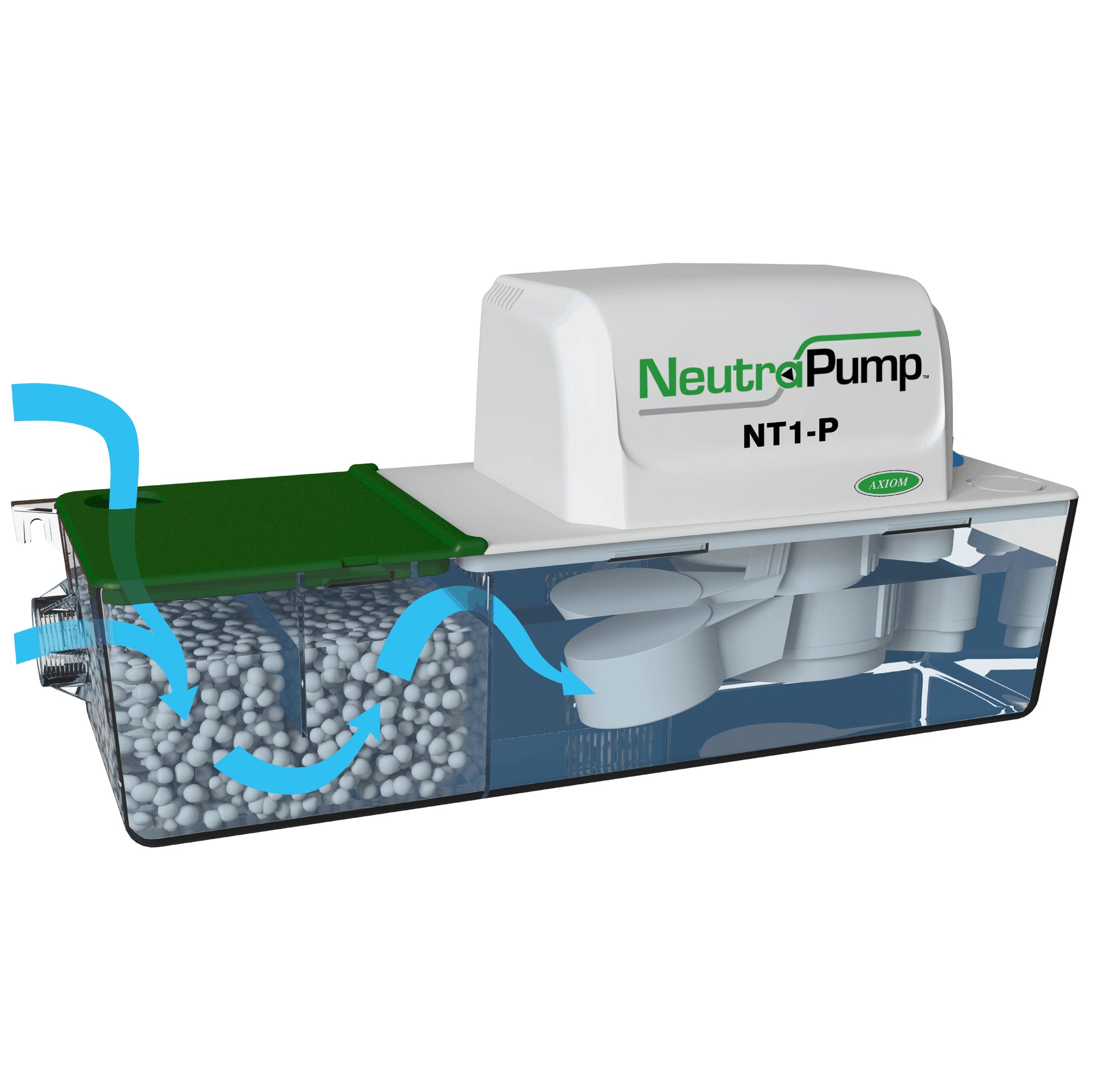

• 1 Gallon (4 liter) tank with baffles designed to channel flow through LipHter+ media for complete neutralization

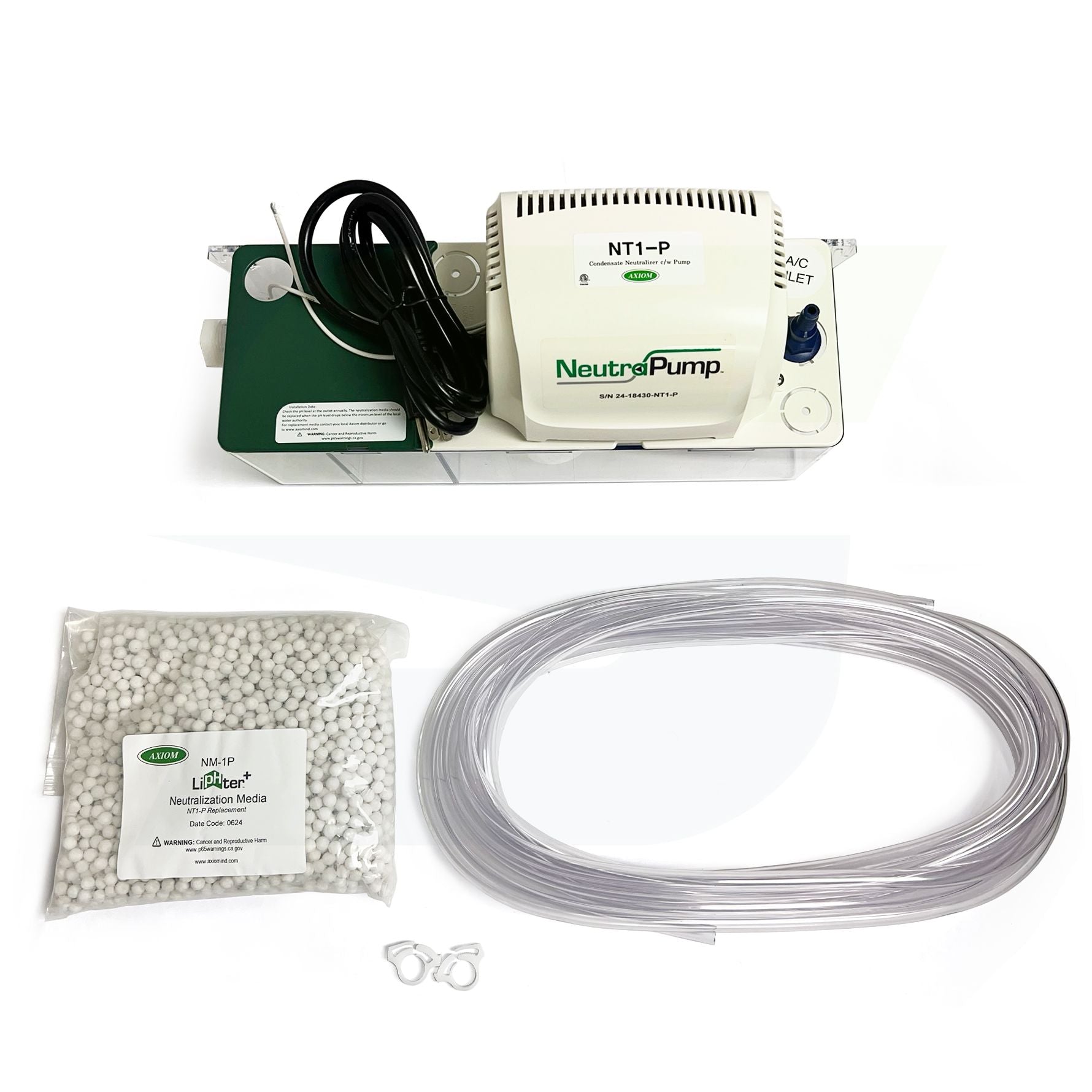

• Includes initial charge of Axiom's special LipHter+ neutralizing media
• * Check with the appliance manufacturer for condensate flowrate or go to our website and use the sizing calculator. As a guideline 500,000 BTU/hr at 93percent efficiency will produce approximately 7.2 l/hr (1.9 Gal/hr).

Specifications

• Weight: 8.5 lbs (dry weight with media)
• Electrical: 120VAC 60Hz, 87W, 0.89 amps

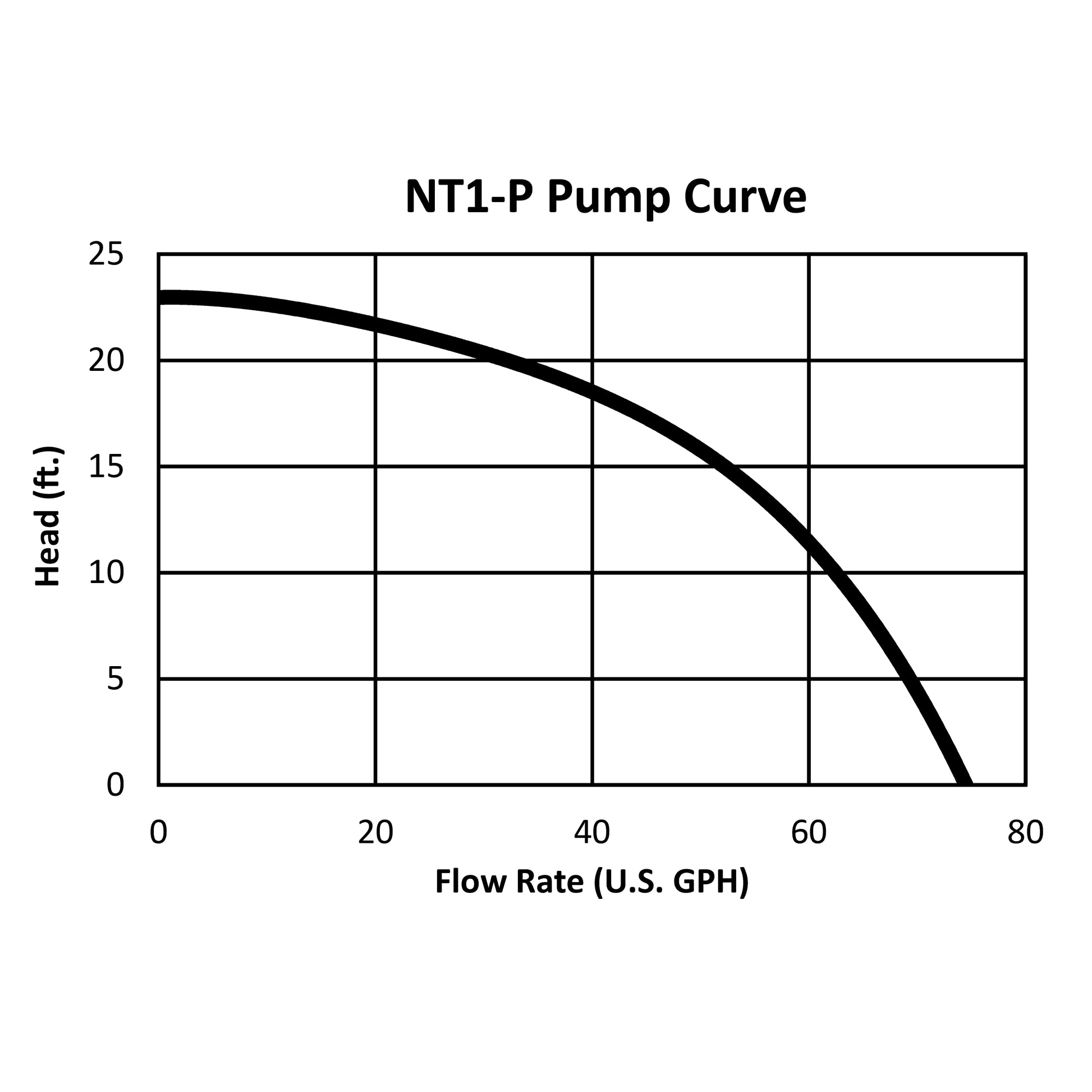

• Pump Performance:
  • Submerged pump is self-priming
  • 72 GPH at free flow
  • 32 GPH at 20 ft
