Home » Rheem » Condenser Fan Motors » 51-100998-19 - 1/3 HP Condenser Motor - 1 Phase - 1 Speed - 1075 RPM - 230V
Rheem

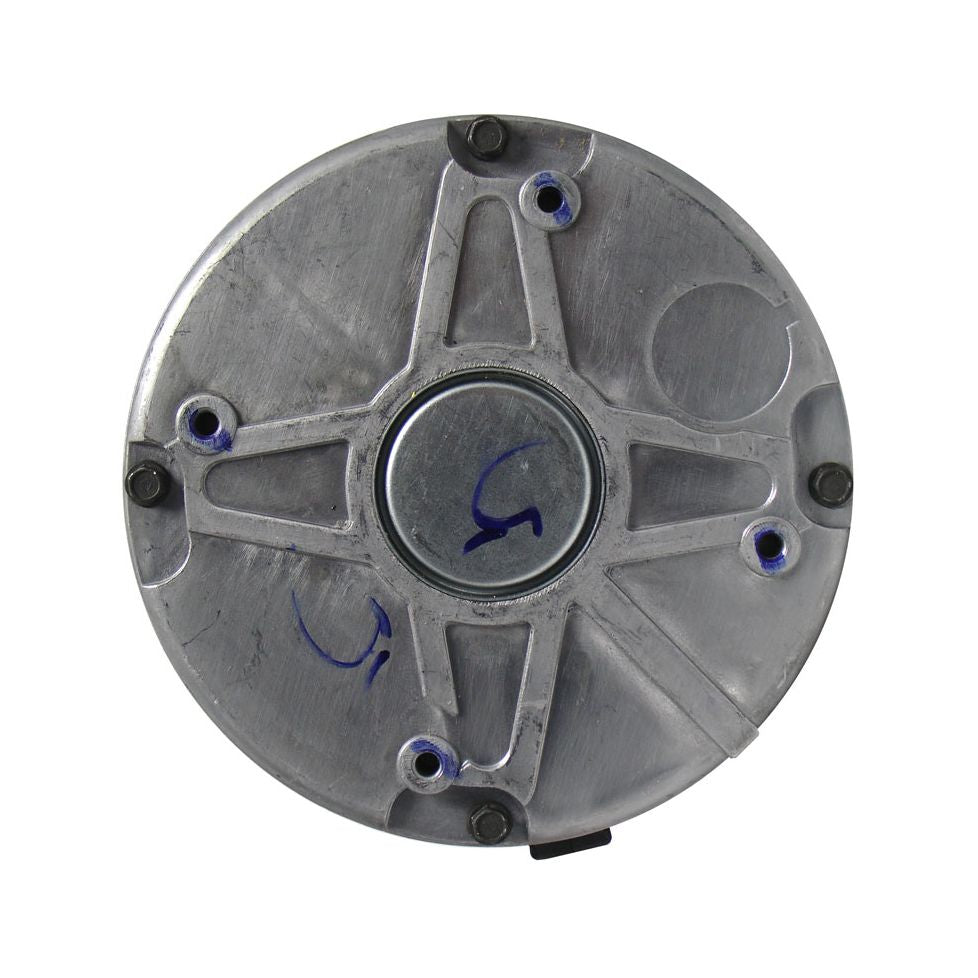

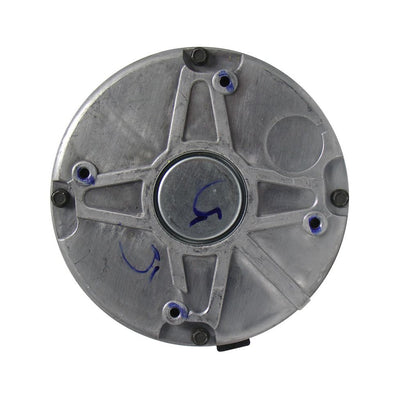

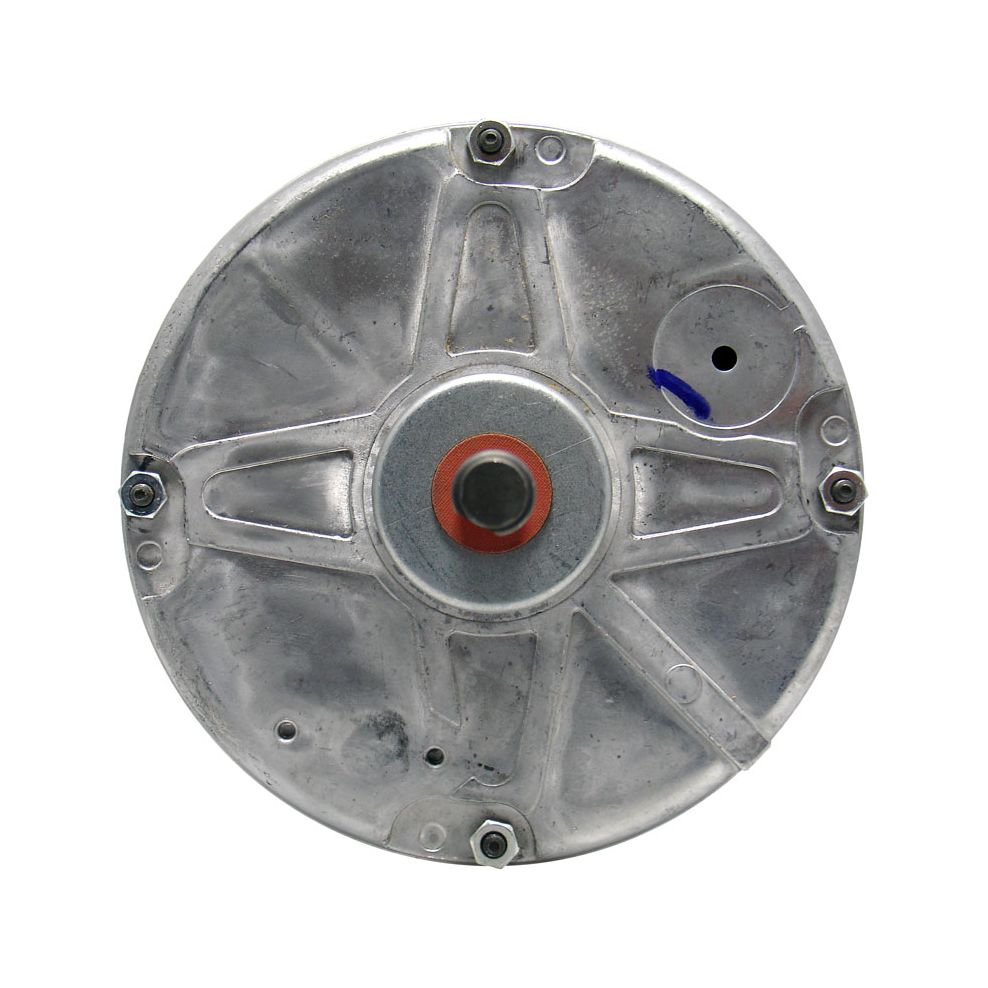

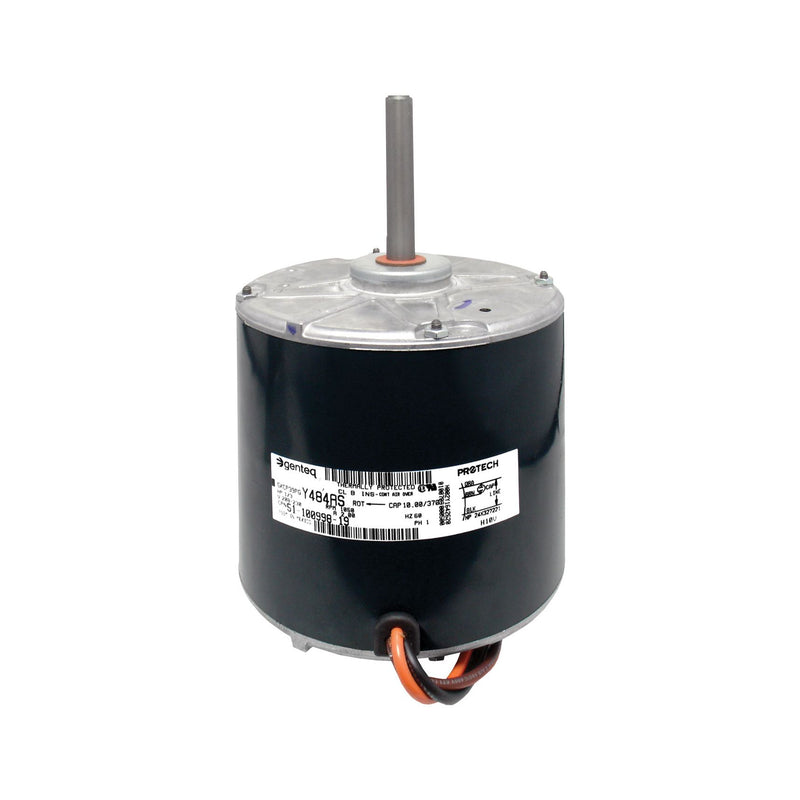

51-100998-19 - 1/3 HP Condenser Motor - 1 Phase - 1 Speed - 1075 RPM - 230V

In stock
SKU: 51-100998-19
$279.99

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Scott C. (Phenix City, US)

Great service product as described and arrived when they said it would

Rheem 51-100998-19 - 1/3 HP Condenser Motor - 1 Phase - 1 Speed - 1075 RPM - 230V

The Condenser Motor transfers heat from the refrigerant system into outdoor air, keeping your compresser from over-heating. The OEM replacement condenser motor extends equipment life by replacing old or damaged HVAC motors in ventilators, fans, and blowers. The parts match the equipment's existing motor from the original manufacturer to ensure faultless installation and consistent performance.

Features

  • Thermally protected
  • Sleeve bearing
  • OEM genuine factory authorized part

Technical Data

  • HP: 1/3
  • Number of Speeds: 1
  • High Speed (RPM): 1075
  • Input Voltage (V): 208
  • Input Voltage (V): 230
  • Number of Phases: 1
  • Frequency (Hz): 60
  • Rotation Direction (OSE): CCW
  • Run Capacitor (uF/V): 10/370
  • FLA at 230V (A): 2.00
  • LRA at 230V (A): 3.90
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 2-3/4
  • Overall Shaft Length (in.): 3-11/16
  • Motor Body Length (in.): 5-1/2
  • Overall Motor Length (in.): 9-1/8
  • Mounting: Shell-band
  • Mounting: End-boss
  • Frame Size: 48
  • Bearing Type: Sleeve
  • Application: Condenser
  • Drive Type: Direct Drive
  • Shipping Weight: 17.77 lbs

Where Used

  • RGEA16
  • RQNA-B
  • RQNL-B
  • RQPL-B
  • RQPW-B
  • RRNA-B
  • RRNA-C
  • RRNL-B
  • RRPL-B
  • RRRL-B
  • RRRL-C
  • RSNA-B
  • RSNA-C
  • RSNL-B
  • RSPL-B
