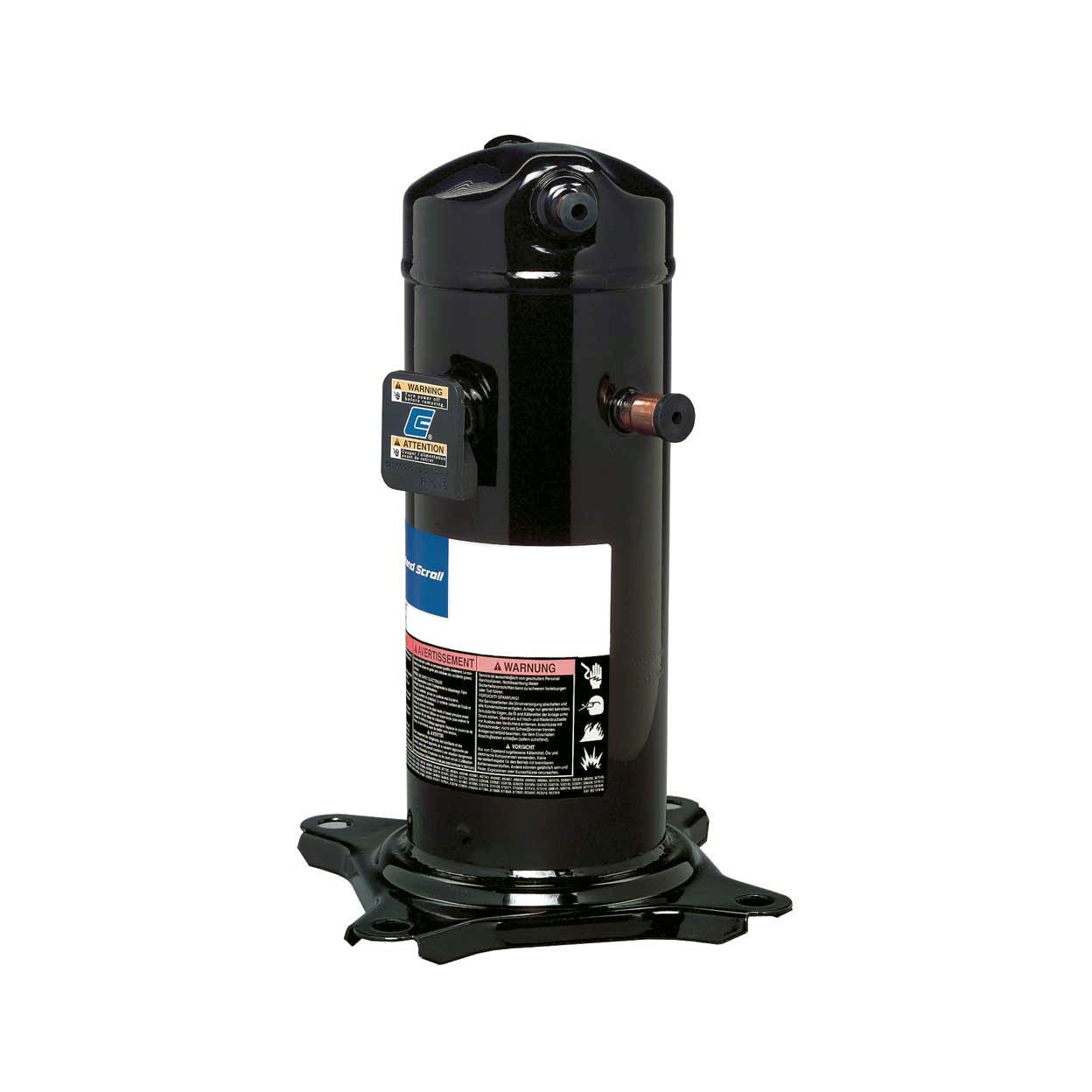

55-102045-24S - Copeland Scroll Compressor - 20,000 BTU - 1 Phase - R410A - 230V

In stock
SKU: 55-102045-24S
$995.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Rheem 55-102045-24S - Copeland Scroll Compressor - 20,000 BTU - 1 Phase - R410A - 230V (ZP20K5E-PFV)

Copeland scroll compressors work with one scroll orbiting in a path defined by a matching fixed scroll. The fixed scroll is attached to the compressor body while the orbiting scroll is coupled to the crankshaft. The orbiting motion creates a series of gas pockets traveling between the two scrolls. On the outer portion of the scrolls, the pockets draw in gas then move it to the center of the scroll where it's discharged. As the gas moves into the scroll's center, the temperature and pressure increase to the desired discharge pressure.

Features

  • 5th generation fixed speed compressor
  • Improved temperature protection
  • Internal pressure protection
  • R-410A ready
  • Proven performance and reliability
  • High efficiency motor
  • For residential and light commercial applications

Technical Data

  • Capacity (BTU/HR): 20000
  • Type: Scroll
  • Refrigerant: R-410AInput Voltage (V): 208
  • Input Voltage (V): 230
  • No. of Phases: 1
  • Freq. (Hz.): 60
  • Run Capacitor (uF/V): 35/370
  • Start Kit: SK-A1
  • Kick Start: 42-TO5
  • Start Relay P/N: 42-25105-01
  • Start Capacitor (uF/V): 88-106/330
  • Start Capacitor Part Number: 43-17075-04
  • Rated Load Current (A): 13.5
  • Max. Continuous Current (A): 21
  • Locked Rotor Current (A): 58.3
  • Crankcase Heater Included?: No
  • Crankcase Heater Part Number: 44-17402-44
  • Soundwrap (Brinmar): 68-25217-10
  • Soundwrap (OEM): 68-23427-26
  • Refrigerant Oil: POE (85-32CST)
  • Suction Line Location: 2
  • Suction Line Height (in.): 10-1/2
  • Suction Line Configuration: Stub Out
  • Suction Line Size (in.): 3/4
  • Discharge Line Location: 3
  • Discharge Line Height (in.): 14-1/4
  • Discharge Line Configuration: Stub Out
  • Discharge Line Size (in.): 1/2
  • Overall Compressor Height (in.): 15-3/8
  • Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2

Where Used

  • 13AJM
  • 13AJN
  • 14AJL
  • 14AJM
  • 15PJL
  • EA14
  • RACA13
  • RACA14
  • RACA15
  • RAPL
  • RAPM
  • RGEA13
  • RGEA14-U
  • RGEA15
  • RPQL
  • RQNM
  • RQPM
  • RQRM
  • RSNM
  • RSPM
  • SAGN
  • SAHM
  • SSPM
  • TAGN

Replaces

  • 55-102045-97S
  • 55-102045-97
  • ZP20K5E-PFV-7M2
  • ZP20K5E-PFV-7M2
  • 55-102045-24
