Dexter DCH4000 Series Heavy Duty Surface Door Closer

Specifications

• Grade 1 compliant, UL 10C Listed (non-hold open arms), ADA compliant at size 1
• Adjustable spring size 1-6

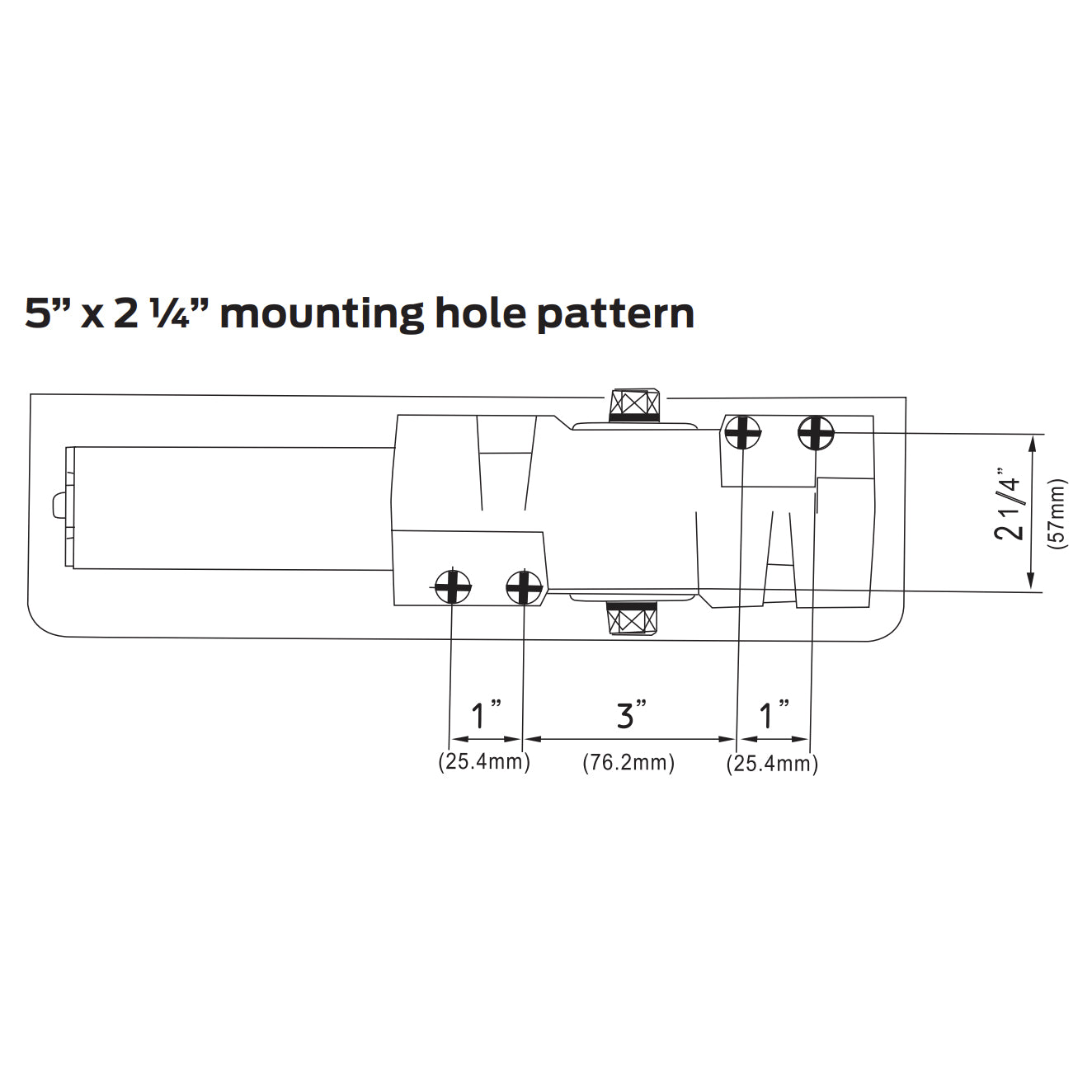

• 5" x 2-1/4" mounting hole pattern
• Staked, independent adjustment values: sweep speed, latch speed and back-check

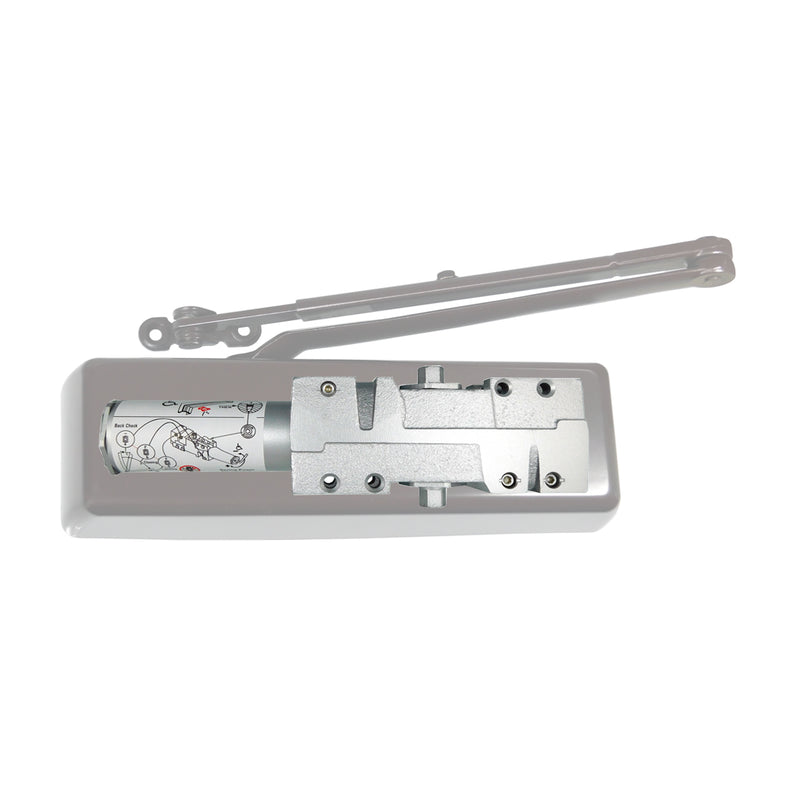

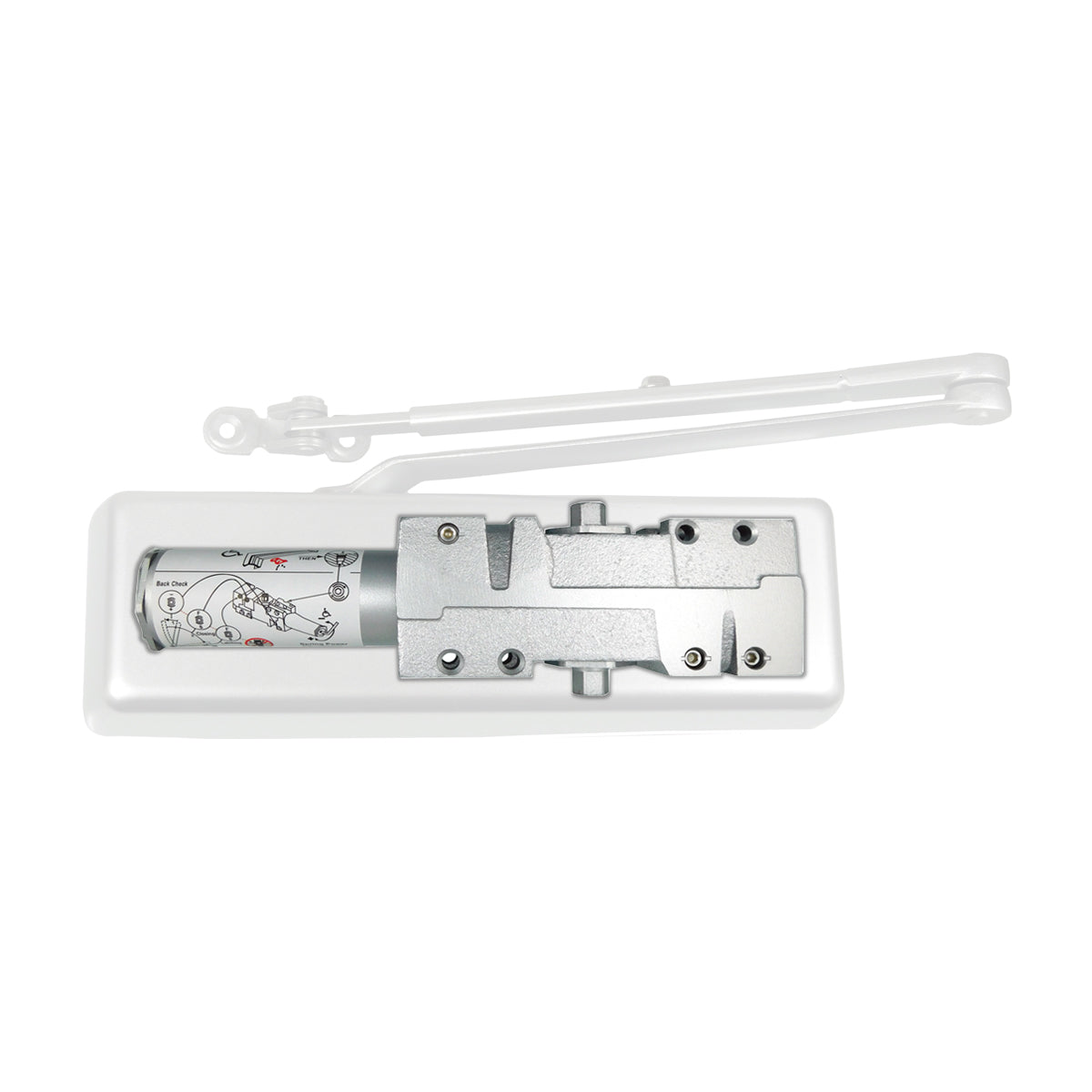

• Single piece, cast iron body
• Universal hardware pack
• Arm Type Options:
• Regular arm (Rw/PA): Non-handed, forged, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Finishes

• ALUM/689 - Aluminum
• DKBRZ/695 - Dark Bronze

Arm Types

• Regular Arm (RW/PA)
  • Non-handed
  • Regular arm with adjustable forearm
  • Mounts hinge side, top jamb or parallel arm
• Hold-Open Arm (HW/PA)
  • Non-handed
  • Hold open arm with adjustable forearm
  • Mounts hinge side, top jamb or parallel arm

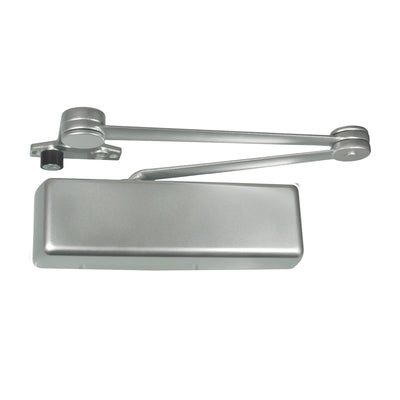

• Dead Stop Arm (DS)
  • Non-handed
  • Stamped, heavy duty, parallel arm
  • Positive mechanical stop and non-adjustable forearm

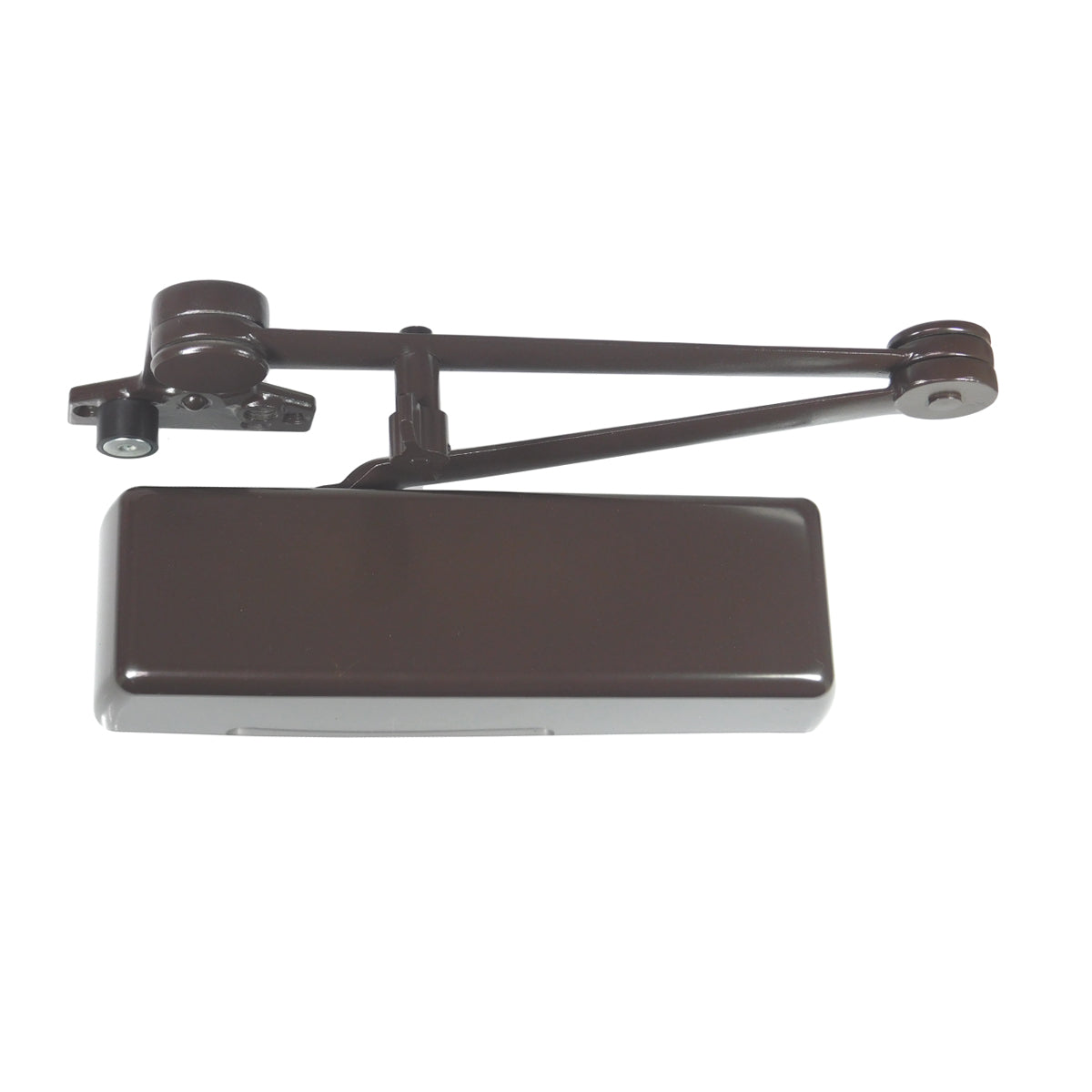

• Dead Stop Hold-Open Arm (DS/HO)
  • Non-handed
  • Stamped, heavy duty, hold-open parallel arm
  • Positive mechanical stop and non-adjustable forearm
  • Includes manually selective hold open function
