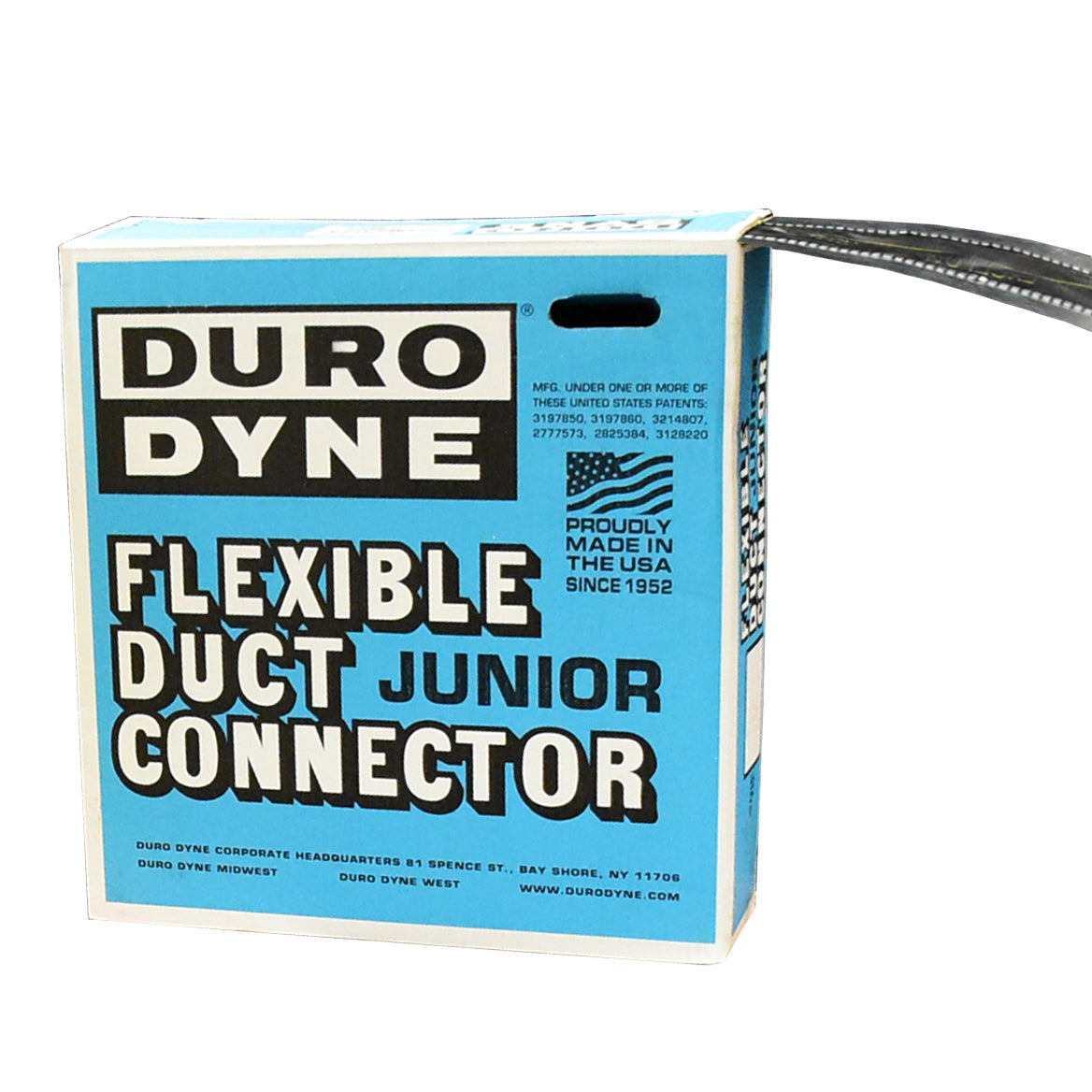

Duro Dyne JBX-100 Flexible Duct Connector

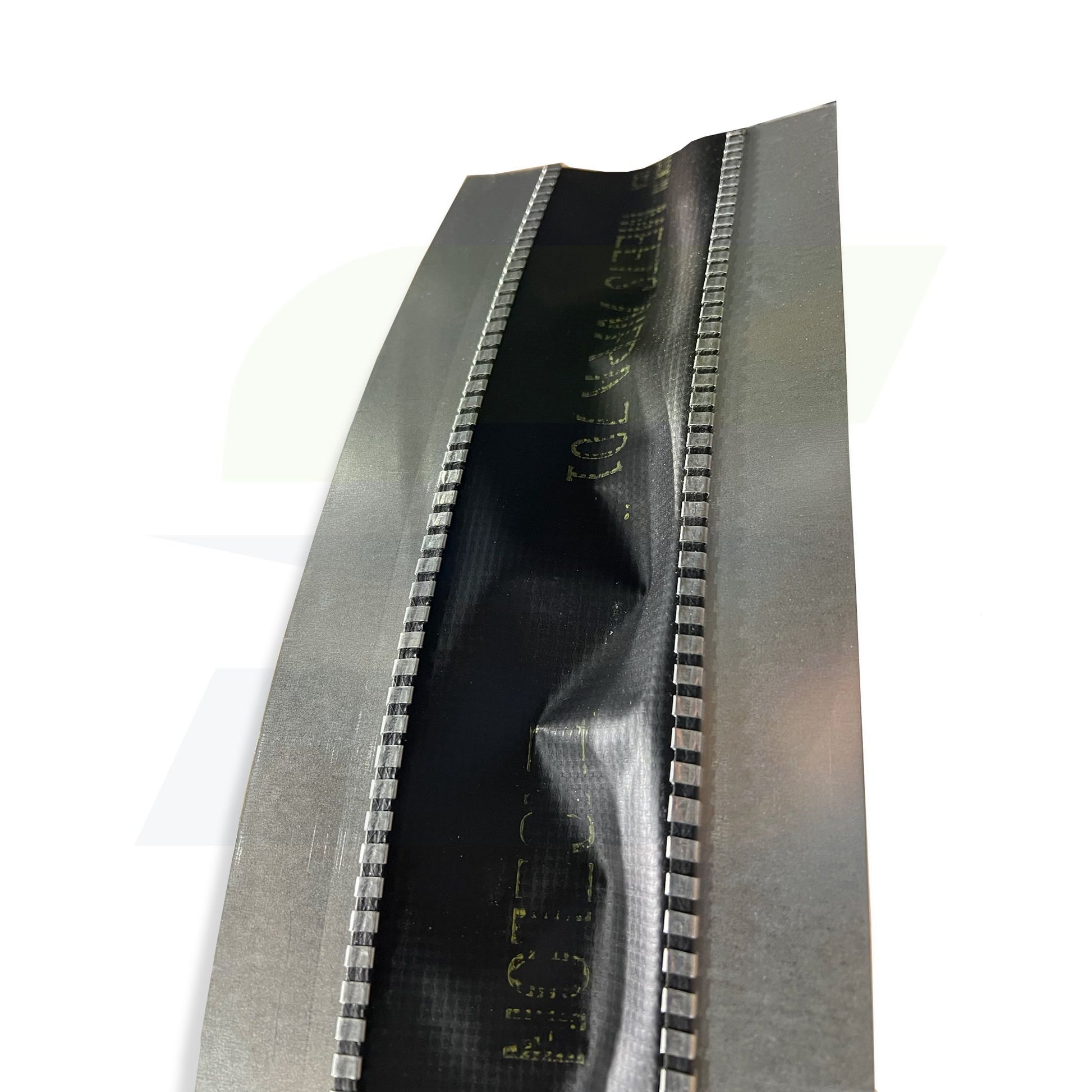

All air duct installations for heating, cooling or ventilation are attached to mechanical equipment containing a fan or blower. Vibrations, noises and rattles resulting from operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system. In order to isolate the vibration and noises to the source, an airtight flexible joint, consisting of a fabric which is attached to sheet metal on both sides, must be inserted between the equipment and the ductwork. This vibration
isolator is called a "Flexible Duct Connector."

Features

• Excellent water resistance
• Excellent tear strength
• Excellent all purpose fabric
• Unaffected by mildew

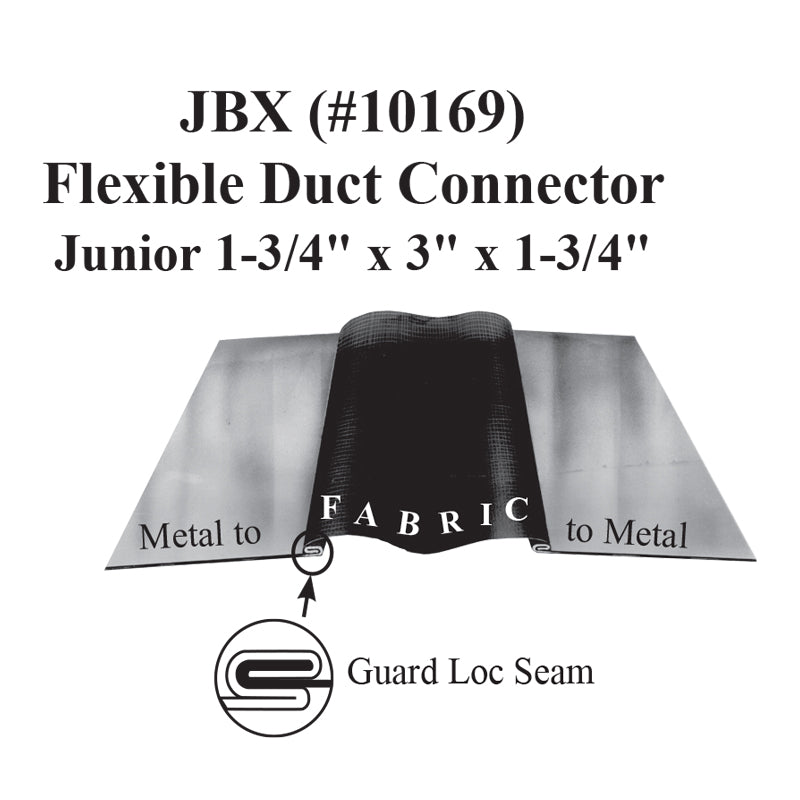

• 1-3/4" Metal, 3" fabric, 1-3/4" metal
• 28 Gauge galvanized
• Guard Loc seam
• 100 ft Roll
• Mfg#: 10169

HXS1110850
