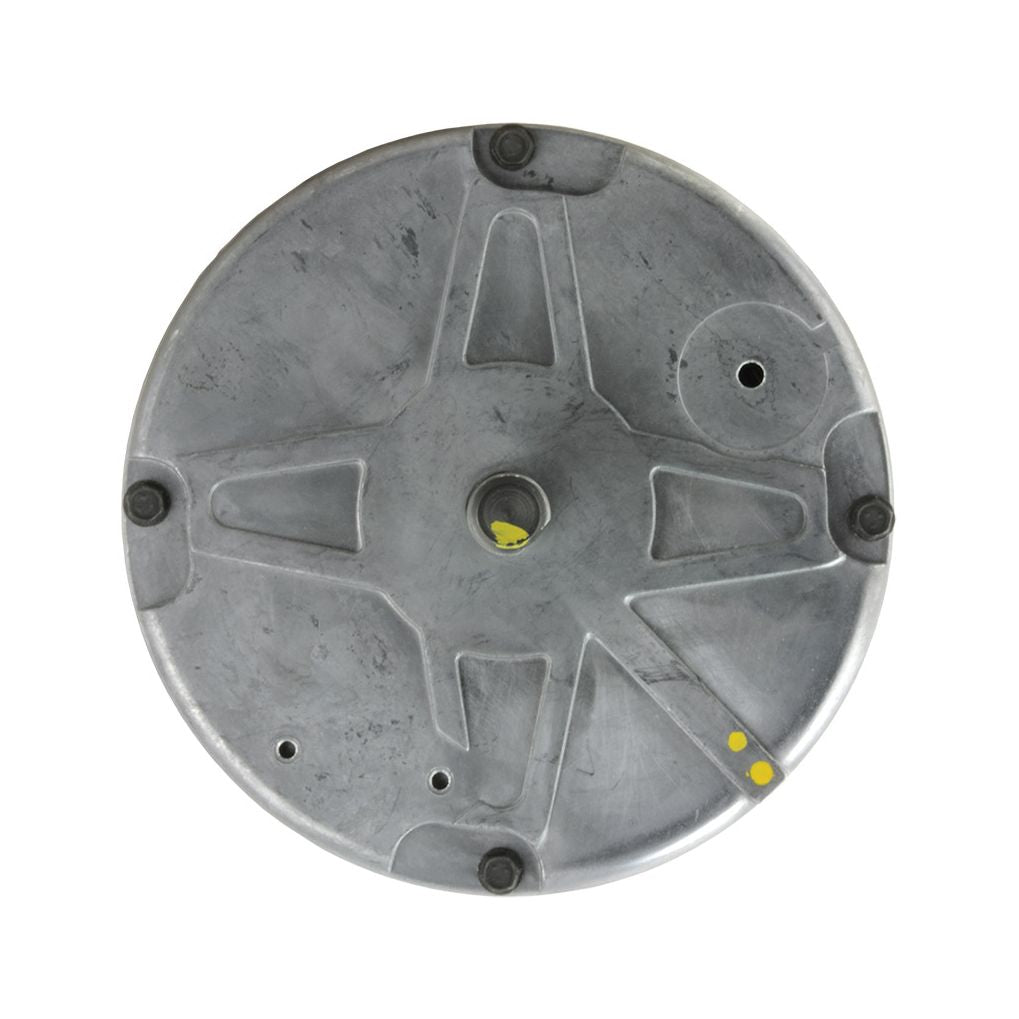

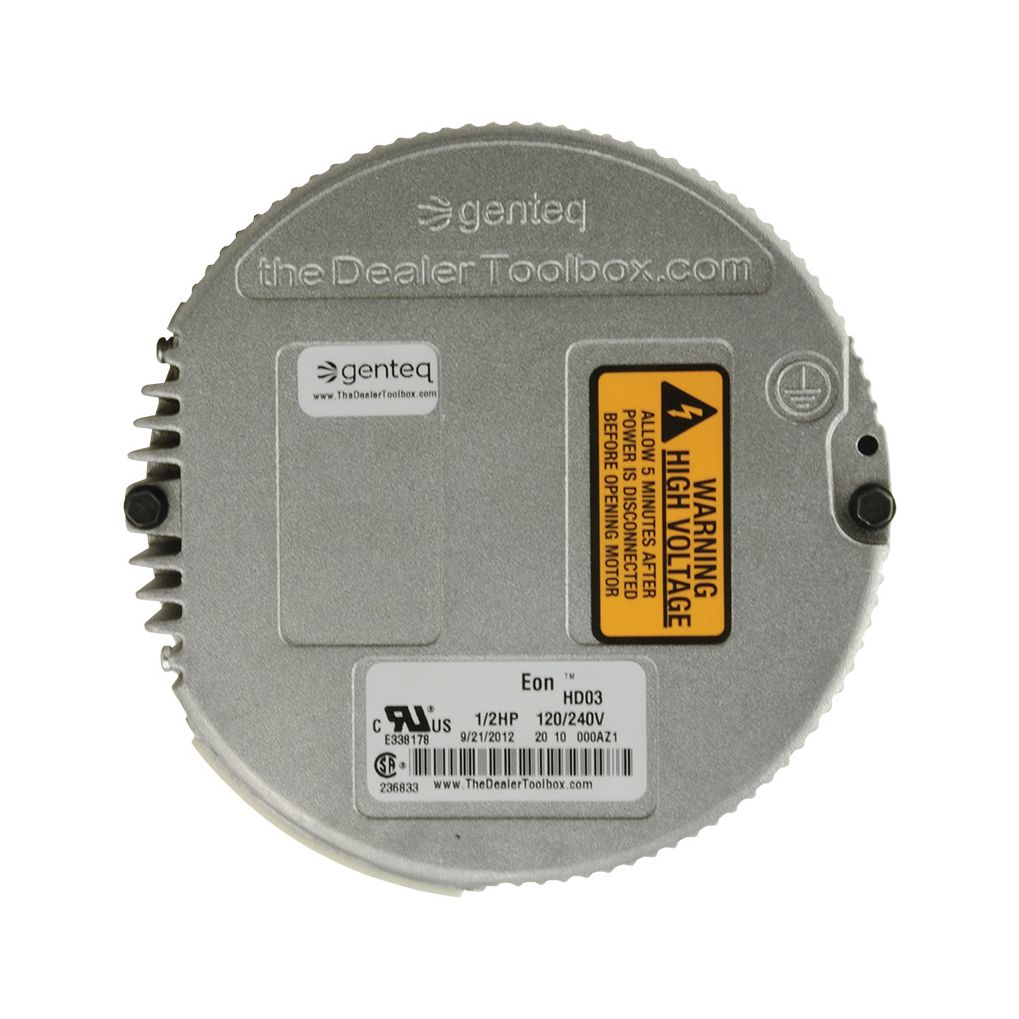

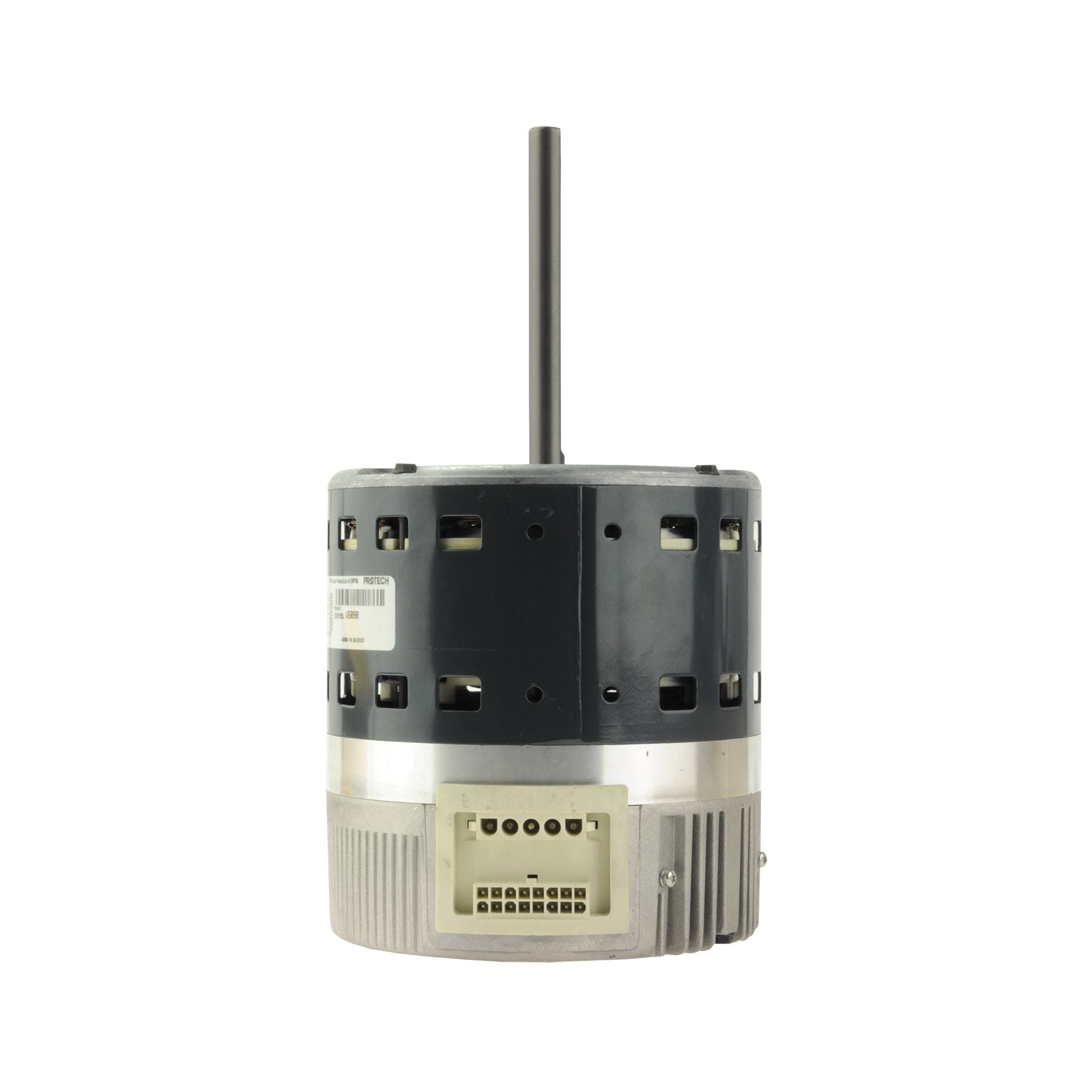

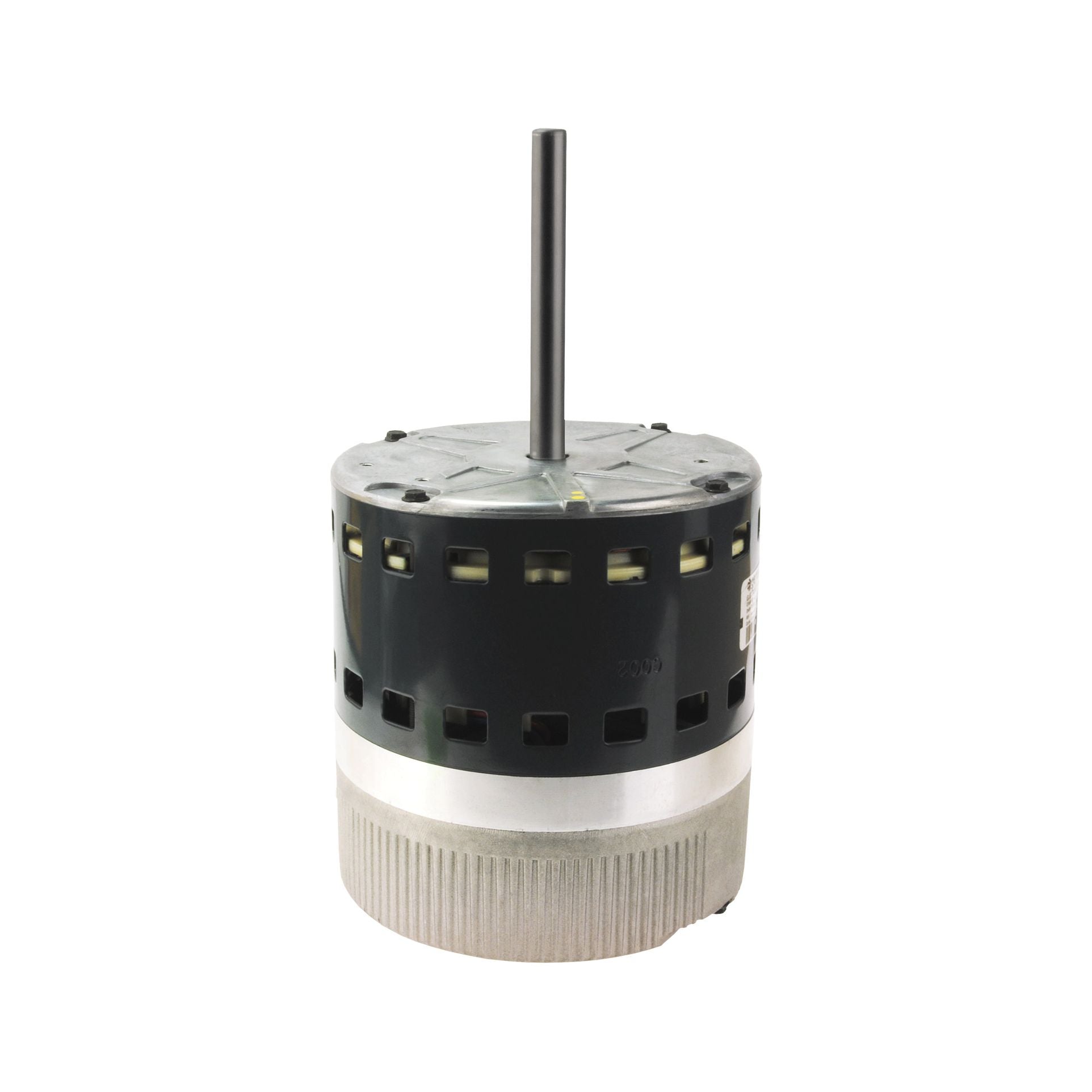

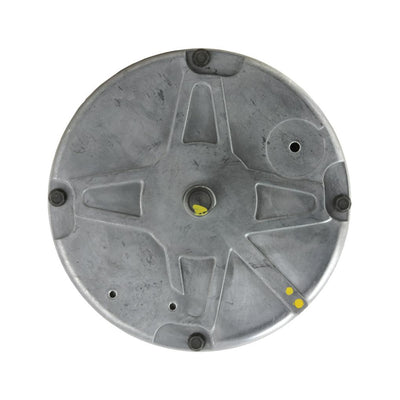

Rheem 51-104304-27 - Eon ECM 1/2 HP Blower Motor - 1 Phase - Variable Speed - 120V

The ECM Eon Blower Motor is commonly used in applications in residential HVAC furnaces and air handlers, commercial variable air volume systems, and fan filter units. Eon is a lighter, more compact variable speed ECM that is backward compatible with the existing ECM 2.3 motor and fits easily into existing systems. Programming Kit PD510011 and the newest software version is required to program this motor.

Features

• Lighter, more compact for easier installation
• ECM Toolbox based programming software
• BlakBox enabled
• OEM genuine factory authorized part

Technical Data

• Motor Type: ECM (Eon)
• HP: 1/2
• Number of Speeds: Variable
• Input Voltage (V): 120
• Input Voltage (V): 230
• Number of Phases: 1
• Frequency (Hz): 50
• Frequency (Hz): 60
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 3-13/16
• Overall Shaft Length (in.): 4-1/4
• Motor Body Length (in.): 6
• Overall Motor Length (in.): 10-11/32
• Mounting: Shell-band
• Frame Size: 48
• Bearing Type: Ball
• Application: Blower
• Drive Type: Direct Drive
• Shipping Weight: 11.3 lbs

Where Used

• RGRM

Replaces

• 51-24374-27

HUZ2030155
