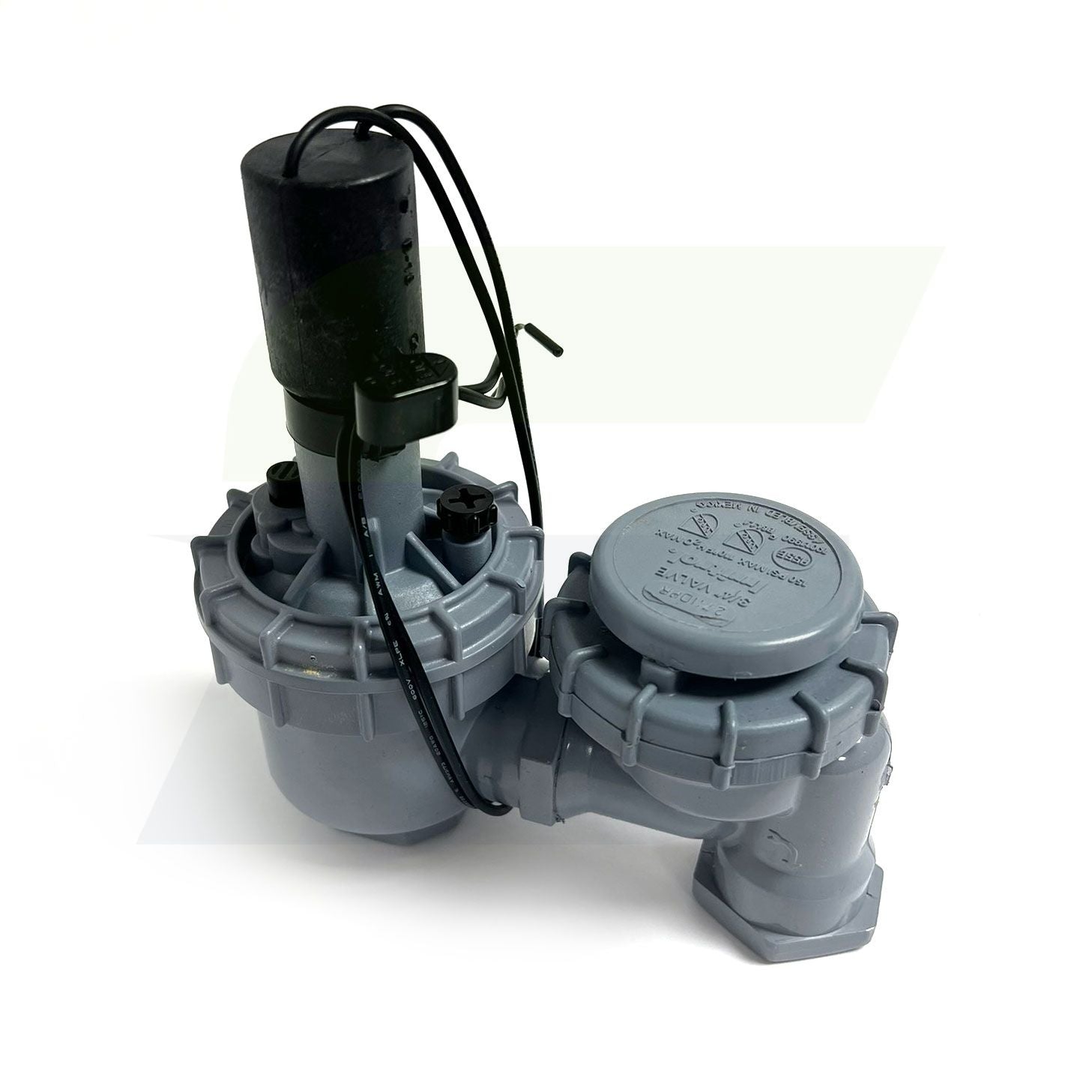

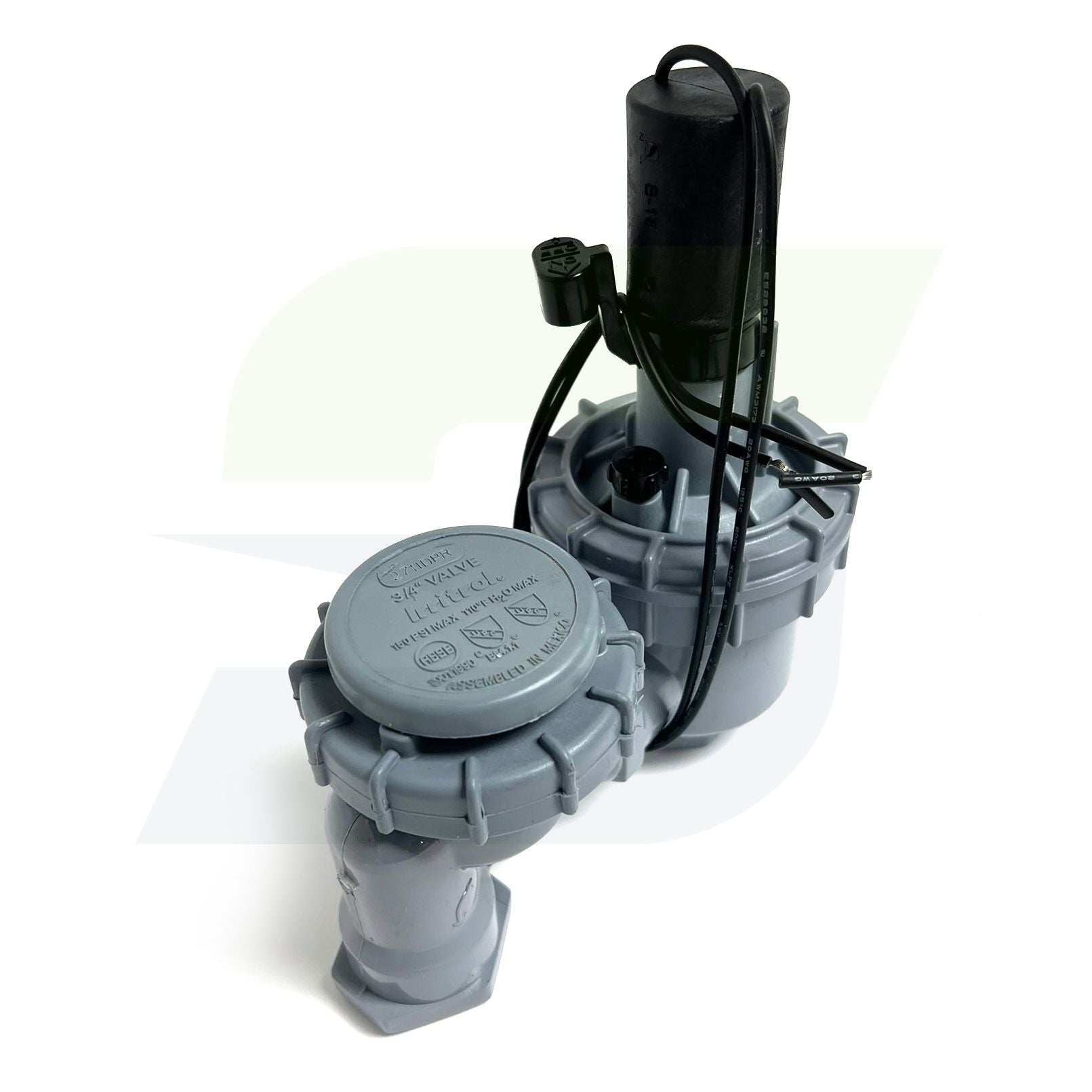

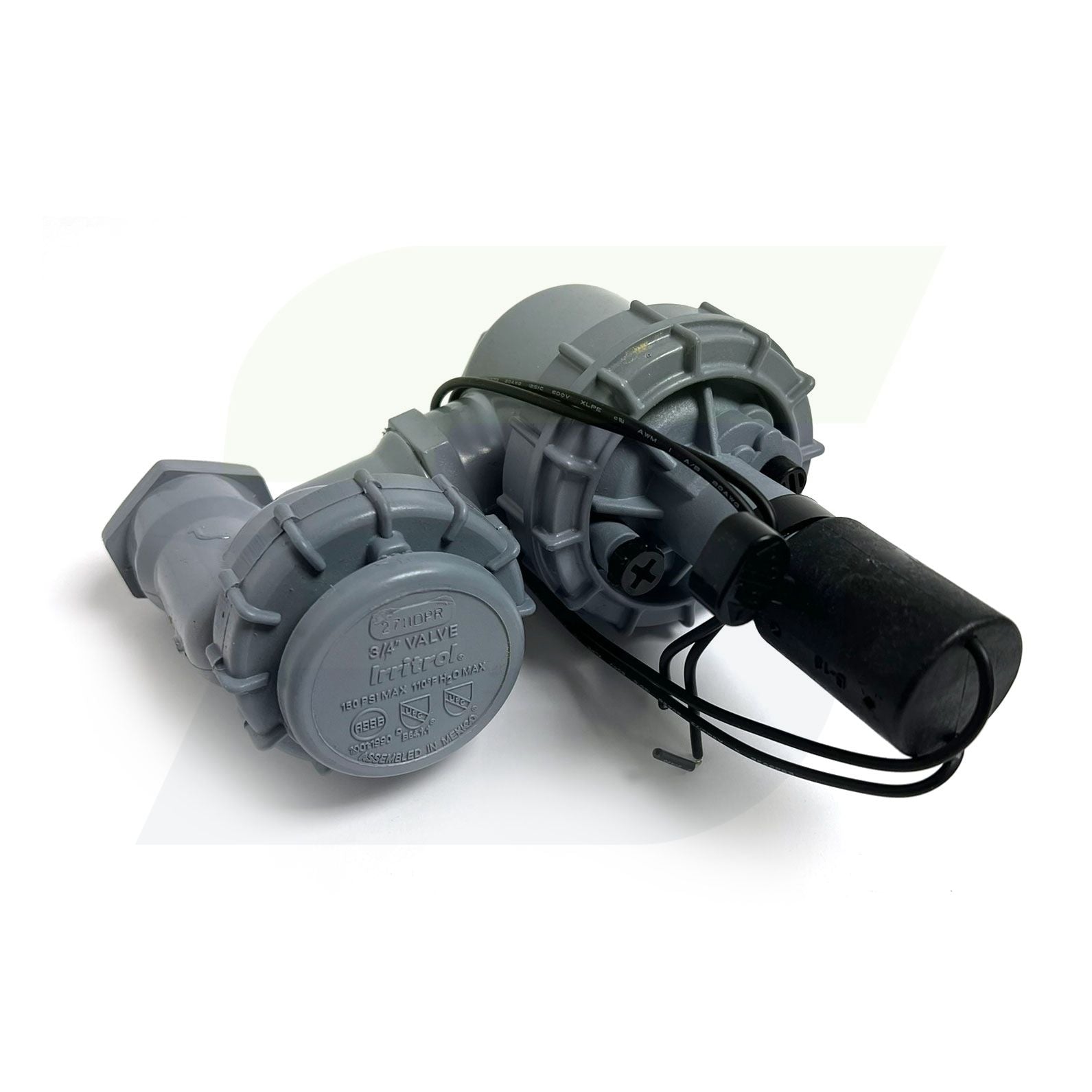

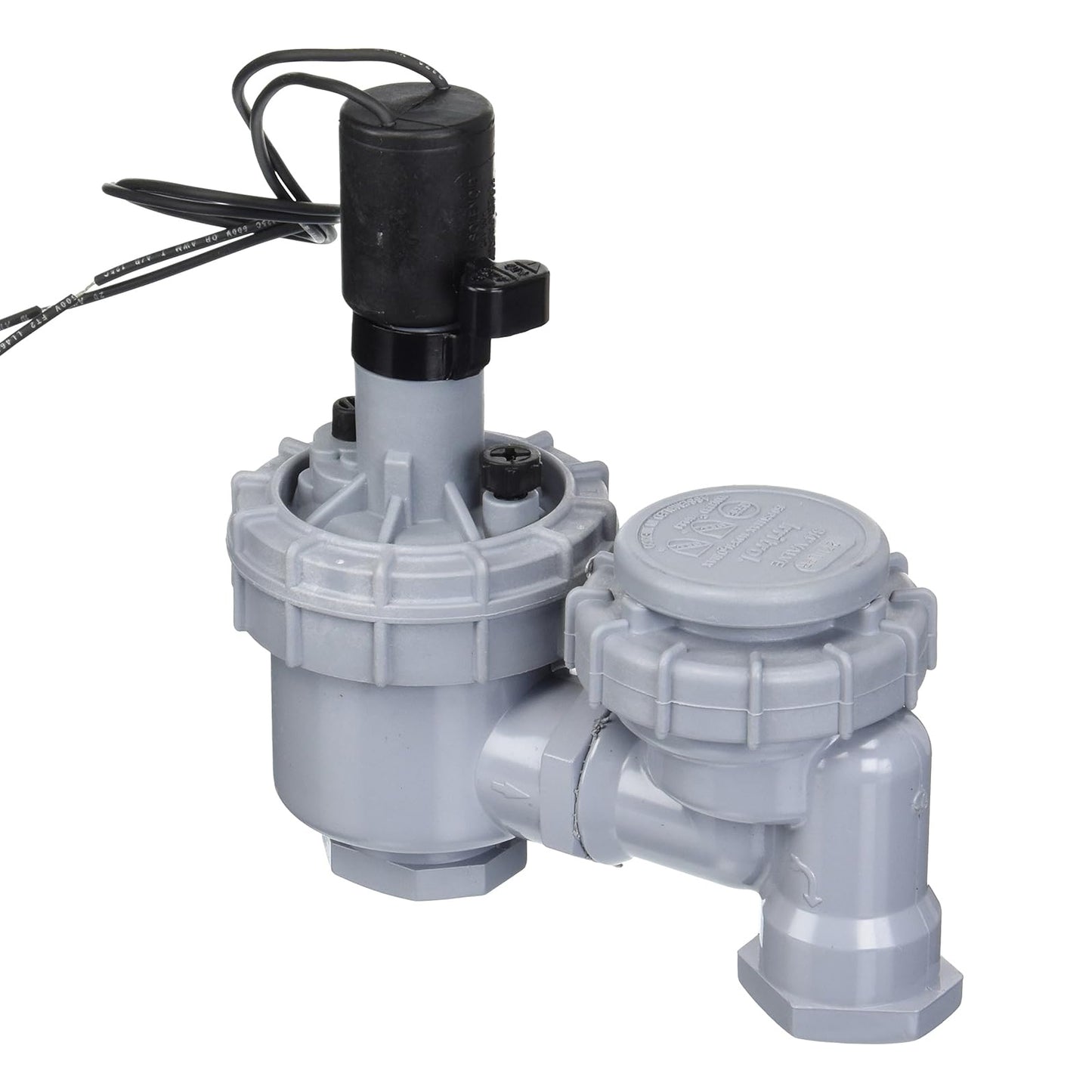

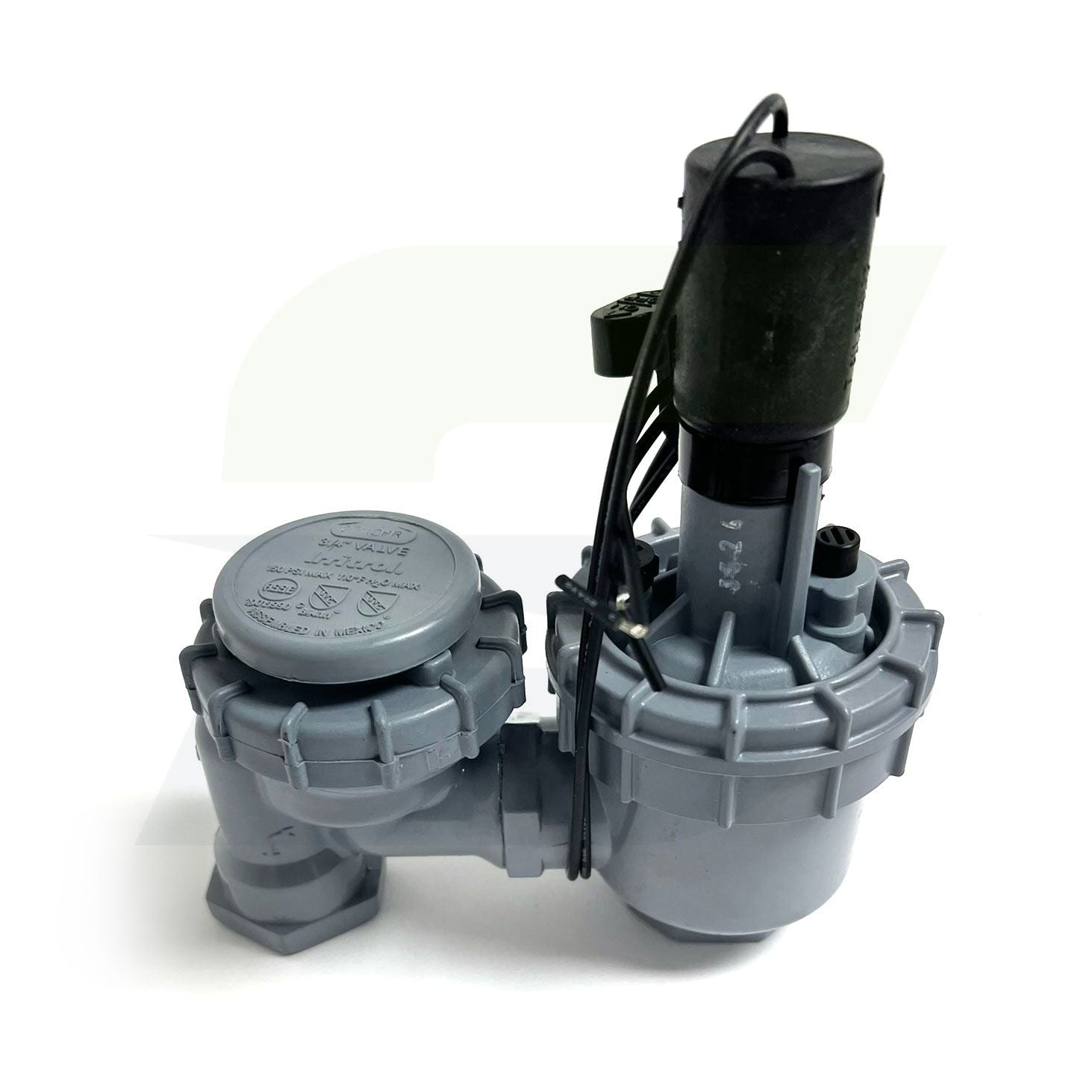

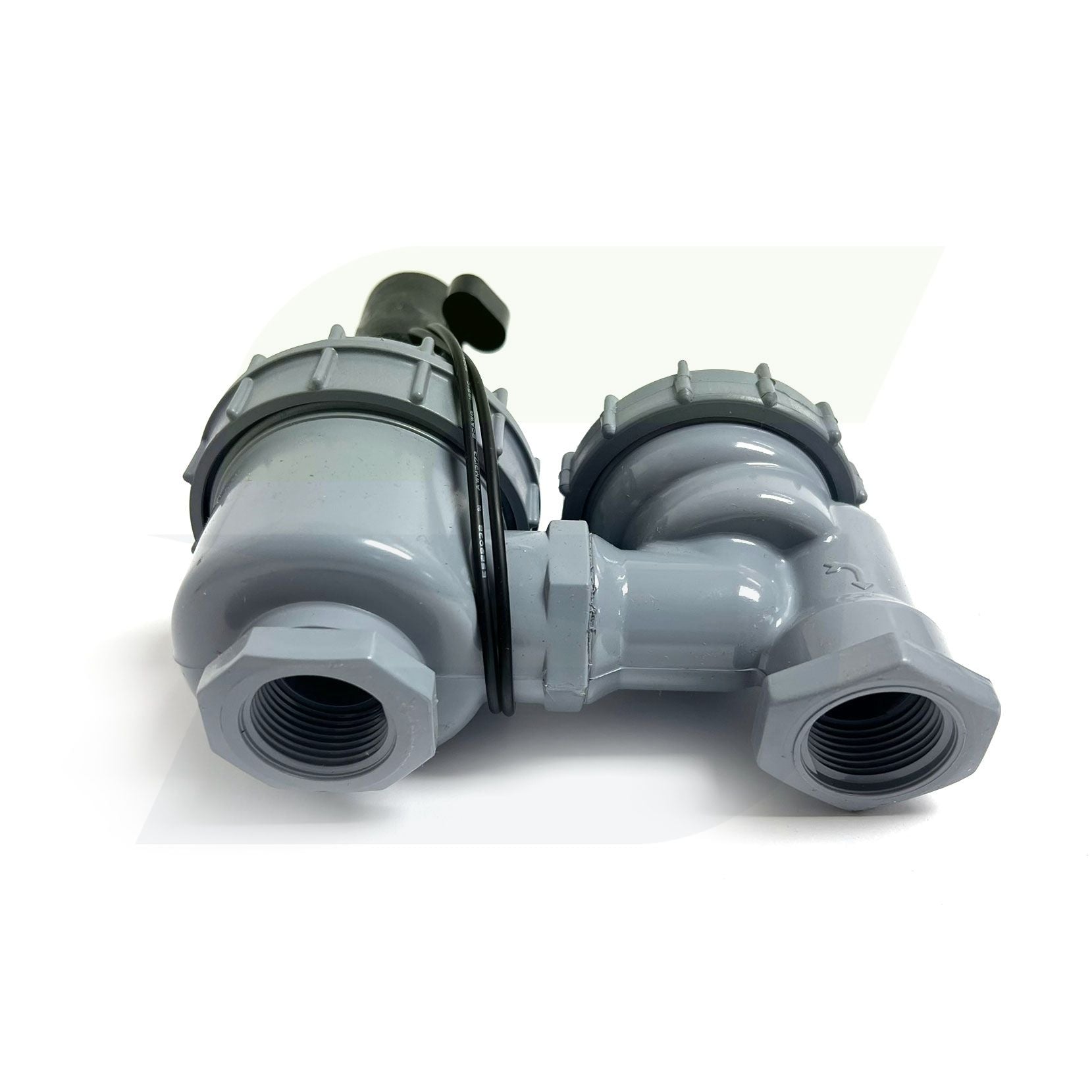

Irritrol 2711DPR - 3/4" Electric Anti-Siphon Irrigation Valve - Jar Top - Flow Control - 2700 Series

The Irritrol anti-siphon 2700 Series valves offer optimum performance, reliability and ease-of-use for a wide variety of residential applications. Featuring anti-siphon capability, this family of plastic valves also features flow control for precise flow adjustment, manual shutoff and a built-in atmospheric vacuum breaker to eliminate back siphonage. Available in electric and manual models, these valves also feature a flow range from .25 to 30 GPM and a pressure range from 10 to150 psi.

Features:

• Buna-N valve seat seal
• Flow control for precise adjustment and manual shutoff
• Gravity-type anti-siphon poppet
• Encapsulated injection-molded solenoid with a captive hex plunger
• Electric H-body with atmospheric vacuum breaker
• Five-year warranty

Specifications:

• Flow range: .25-30 GPM
• Pressure range: 10-150 psi
• Solenoid: 24 V ac
• Inrush volt-amp: 24 V ac-9.6 VA
• Inrush current: .4 amp
• Holding volt-amp: 24 V ac-4.8 VA
• Holding current: .2 amp
• Meets listing standards of ASSE, IAPMO and CSA
• 3/4" Threaded connection

Dimensions:

• H: 5 5/8"
• W: 3 1/8"
• L: 6 1/4"
