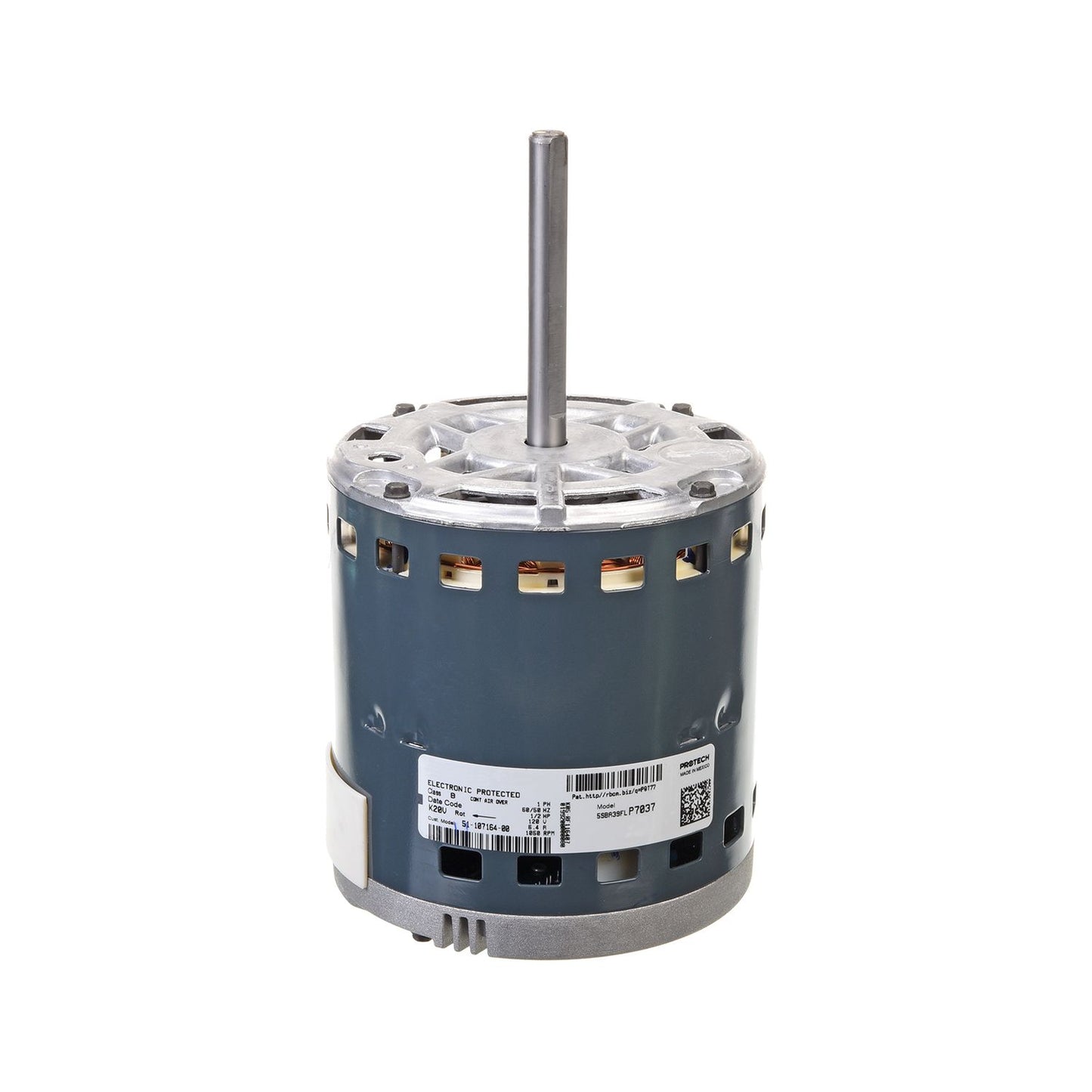

51-107164-10 - Ensite 1/2 HP Blower Motor - Variable Speed - 120V

Only 1 left
SKU: 51-107164-10
$313.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Rheem 51-107164-10 - Ensite 1/2 HP Blower Motor - Variable Speed - 120V

Programming Kit PD510011 and the newest software version is required to program this motor.

Features

  • Motor Type: Ensite
  • HP: 1/2
  • Number of Speeds: Variable
  • Input Voltage (V): 120
  • Frequency (Hz): 60
  • Shaft Diameter (in.): 1/2
  • Motor Body Diameter (in.): 5-5/8
  • Keyed/Flat Shaft Length (in.): 3-1/2
  • Overall Shaft Length (in.): 3-9/10
  • Motor Body Length (in.): 5-4/5
  • Overall Motor Length (in.): 9-7/10
  • Mounting: Shell-band
  • Frame Size: 48Y
  • Bearing Type: Ball
  • Application: Blower
  • Drive Type: Direct Drive
  • Blank Replacement Module: Not Available
  • Shipping Weight:  10.0 lbs

Where Used

  • R92TA
  • R95TC-W95TC
