• Reliable automatic irrigation control when you don't have AC power
• Controls 4 irrigation zones
• Operates for 1 year using one 9-volt battery or more than 2 years with two 9-volt batteries
• Waterproof case and dual-sealed battery chamber for long life, even in wet and muddy conditions
• Rubber cover protects the controller face
• Easier to program from a single screen, large LCD display
• One-touch manual watering
• 6 independent start times per zone, 4 watering day options per zone
• Seasonal adjustment from 10% to 200%
• NOTE:  ESP-9V only operates valves that use a 9-volt potted latching solenoid (sold separately)

Tougher, Easier and Longer Lasting

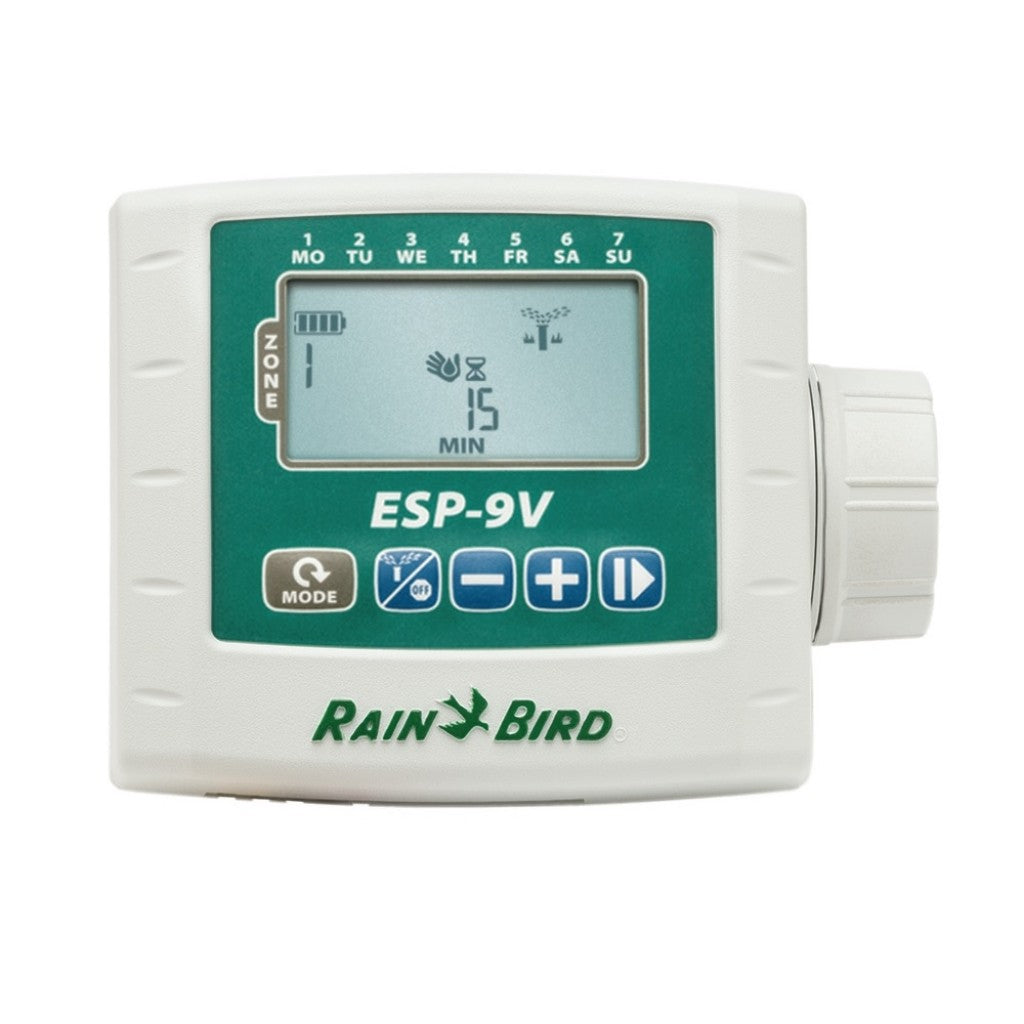

Get reliable automatic irrigation control when you don't have AC power with the ESP-9V Series Battery-Operated Controller. The ESP-9V's waterproof case and dual-sealed battery chamber ensure long life even when installed in a wet, muddy valve box. In harsh environment testing the ESP-9V outlasted the competition by 70%. After being submerged in water at alternating extreme hot and cold temperatures the ESP-9V was still going strong after the competition failed in less than two days.

Common programming features are easily accessed on one screen, making programming quick and easy. The LCD screen is 85% larger than the Hunter® Node and the programming icons are big and easy to understand. Manual watering is easy with a dedicated button.

The ESP-9V operates for one year using one 9-volt alkaline battery, or more than two years with two 9-volt alkaline batteries.

Controller Features

• Waterproof case ensures long life even when installed in a valve box
• Dual-sealed battery chamber with rubber insert and O-ring keeps water out
• IP68 certified for protection against dust and water intrusion
• Large LCD display (85% larger than Hunter® Node) with easy-to-navigate user interface
• Non-volatile (100-year) program memory keeps your schedule safe even if batteries are dead
• Mounts in valve box using solenoid mounting bracket, using two screws affixed to the valve box or on a wall using the optional wall-mount kit
• The plastic controller case has outstanding resistance to weather, yellowing and aging
• Sensor input with bypass override
• Master valve/pump-start circuit
• Rain sensor bypass for all zones
• Controller operates with one or two 9-volt alkaline batteries

Scheduling Features

• Common programming features are easily accessed on one screen, making programming quick and easy
• At-a-glance programming eliminates confusion by showing the run time, start times and watering days for each zone
• Automatic zone stacking ensures that only one valve irrigates at a time. If zones are scheduled to water at the same time, the ESP-9V will automatically irrigate the lower number zone first.
• Dedicated manual watering button for easy manual watering
• Manually water all zones or a single zone on demand
• One-touch manual start allows you to start a full programmed irrigation cycle with the touch of a button
• Contractor Rapid Programming™ automatically copies the start times and watering days from zone 1 to all remaining zones at initial setup
• Run times, start times and watering days are customizable by zone
• Contractor Default™ allows user to save and restore the irrigation schedule
