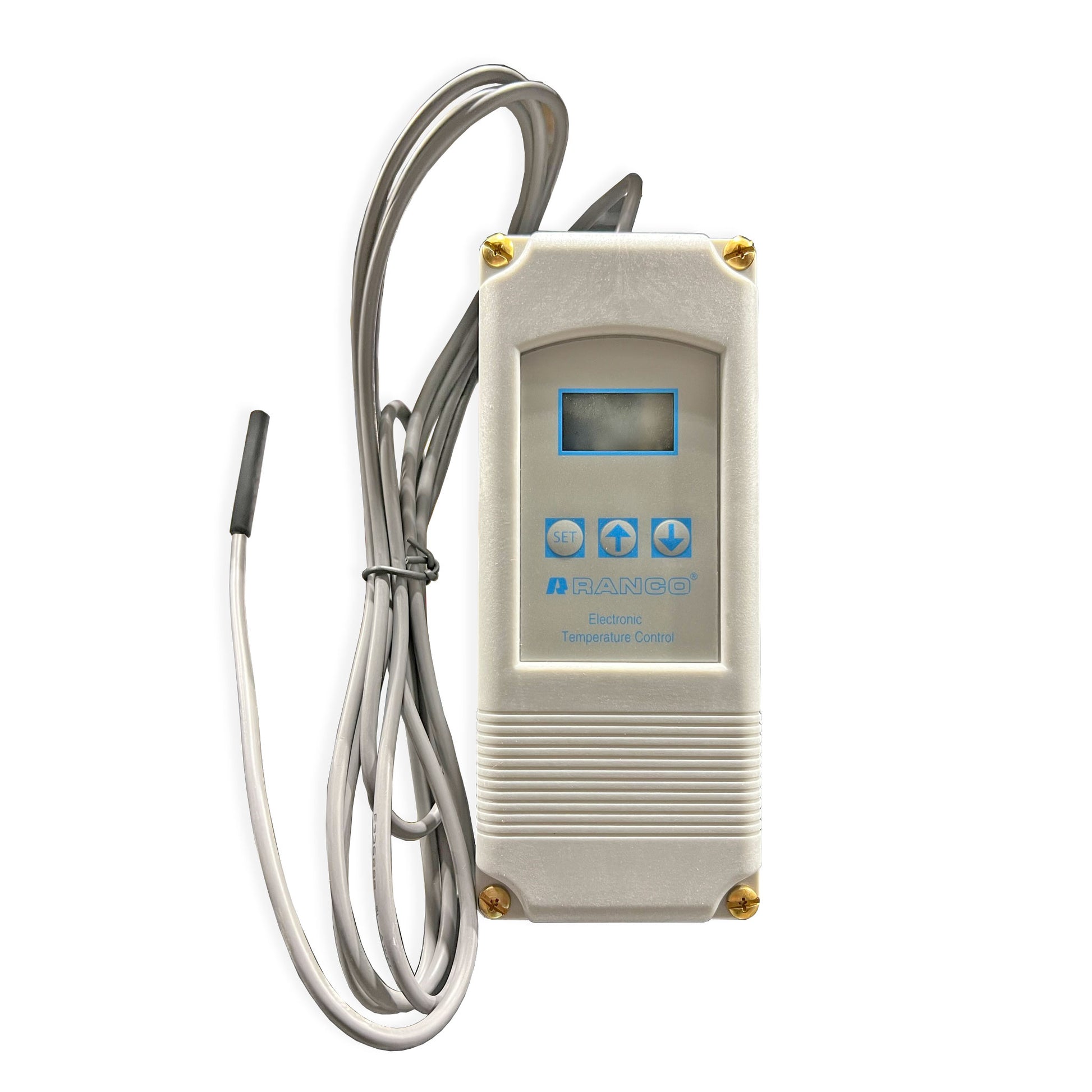

Ranco ETC-111000 - Electronic Temperature Control
This Ranco ETC is a microprocessor-based family of electronic temperature controls, designed to provide on/off control for commercial heating, cooling, air conditioning and refrigeration. The ETC is equipped with a liquid crystal display (LCD) that provides a constant readout of the sensed temperature, and a touch keypad that allows the user to easily and accurately select the set point temperature, differential and heating/cooling model of the operation.
Features
- Temperature Setpoint Range: -30 to 220 degrees F
- Differential range: 1 to 30 degrees F
- Input Voltage: 120VAC, 208, 240VAC
- Pilot duty: 125VA at 120/208/240VAC
- Sensor: Thermistor, 2" long x 1/4"dia with 8' cable (included)
- Control Ambient Temperatures
- Operating: -20 to 140
- Storage: -40 to 176
- Ambient humidity: 0 to 95% RH, non-condensing
- Enclosure: NEMA 1
- Dimensions: 6.52" high x 2.7" wide x 2.48" deep
- Agency Approvals: UL listed, file E94419, Guide XAPX, CSA certified, file LR68340, class 4813 02
