2FM2-S - 1/4" F-Series Pneumatic Manual Male Threaded Coupler
No reviews
In stock
Regular price
$36.00
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

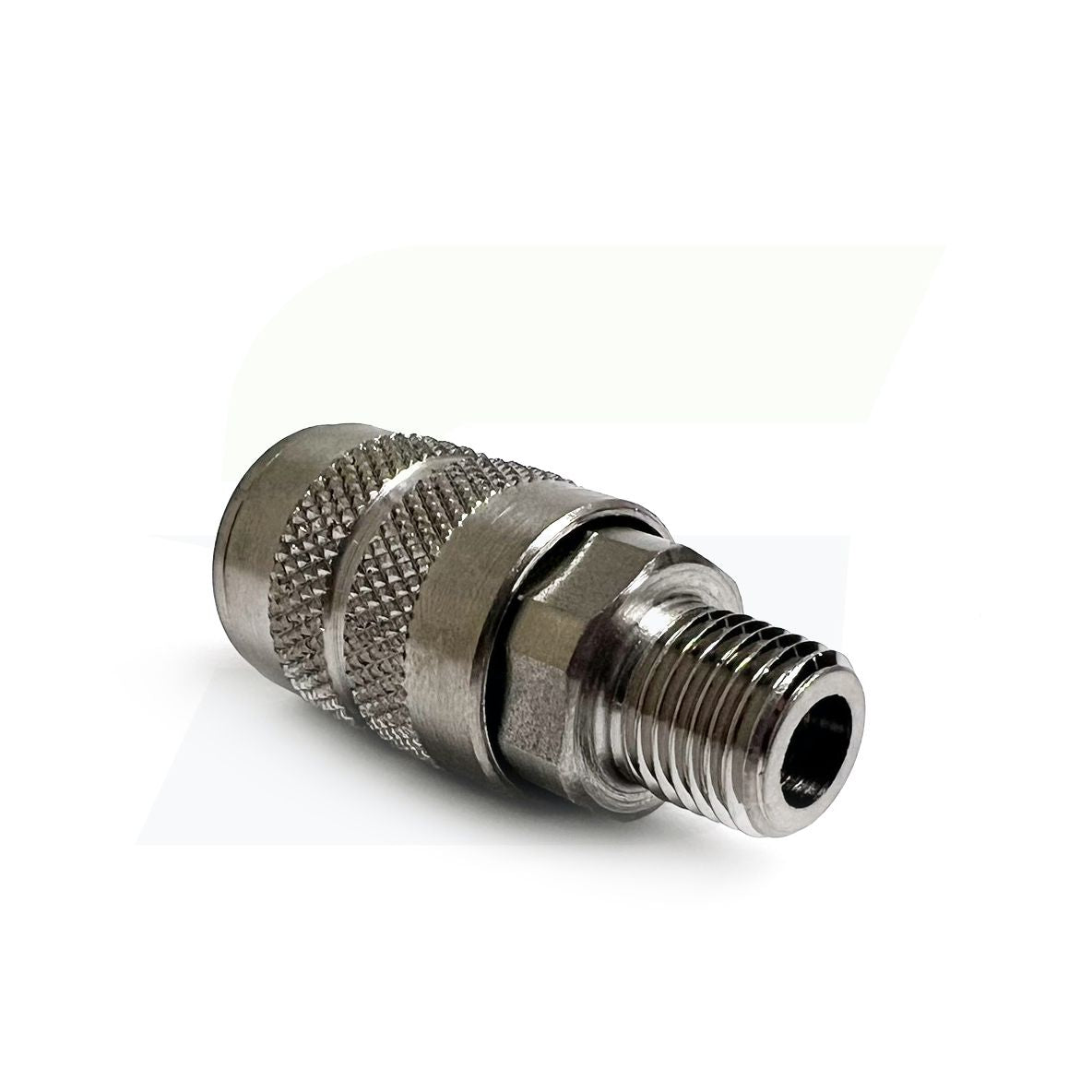

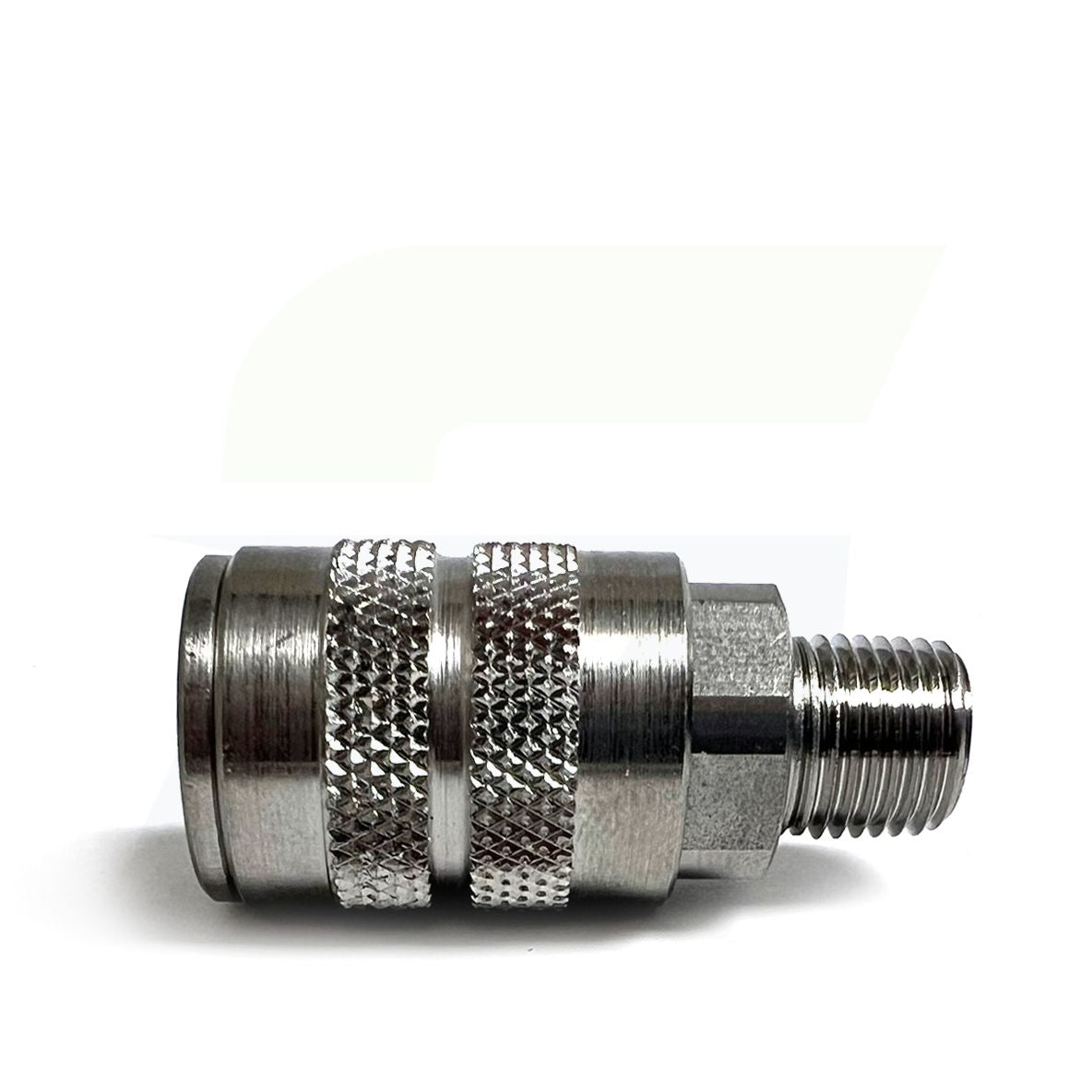

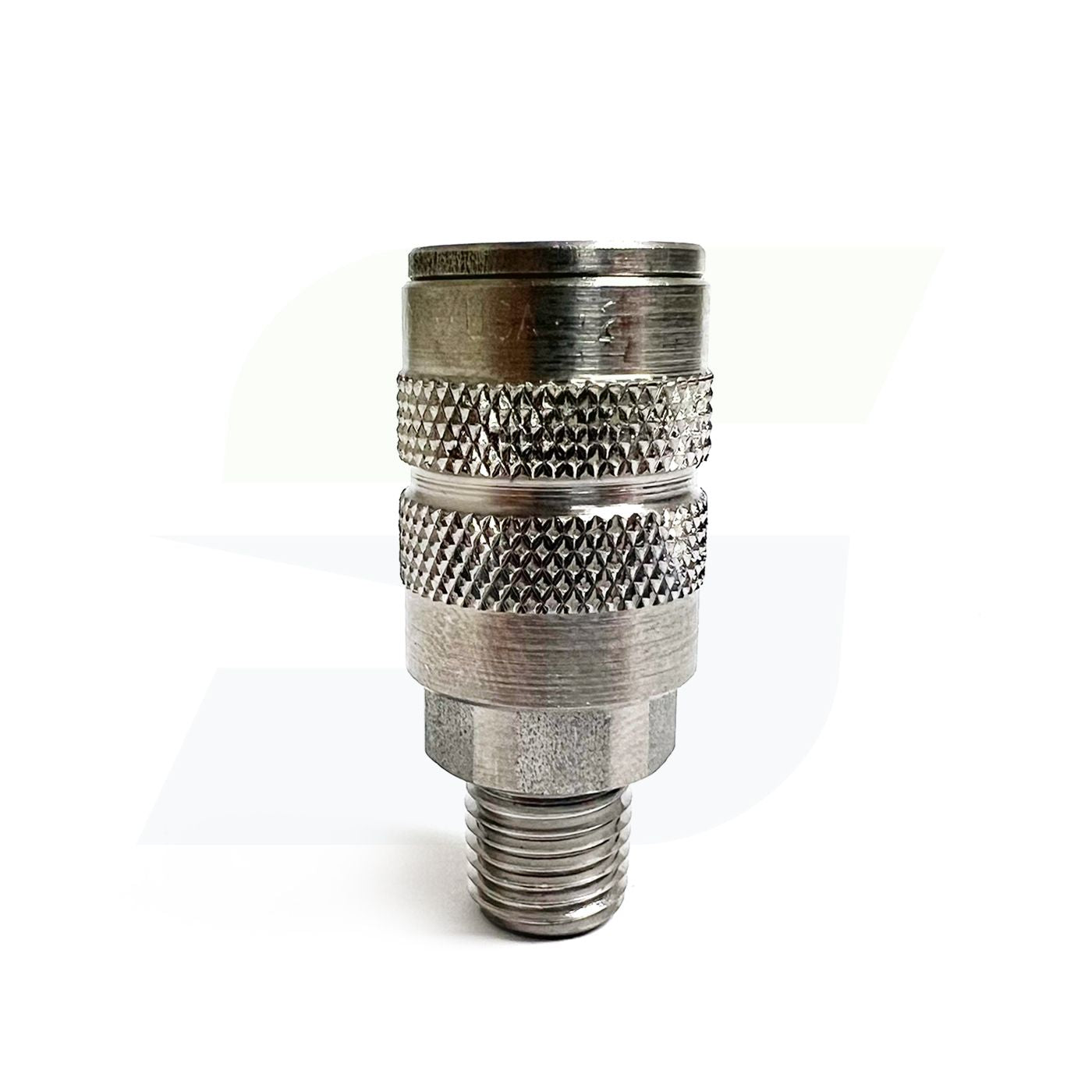

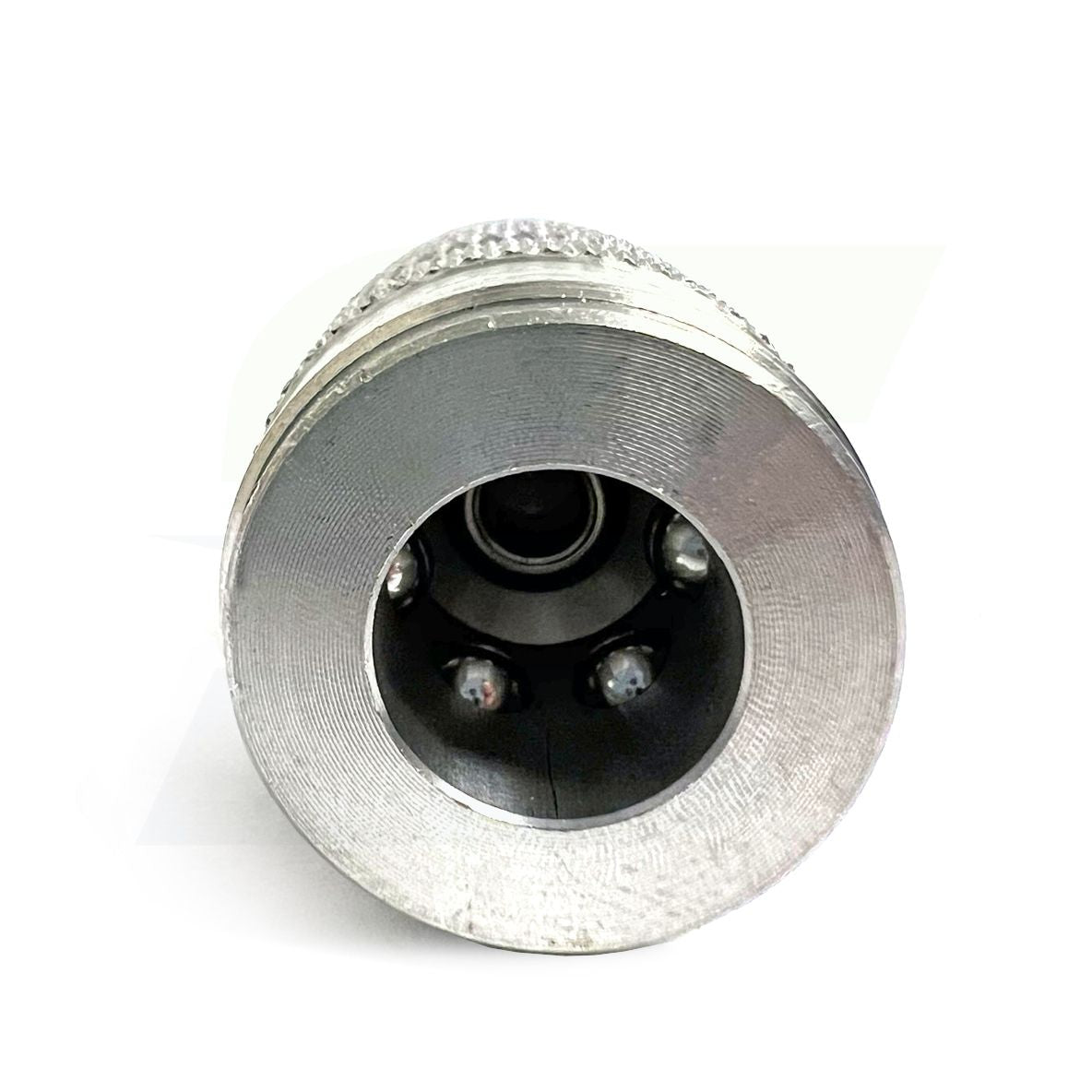

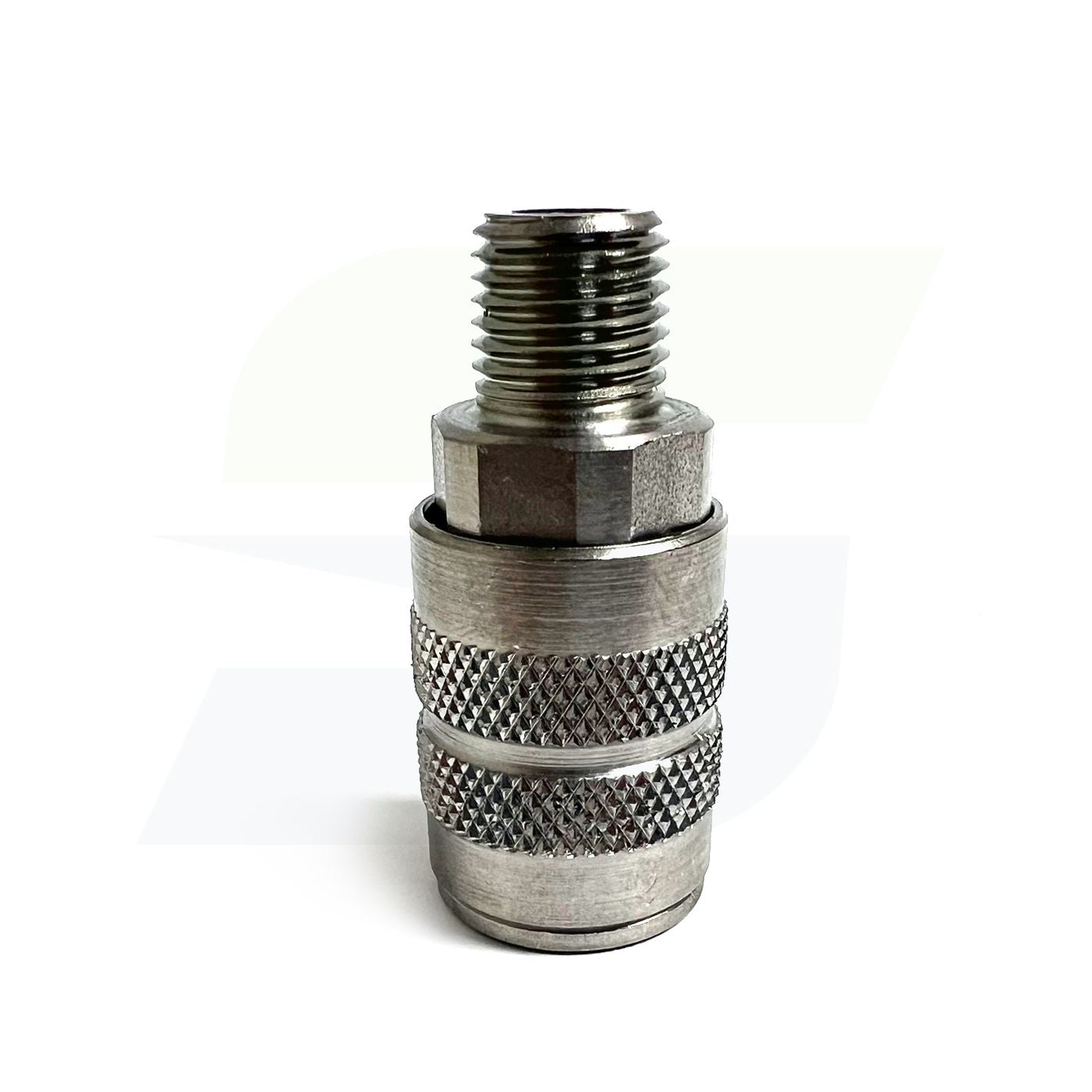

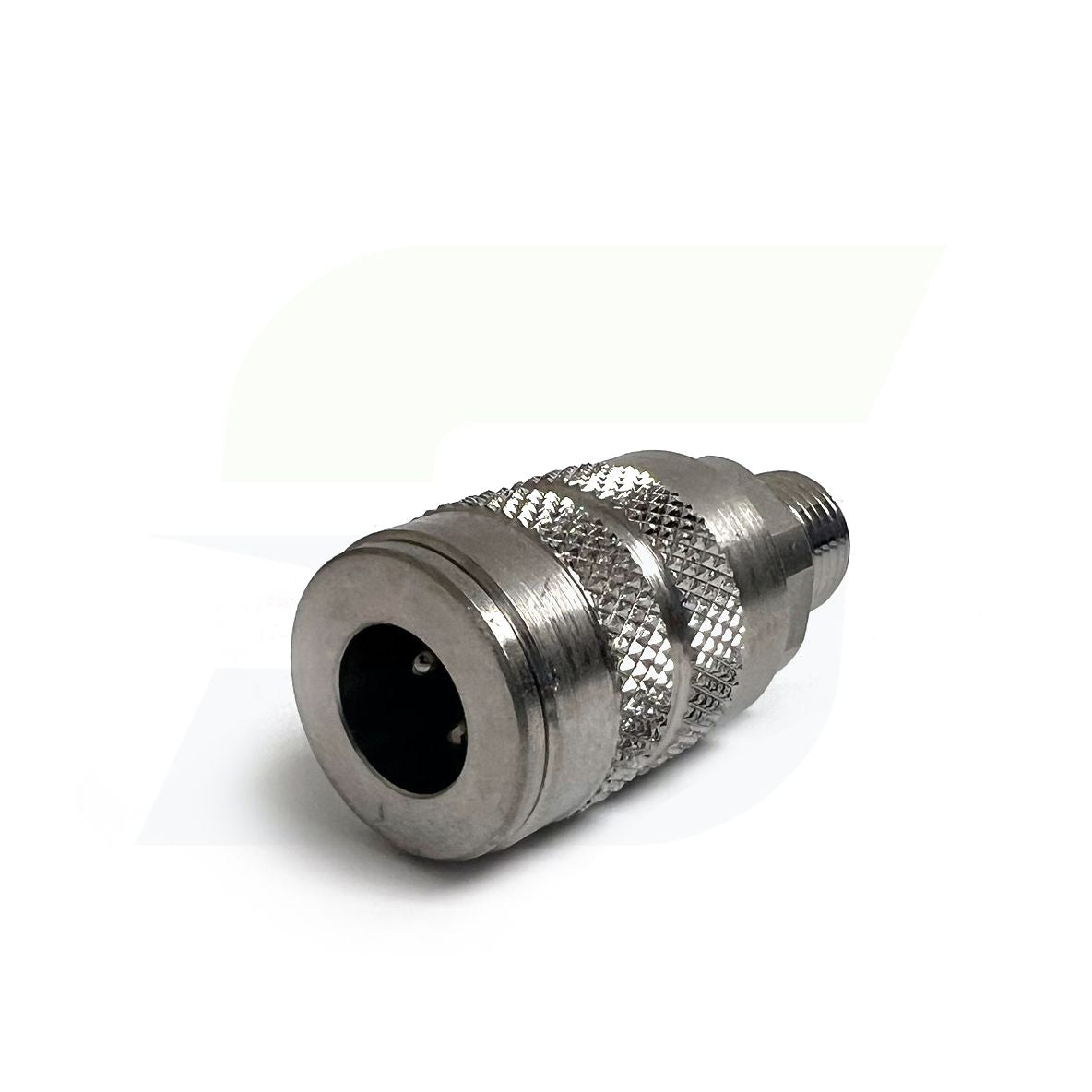

Dixon Valve 2FM2-S - 1/4" F-Series Pneumatic Manual Male Threaded Coupler
Specifications
- Rated pressure for connected 303 Stainless Steel Coupler & 303 Stainless Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (795 bar) Burst
Construction
- Machined components are manufactured using solid bar stock.
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
- Nitrile (Buna-N) seals are standard
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- Steel sleeve and steel tubular valve
Compatibility & Interchange Data
- Foster 3, 4, 5 and 6 Series
- Parker 20-Series Manual Interchange
- Hansen 1000, 400 and 500
How It Works
- To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free.
- Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand.
- After pulling the sleeve, the nipple will move out of the coupler slightly. Continue to hold the hose and coupler sleeve until all air is fully exhausted.
- After the line is fully exhausted, you are able to safely separate the nipple from the coupler.
DZZSB10240
