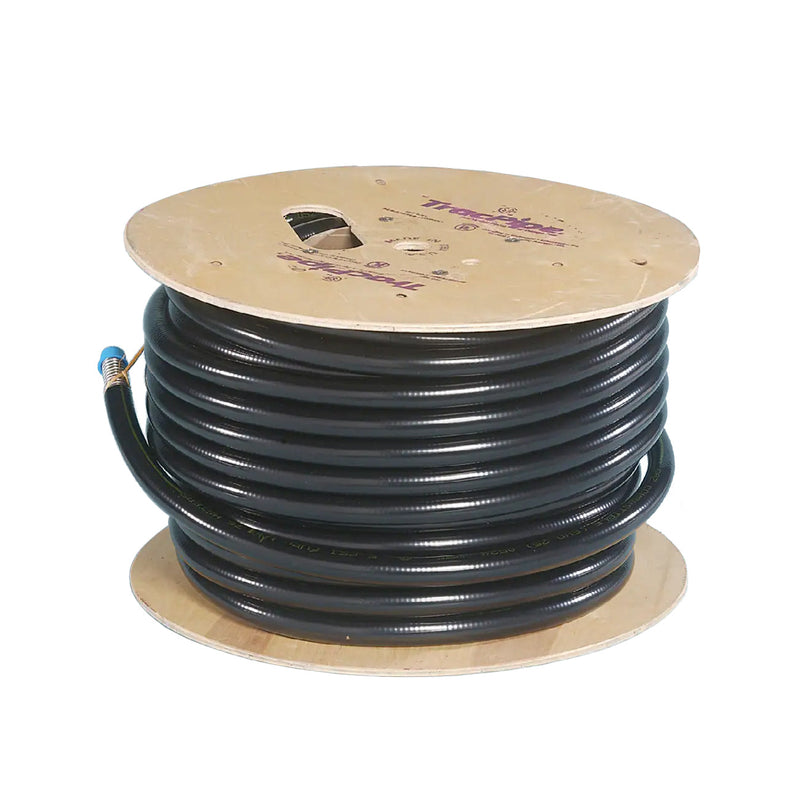

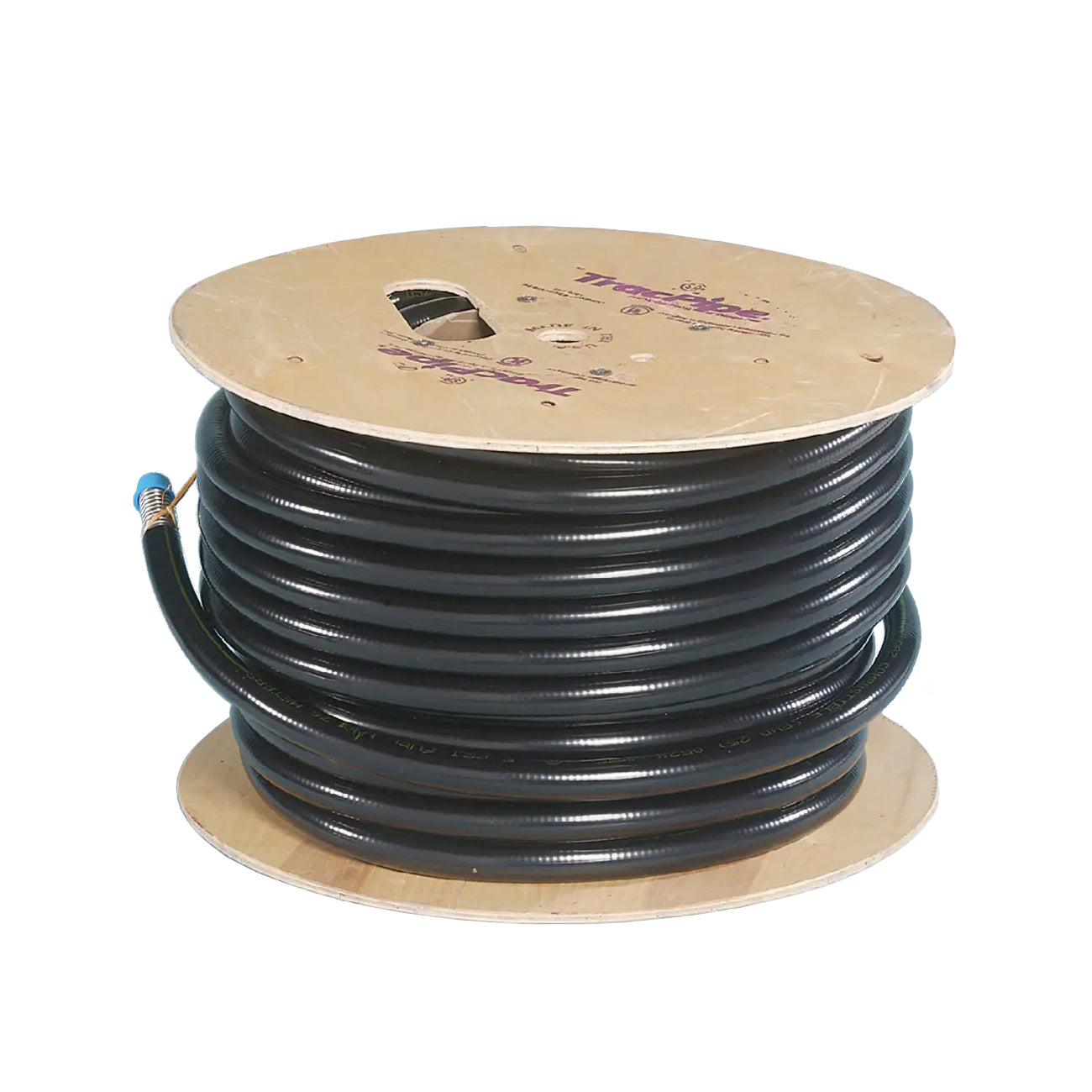

FGP-CS-750-250 - CounterStrike Flexible Gas Piping CSST - 3/4" - Sold by the Foot
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Submittal SheetFGP-CS-750-250 - CounterStrike Flexible Gas Piping - 3/4" - 250 ft
After ten years, over 125 million feet have been installed in homes across America, making CounterStrike CSST the only field-proven product in its class!
The flexibility and long lengths of CounterStrike CSST make it perfect for remodel/repair work. It can be pulled like wire, which minimizes the need to remove and replace walls, while at the same time potentially reducing both construction cost and shortening lead times. CounterStrike features a single robust protective jacket over a non-annealed CSST, which offers enhanced crush resistance. The superior crush resistance of CounterStrike CSST means that it lays straighter, is simpler to cut and pulls easier in new home construction.
Features
- Application Information: Conductive Jacketed Flexible Gas Piping for use in Natural Gas and Liquified Petroleum (Propane) Gas applications. Used with TracPipe AutoFlare fittings and accessories.
- CounterStrike has been shown to be up to 400 times more resistant to the damaging effects of electrical arcing energy than yellow CSST.

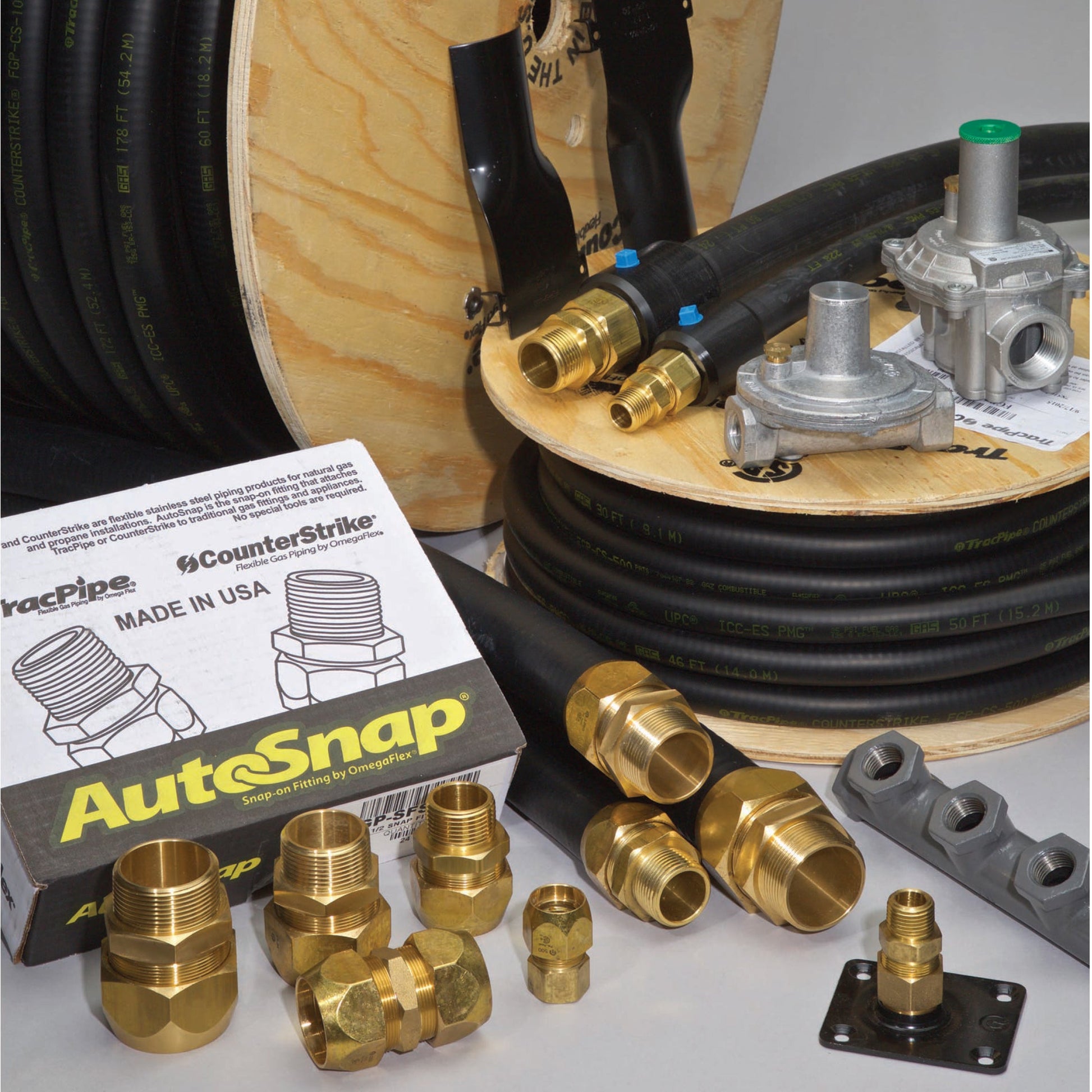

- Uses the NEW AutoSnap fittings that do not require disassembly/ reassembly!
- There are no additional bonding requirements for CounterStrike® imposed by the manufacturer’s installation instructions.
- Lays straighter and pulls easier, dramatically decreasing installation times (and saving you time and money in the process).
- Unlike competitive brands, CounterStrike is non-annealed making it more crush resistant, and easier to cut.
Specifications
- Tubing Material: ASTM A240 300 Series Stainless Steel
- Jacket Material: UV/Ozone Resistant Polyethylene with flame retardent
- Specification Operating Pressure: 25 PSIG
- CSA International Evaluation Report - Max Operating Pressure, 3/8" through 1-1/4": 125 PSIG
- Operating Temperature Range: -20 to 200 degrees F
- Tubing Melting Point: 2400 degrees F
- Jacket Melting Point: 350 degrees F
- Codes: ICC Codes (IFGC, IRC, IMC, IPC), NFPA 54, UPC, CAN/CSA B149.1, NFPA 58
- Standards: ANSI LC1 / CSA 6.26, UL 723 (ASTM E84), ICC LC 1024, ANSI Z223.1
- Listings: CSA, ICC PMG 1058, UL (Through Penetration Firestop Systems), IAPMO ES ER-0227
