62-23543-01 - Flame Sensor
No reviews
Only 1 left
Regular price
$8.14
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

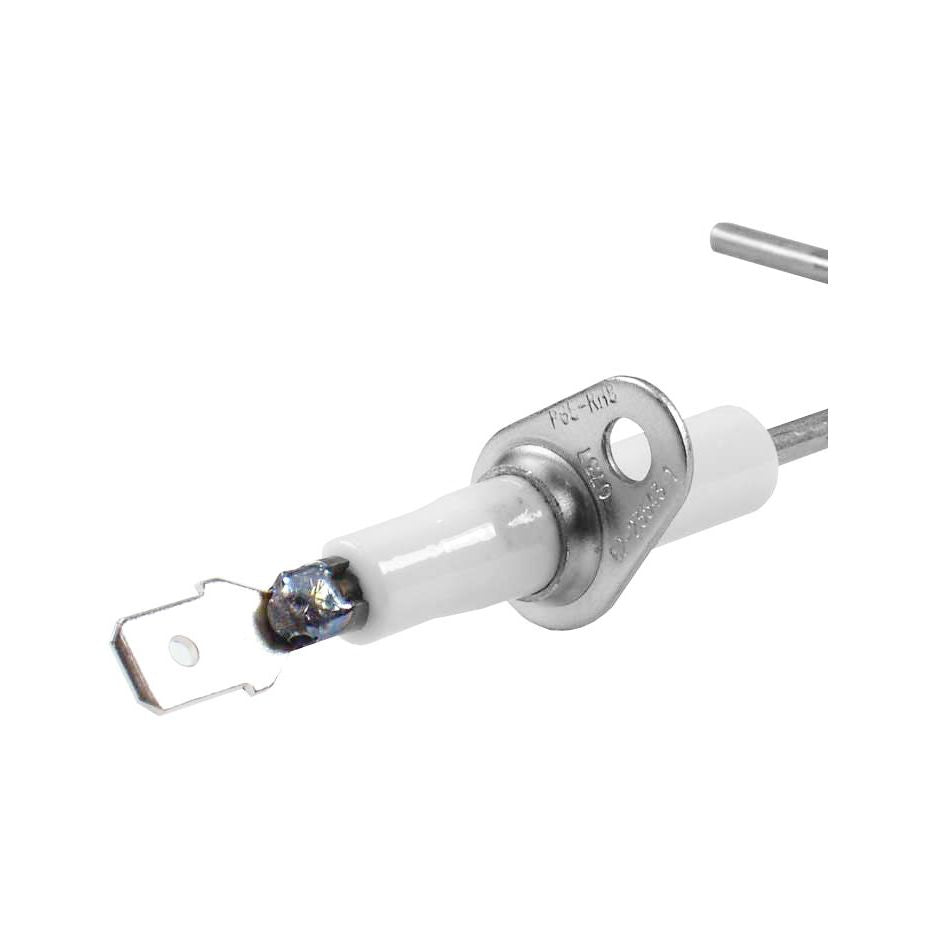

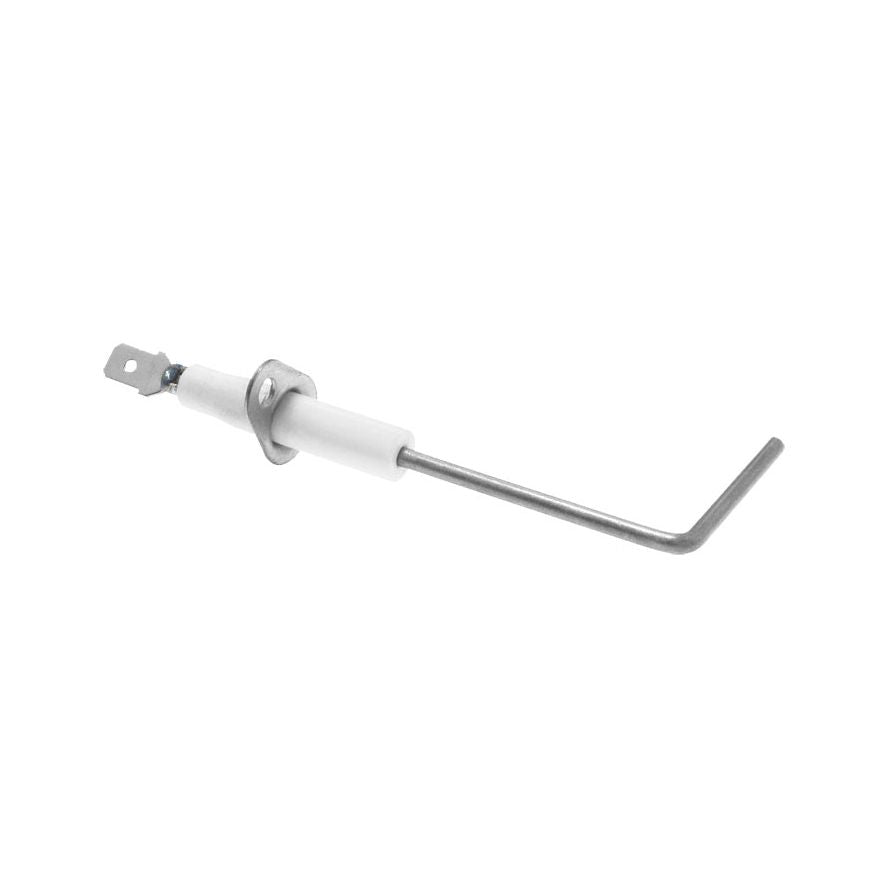

Rheem 62-23543-01 - Flame Sensor
The flame sensor ensures that there's a burning flame inside your furnace. The flame sensor detects when the burner flame has ignited and sends a signal to the control board to stop the igniter from operating.
Features
- Detects when the burner flame has ignited and sends a signal to the control board to stop the igniter from operating
- For use with furnaces
- OEM genuine factory authorized part
Technical Data
- Length - Mounting Flange to Sensor Tip (in.): 2-1/2
- Length - Sensor Offset (in.): 1-9/16
- Angle - Sensor Offset (degrees): 90
- Termination: 1/4 inch Male Quick Connect
Where Used
- 80LJ
- 80LS
- 80PJ
- 80PS
- 90RJ
- 90RS
- 90RT
- 90TJ
- 90TS
- EGEDZR
- EGEDZS
- R801C-MSA_MXA
- R801C-ZSA_ZXA
- R801P-MSA
- R801P-MSA_MXA
- R801P-ZSA
- R801P-ZSA_ZSB
- R801S-MSA
- R801S-ZSA
- R801T-DZ
- R801T-UH
- R801T-W801T-MSA_MXA
- R801T-W801T-ZSA
- R801V-DZ
- R801V-UH
- R802P-MSA
- R802P-ZSA
- R802T-MSA
- R802V-MSA
- R802V-UH
- R802V-ZSA
- RGDG
- RGDJ
- RGECZR
- RGECZT
- RGEDZ090-120
- RGEDZ150
- RGFD
- RGFE
- RGFG
- RGLE
- RGLG
- RGLH
- RGLJ
- RGLK
- RGLL
- RGLN
- RGLQ
- RGLR
- RGLS
- RGLT
- RGPE
- RGPH
- RGPJ
- RGPK
- RGPL
- RGPN
- RGPP
- RGPQ
- RGPR
- RGPS
- RGPT
- RGRA
- RGRB
- RGRJ
- RGRK
- RGRL
- RGRM
- RGRS
- RGRT
- RGSA
- RGTA
- RGTJ
- RGTS
- RGVG
- RGVH
- RGVJ
- SGDG
- SGPN
Replaces
- 62-23543-03
HUZ2010640
