Specification Sheet

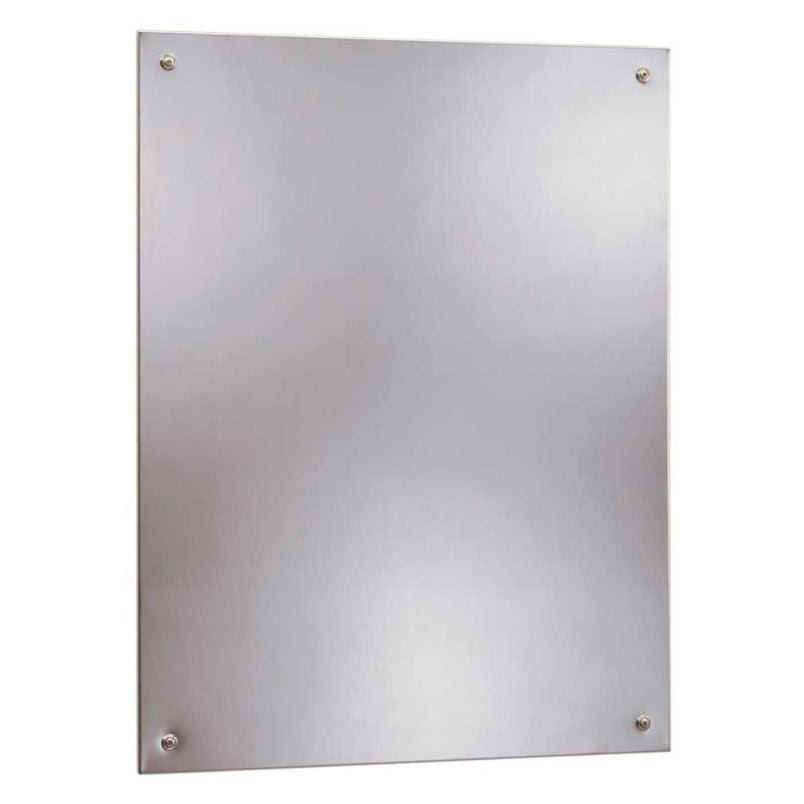

Frameless Mirror 23 1/2" W x 35 1/2" H (60 x 90cm)

Features:

• Bright-polished stainless steel

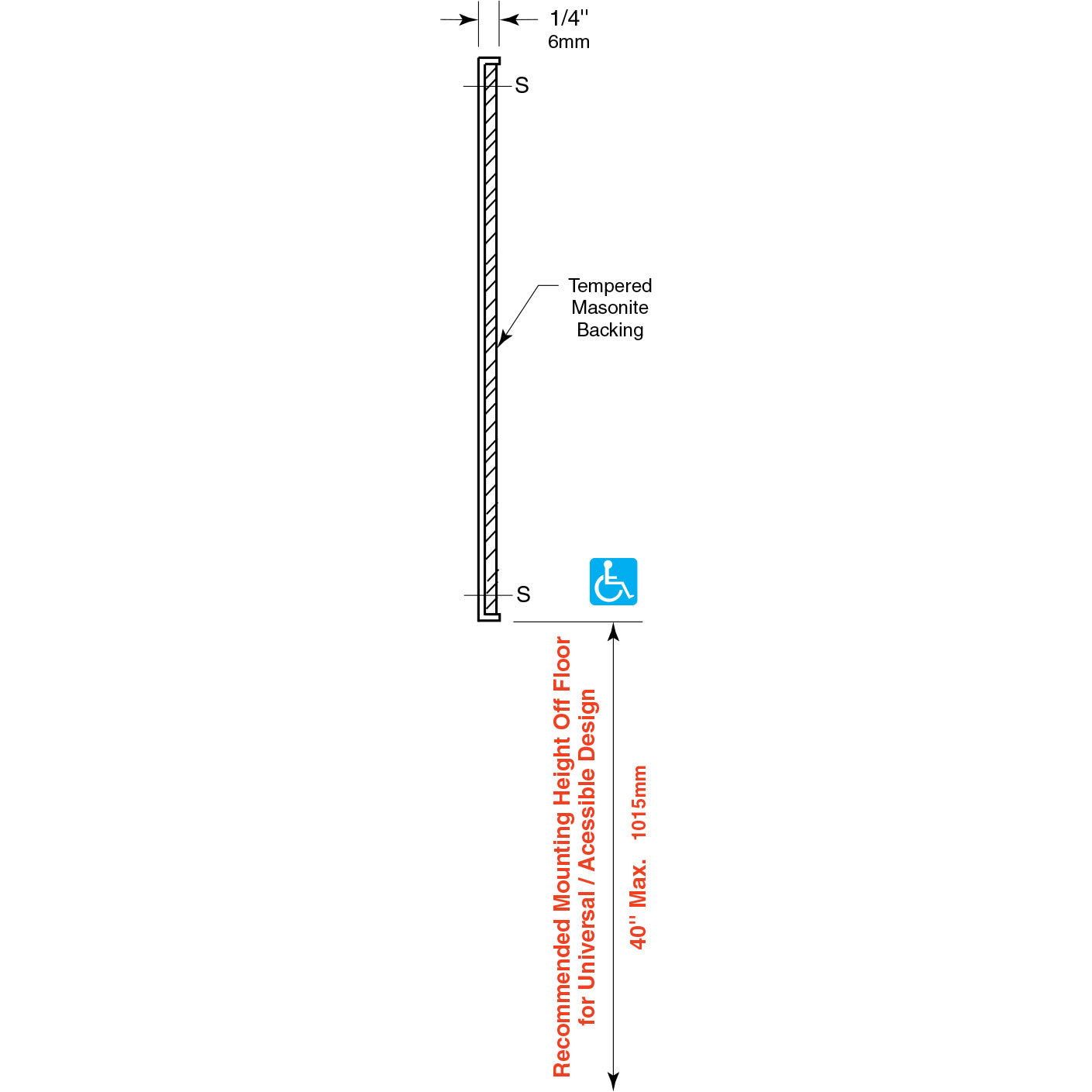

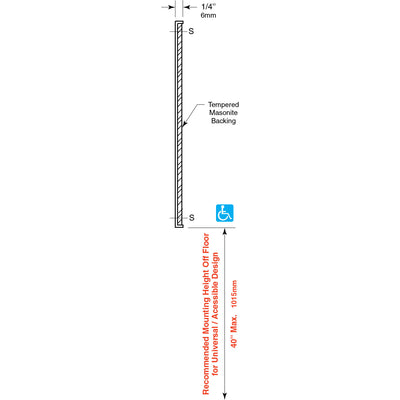

• Mirror has 1/4" (6mm) return concealing 1/4" (6mm) tempered masonite backing
• Furnished with four mounting screws
• Bobrick - B-1556 2436 - 23 1/2 in by 35 1/2 in Frameless Mirror
• 23 1/2 in x 35 1/2 in Frameless Mirror
• Bobrick

Materials:

• Mirror — 18-8, type-304, 20 gauge (0.9mm) stainless steel polished to a No. 8 mirror finish. Mirror has 1/4" (6mm) return.
• Backing — 1/4" (6mm) thick tempered masonite

Installation:

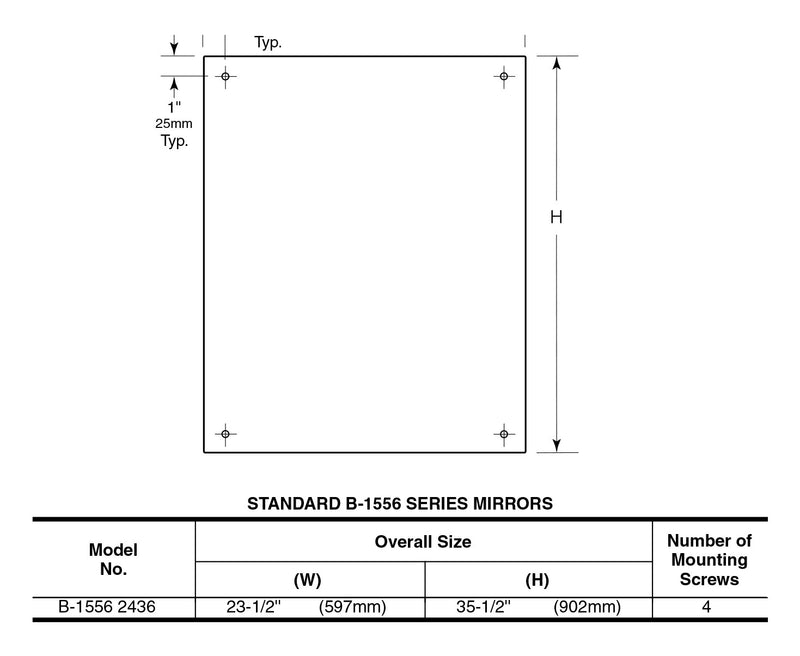

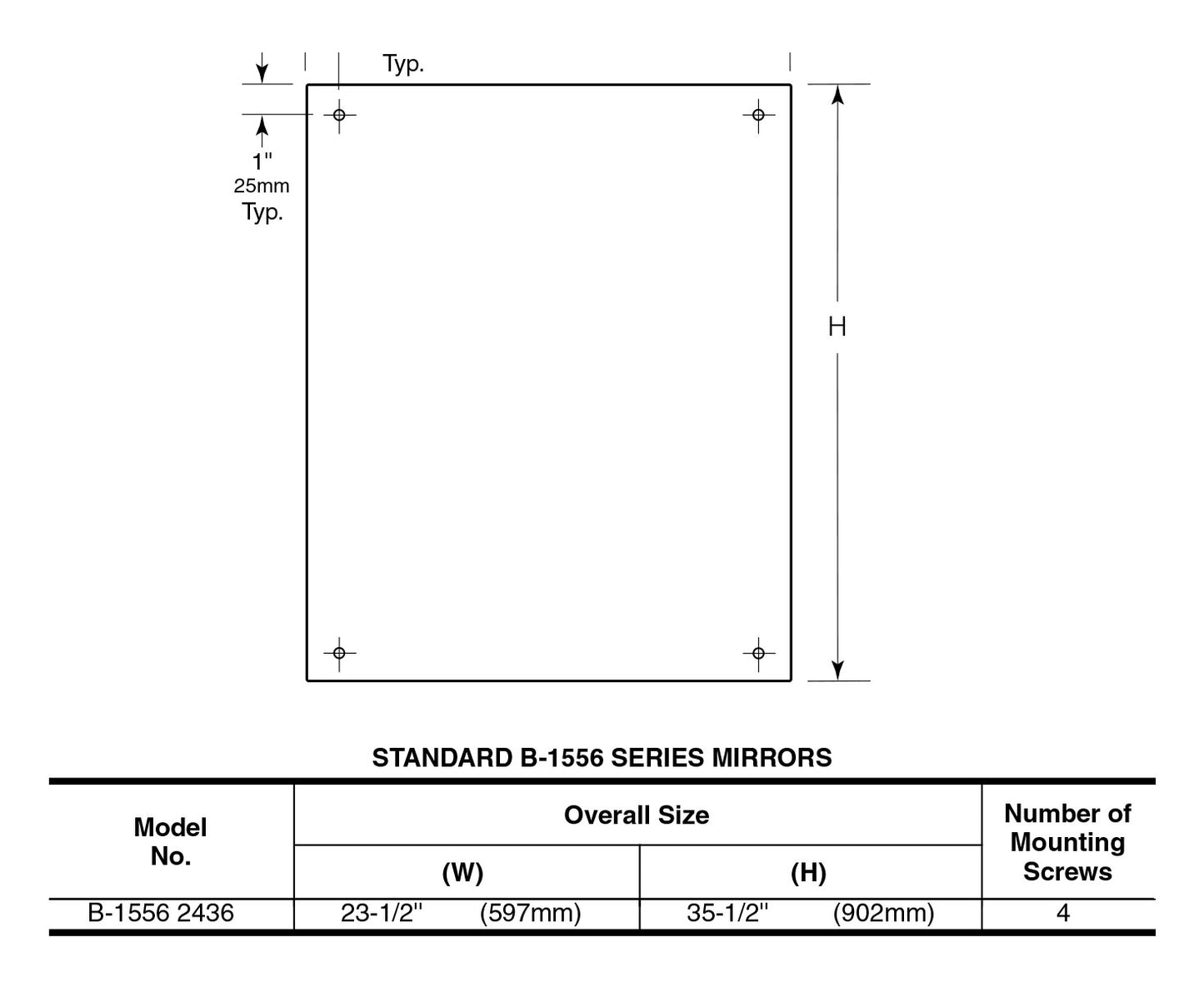

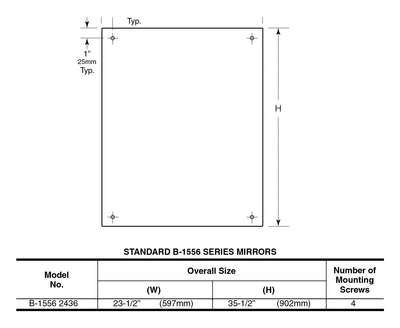

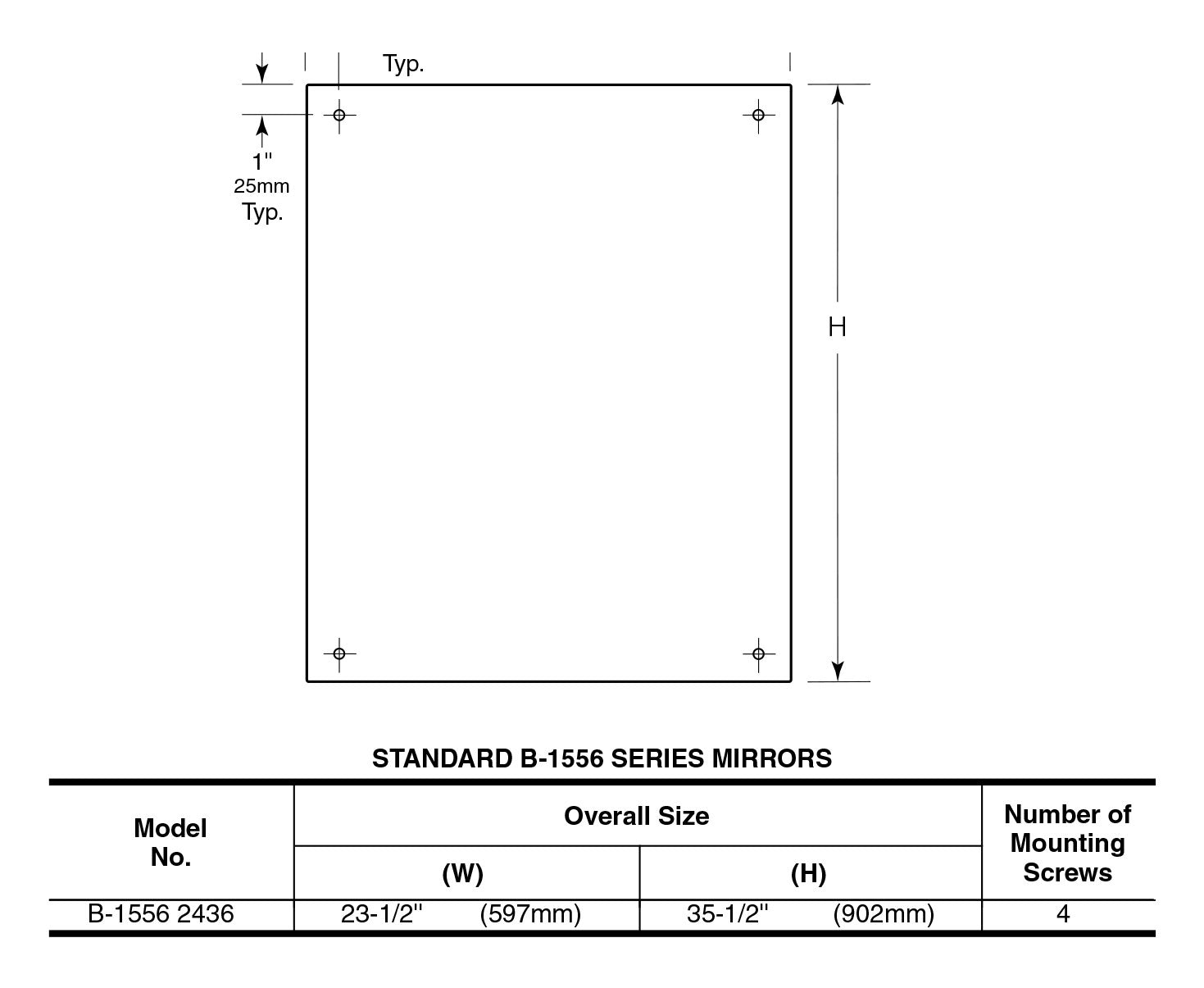

• Mount mirror on wall with four #8 oval head screws, furnished by manufacturer, at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws furnished. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws furnished, or provide 1/8" (3mm) toggle bolts or expansion bolts.

Specification:

• Frameless stainless steel mirror shall be 18-8, type-304, 20-gauge (0.9mm) stainless steel polished to a No. 8 mirror finish. Mirror shall have 1/4" (6mm) return concealing 1/4" (6mm) tempered masonite backing. Four corner countersunk holes provide flush fit of mounting screws with mirror surface.
