Home » Dixon Valve » Cam & Groove » G100-F-SS - 1" Stainless Steel Cam & Groove Global Type F Adapter x Male NPT
Dixon Valve

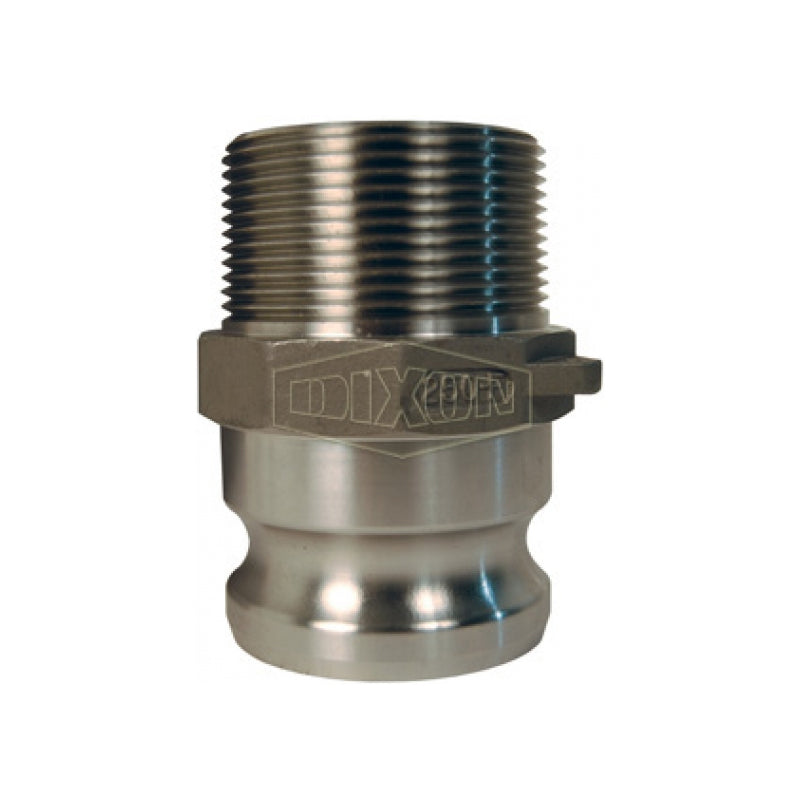

G100-F-SS - 1" Stainless Steel Cam & Groove Global Type F Adapter x Male NPT

In stock
SKU: G100-F-SS
$13.86

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Dixon Valve G100-F-SS - 1" Stainless Steel Cam & Groove Global Type F Adapter x Male NPT

Features

  • Global Type F Adapter
  • Cam & Groove Adapter x Male NPT
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 degrees F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Designed to interchange with all products produced to A-A-59326D
  • Maximum Operating Pressure: 250 psi
  • Weight: 0.57 lbs
  • Size: 1"
  • Material: 316 Investment Cast Stainless Steel



EZZSSF0100
