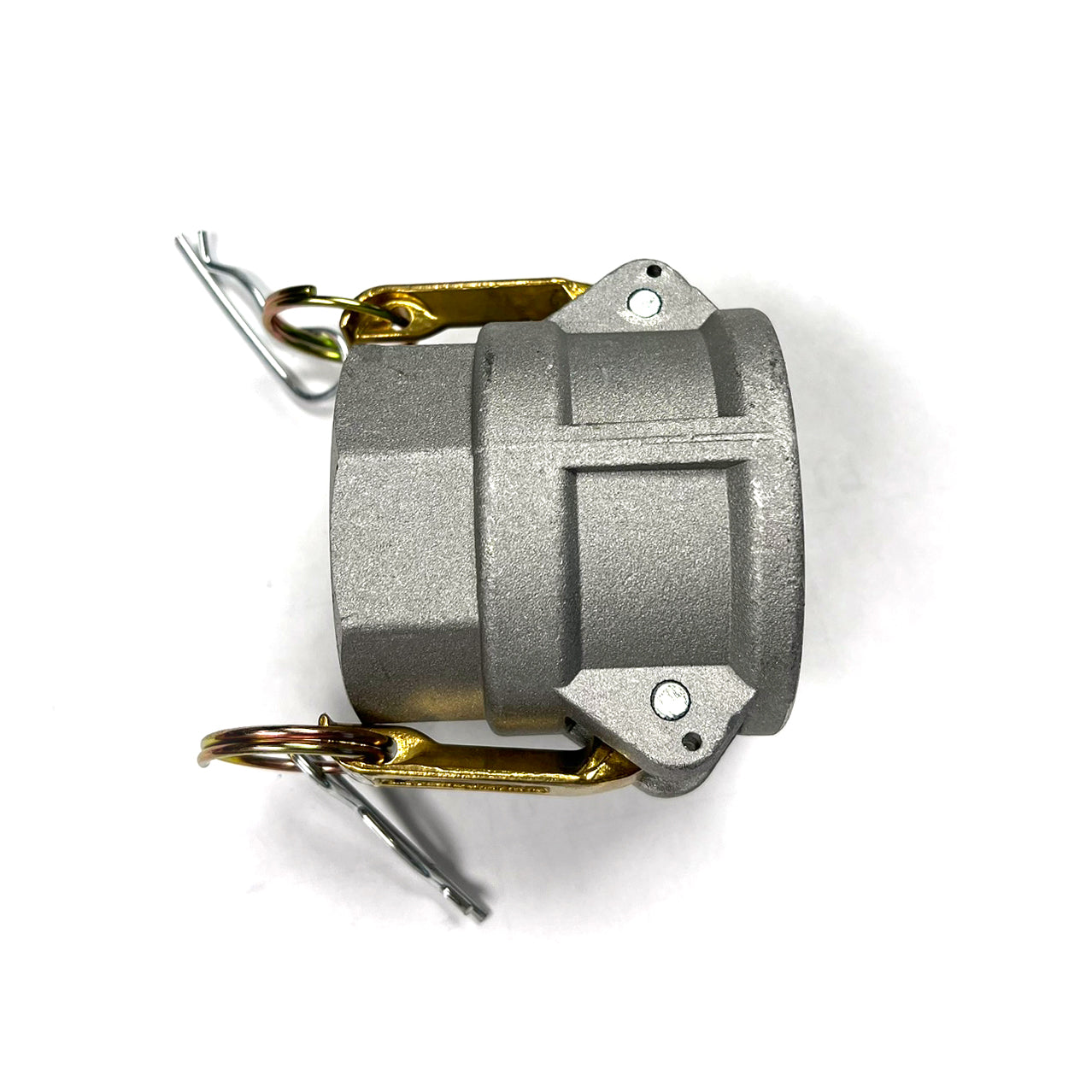

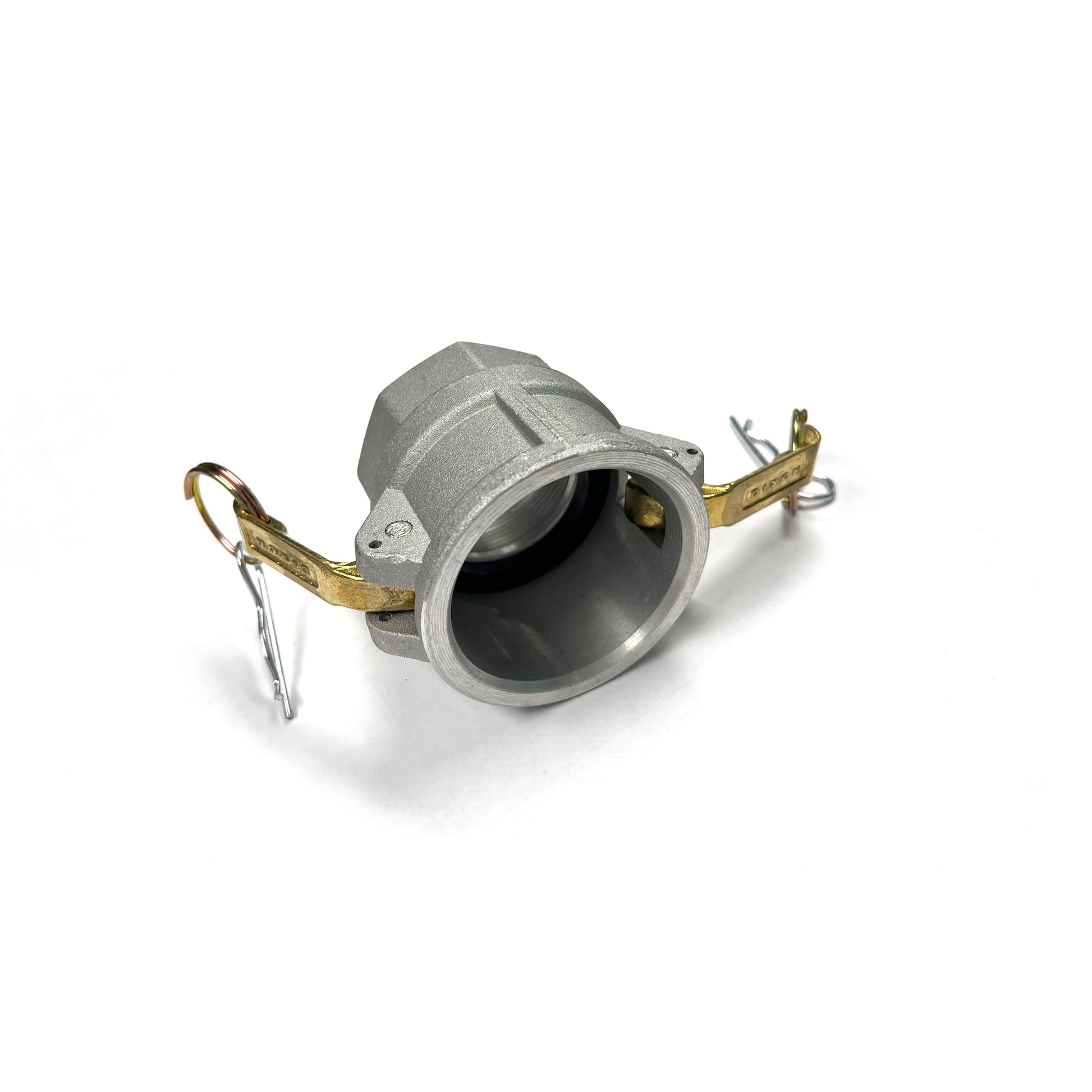

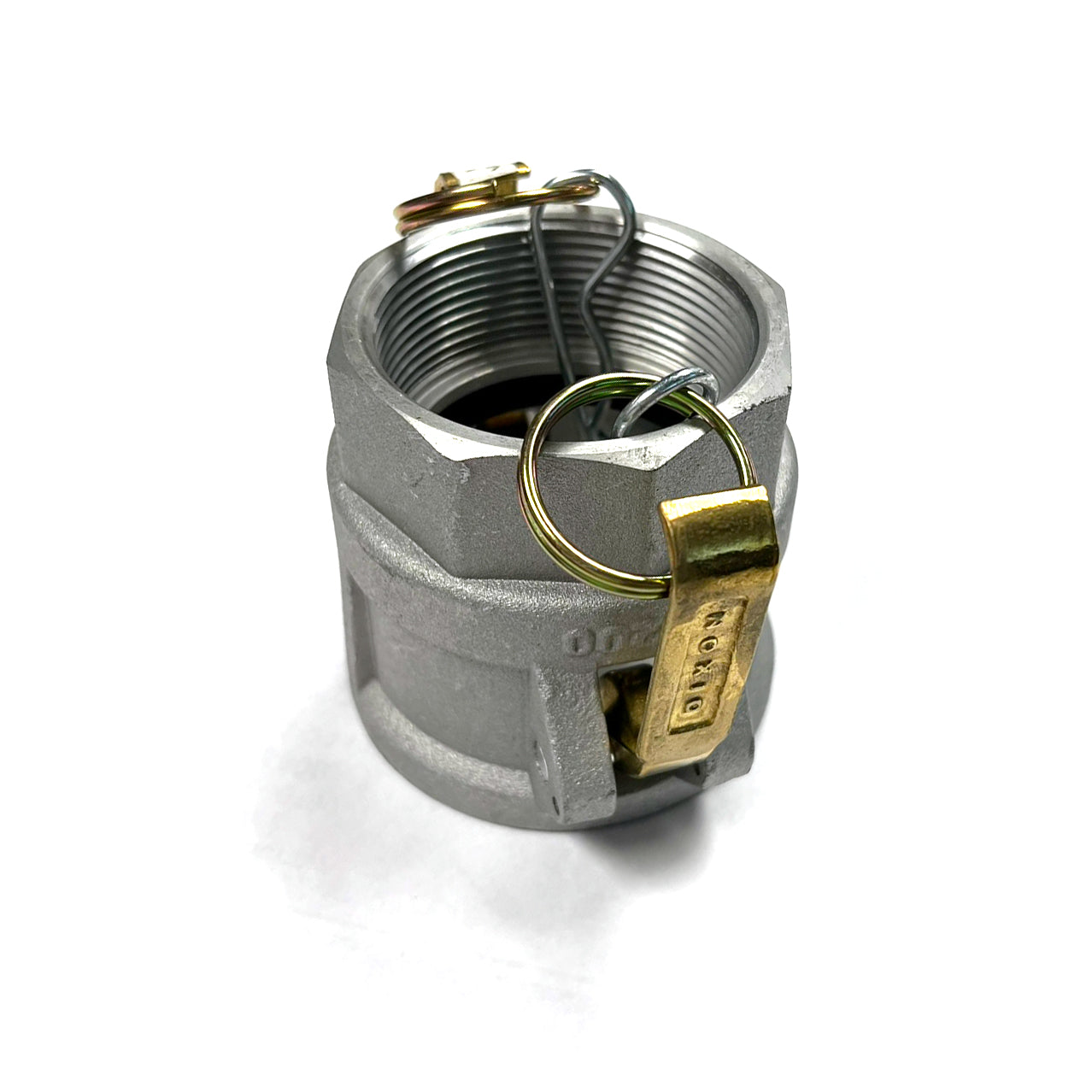

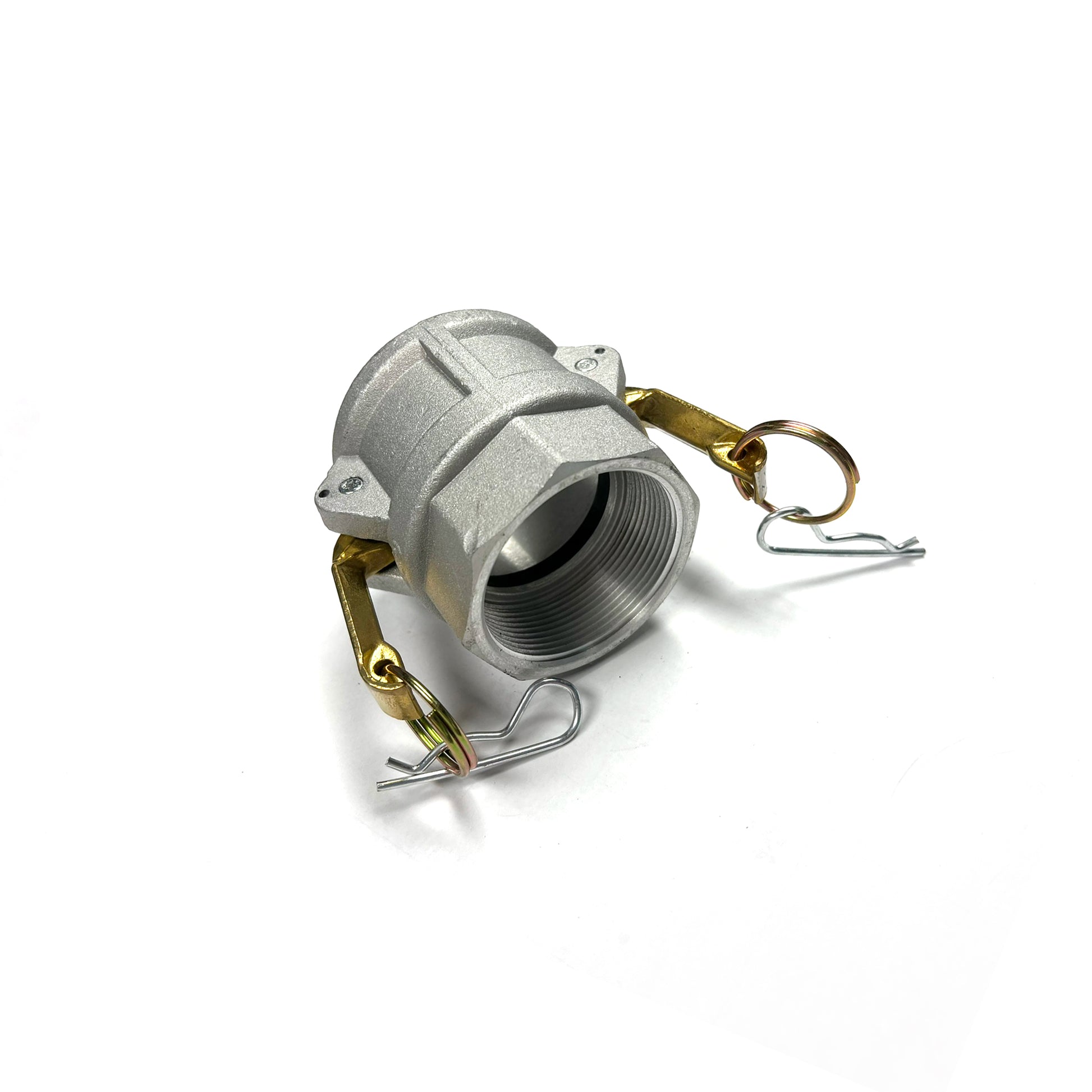

Dixon Valve G150-D-AL - 1-1/2" Aluminum Cam & Groove Global Type D Coupler x Female NPT

Features

• Designed for use with liquids, consult Dixon for specific recommendations
• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 degrees F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
• Designed to interchange with all products produced to A-A-59326D
• Maximum Operating Pressure: 250 PSI
• Weight: 0.73 lbs
• Size: 1-1/2"
• Material: A380 Permanent Mold Aluminum
• Component Material: Brass Handle
• Seal: Nitrile Rubber

EZZSCD0150
