Sloan

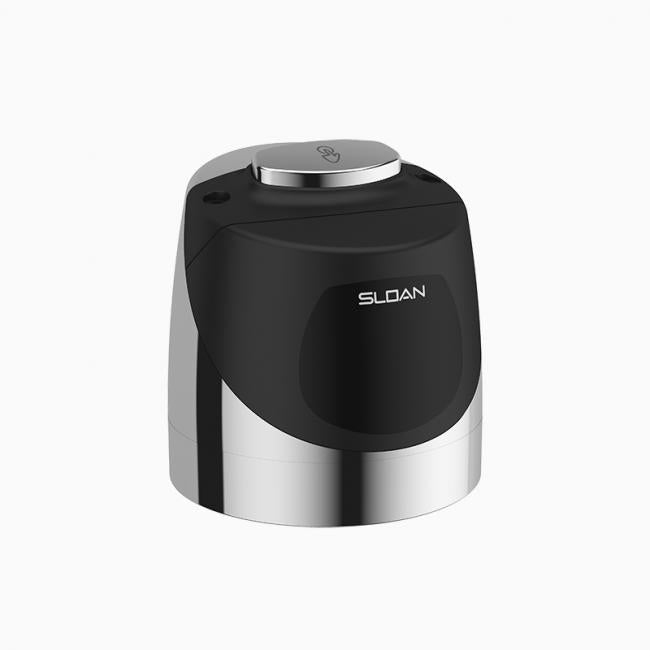

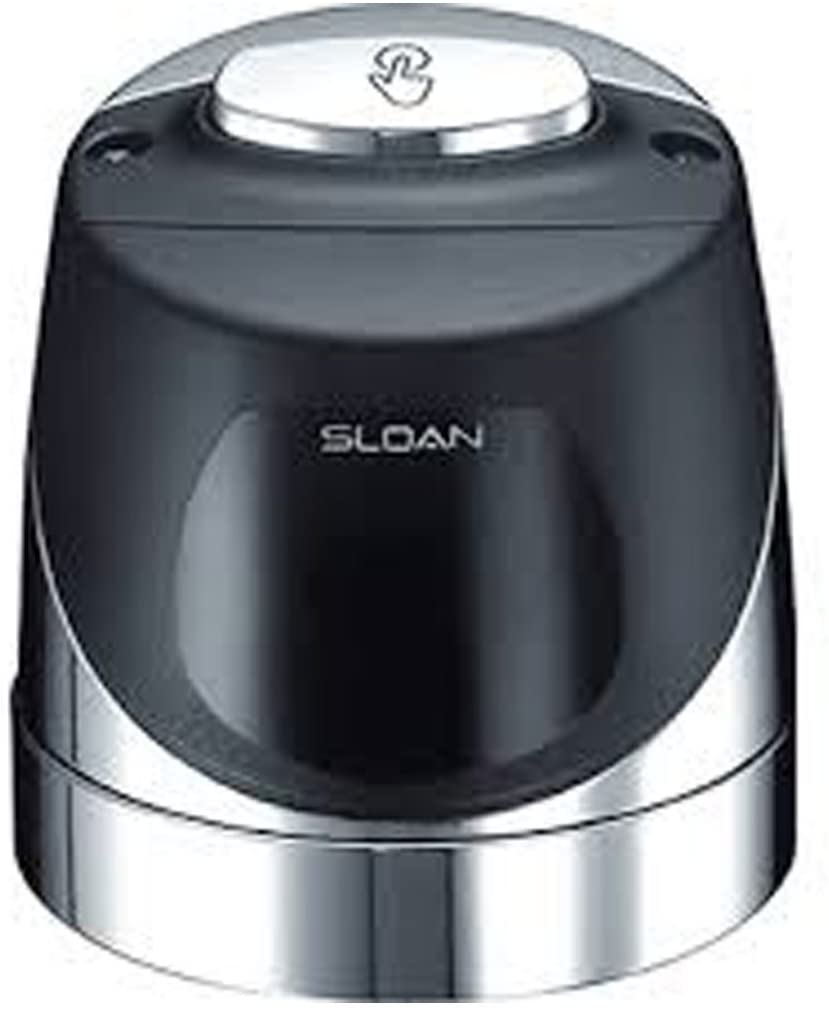

SLOAN G2 RESS-U - 1.6 GPF Exposed Sensor Urinal Retrofit Flushometer Kit

In stock
SKU: 3325400
$446.63

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specification Sheet

CODE NUMBER

  • 3325400

DESCRIPTION

1.6/3.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery, G2 Exposed Sensor Water Closet Retrofit Flushometer.

DETAILS

  • Flush Volume: 1.6 / 3.5 gpf (6.0 / 13.2 Lpf)
  • Finish: Polished Chrome (CP)
  • Power Type: Battery ()
  • Battery Life: 6 years
  • Valve: Diaphragm
  • Valve Body Material: Semi-red Brass
  • Fixture Type: Water Closet
  • Fixture Connection: Top Spud

FEATURES

  • User friendly three (3) second Flush Delay
  • “Low Battery” Flashing LED
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
  • Flex Tube Diaphragm designed for improved life and reduced maintenance
  • Engineered Metal Cover with replaceable Lens Window
  • Diaphragm to be molded from PERMEXTM Rubber Compound for Chloramine resistance
  • Courtesy Flush® Override Button
  • Handle cap included
  • Four (4) Size AA Batteries included

RECOMMENDED SPECIFICATION

  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.



PTB1L00785
