Home » Rheem » Gas Valves » Gas Valves » Gas Valves » 60-103901-02 - 140,000 BTU Gas Valve - 1/2" NPT x 1/2" NPT - 1 Stage
Rheem

60-103901-02 - 140,000 BTU Gas Valve - 1/2" NPT x 1/2" NPT - 1 Stage

In stock
SKU: 60-103901-02
$78.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

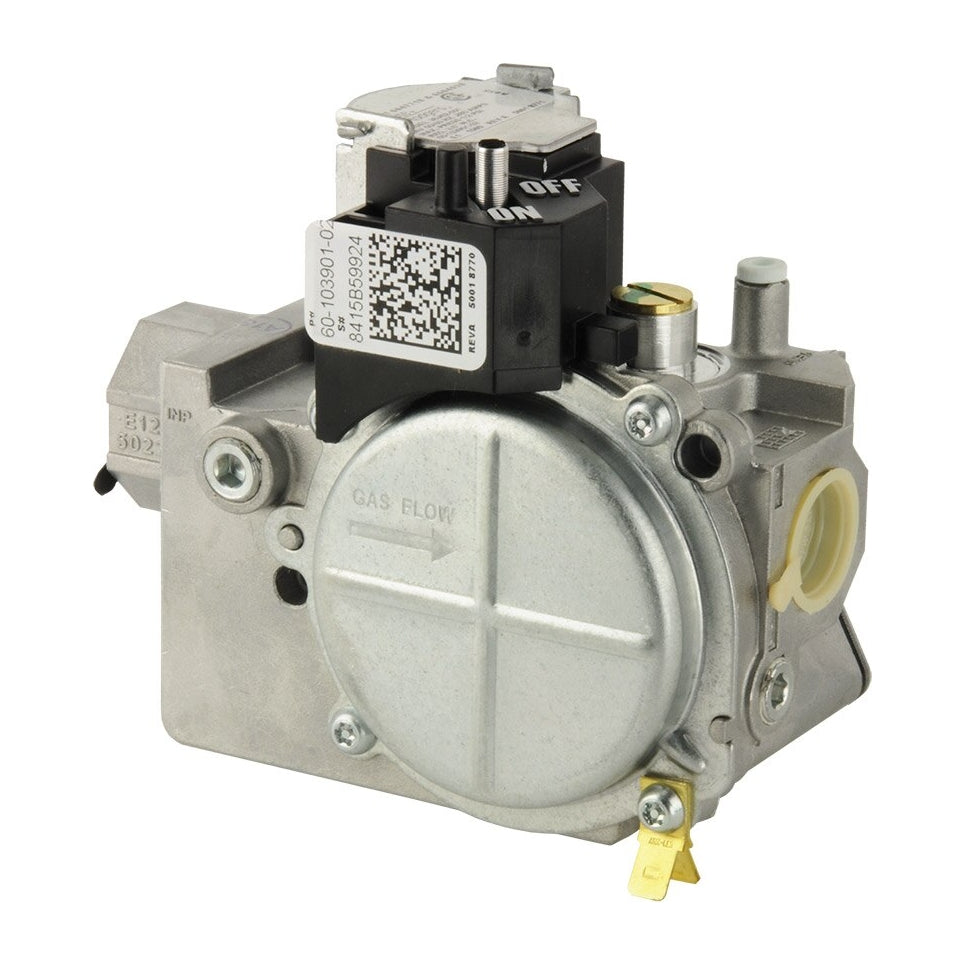

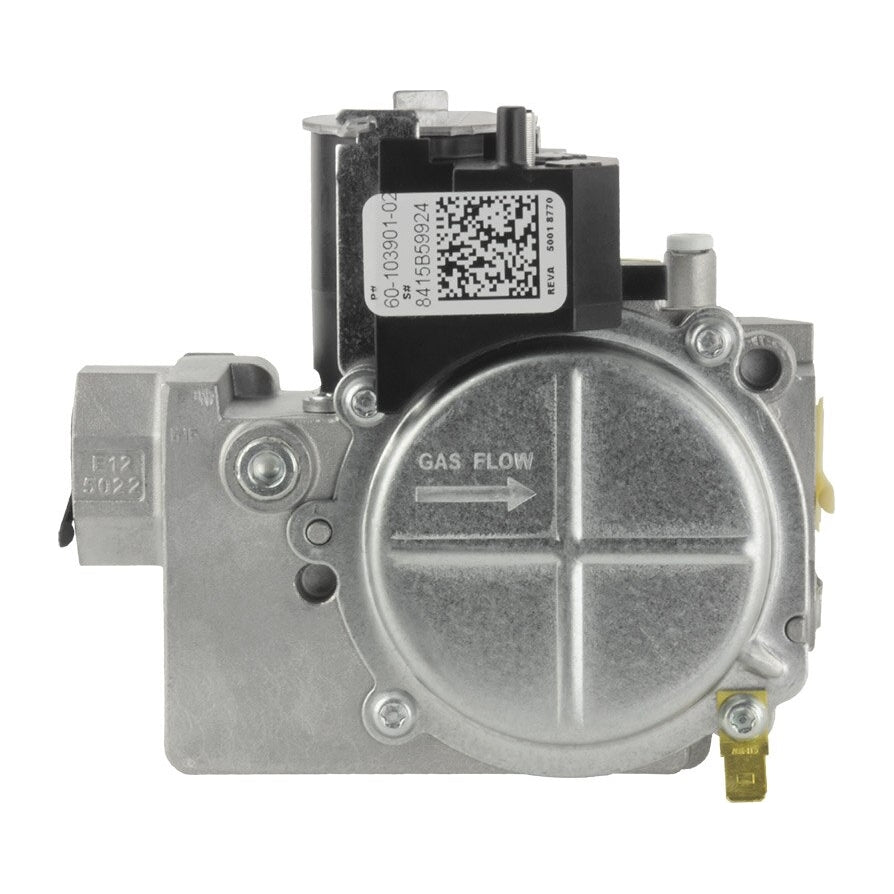

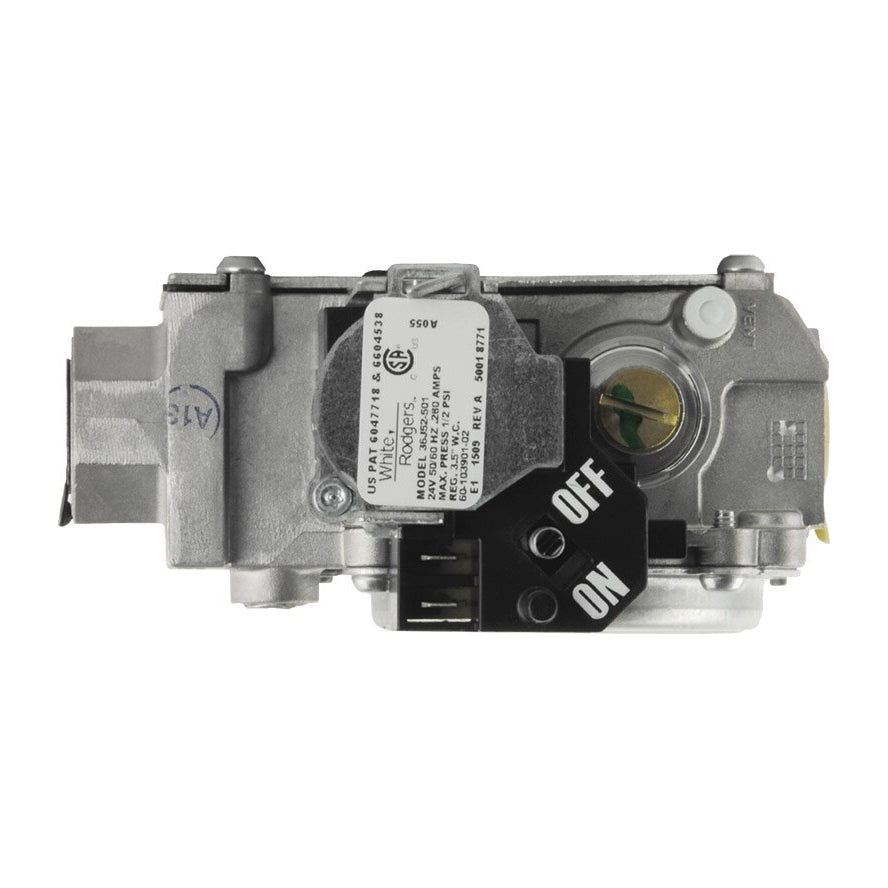

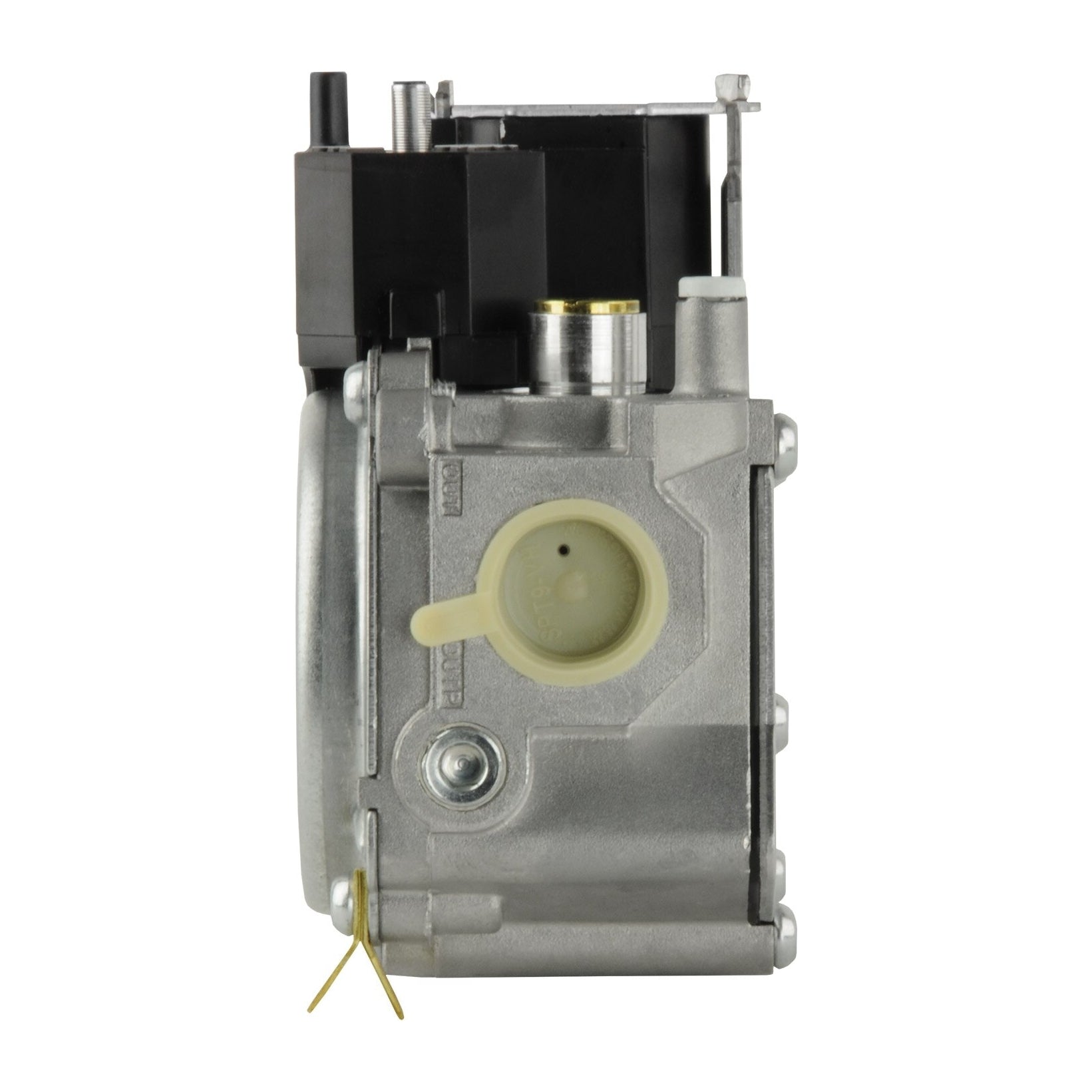

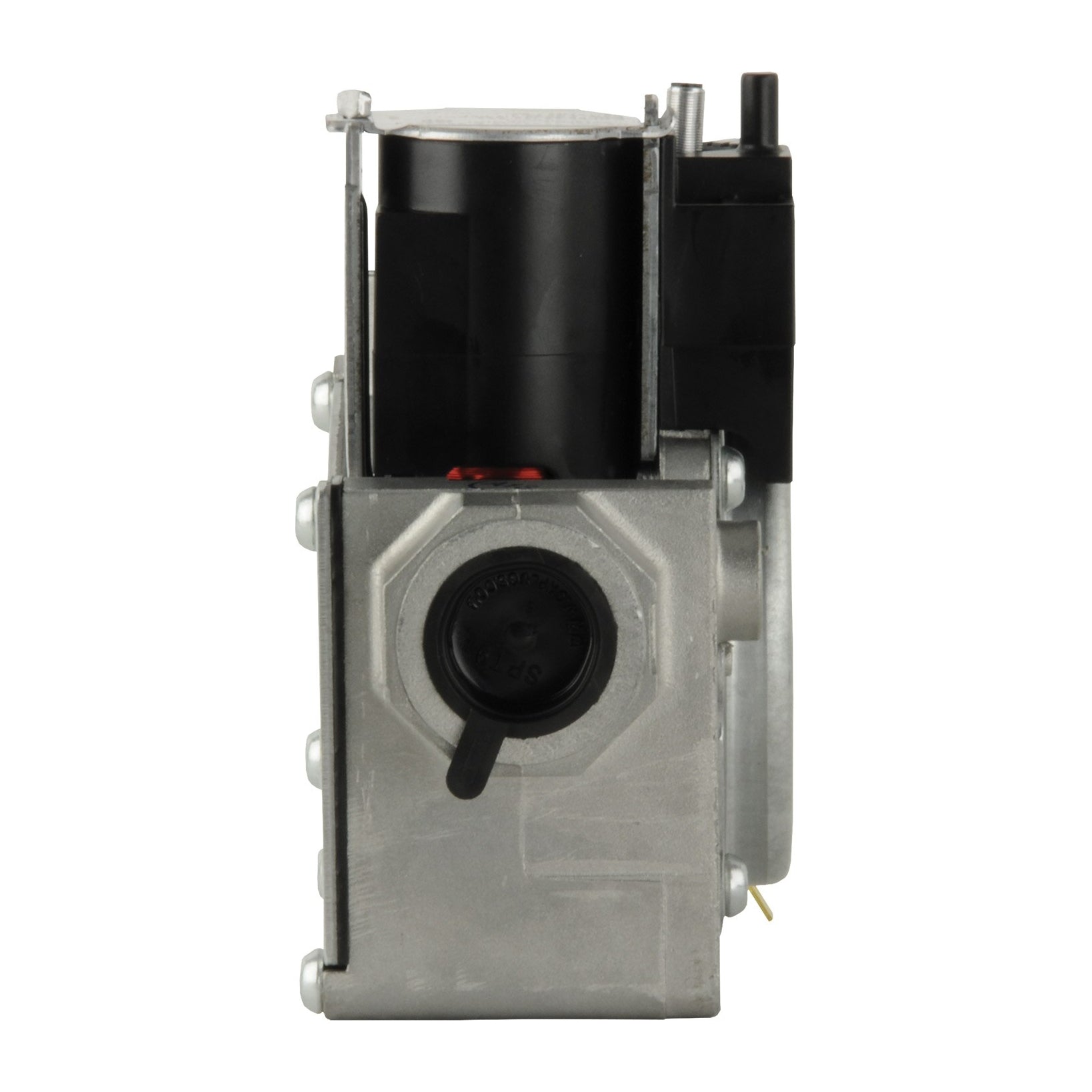

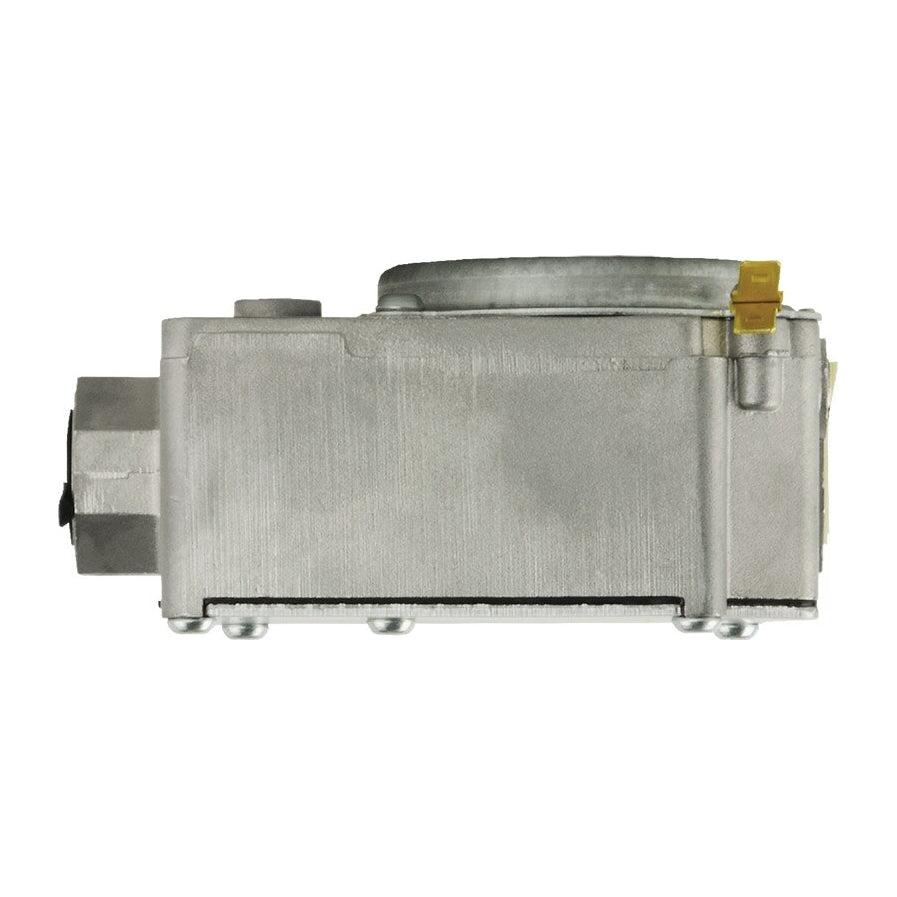

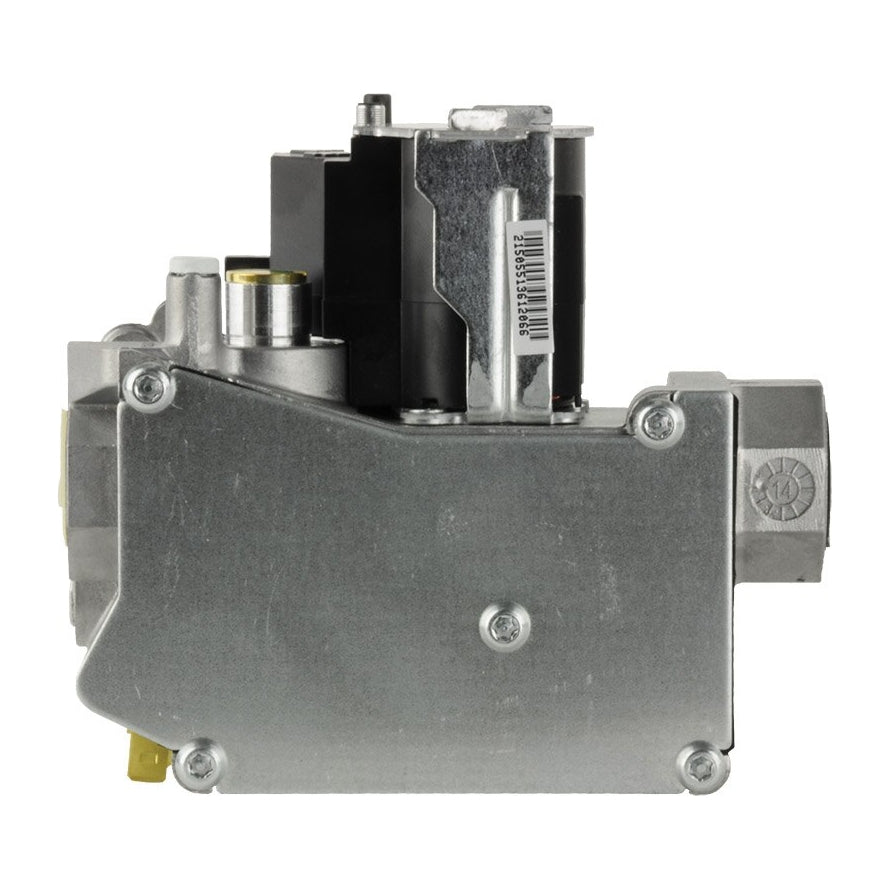

Rheem / White Rodgers Gas Valve - 140,000 BTU/HR, Natural Gas, 1/2 In. NPT Input X 1/2 In. NPT Output, 1 Stage

Electronic Ignition Gas Valve. The Versatile 36J Series Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI).

Features

  • Convertible natural or LP gas
  • Adjustable regulator(s)
  • Inlet/outlet screens
  • Electric on-off switch
  • Pressure taps
  • CSA approved

Specifications

  • Capacity (BTU/HR @ 1 in. W.C. Pressure Drop): 140,000
  • Fuel Type: Natural Gas
  • Ignition System: Hot Surface / Direct Spark
  • Input Fitting Size NPT (in.): 1/2
  • LP Conversion Kit Included: No
  • LP Spring Kit: 60-21193-01
  • Natural Gas Spring Kit: 60-21193-02
  • No. of Stages: 1
  • Output Fitting Size NPT (in.): 1/2
  • Valve Body Height (in.): 4-1/4
  • Valve Body Length (in.): 4-3/4
  • Valve Body Width (in.): 2-3/8
  • Valve Series: 36J
  • Shipping Weight: 1.89 lbs

Where Used

  • R801C-MSA_MXA
  • R801C-ZSA_ZXA
  • R801P-MSA
  • R801P-MSA_MXA
  • R801P-ZSA
  • R801P-ZSA_ZSB
  • R801S-MSA
  • R801S-ZSA
  • R801T-DZ
  • R801T-UH
  • R801T-W801T-MSA_MXA
  • R801T-W801T-ZSA
  • R801V-DZ
  • R801V-UH
