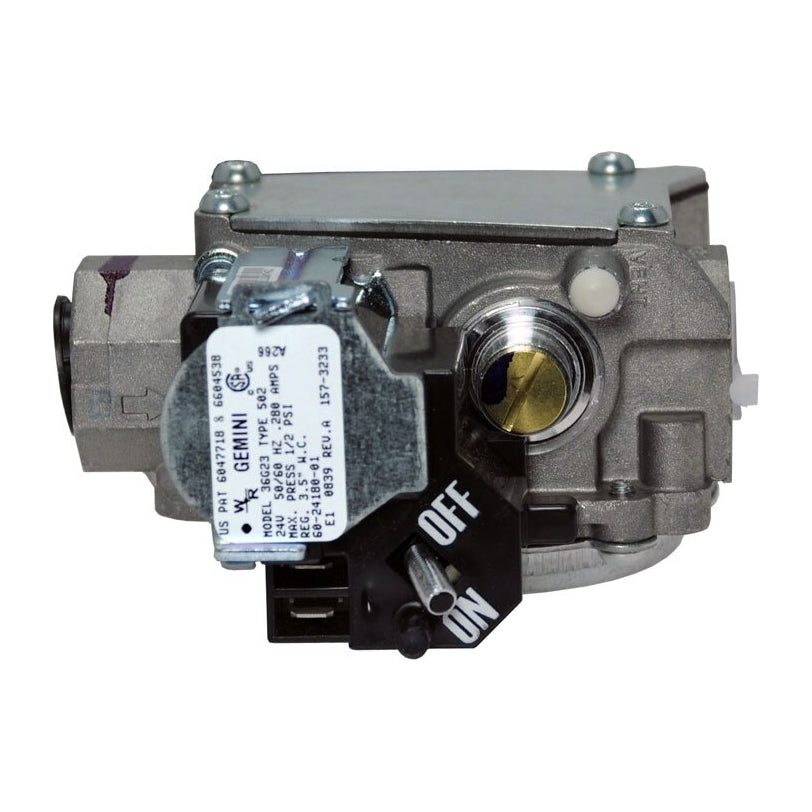

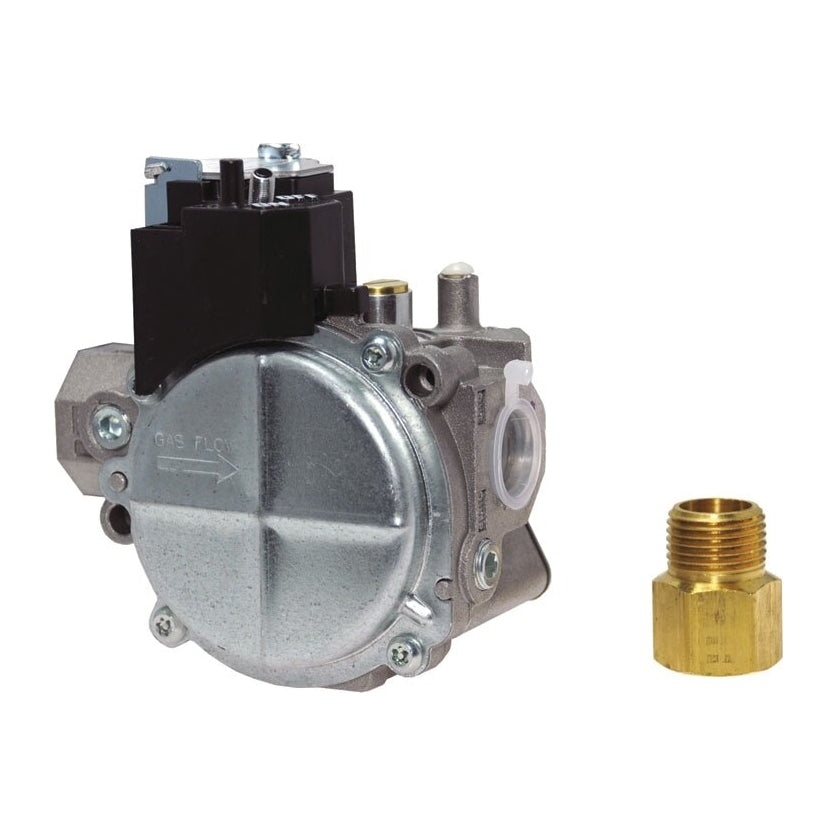

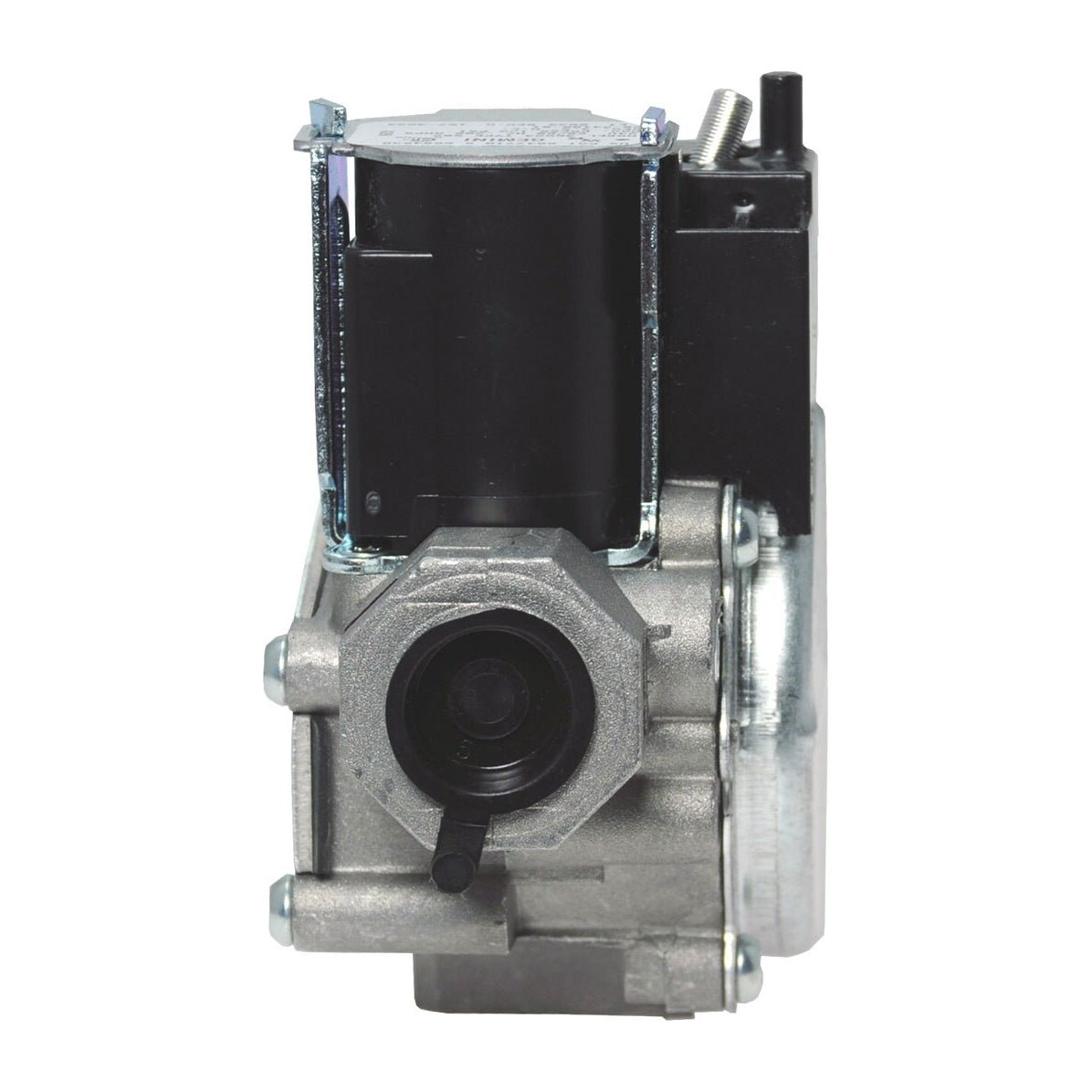

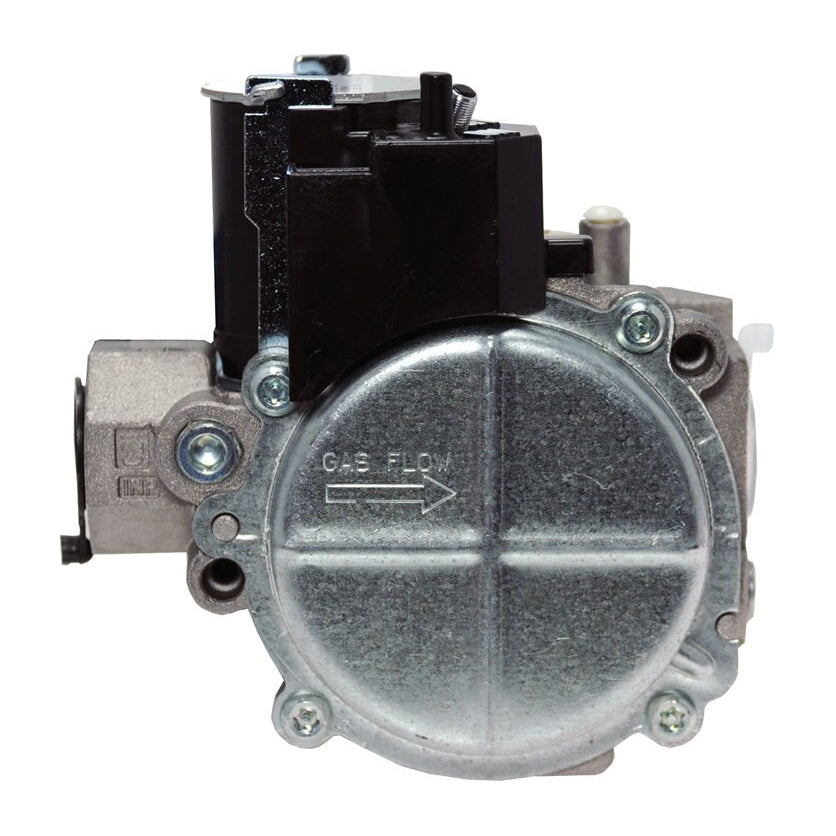

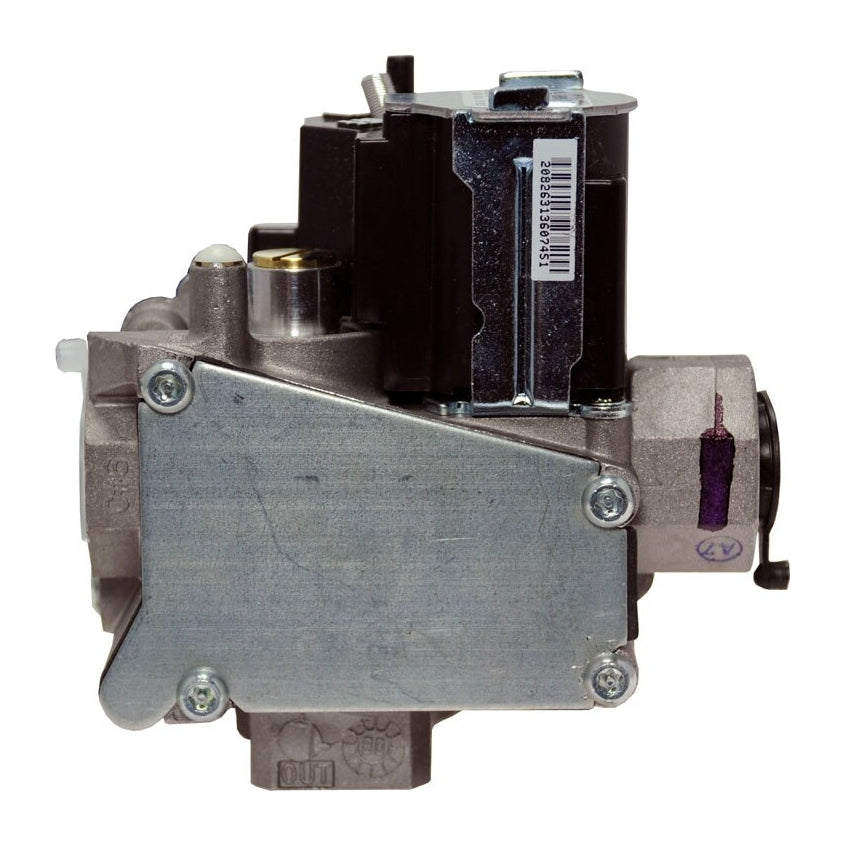

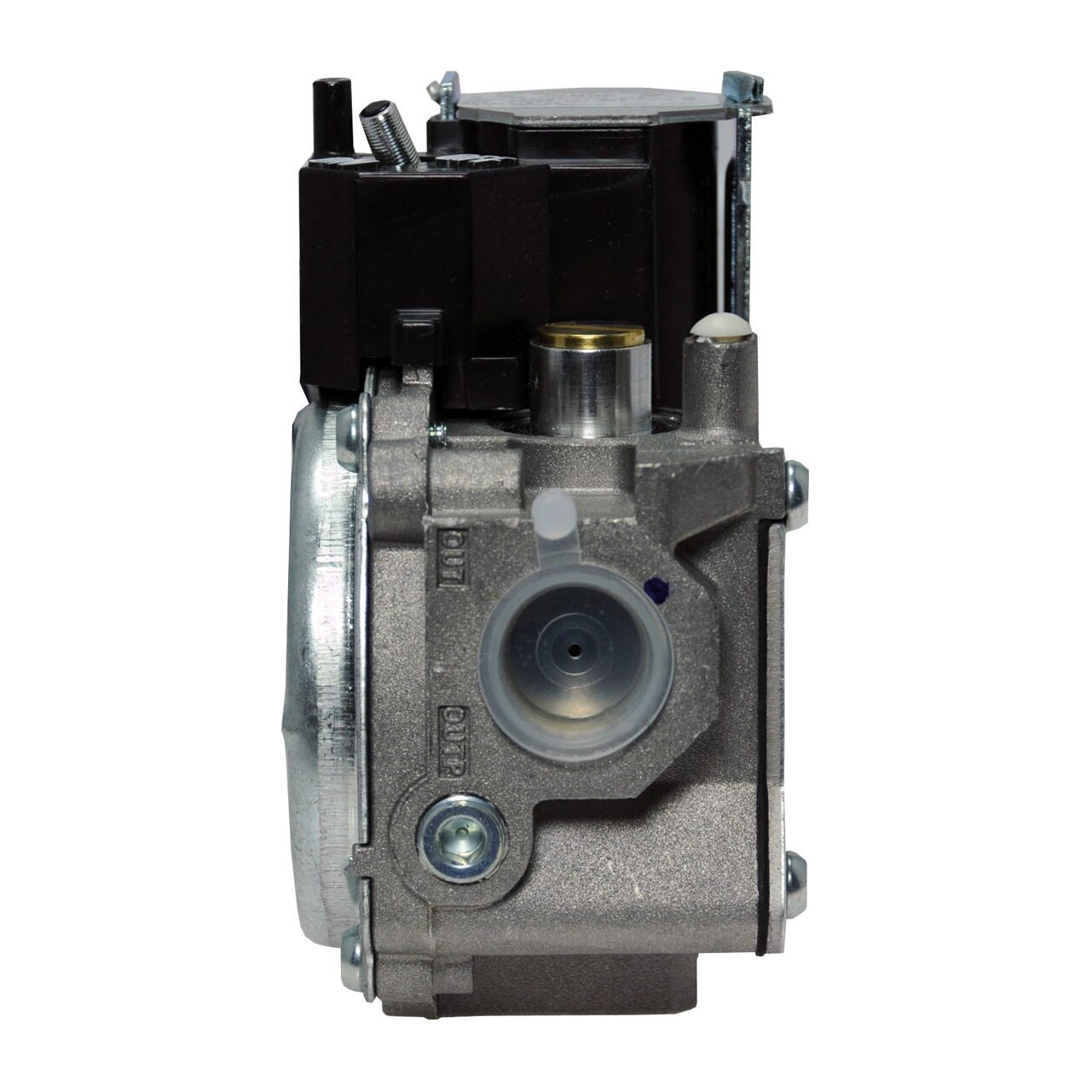

Rheem / White Rodgers 60-24180-81 - 140,000 BTU Gas Valve - 1/2" NPT x 1/2" NPT - 1 Stage

The 36G is a combination gas control valve designed for use with non-piloted intermittent ignition systems. The control is designed to meet todays maximum capacity, smaller size and high efficiency gas systems.

Features

• Inlet and outlet screens
• Quiet redundant
• Built-in pressure tap
• Quick-connect terminals (1/4 in.)

Included Kit Components

• (1) 60-24180-01 - Gas Valve
• (1) 81-102827-01 - Adapter - Gas Valve

Specifications

• Capacity (BTU/HR @ 1 in. W.C. Pressure Drop): 140,000
• Fuel Type: Natural Gas
• Ignition System: Hot Surface / Direct Spark
• Input Fitting Size NPT (in.): 1/2
• LP Conversion Kit Included: No
• LP Spring Kit: 60-21193-01
• Natural Gas Spring Kit: 60-21193-02
• No. of Stages: 1
• Output Fitting Size NPT (in.): 1/2
• Valve Body Height (in.): 4-1/4
• Valve Body Length (in.): 4
• Valve Body Width (in.): 2-7/16
• Valve Series: 36G
• Shipping Weight: 1.7 lbs

Where Used

• 80LJ
• 80PJ
• 80PS
• 90RJ
• 90RS
• 90RT
• 90TJ
• 90TS
• RGDG
• RGDJ
• RGLG
• RGLH
• RGLJ
• RGLN
• RGLT
• RGPH
• RGPJ
• RGPN
• RGPP
• RGPS
• RGPT
• RGRA
• RGRB
• RGRC
• RGRJ
• RGRS
• RGRT
• RGTA
• RGTC
• RGTJ
• RGTS
• RGVG
• RGVH
• RGVJ
• RKKA
• RKKL-B
• RKMA
• RKNA
• RKNL-A
• RKNL-C
• RKNL-G
• RKNN-A
• RKPL-A
• RKPL-C
• RKPN-A
• RKPN-C
• RKQN-A
• RKQN-C
• RQPW-B
• RRKA-A
• RRMA-A
• RRNA-A
• RRNA-B
• RRNA-C
• RRNL-B
• RRPL-B
• RRRL-B
• RRRL-C
• SGDG
• SKKL-B

Replaces

• 60-23490-01
• 60-23490-03
• 60-24180-01

HUZ2010570
