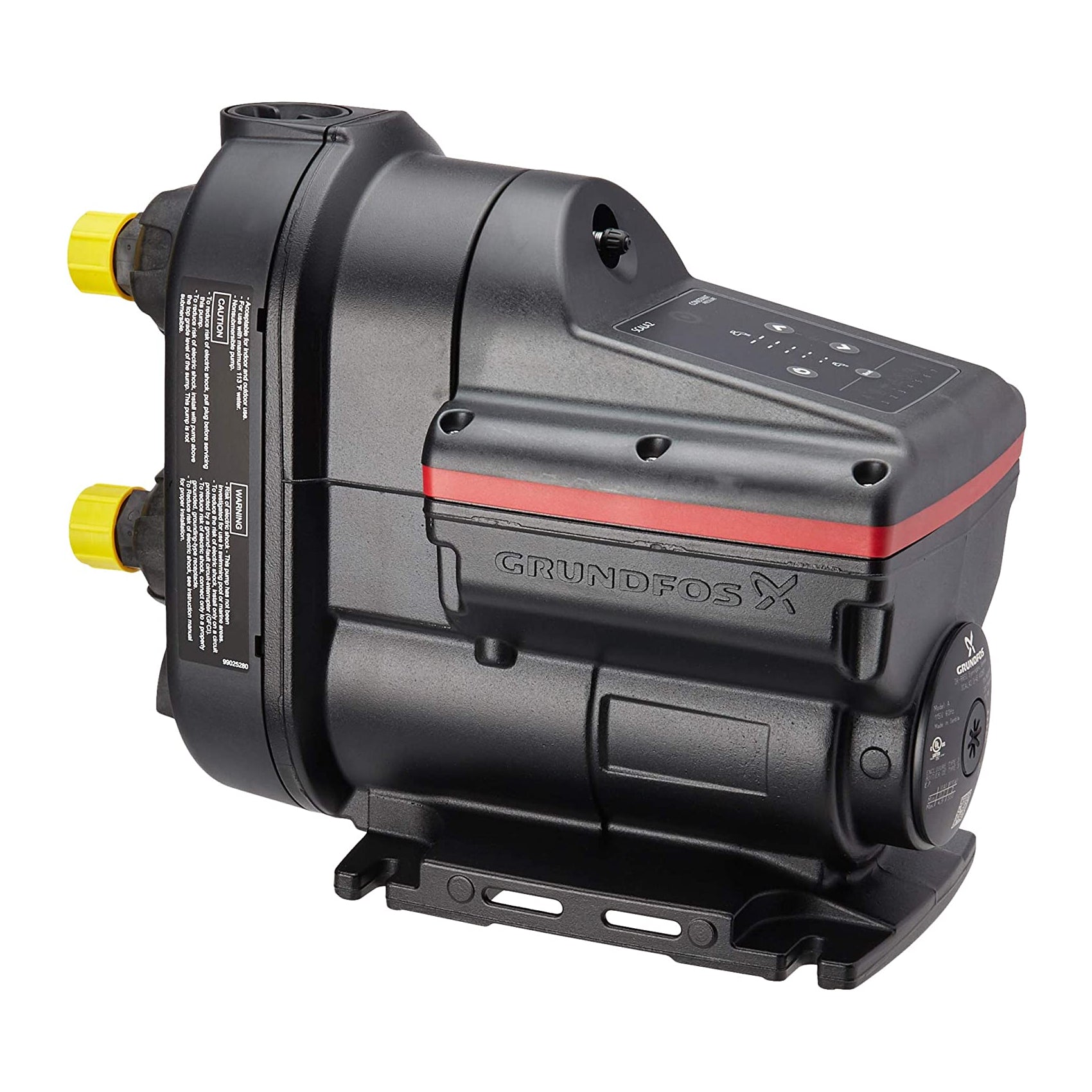

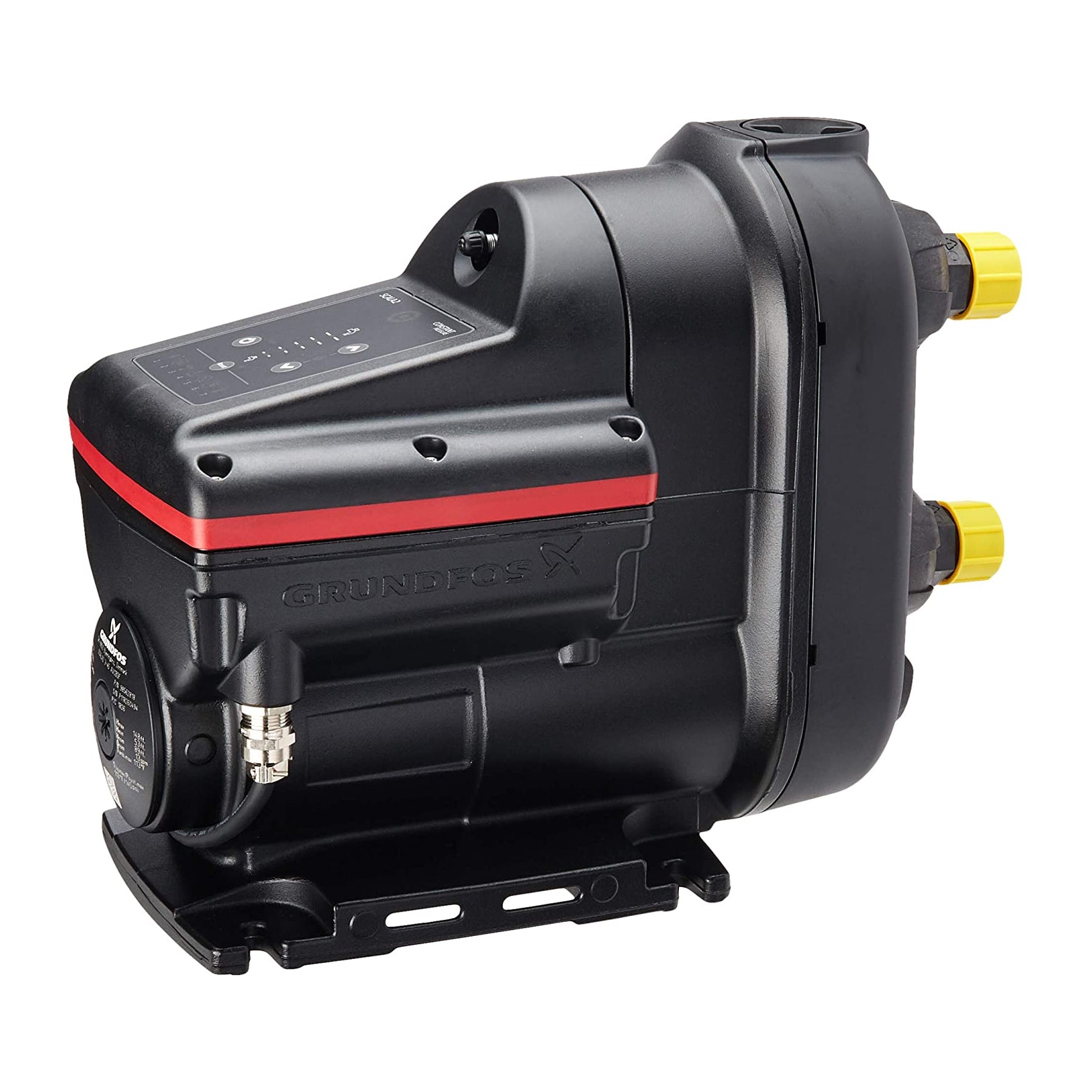

Grundfos 98562818 SCALA2 3-45 AVCBDF 1x115V 60Hz Pressure Boosting Pump

The Grundfos SCALA2 is a fully integrated, self-priming, compact waterworks for pressure boosting in domestic applications, such as one and two-family houses and apartments. SCALA2 incorporates integrated speed control which allows maintaining a perfect pressure in the taps.

If exposed to dry running, water shortage or excessive temperature, blocked pump, for example in case of seizure or overload, the pump will stop automatically, thus preventing a motor burnout.

The pump features an automatic reset function. In case of dry running or similar alarm, the pump will stop. Restarting will be attempted every 5 minutes 8 times, there after new restart attempt will occur every 24 hours. The automatic reset function can be deactivated.

Thanks to its hydraulic design, permanent magnet motor and water cooling, the pump is extremely low-noise, 47 dB(A) in typical use, which makes it suitable for indoor as well as outdoor use. Max noise level at full load are 53 dB(A)

The built-in pressure tank reduces the number of starts and stops in case of leakages in the pipe system, causing less wear on the pump.

SCALA2 require no maintenance, but it is recommended to keep the pump clean, check the non-return valves and keep the ventilation holes free of dust

• Perfect water pressure: intelligent pump control adjusts operation automatically
• Low noise: as quiet as a modern dishwasher (47 dba) in typical use)
• Easy selection: one variant for all domestic boosting needs

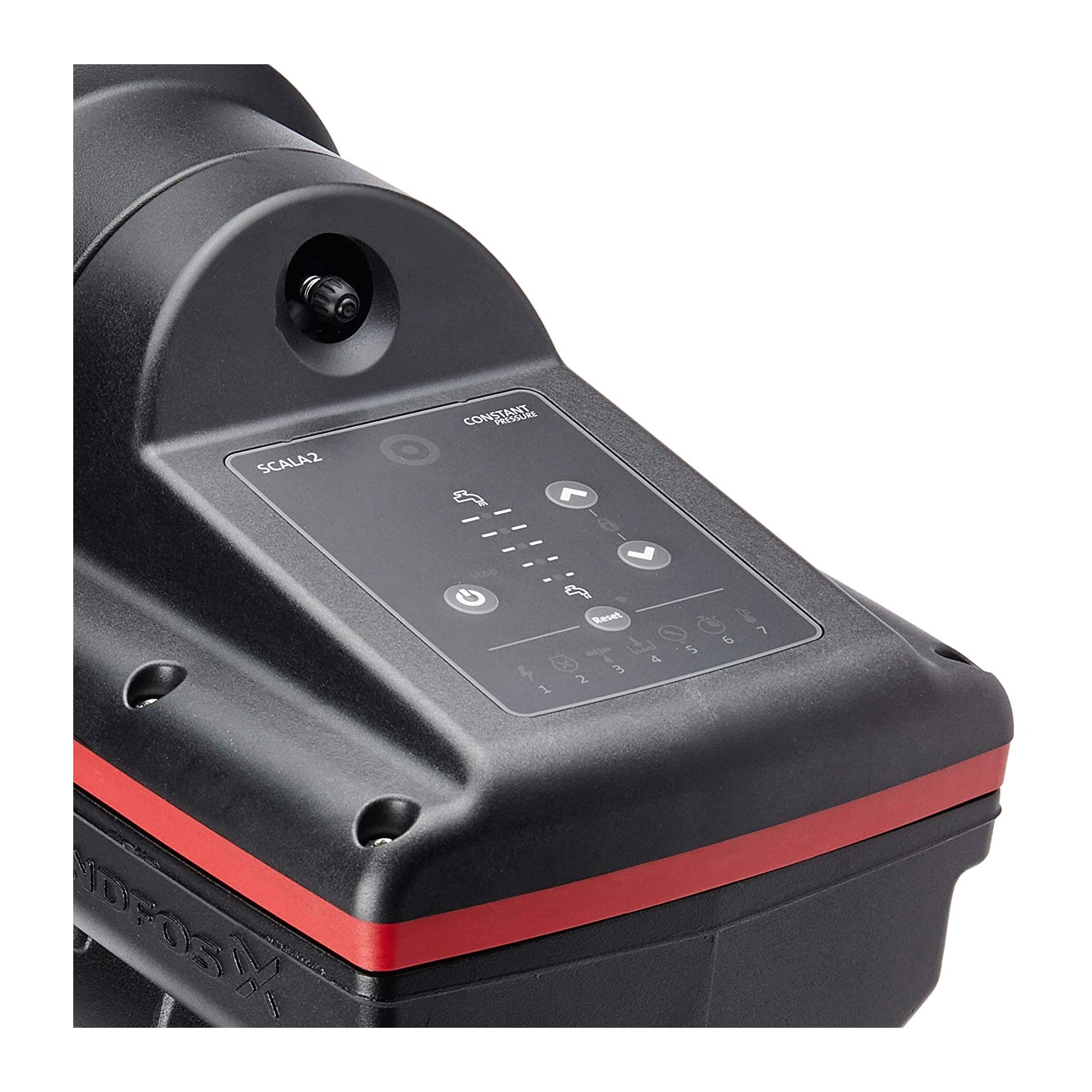

• Easy installation: compact, all-in-one solution, plug-and-pump. Easy to operate: user-friendly control panel
• Boosting from wells: Pumps water from a depth of 8 meters
• Voltage: 115v
• Inlet Connection: Threaded Female
• Outlet Connection: Threaded Female
• Max Discharge Pressure: 145 psi
• Max Working Temp: 113F
• Max Horsepower: 0.75
• Weight: 22lbs
