Specification Sheet

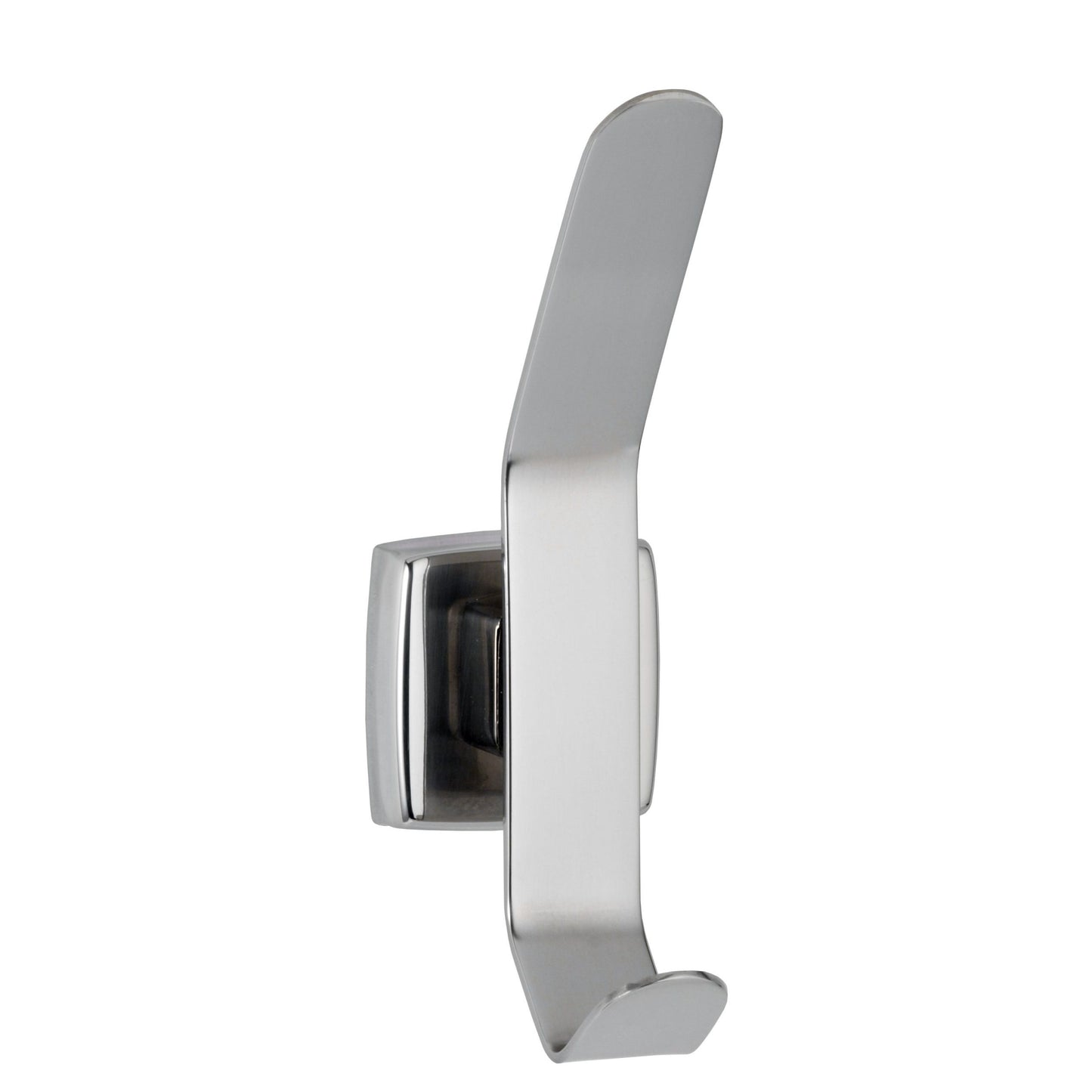

Hat and Coat Hook, Stainless Steel, 6 1/2 x 3 1/16, Bright Polished

Features:

• Bright polished stainless steel
• Hook measures 1" width by 6-1/4" height; projects 3" from wall

Materials:

• Flange and Support Arm — 18-8, type-304, 22-gauge (0.8mm) stainless steel. Concealed, 16-gauge (1.6mm) stainless steel mounting bracket. All-welded construction. Secured to wall plate with a stainless steel setscrew.
• Concealed Wall Plate — 18-8, type-304, 16-gauge (1.6mm) stainless steel.
• Hook — 18-8, type-304, 12-gauge (2.8mm) stainless steel. Welded to the support arm.

Installation:

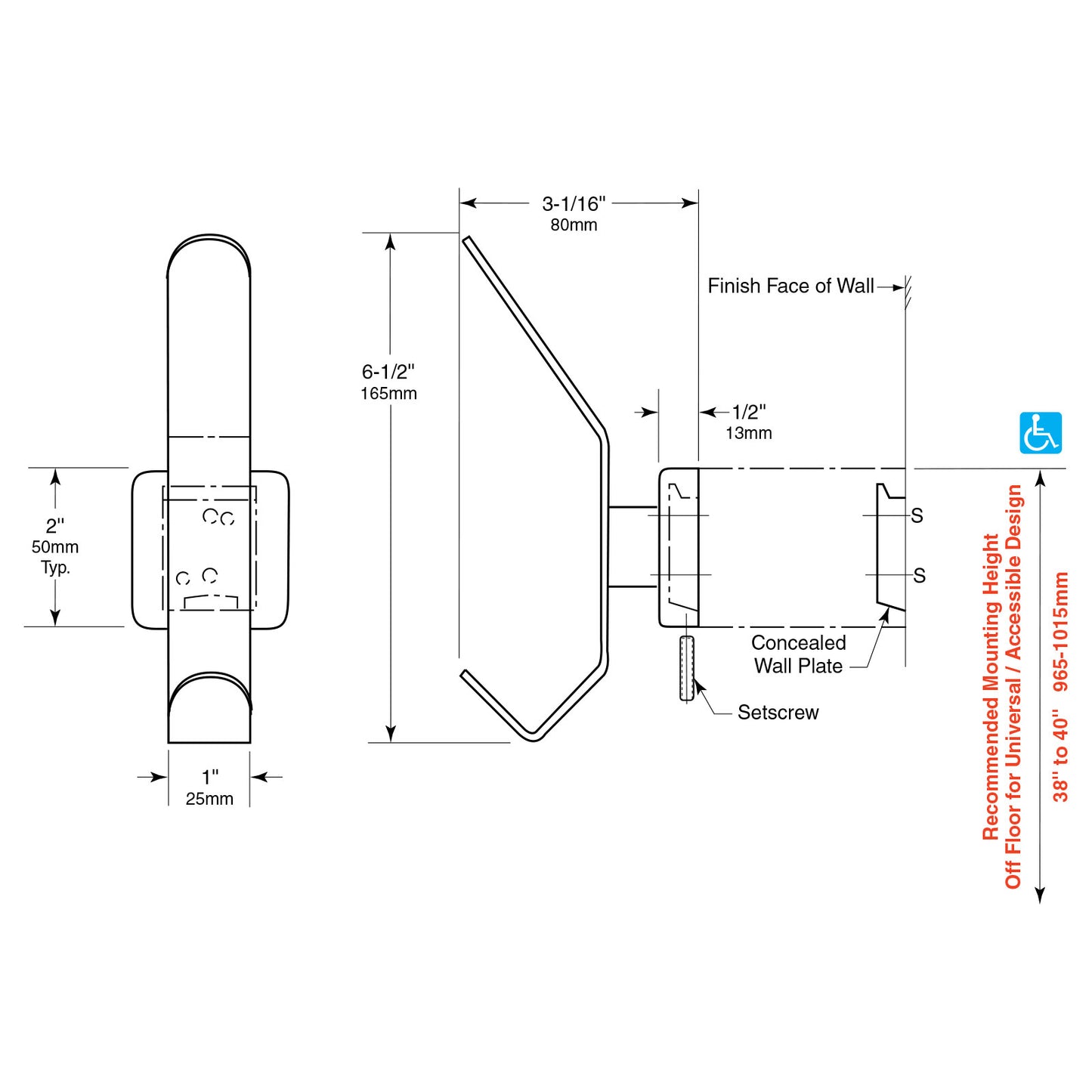

• To remove concealed wall plate from back of flange and mounting bracket, loosen setscrew. Mount wall plate so prongs are at top; secure with two sheet-metal screws, furnished by manufacturer, at points indicated by an S. Engage mounting bracket onto prongs of wall plate, then secure into position by tightening setscrew at bottom of flange.
• For partitions with particle-board or other solid core, secure with sheet-metal screws furnished, or provide through-bolts, nuts, and washers.
• For hollow-core metal partitions, provide solid backing into which the furnished sheet-metal screws can be secured.
• For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws furnished.
• For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws furnished, or provide 1/8" (3mm) toggle bolts or expansion bolts.
