230-B2M - Hef-T-Bracket Mini-Split Condenser Wall Bracket - 165 lb Max
230-B2M - Hef-T-Bracket Mini-Split Condenser Wall Bracket - 165 lb Max
No reviews
In stock
Regular price
$109.50
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

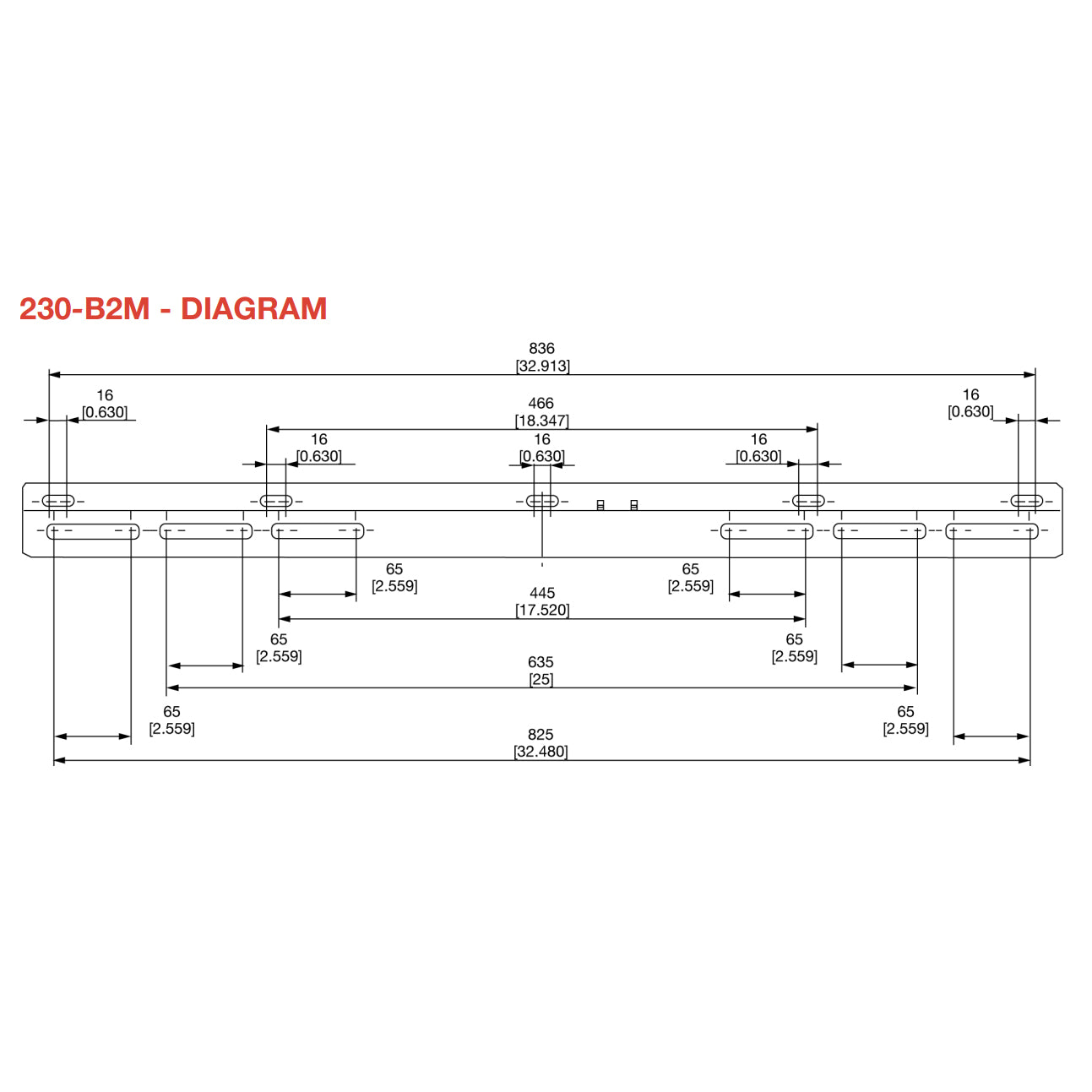

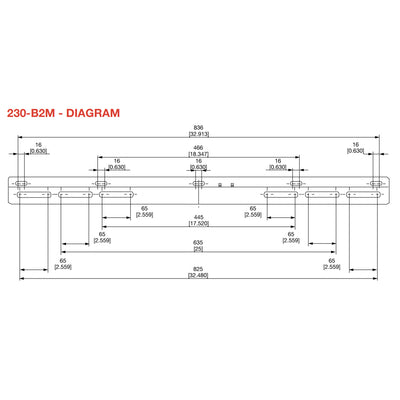

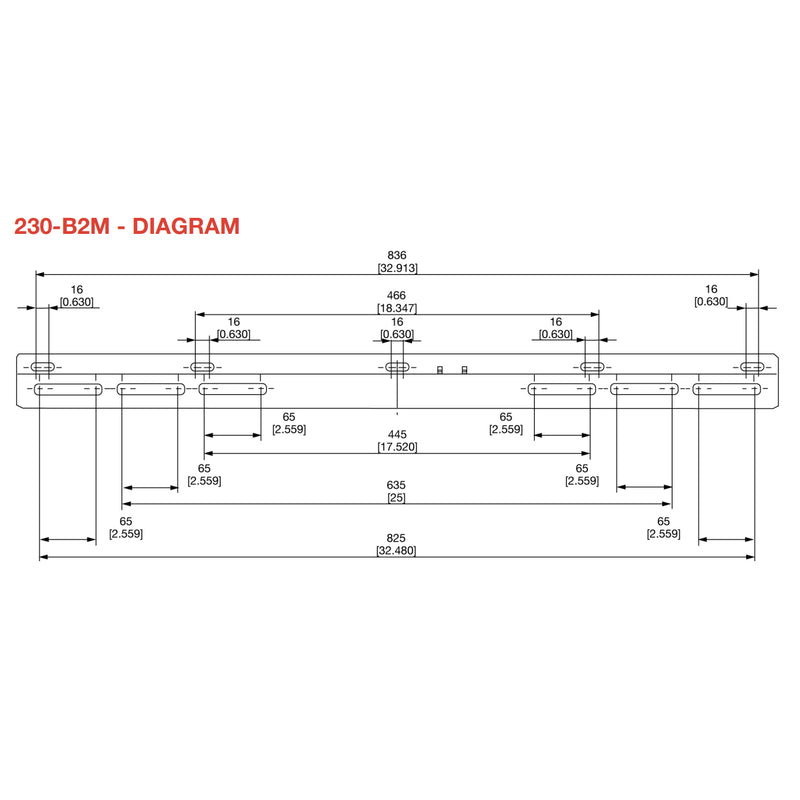

Specification SheetDiversiTech 230-B2M - Hef-T-Bracket Mini-Split Condenser Wall Bracket - 165 lb Max

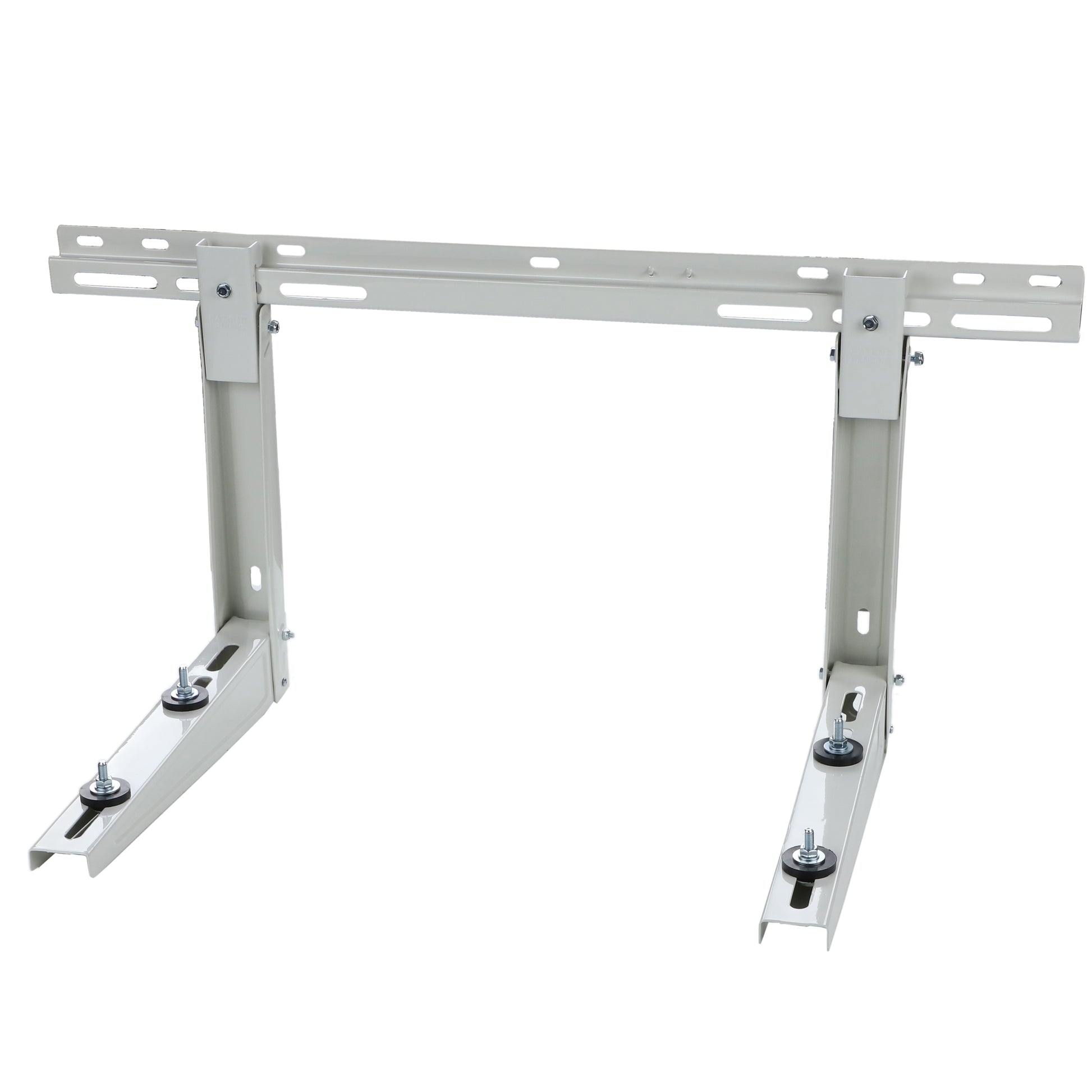

Used for supporting condensing units, Hef-T-Brackets (Type 2) feature a cross bar that is attached to a wall, and two L-shaped brackets that are hooked and bolted into place on the cross bar. The condensing unit is mounted onto the L-shaped brackets, and fastened using the bolts and anti-vibration washers provided.
Features
- The DiversiTech Hef-T-Bracket is used for supporting condensing units.
- 16 GA powder-coated steel
- Cross bar with pre-drilled slots for mounting to walls with studs at 12" or 16" on center
- L-shaped brackets with adjustable hook that allows crossbar to be installed at different angles to adapt to sloped walls
- Assembly hardware for installation
- Maximum mounting width: 37.8"
- Holding Capacity: 500 lbs
- Arm length: 17.72"
