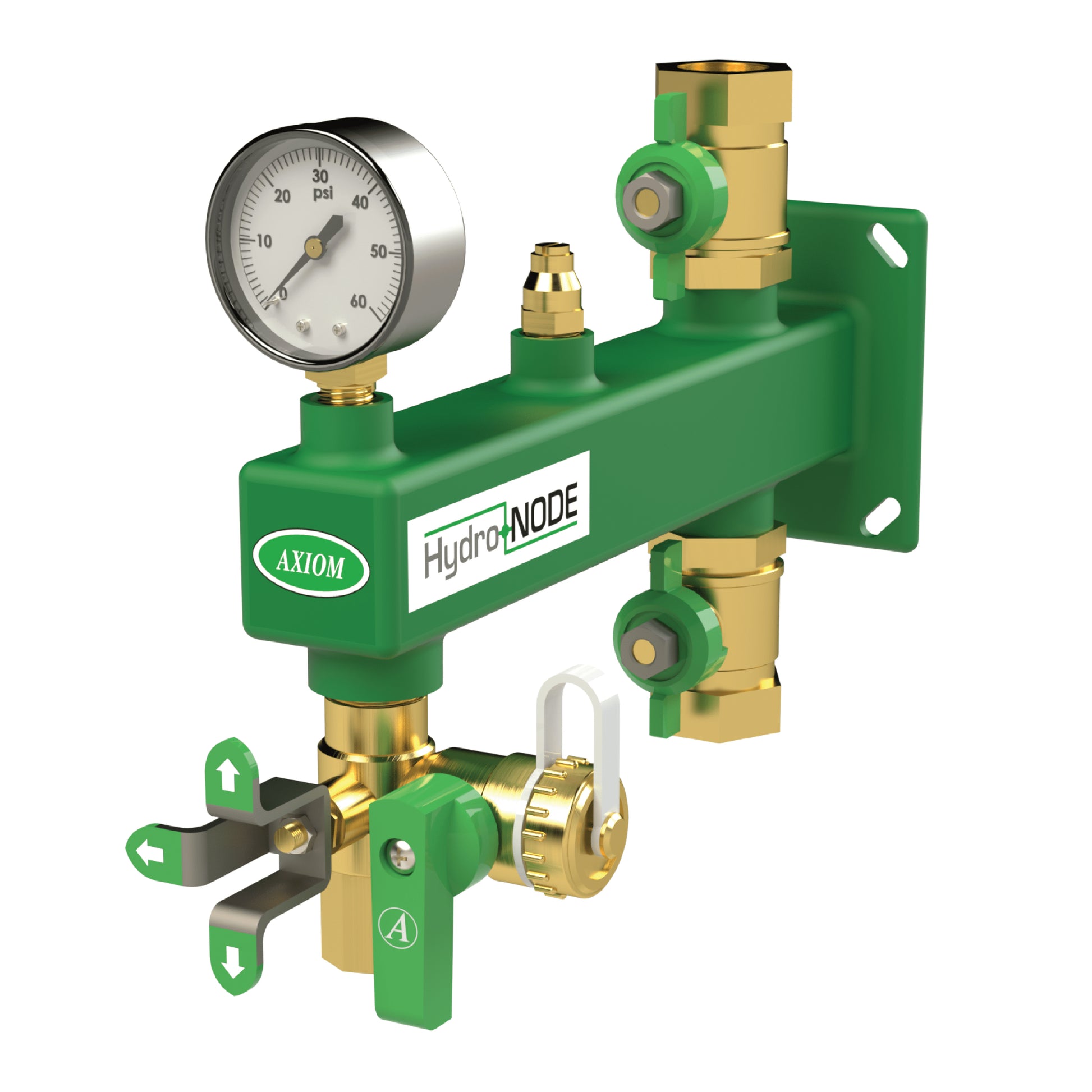

Axiom HN-3 - Expansion Tank Wall Bracket - Pro-Kit with ETV-1

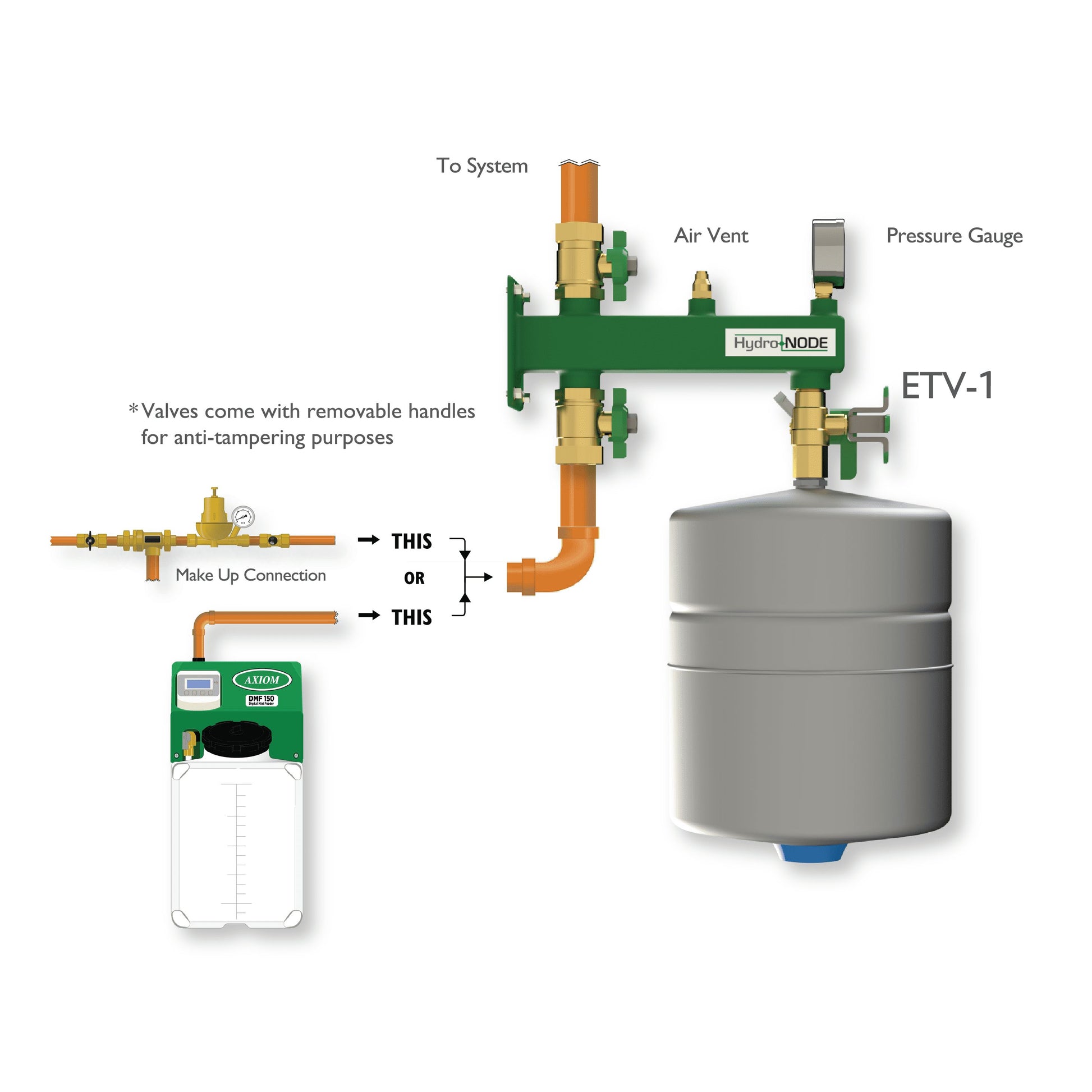

Axiom introduces the Hydro-NODE, an easy connect bracket designed to mount critical hydronic system components into a convenient central point. Designed for use on closed-loop hydronic systems, the Hydro-NODE is the convenient solution to providing an organized solution for critical component connections.

Features

• Securely mount critical hydronic components
• Provides means for easy servicing of the expansion tank
• Powder-coated for a professional finish
• Robust welded steel bracket
• Comes fully assembled
• Includes (2) 1⁄2" ball valves, 1manual air vent, 1 (ETV) service valve and 1 pressure gauge for accessory components

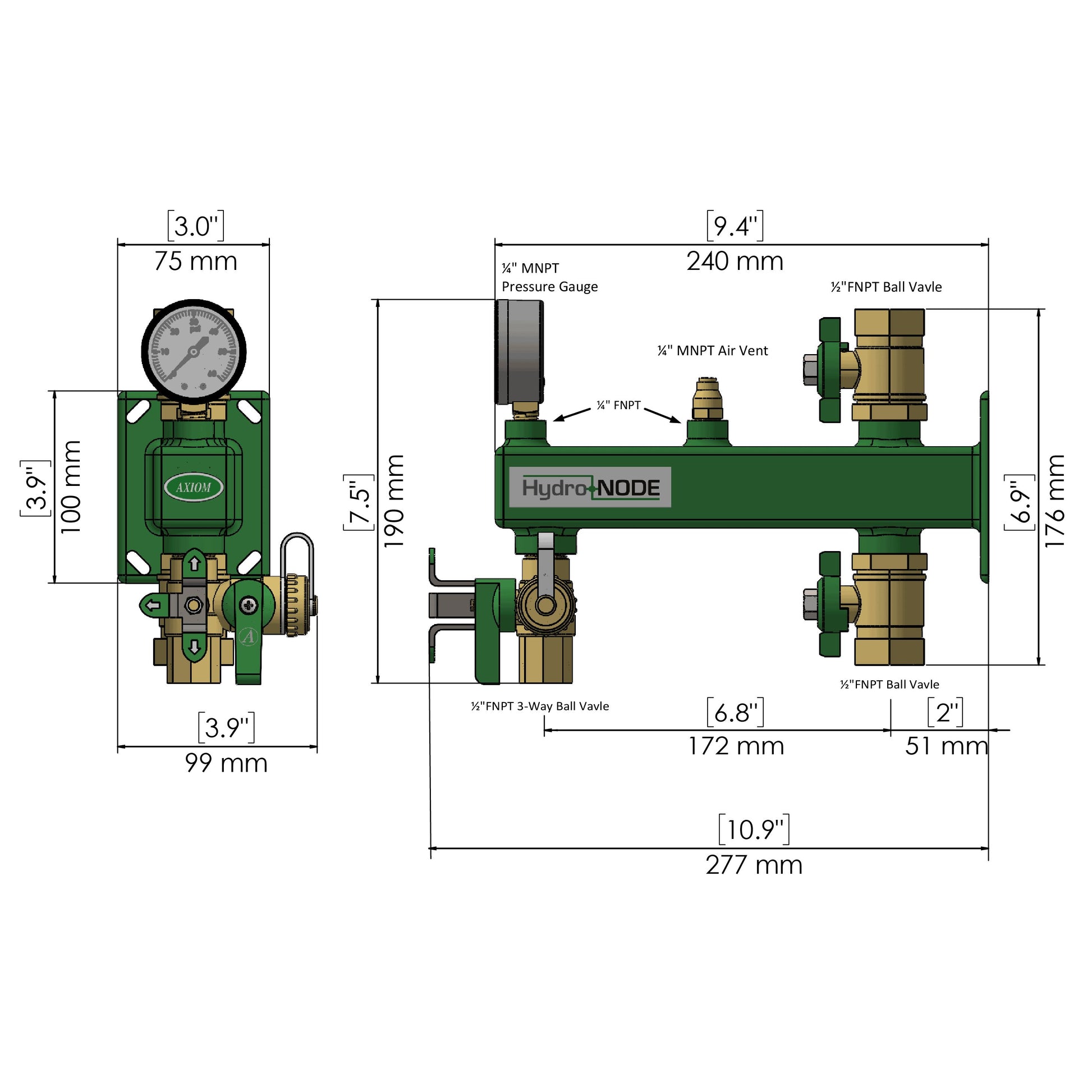

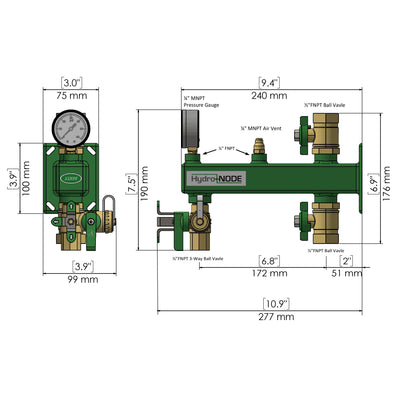

• Connection Options
• 1/2" FNPT Expansion Tank Connection with 3-way ETV ball valve
• 1/2" FNPT Fill/Feeder Inlet Connection with ball valve
• 1/2" FNPT System Connection with ball valve
• 1/4" Manual Air Vent1⁄4" FNPT Pressure Gauge Connection
