Overview

Time and frustration—two things that often accompany the tedium of balancing weights on bypass dampers in multi-zone HVAC systems. With Honeywell Home's TrueZONE® Bypass Dampers, you get to skip the hassles of counterbalancing and replace it with a simple, pre-set dial that needs little or no adjustment. Welcome to an easier, more efficient way to deliver HVAC zoning benefits to customers.

The 10 in. TrueZONE® Bypass Damper is a round static pressure relief damper for customers with forced-air zoning systems. It can be installed at any orientation or angle and is equipped to handle the many airflow needs of modern zoning systems.

• For bypass applications up to 1,000 CFM
• No weights to balance
• Easy flex-duct installation
• Simple dial for setting when the system starts to bypass
• Can be installed at any orientation or angle
• Allows more airflow than typical weighted models, so you can install a smaller size
• Provides constant system pressure, regardless of zone changes or blower speed
• Calibrated spring tension regulator

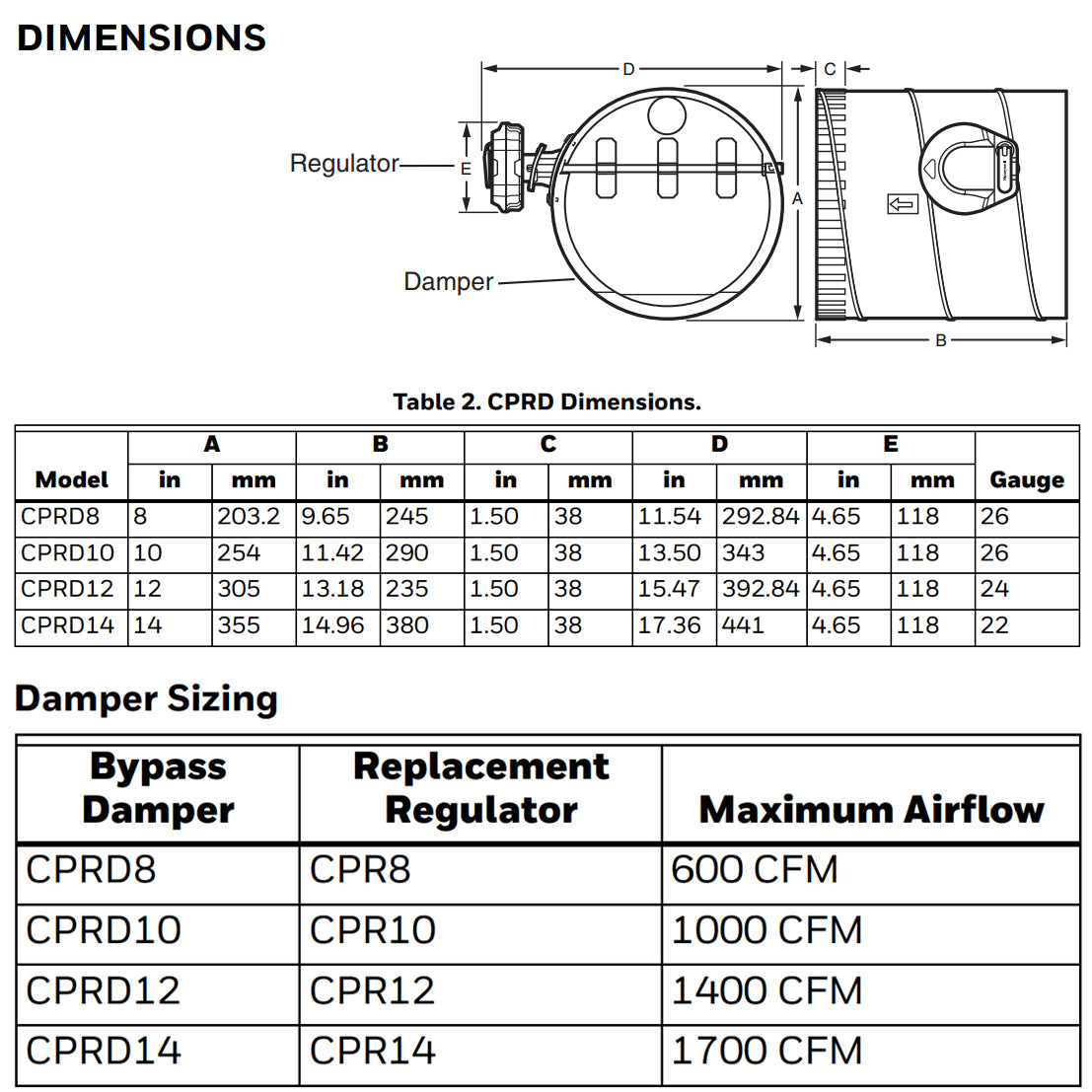

Specifications

• Damper Duct Shape Type: Round
• Damper Type: Bypass
• Application: Constant Pressure Regulating (Bypass) Damper
• Damper Material: Galvanized Steel
• Warranty: 5 Years
• Color: Metallic
• Activation: Mechanical
• Actuator Housing Material: Molded Plastic
• Blade Material: Galvanized Steel
• Position Indicator Included: Yes
• Position Indicator Type: Pressure Setting Indicator, Damper Position Indicator
• Range Stop: No

HKZ1300315
