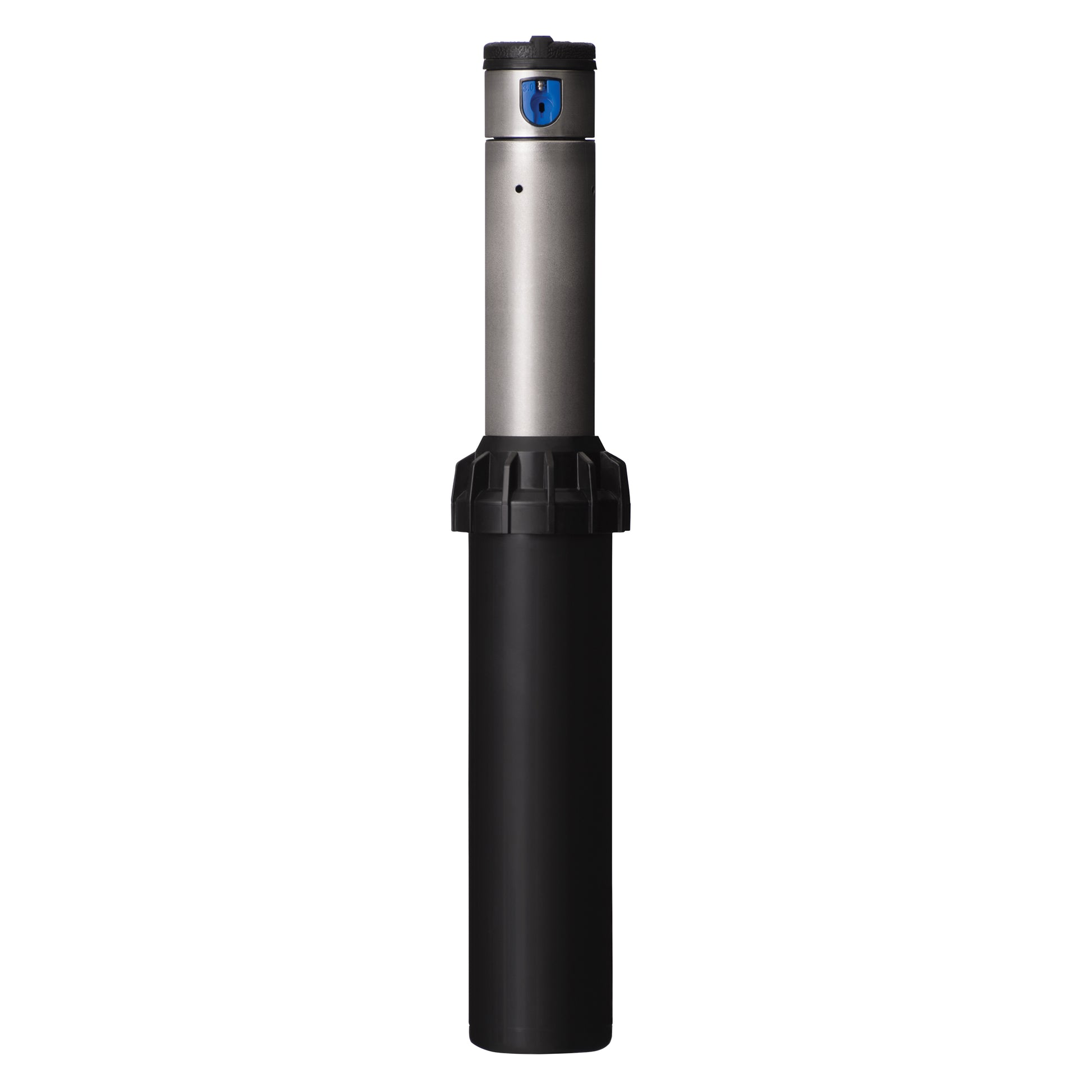

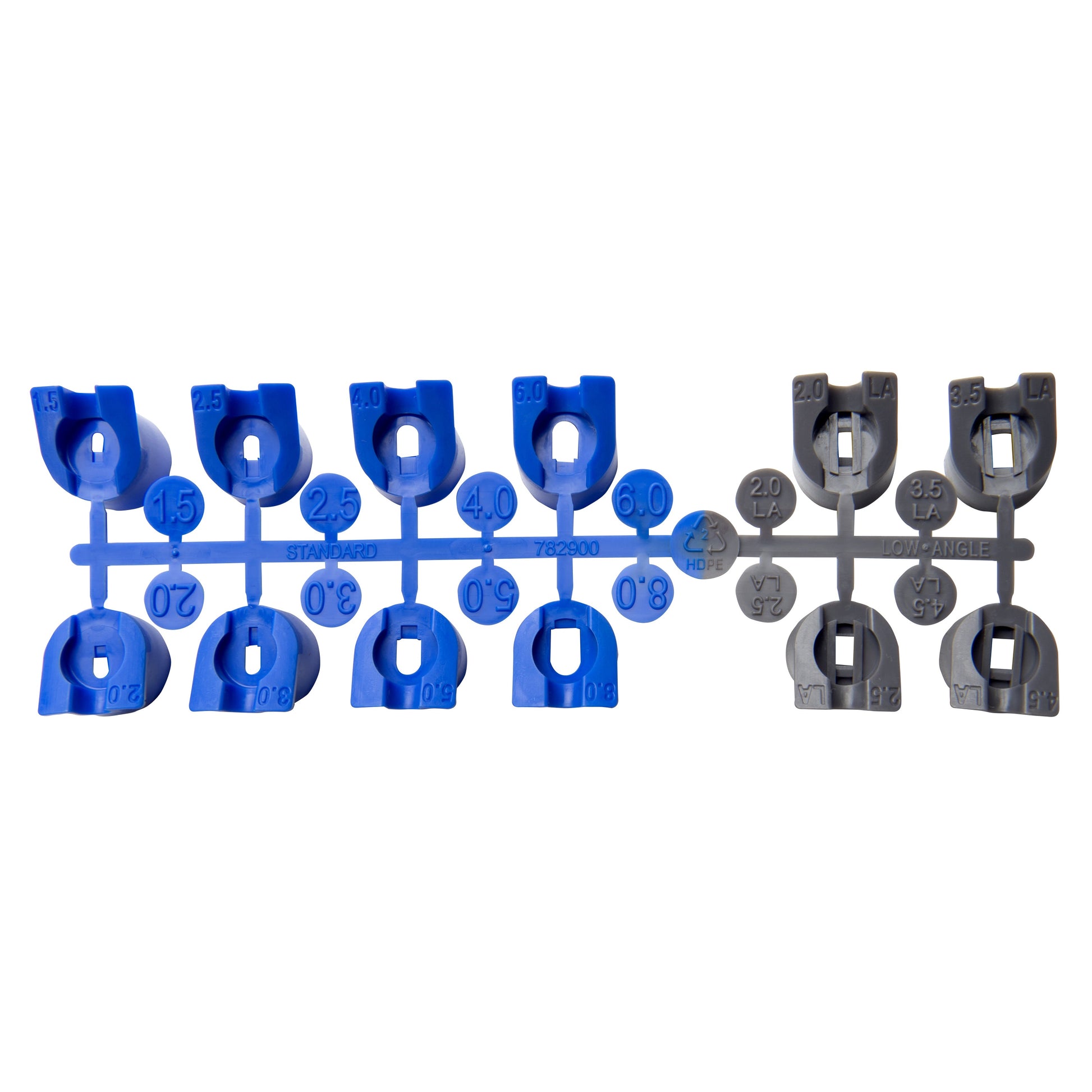

Hunter I-20-06 - I-20 6" Pop-up Stainless Steel Rotor Sprinkler with Nozzle Tree

With 34 nozzle choices, a 17’ to 46’ radius, and 6 body choices, the I-20 is an indispensable rotor. Whether you’ve got a small area, sandy soil, or a mix of shrubs and grass, the I-20 is ready to water with efficiency and reliability. Recent improvements include automatic arc return; non-reversing 360, from 50 to 360 degrees; and a non-strippable, vandal-proof drive mechanism that prevents gear stripping and saves repair costs. Adding FloStop control, easy through-the-top arc adjustment, and a standard drain-check valve all equate to a rotor that stands second-to-none in its class.

Features

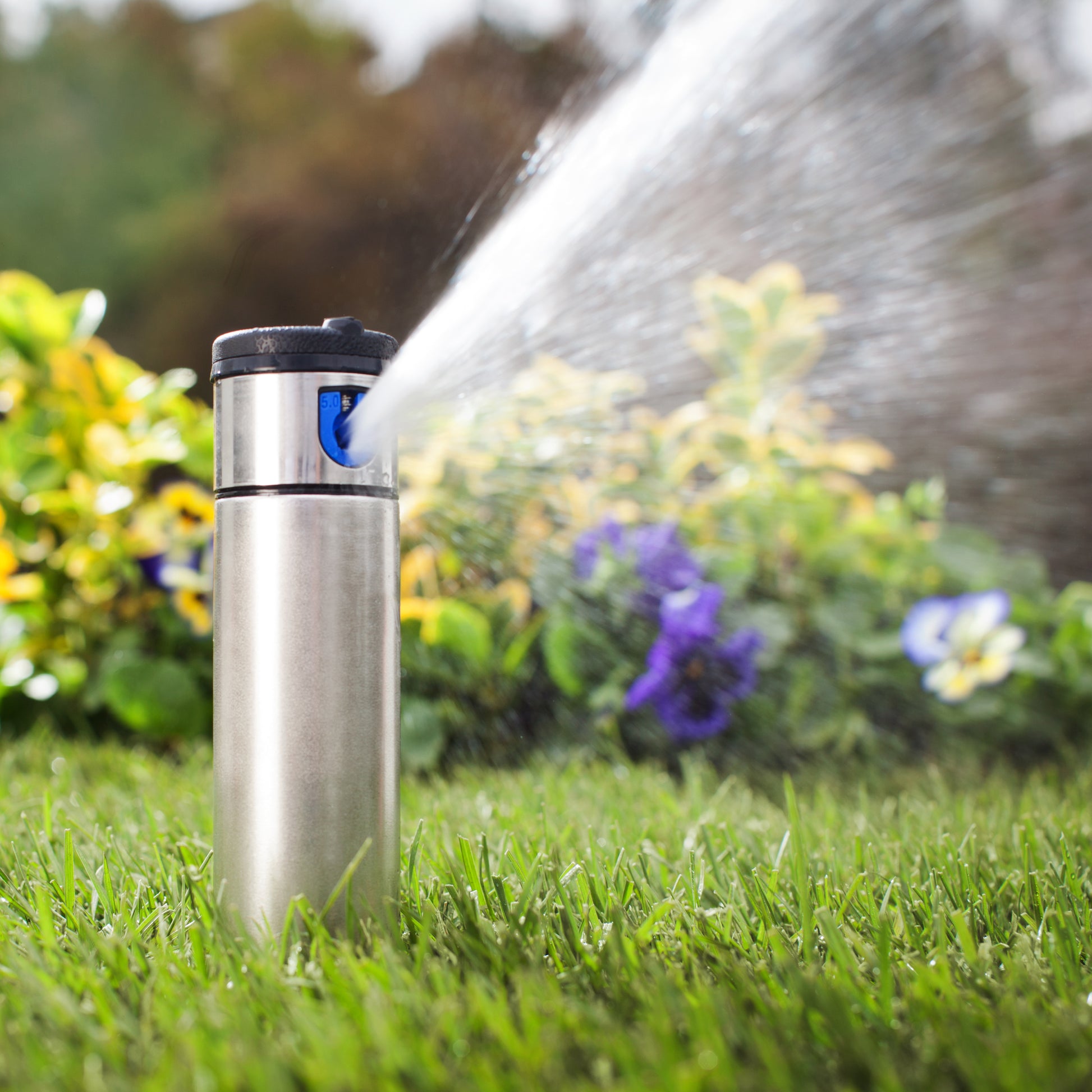

• Stainless steel riser for extra durability
• Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50 to 360 degrees
• Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
• Part- and full-circle in one model for flexibility across landscapes and reduced inventory
• Headed and slotted setscrew allows radius adjustment with a Hunter Wrench or flat-blade screwdriver
• FloStop closes the flow of water from individual sprinklers to change the nozzle or perform repairs
• Flat-top nozzles allow fast, easy insertion
• QuickCheck Arc Mechanism for fast arc adjustment
• Drain Check Valve prevents low-head drainage (up to 10' of elevation)

Specifications

• Pop-up Height: 6"
• Overall Height: 9-7/8"
• Exposed Diameter: 1-3/4"
• Inlet Size: 3/4" NPT
• Flow: 0.36 tp 14.8 GPM
• Recommended Pressure Range: 25 to 70 PSI
• Precipitation Rate: 0.4 in/hr approximately
