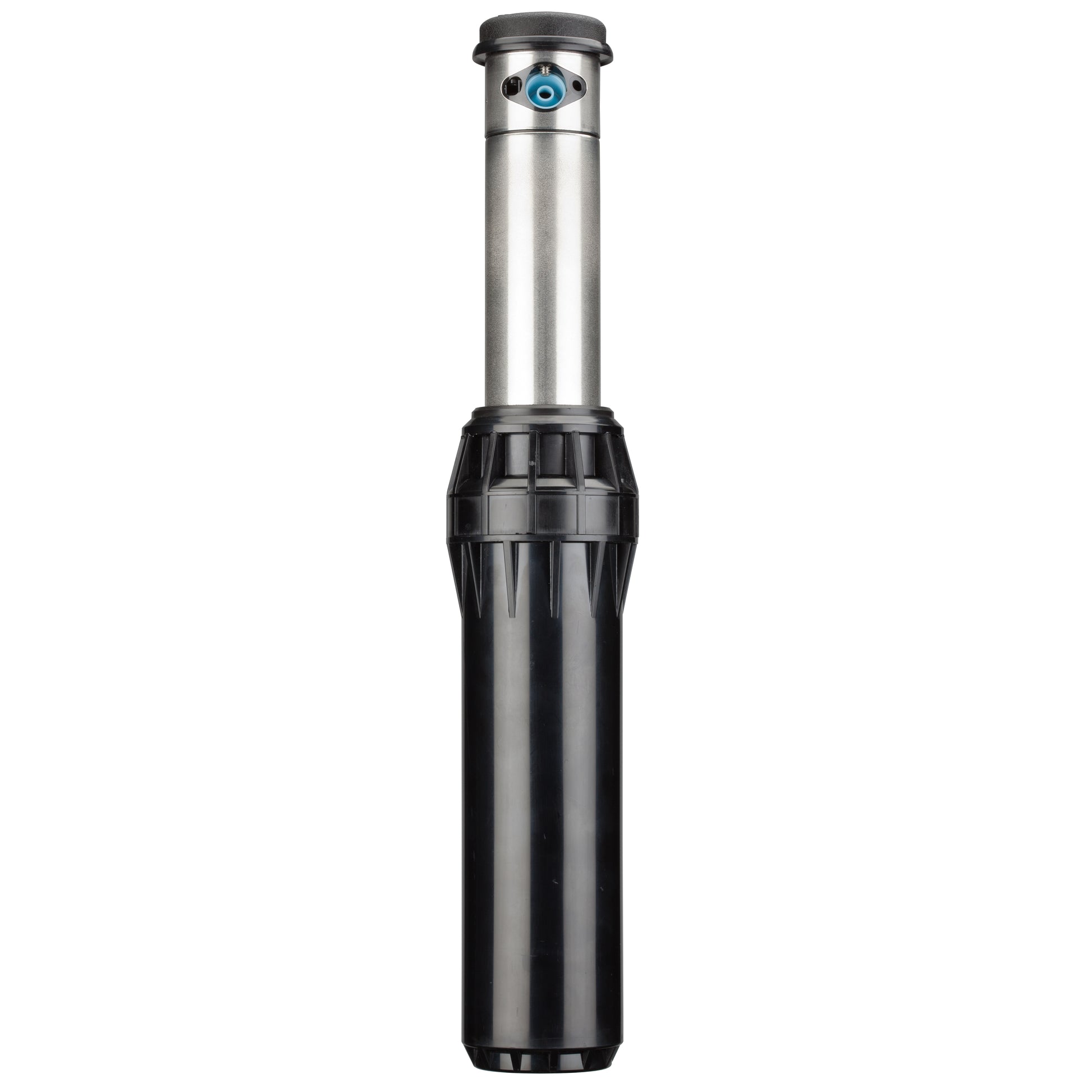

I-40 BrochureHunter I-40-06-SS - I-40 Stainless Steel 6" Pop-up Rotor Sprinkler with 6 Nozzles

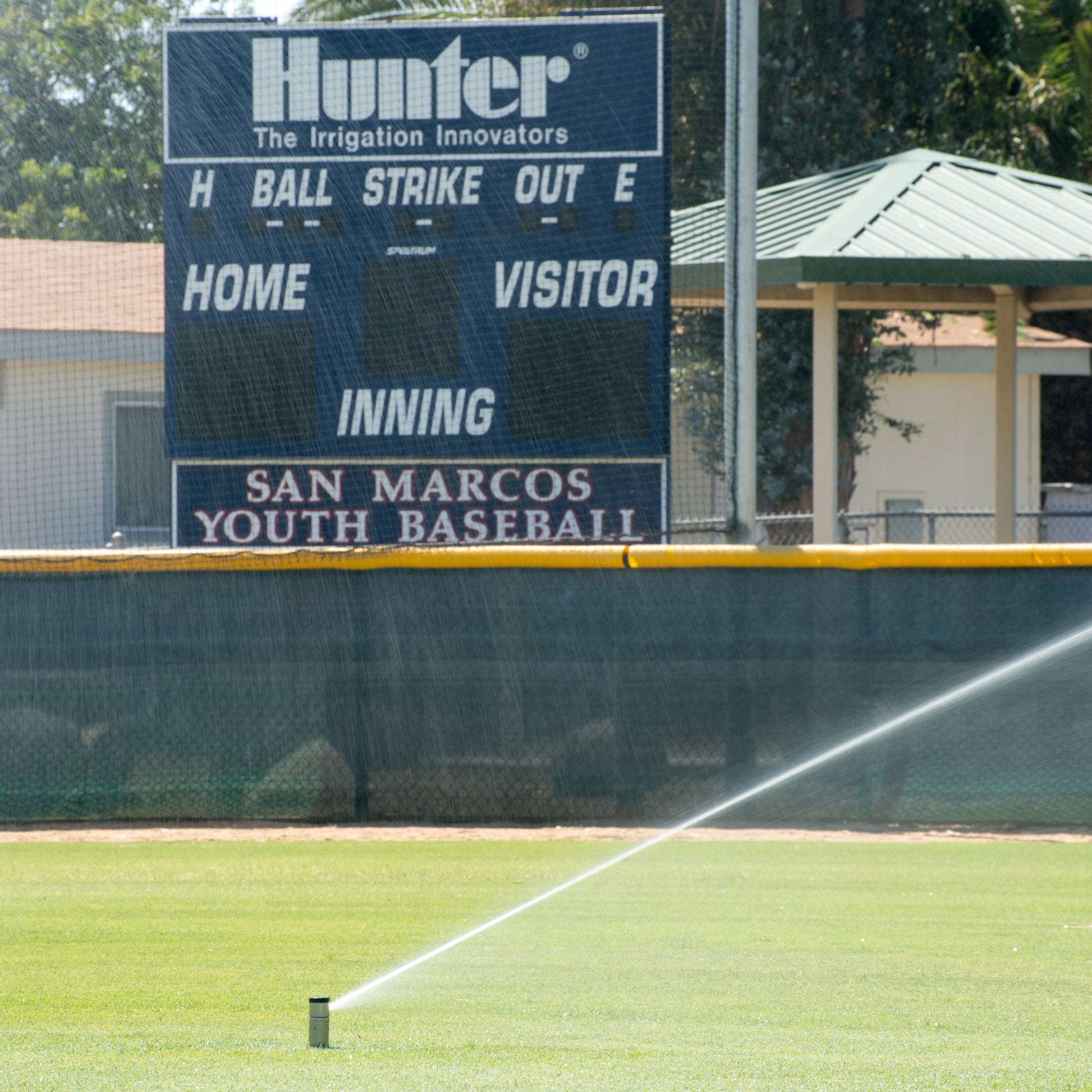

The I-40 is a tough commercial rotor that delivers water with accuracy and efficiency at distances up to 70 feet. Featuring diverse three-port nozzle options, a non-strippable drive, and a thick rubber cover built to prevent injury; it's no wonder this rotor is found in more stadiums than any other in the world. With the strength of stainless steel, the I-40 is built to last in the harshest sports, public park, and commercial environments. If efficiency, effective irrigation, and beautiful results are the goal, the I-40 is the irrigation professional's best solution.
Features
- Stainless steel riser for extra durability
- Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50 to 360 degrees
- Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
- Part- and full-circle in one model for flexibility across landscapes and reduced inventory
- Color-coded nozzles make identification easy
- Drain Check Valve prevents low-head drainage (up to 15' of elevation)
Specifications
- Overall height: 10-1/4"
- Pop-up height: 6"
- Exposed diameter: 2"
- Inlet size: 1"
- Radius: 44' to 69'
- Flow: 7.6 to 29.5 GPM
- Recommended pressure range: 40 to 100 PSI
- Operating pressure range: 40 to 100 PSI
- Precipitation rate: 0.4 in/hr approximately
- Nozzle trajectory: standard = 25 degrees
- Warranty period: 5 years
