ICD Specification Sheet

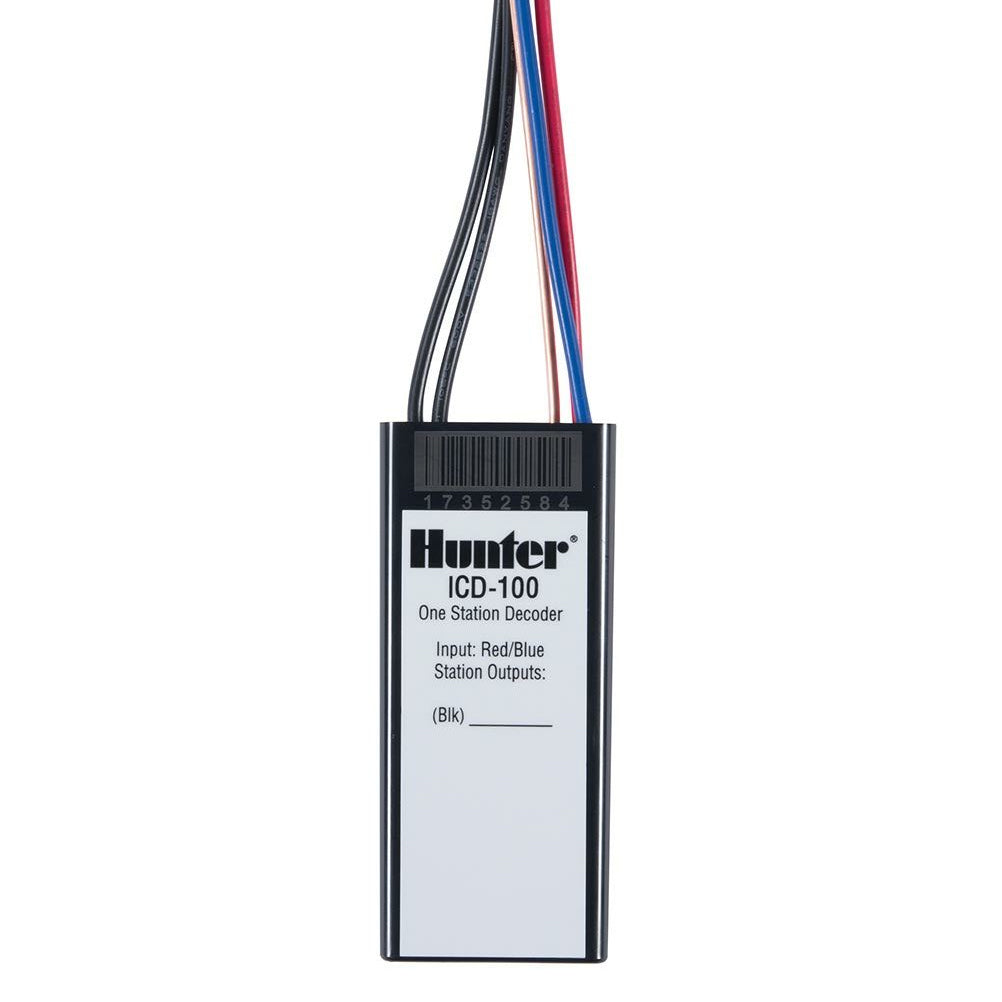

Hunter ICD-100 -  Single Station Decoder with Surge Protection and Ground Wire

Hunter’s premium two-wire decoders for long-distance, high-station-count ACC2 applications include two-way communications and integrated surge protection.

Features

• ICD Decoders are compatible with ACC2 Decoder Controllers and legacy ACC-99D Decoder Controllers
• 1-, 2-, 4-, and 6-station versions provide maximum flexibility
• Sensor decoders allow flow and Clik sensor monitoring via the two-wire paths
• Field-programmable decoders accept station numbers directly, and do not require entering serial numbers into the control panel

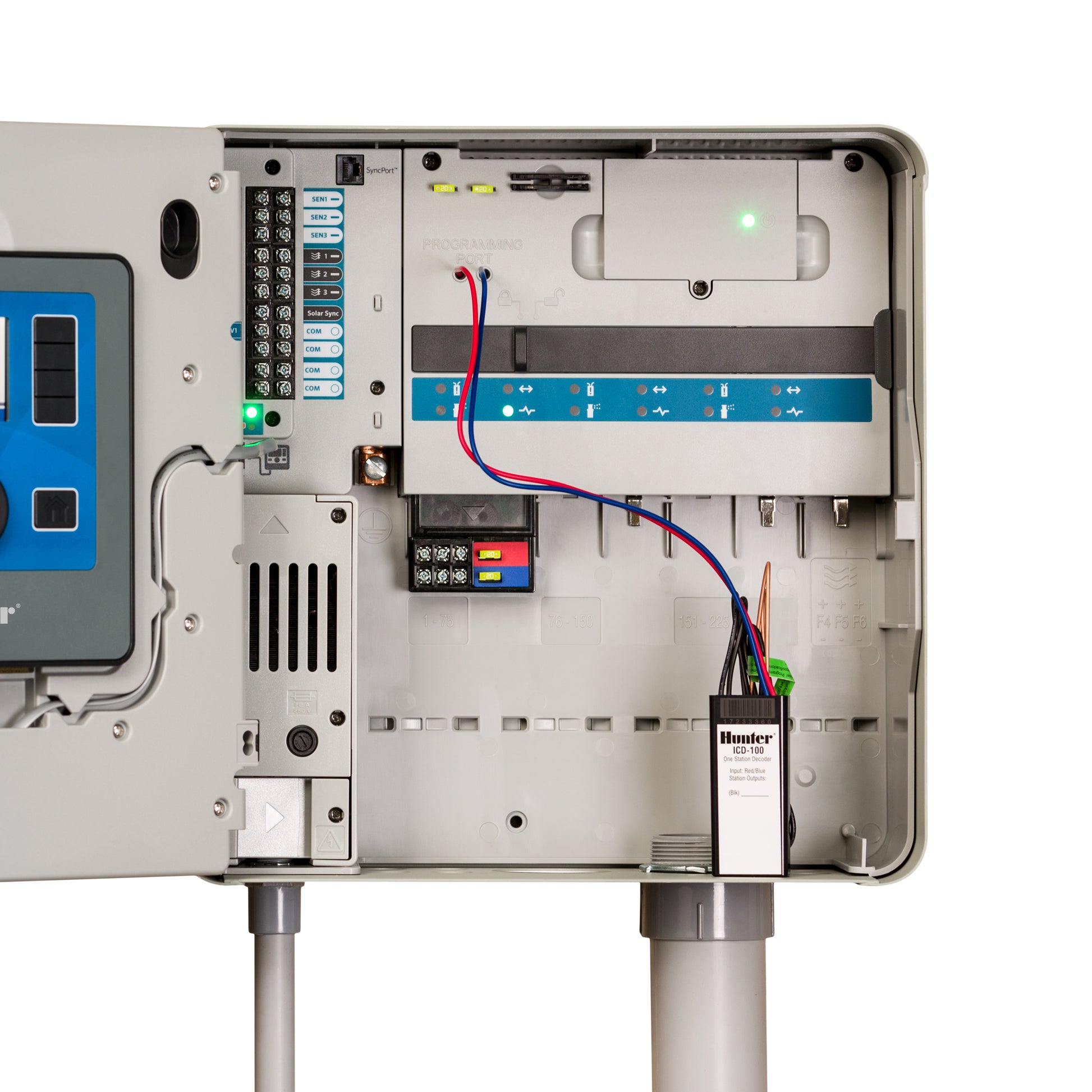

  • Decoders can be programmed before installation at the controller interface
  • Wireless programming with ICD-HP allows for decoder programming or re-programming after installation to the two-wire path
• Integrated surge protection eliminates the need for extra surge protection devices
• Color-coded wiring connections simplify installation
• Industrial-grade DBRY-6 waterproof connectors included for two-wire path splices

Specifications

• Height: 3-1/2"
• Width: 1-1/2"
• Depth: 3/4"
• Maximum recommended distance, decoder to solenoid: 150'
• Maximum distance to decoder via two-wire path:
  • 14 AWG wire path: 10,000'
  • 12 AWG wire path: 15,000'
• Approvals: UL, cUL, FCC, CE, RCM
• Decoder rating: IP68 (submersible)
• Warranty period: 5 years

IEZU101615
