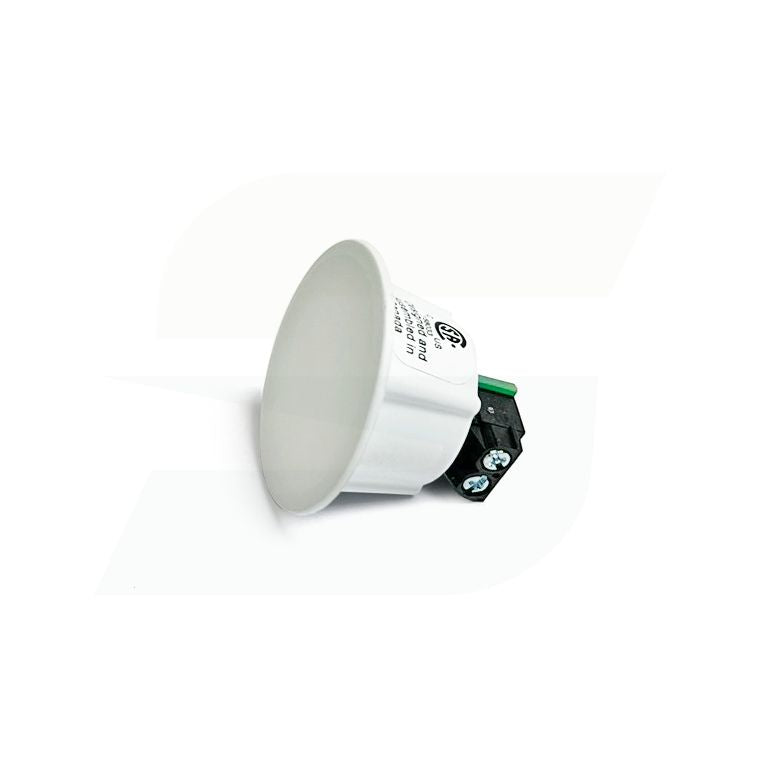

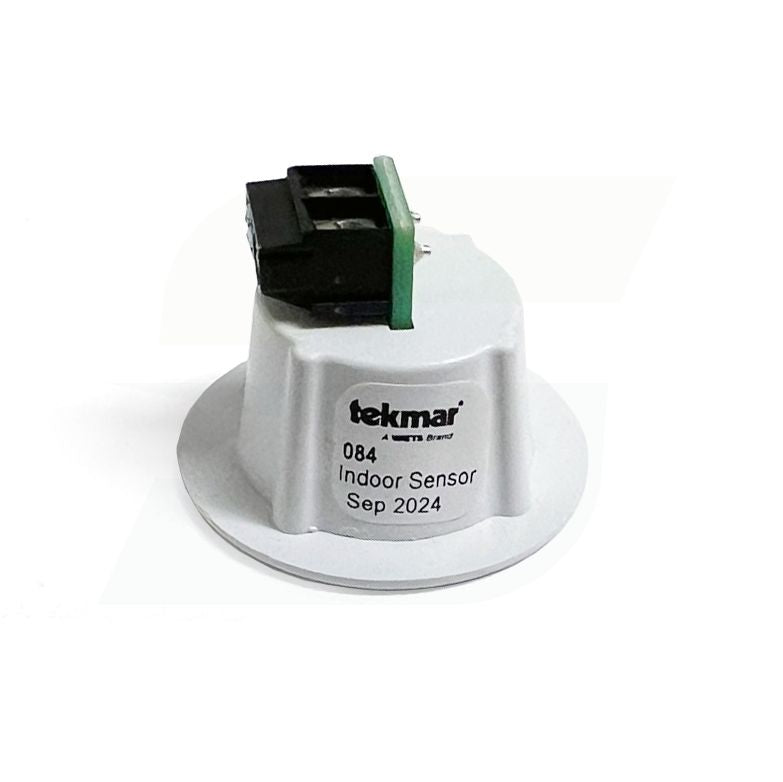

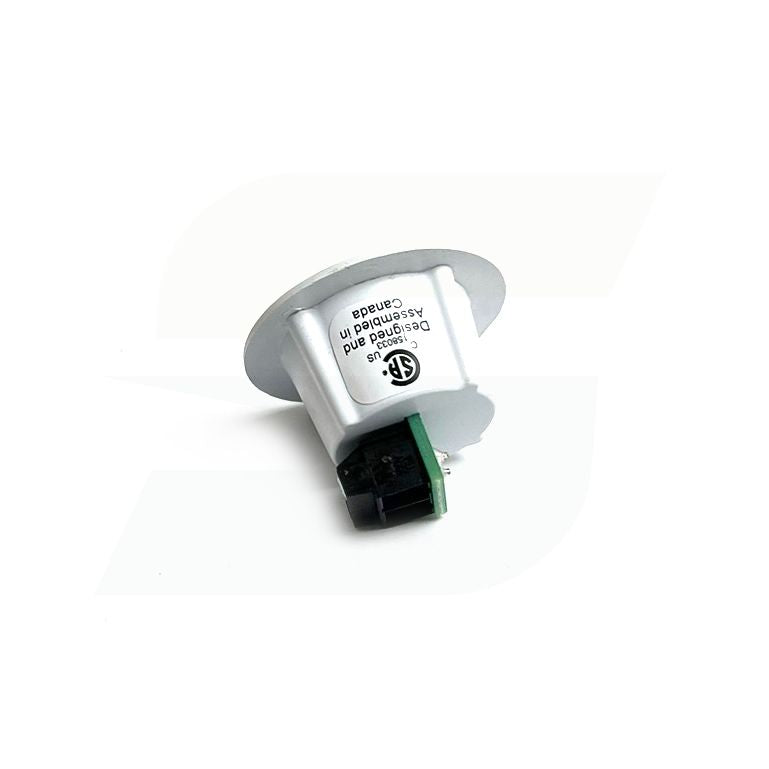

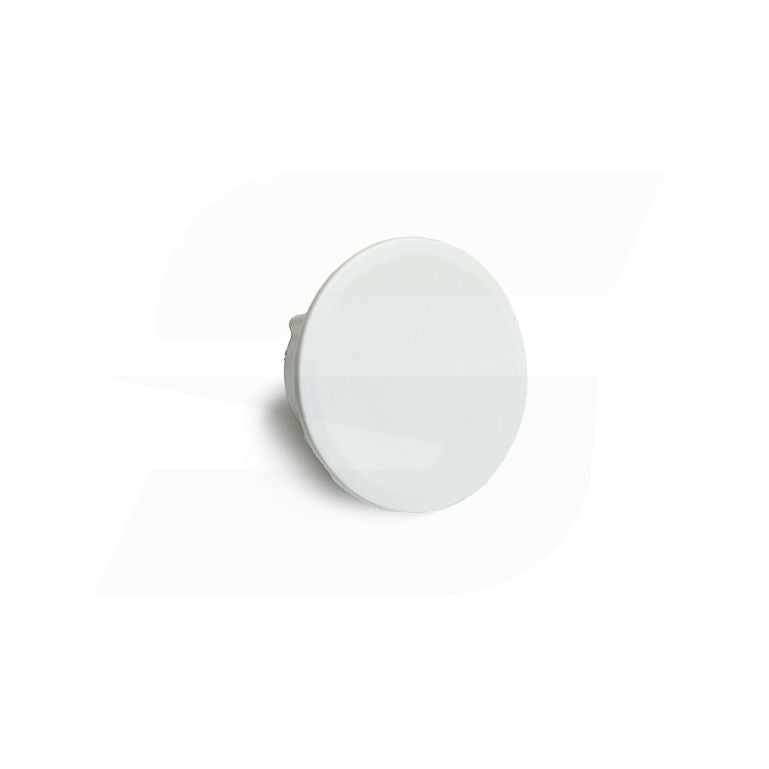

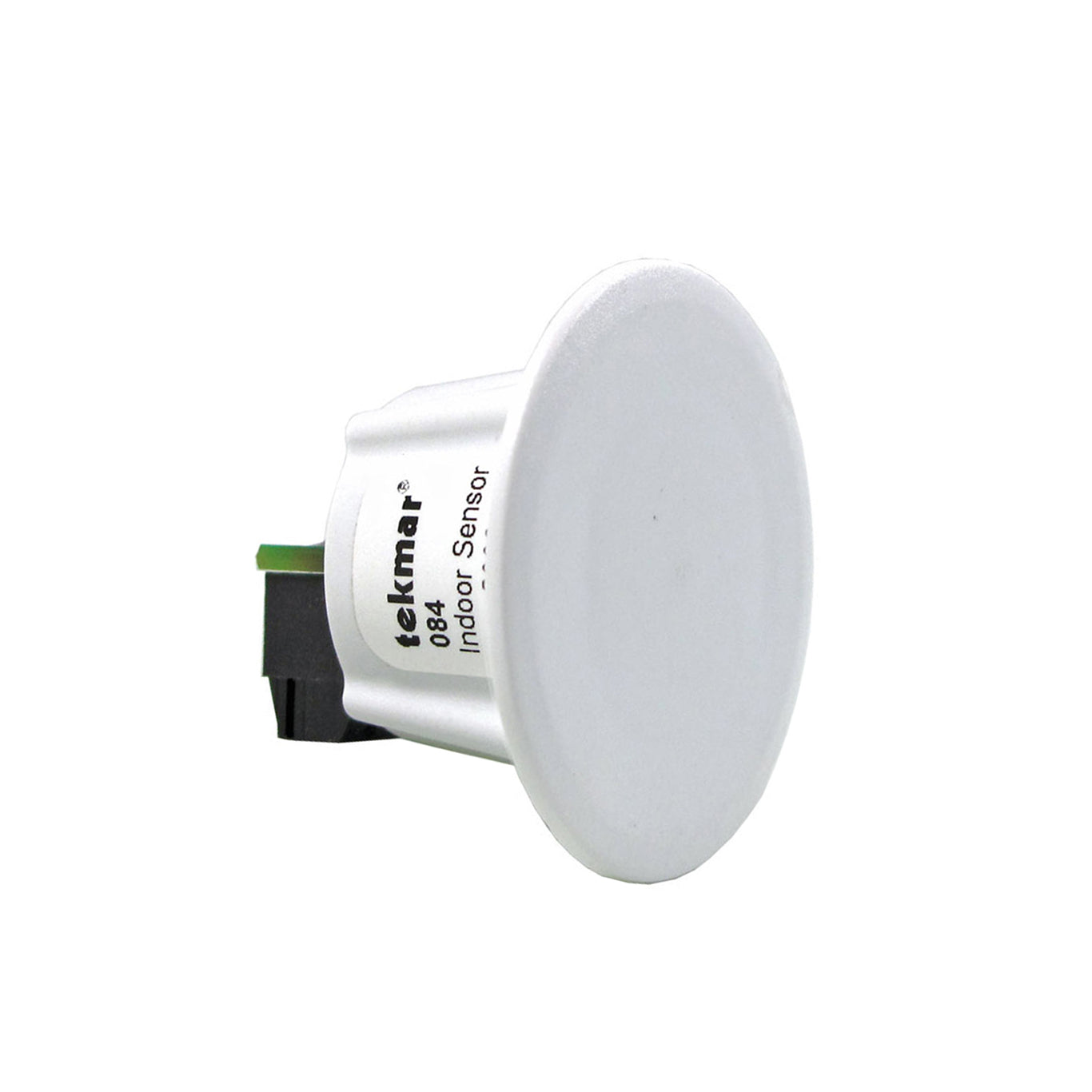

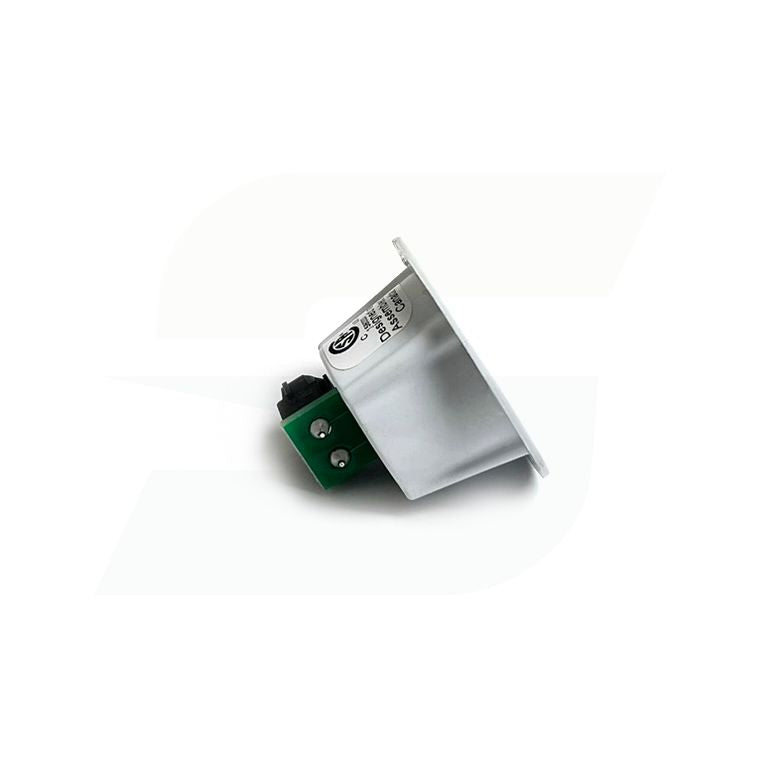

Tekmar 084 - Flush Mount Indoor Sensor

The tekmar Indoor Sensor 084 includes a 10 k thermistor mounted on a white thermoplastic disk to provide an accurate measurement of the indoor temperature. The 084 mounts flush or nearly flush to the wall to give an unobtrusive look to the sensor. Since the sensor material is corrosion resistant, drywall installers are able to mud over the sensor or the 084 can be painted to match the existing wall color. The 084 can be connected to a tekmar thermostat for remote temperature sensing.

Features:

• Compatible with tekmar thermostats that support auxiliary sensors
• 10K thermistor
• Hidden indoor sensing

Specifications:

• Agency Approvals: CSA C US

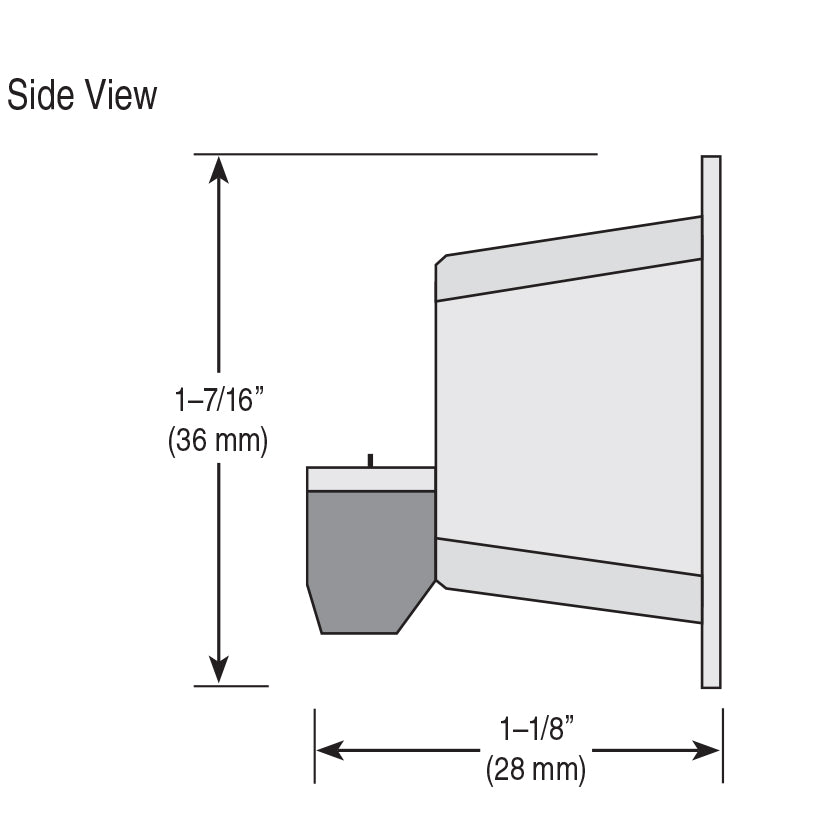

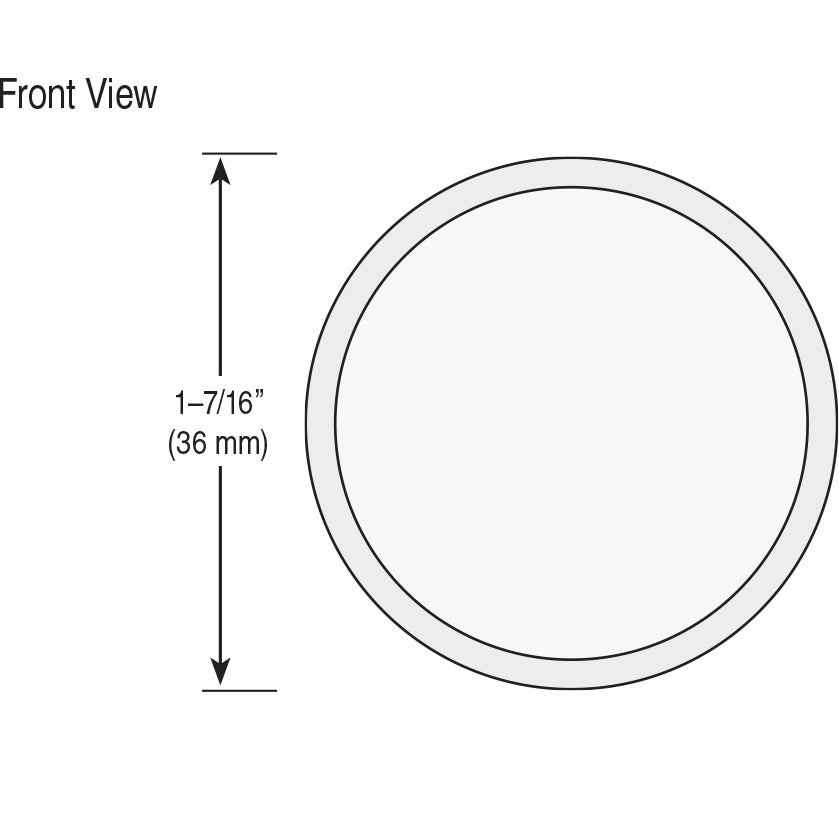

• Dimensions: 1-7/16" OD x 1-1/8" D (36 OD x 28 mm D)
• Enclosure Material: White PC-ABS plastic
• Operating Range: Indoor use only, -60 to 140 degrees F (-51 to 60 degrees C), RH less than 90 percent non-condensing
• Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
