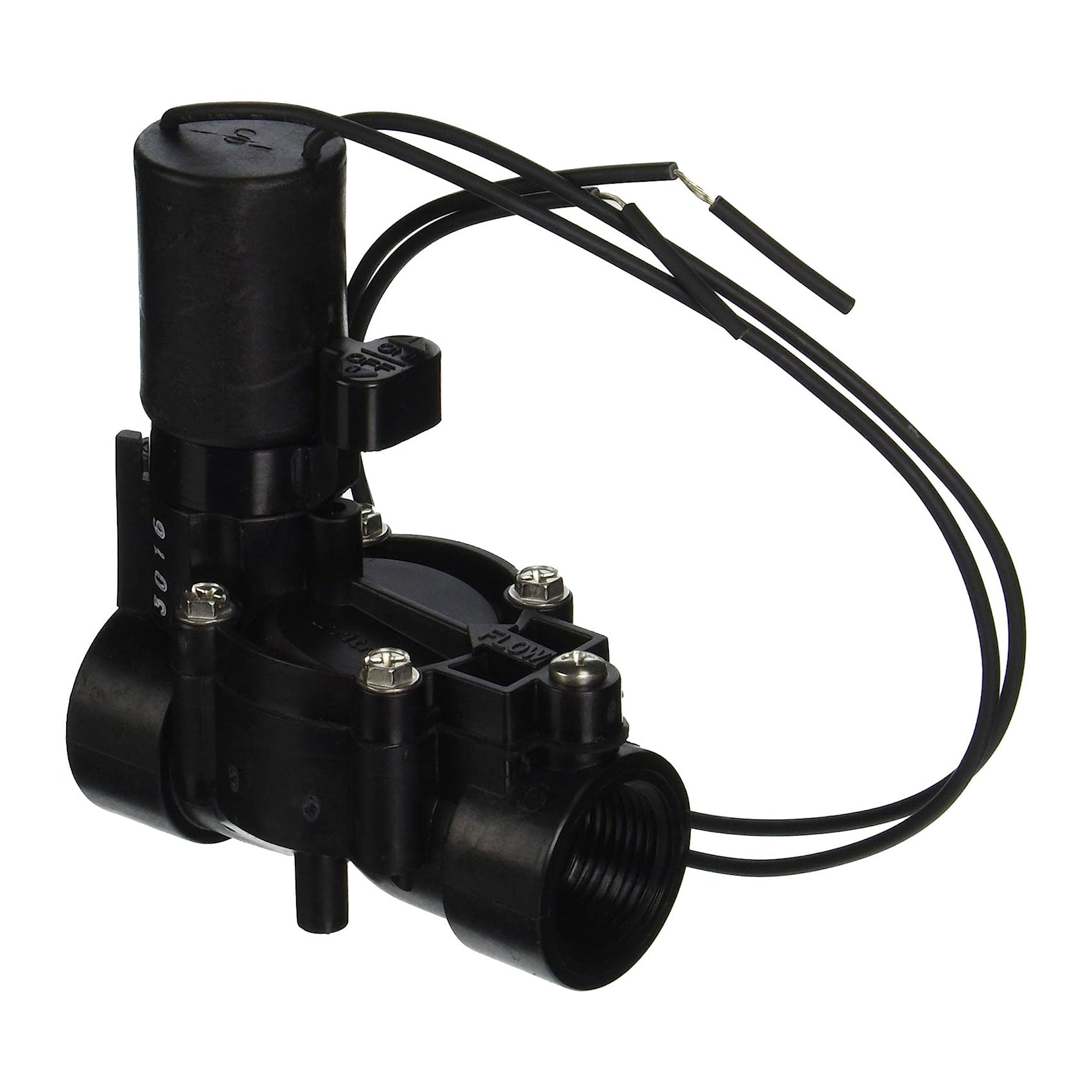

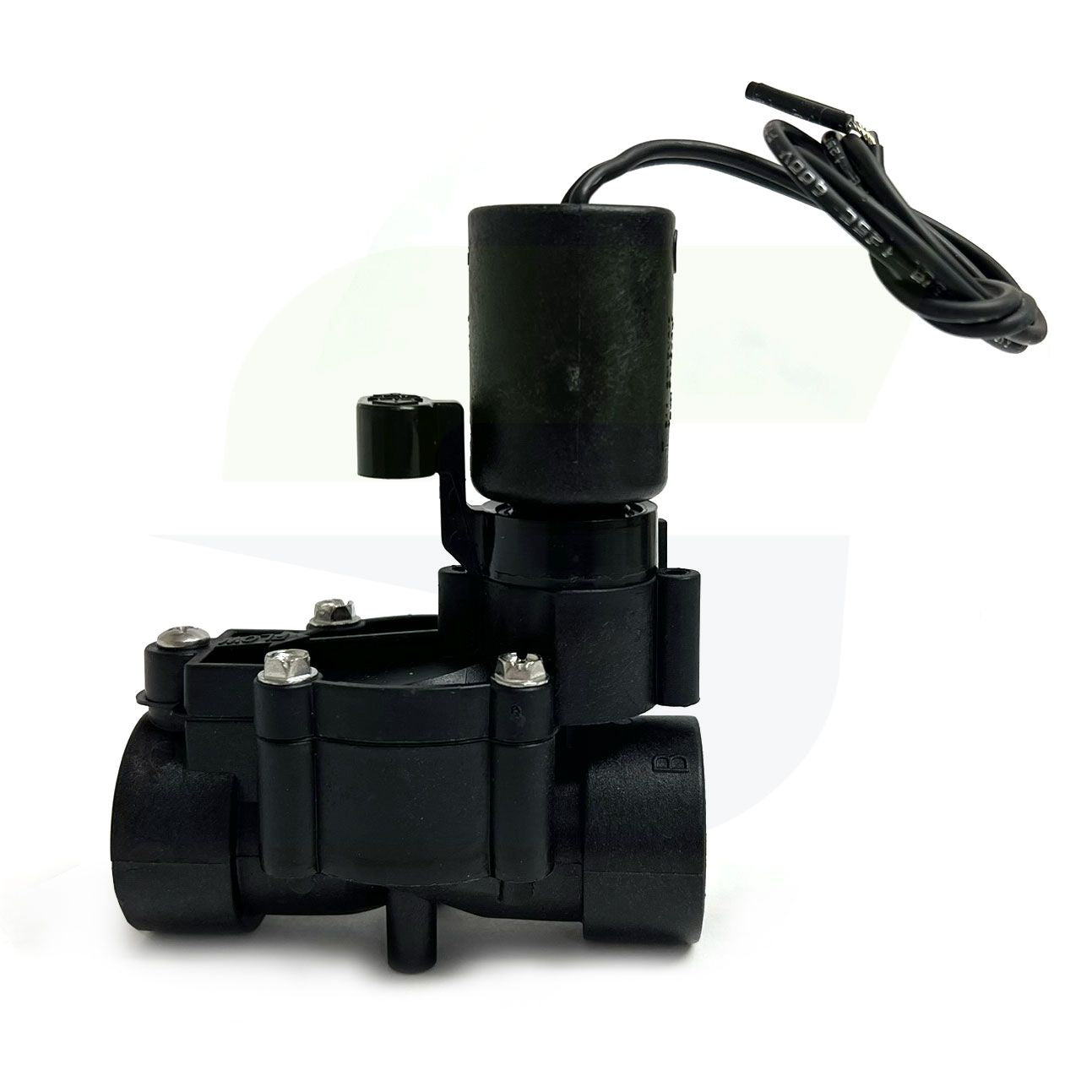

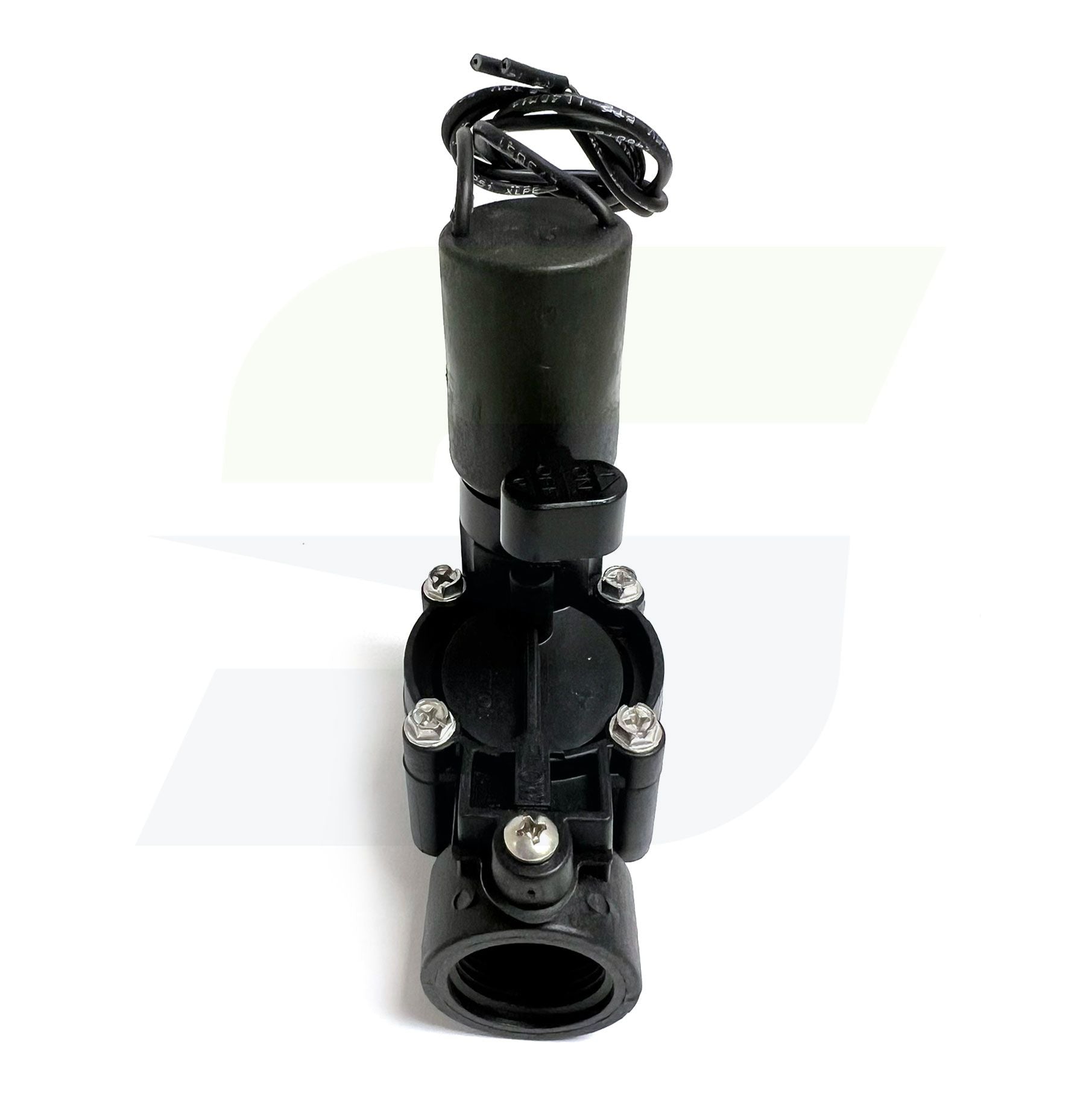

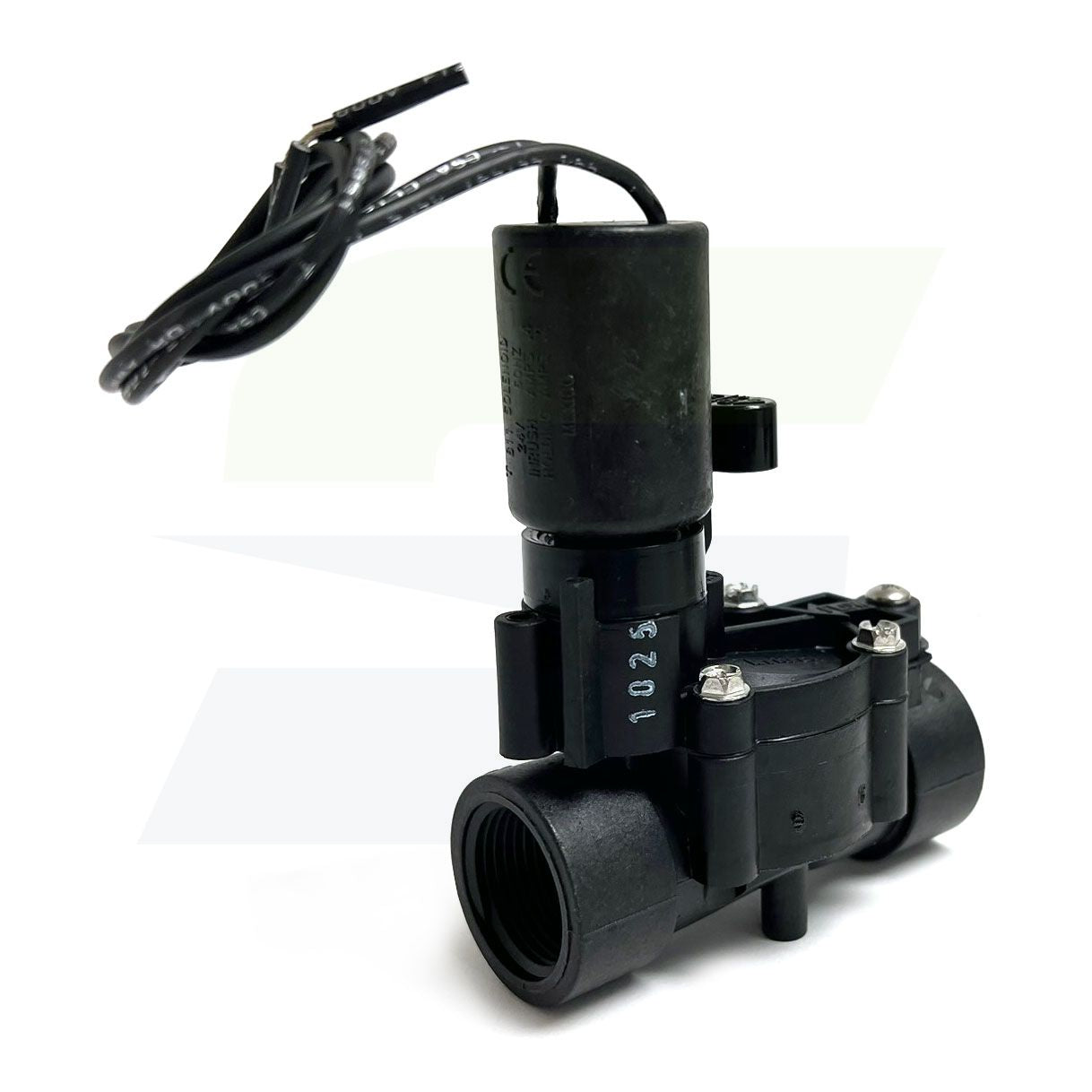

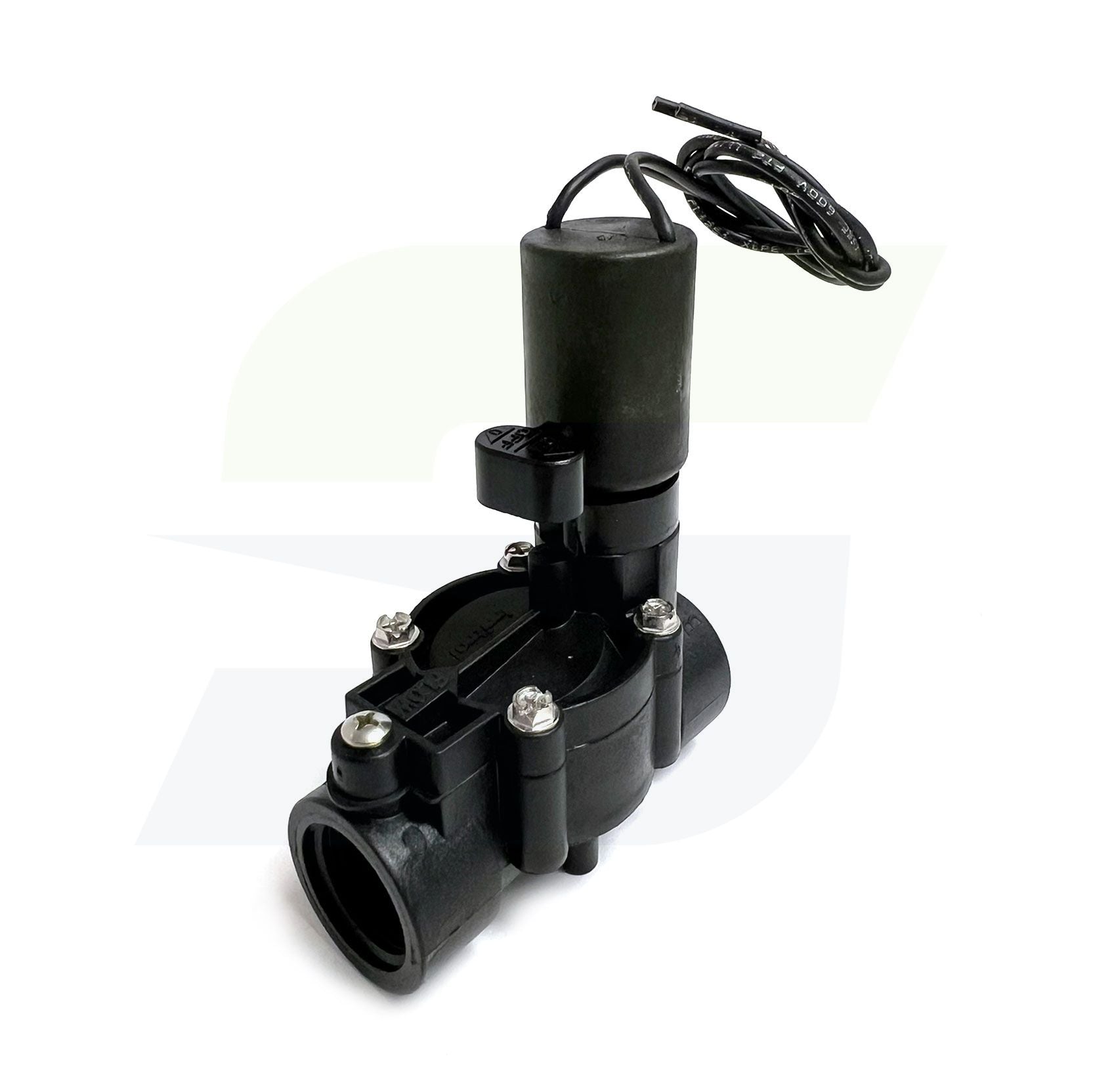

Irritrol 700B-.75 - 3/4" Ultraflow Electric Irrigation Valve - Flow Control - 700 Series
Featuring a straight-through flow path that dramatically reduces pressure loss, Irritrol 700 Series UltraFlow glass-filled nylon valves lead the industry in long-term performance and reliability. With a flow range from .1 to 180 GPM and a self-cleaning, 150-mesh stainless steel filter screen, these unique valves are ideal for a multitude of potable and dirty water applications. A glass-reinforced nylon body and bonnet, stainless steel components and a rugged and ressistant diaphragm maximize classic innovations with an extra dimension of toughness. The 700 Series valve is truly rugged for a reason.
Features:
- Internal and external bleed (flush mode)
- Wide flow range
- Compact, low-profile design
- Rugged nylon-reinforced Buna-N diaphragm provides leak-proof seal
- EPDM seat seal
- Encapsulated injection-molded solenoid with a captive hex plunger
- Unique three-way stainless steel bonnet screws with threaded brass
- inserts accept Phillips, flat-blade and hex-driver tools
- Five-year warranty
Specifications:
- Flow range: .1-180 GPM (700B-.75 & 700-1 can operate at .1 GPM) (700-1.5 no recommended under 254 psi)
- Pressure range: 10-150 psi (700-2 not recommended under 25 psi)
- Solenoid: 24 V ac
- Inrush volt-amp: 24 V ac-9.6 VA
- Inrush current: .4 amp
- Holding volt-amp: 24 V ac-4.8
- 3/4" Threaded connection
Dimensions:
- Height: 4-1/2"
- Width:1-9/10"
- Length: 3-2/5"
